A USB-C-powered desk decoration that spells out BRIANNA in green LEDs. Plug a standard USB-C cable into the south edge and the seven letters light up β no microcontroller, no firmware, no setup. ~700 mA total on a 5 V rail, well within USB-C limits. Designed as an Adom molecule so it fixtures into the standard workcell via four corner machine-contact pins.
For AI handoff: this page is the canonical writeup. If you're an agent picking up this project, everything you need to continue work β circuit decisions, BOM, build commands, file layout, known issues β is on this page. Source lives on the user's container at
/home/adom/project/adom-tsci-projects/Brianna-LED-Nameplate/.
Live 3D viewer
The interactive viewer at the top of this page (or the iframe section
below the brief, depending on template) is the full adom-tsci
3D viewer with the project's actual GLB, circuit.json, and
walkthrough loaded. It auto-plays the Walkthrough Demo on load β
component flyovers, USB-C / CC pulldown / status callouts, and the
Nets HUD x-ray view (substrate goes transparent, selected net glows
through the FR4). Use the toolbar to orbit, zoom, switch to PCB or
Schematic views, or open the Components / Nets HUDs manually. Pass
?autoplay=off to suppress the walkthrough.
How it works
Each letter is rendered as a 3 Γ 5 LED bitmap (about 70 LEDs total),
laid out on a 3 mm grid. The font is a simple 3-wide bitmap embedded
in lib/index.tsx as a FONT const β the renderer walks each
letter's pixels and emits one <led> + one <resistor> per lit
pixel. Every LED has its own 300 Ξ© current-limiting resistor in
series, sized to drive a green LED at ~10 mA from the 5 V USB rail.
The resistors live in the inter-row gap below each LED to keep the
front face of the board clean and readable.
The seven letters themselves are the power indicator β when they're glowing, the board has 5 V; when they're dark, it doesn't. There is no separate status LED.
Hardware summary
| Block | Part | JLCPCB | Notes |
|---|---|---|---|
| LEDs | green 0603 (~70 ea.) | β | one per lit pixel of the BRIANNA bitmap; Vf β 2.1 V |
| Resistors | 300 Ξ© 0402 (~70 ea.) | β | one per LED, sets ~10 mA current |
| USB-C receptacle | TYPE-C-31-M-12 | C165948 | south edge, mouth cantilevered off the board |
| CC pulldowns | 5.1 kΞ© 0402 Γ2 | β | makes the cable identify the board as a downstream device |
| Bulk decoupling | 10 Β΅F 0805 Γ1 | β | smooths inrush as 70 LEDs light up together |
| Workcell pins | 4 Γ machine contact at corners | β | Adom standard 4-pin molecule fixturing |
Mechanical
- Board: 100 Γ 38 mm, FR4, 2-layer
- USB-C: south edge, mouth points down (cable plugs in from below the board so the LEDs face the user)
- Workcell-ready: four corner machine-contact pins so the board fixtures cleanly on the Adom assembly cell
- Top silkscreen: "BRIANNA NAMEPLATE" caption above the LED letters, "5V IN β" arrow next to the USB-C receptacle, MC1βMC4 corner labels
- Bottom silkscreen (extensive β board is meant to explain itself when flipped over): "HOW TO POWER IT" 4-step list, "HOW IT WORKS" description, "BILL OF MATERIALS" listing every component family, "HOW IT WAS BUILT" credit to tscircuit + adom-tsci, "WORKCELL FIXTURING" pin info, "IF A LED GOES DARK" repair notes, safety warnings, footer with the wiki URL and Apple-style provenance line Designed by Adom in Fort Worth, Texas.
Source layout
adom-tsci-projects/Brianna-LED-Nameplate/
lib/
index.tsx β board source β FONT bitmap, layout, traces
UsbCReceptacle.tsx β TYPE-C-31-M-12 wrapper with rotation-aware cadModel
package.json β @tsci/<author>.Brianna-LED-Nameplate, deps
tscircuit.config.json β entrypoint config
tsconfig.json β TS config, jsx=react-jsx
walkthrough.json β Walkthrough Demo steps (manual, do_not_edit_by_hand)
dist/lib/index/ β build output (gitignored)
circuit.json β canonical circuit data
3d.glb β GLB with 1024-px texture (default tsci build)
pcb.svg, pcb.png β layout renders
schematic.svg β schematic
.npmrc β @tsci registry pointer
Build commands
# From the project directory:
cd adom-tsci-projects/Brianna-LED-Nameplate
# 1. Install deps (only needed once, or after package.json changes)
bun install
# 2. Build β produces dist/lib/index/{circuit.json, 3d.glb, pcb.svg, schematic.svg}
bunx tsci build lib/index.tsx --glbs --svgs --3d-png --pcb-png
# 3. Preview interactively (Hydrogen webview):
adom-tsci start . --port 8861 --tsci-port 3061 --texture-resolution 4096
# 4. Publish updated viewer to this wiki page:
adom-tsci export-wiki . \
--slug brianna-led-nameplate \
--page-type molecules \
--label "Live 3D viewer"
# Optional flags:
# --rebuild force `bunx tsci build` first (slow on dense boards)
# --texture-resolution N rebake board surface at NΓN (4096 typical)
# --no-upload produce the .tar.gz only, skip the wiki upload
Color options
Currently rendered in green. Other colors that work with the same circuit (just swap the LED part and adjust the resistor for the new Vf):
| Color | LED Vf | Suggested R @ 10 mA |
|---|---|---|
| Red | ~2.0 V | 300 Ξ© |
| Yellow | ~2.1 V | 300 Ξ© |
| Green (current) | ~2.1 V | 300 Ξ© |
| Pink (e.g. XL-1608PIC-04) | ~3.0 V | 200 Ξ© |
| Blue | ~3.2 V | 180 Ξ© |
| White | ~3.0 V | 200 Ξ© |
To change color: edit LED_COLOR and R_VALUE constants at the top
of lib/index.tsx, rebuild, re-export.
How to power it (when Brianna receives it in the mail)
- Grab any USB-C cable β phone charger, laptop, USB-C wall wart.
- Plug one end into the south edge of the board.
- Plug the other end into a 5 V USB-C source.
- BRIANNA lights up green.
Same instructions are silkscreened on the bottom of the board, in case the package gets separated from the docs.
Known issues / lessons learned
- Each net is a 2-port LEDβresistor pair. The board declares
<net name="VBUS"/>and<net name="GND"/>in JSX, but the autorouter splits each LED's connection into its own pcb_trace so the Nets HUD lists 75 tiny nets instead of one mega-rail. The Nets-HUD auto-glow x-ray still works (substrate goes transparent, picks the largest net), but the highlighted segment is short. For a more dramatic glow effect, an explicit unified rail would help β unfilled feature request. - Courtyard overlaps: the autorouter complains about LED+R courtyards overlapping at the 3 mm pixel pitch. This is cosmetic; the build still produces valid Gerbers. If it becomes a fab issue, bump pitch to 3.5 mm and shift R to (LED_x Β± 1.5 mm).
- Via-spacing DRC warnings: a few via-pairs come out at <0.3 mm net-to-net spacing. Within most fab DRC; verify before a real fab run.
Build provenance
@tsci/<author>.Brianna-LED-Nameplateβ built with adom-tsci, Adom's tscircuit board viewer.- Walkthrough authored manually in
walkthrough.json(the auto-generator overwrites it; the file's_meta.do_not_edit_by_handflag is intentionally false to preserve the hand-edited steps). - 3D viewer bundle exported to this page via
adom-tsci export-wiki(CLI v1.3.90+).
Files attached to this page
Source β recreate the molecule:
- plan.md β the original design brief, refinements, and out-of-scope notes
- brianna-led-nameplate-source.tar.gz β full tscircuit project source:
lib/,package.json,tscircuit.config.json,tsconfig.json,walkthrough.json,.npmrc,plan.md. Untar andbun install && bunx tsci buildto recreate the GLB, PCB, and schematic from the same source the viewer above is showing.
Build outputs:

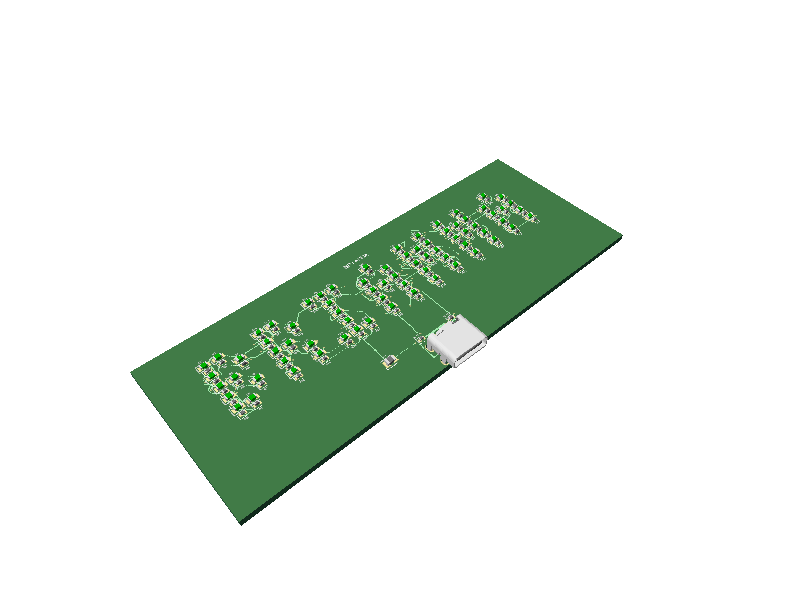

- 3d.glb β full 3D model with 4096-px baked board surface
- pcb.svg β flat PCB layout (vector)

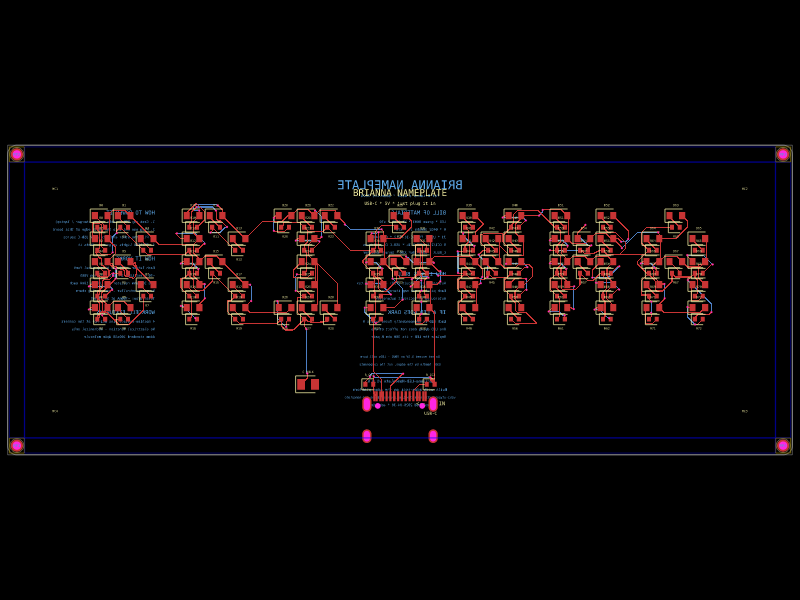

- pcb.png β flat PCB layout (raster)
- schematic.svg β circuit diagram
- brianna-demo.mp4 β 30-second narrated demo (early version, recorded before the wiki-embed flow shipped)
Designed by Adom in Fort Worth, Texas.
