adom-tsci

An Adom app that gives you first-class 3D / PCB / Schematic tabs for a tscircuit project inside a Hydrogen webview panel, plus a one-click Re-run autorouter button, a background stale-deps check against the npm registry, and a secondary tsci live tab (the raw tscircuit RunFrame, served through a slingshot proxy) for features the primary UI hasn't wrapped.

⚡ CLI-FIRST — non-negotiable

If an adom-tsci preview is running (or you're about to start one), every interaction goes through the adom-tsci CLI. Do not reach for adom-cli hydrogen workspace add-tab, raw curl to the slingshot, fetch('/api/...') inside a shell, or any other workaround. The CLI has a subcommand for every runtime concern — including multi-instance tab management, JS eval inside the webview, console tailing, camera control, per-component visibility, and autorouter rerun.

The reflex: when you think "I need to touch the running preview", run adom-tsci --help first and find the subcommand. If the CLI doesn't expose it, that's a bug in the tool, not a reason to hand-roll bash — stop and extend the CLI instead. (If you need to ship a temporary workaround, leave a TODO: CLI gap — add <flag> breadcrumb in the skill so the gap gets closed.)

Quick-reference table — the subcommand you want is probably here:

Every write-mutation targeting the preview has --port <N> if you need to target a specific instance; defaults to 8850.

No Adom Viewer dependency (v0.3.0+)

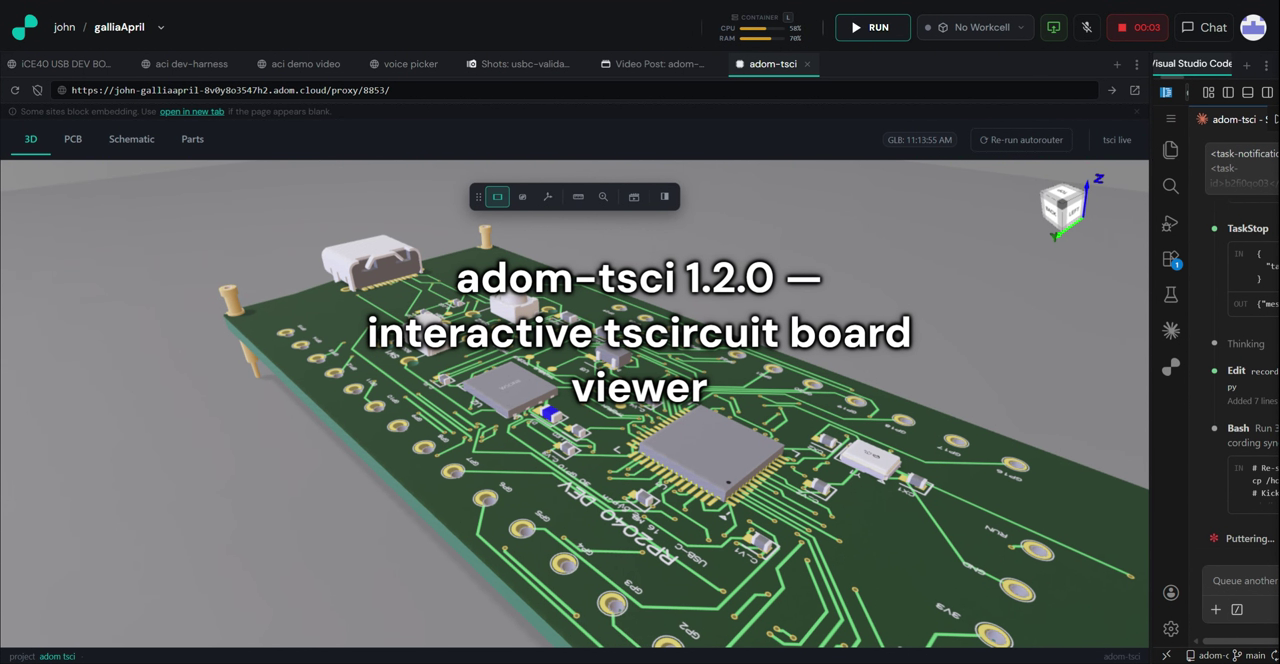

As of v0.3.0, the 3D tab is a self-contained three.js canvas — no external service, no port 8770 probe, no "AV not reachable" states. The old Basic3dView iframe and the av_bridge module were removed. The 3D view is fully AI-drivable from the CLI: every toolbar button has a subcommand, plus there's a JS eval channel for hot-patching and a console forwarder so Claude can read UI-side errors. See the "Remote-control from the CLI" section below.

What's new in v0.4.x

Everything below is in the v0.4.0 / v0.4.1 binary that's on the wiki right now:

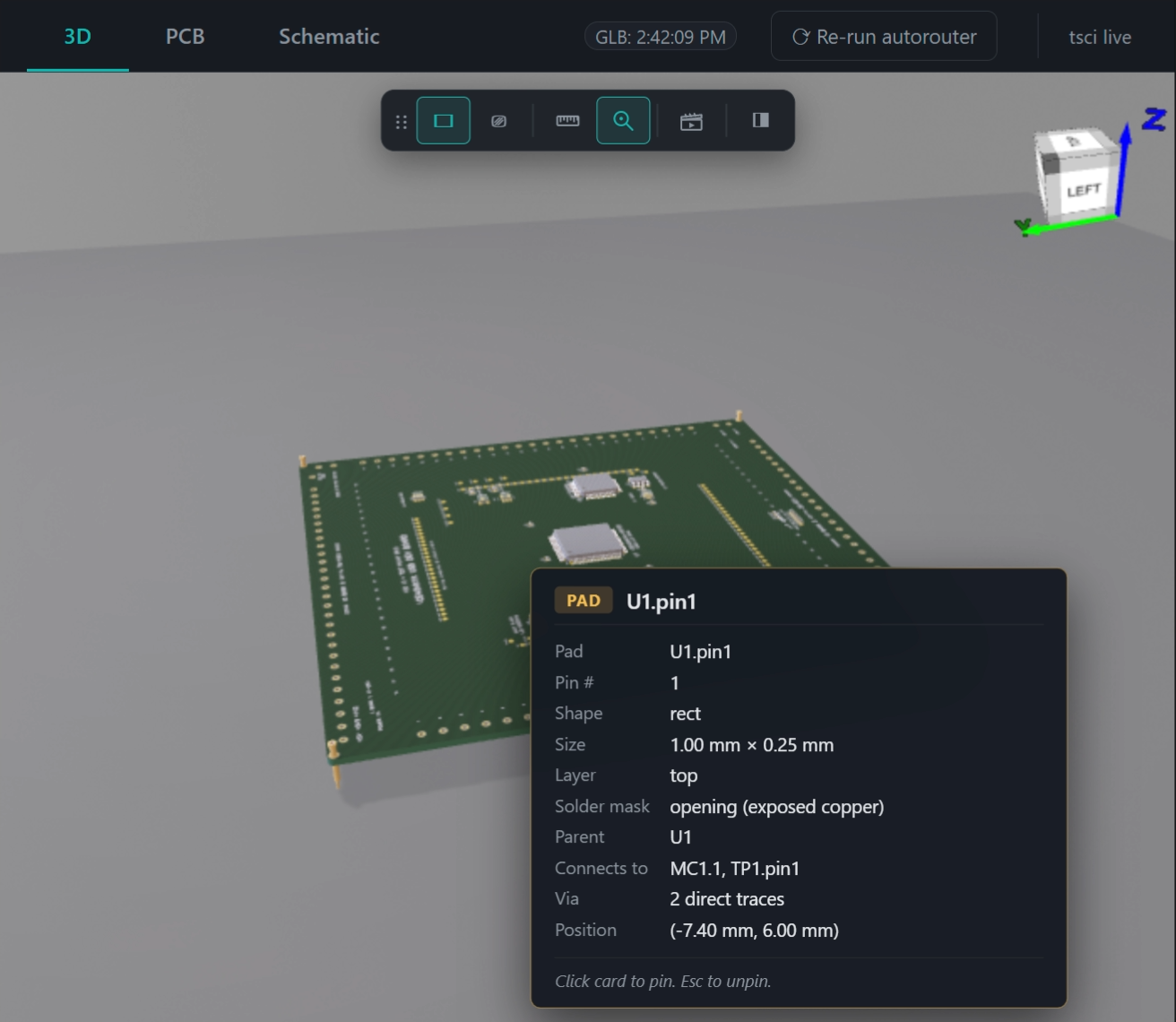

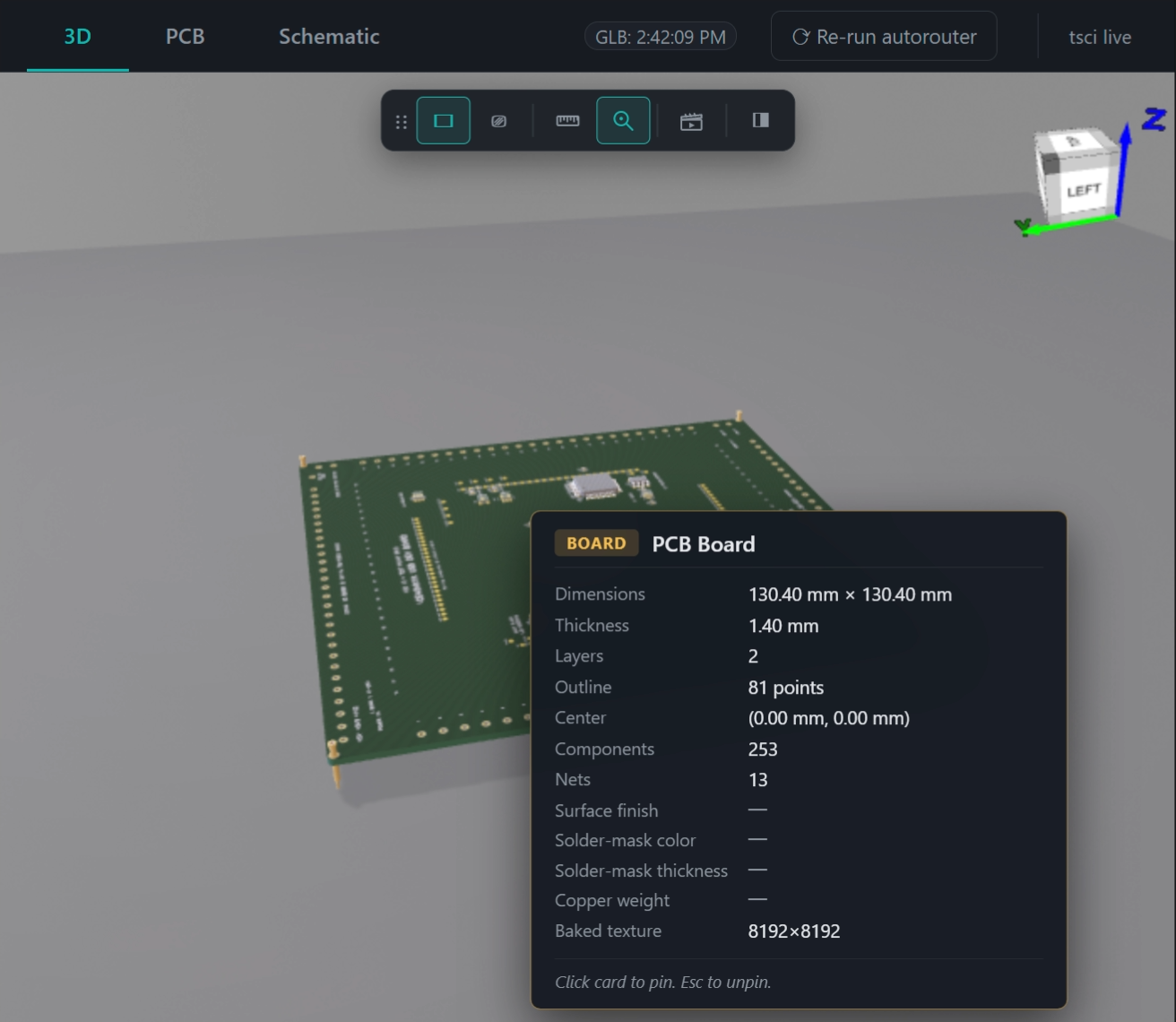

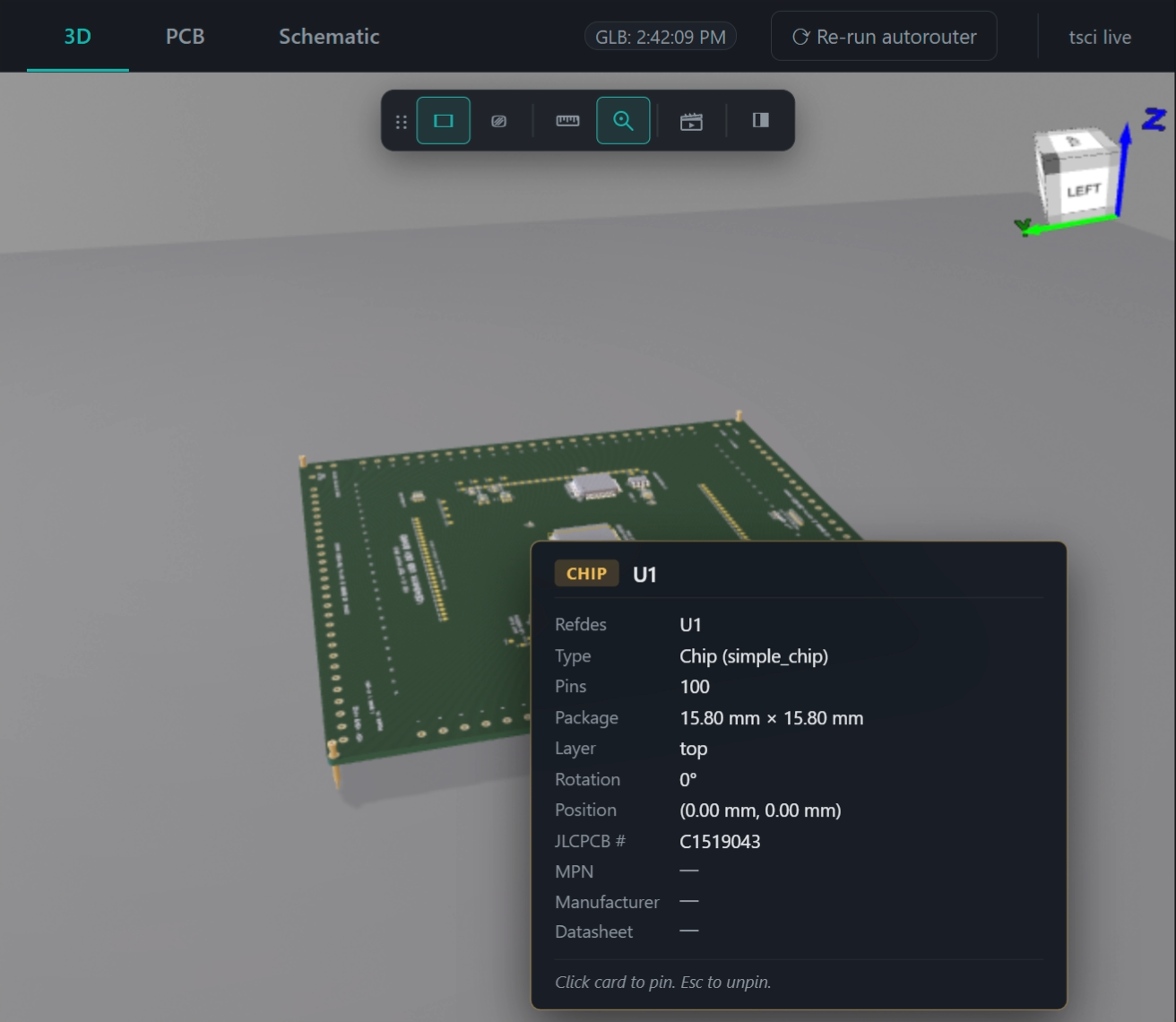

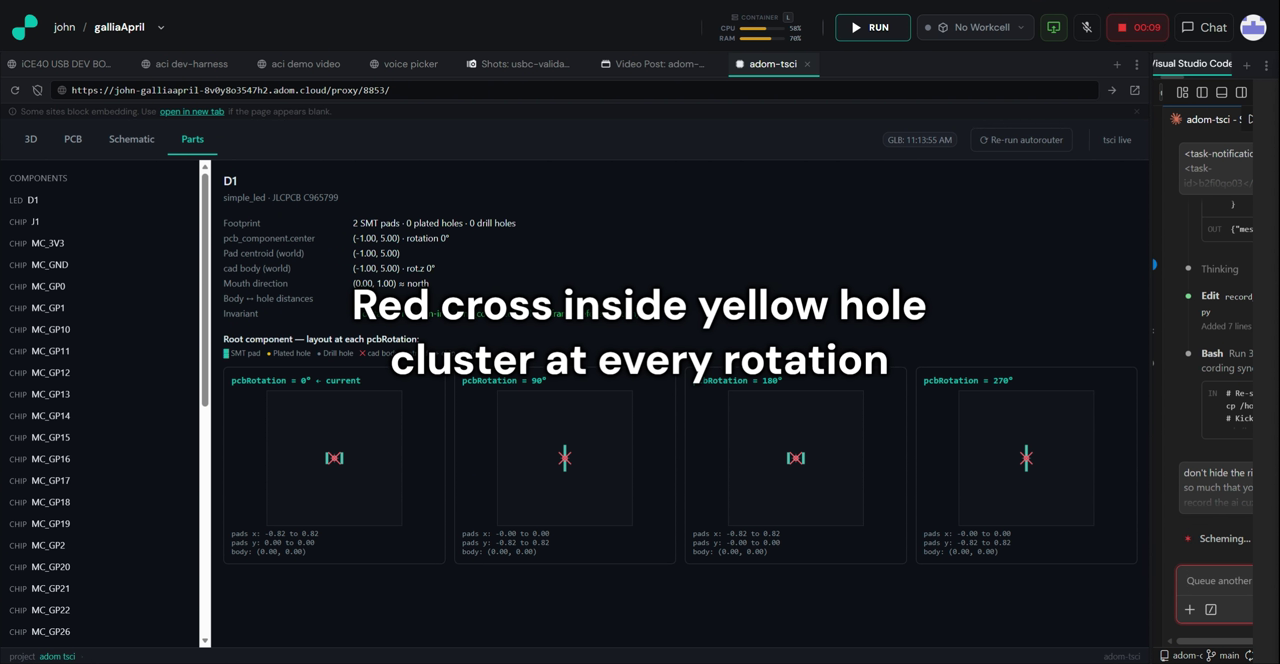

• Inspect tool (🔍 / keybind I). Hover any feature on the board for a labelled info card: chip refdes + footprint + pin count + JLCPCB part #; pad → pin name + net + "Connects to MC1.pin1, TP1.pin1" via N direct traces + solder-mask state; plated hole → drill/outer diameters + role (mechanical-only vs wired); via → drill/pad/bridged layers/net; silkscreen → text + layer + parent; board → dims + thickness + layer count + baked texture resolution. Click to pin, Esc unpins. Fields tscircuit doesn't emit today (MPN, datasheet, surface finish) render as — with a tooltip explaining and linking to upstream feature requests filed in TSCIRCUIT_FEATURE_REQUESTS.md.
• Measure tool (📏 / keybind M). Fusion 360-style smart picking (pad / hole / chip / pin / edge), precision + secondary units (mm / inches / mils), vertex snap. Hover highlights in cyan; Inspect uses amber so you can tell them apart.

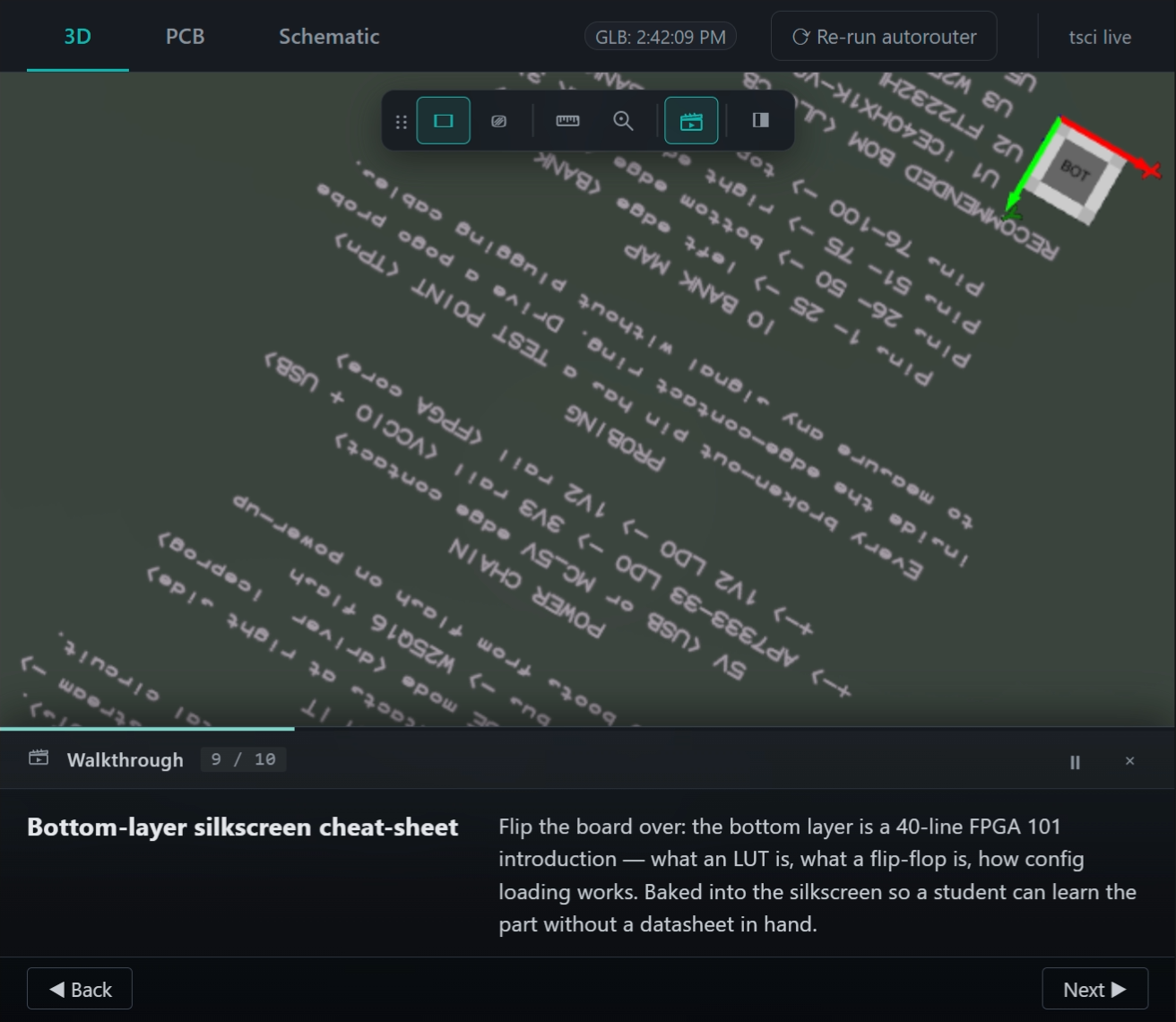

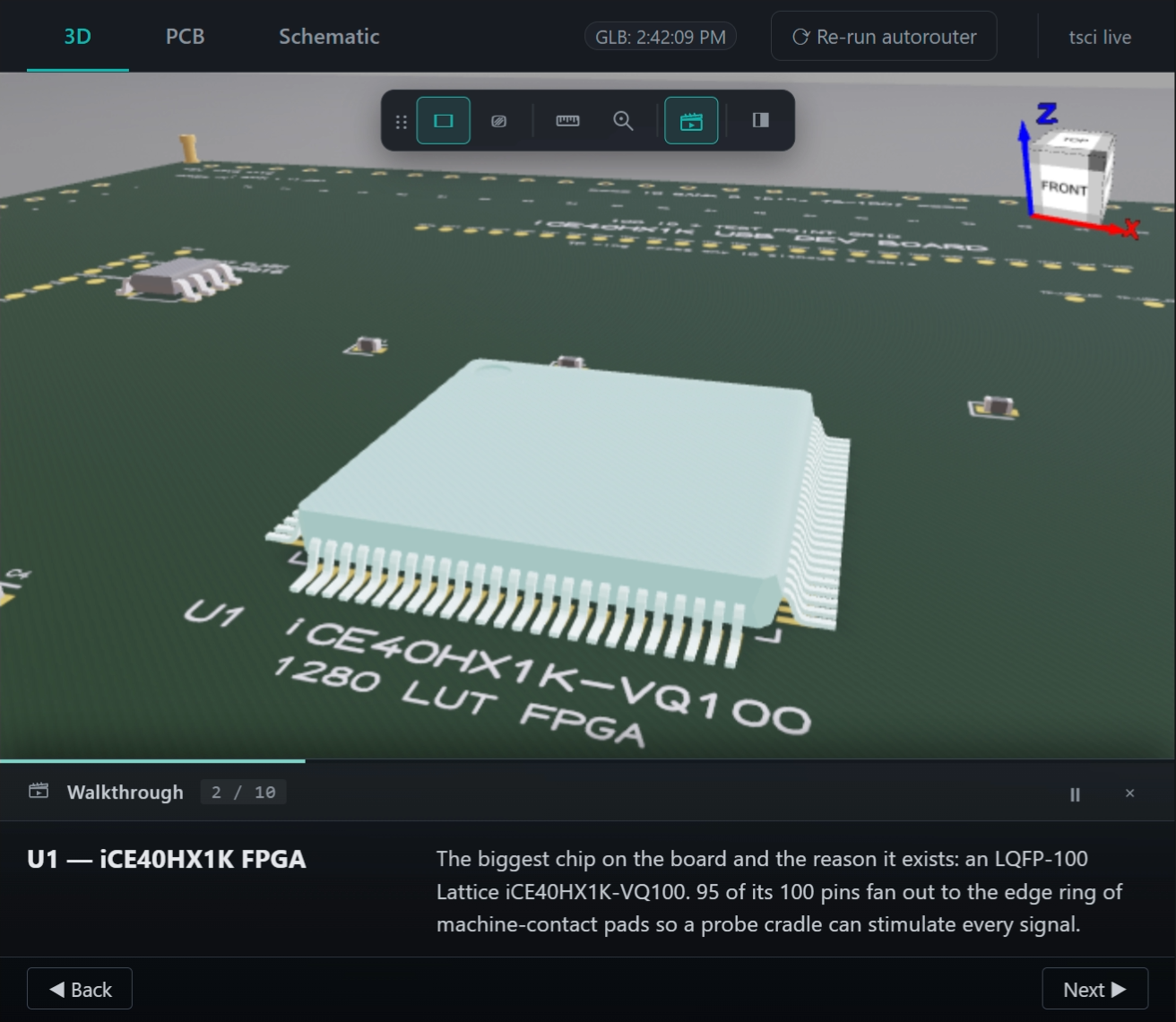

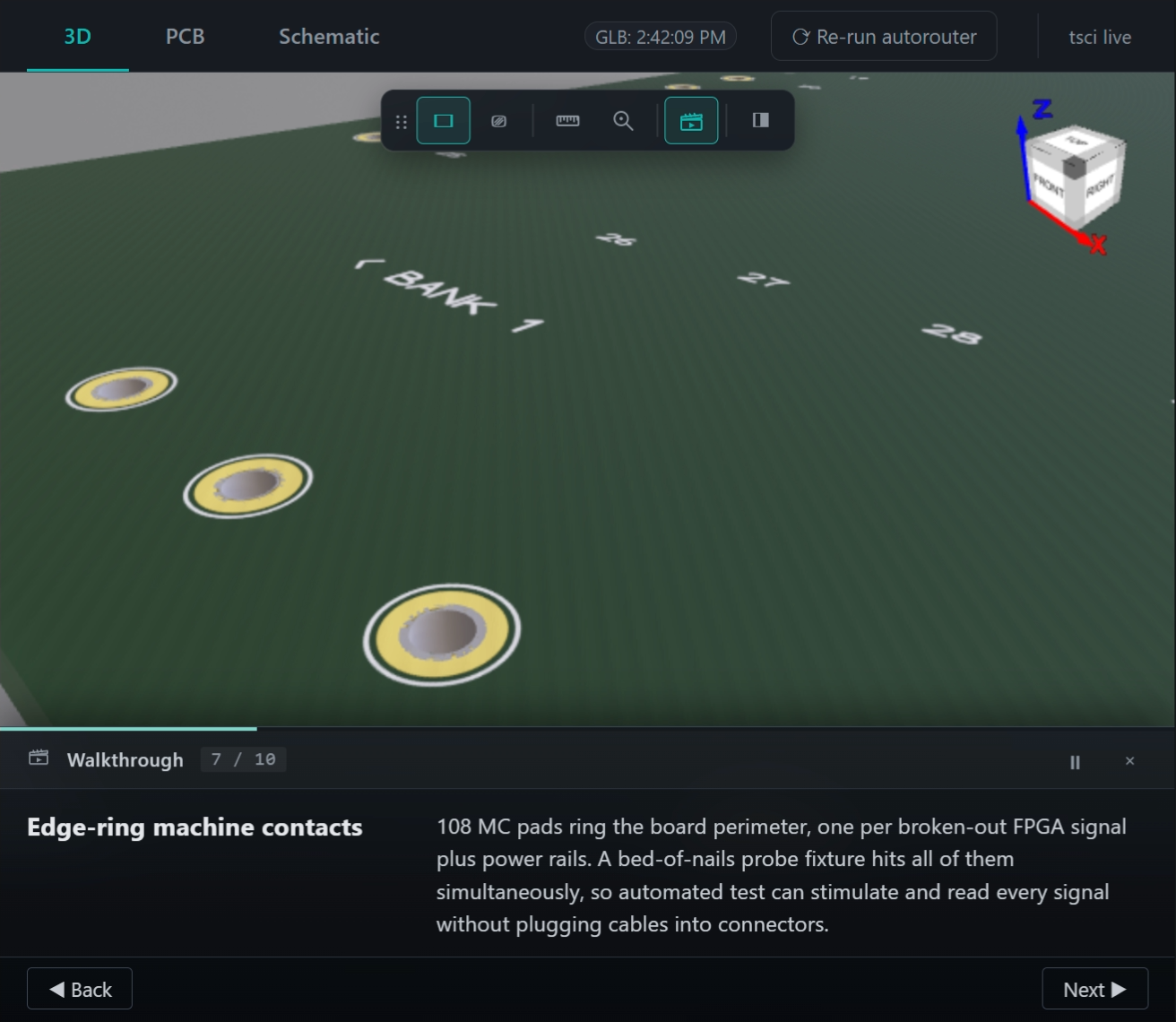

• Walkthrough Demo (🎬). A narrated 10-step tour. Auto-advances based on narration text length; orbit auto-pauses; 3D flyover animations on the contact-ring + testpoint steps (6 waypoints per step, ease-in-out, so the camera visibly scans instead of staring). CLI drivable: adom-tsci walkthrough start | next | prev | pause | resume | close | status.
• Board-surface texture resolution — tscircuit bakes silkscreen + copper pads + annular rings + solder mask into a single PNG per board face, hardcoded at 1024. On big boards that's unreadable at zoom. adom-tsci start --texture-resolution 8192 re-bakes the GLB via circuit-json-to-gltf and caches by circuit.json content hash (first bake ~75s; cache hit ~190ms). Current resolution is shown on the "Board Surface → Baked" row of the Components HUD.

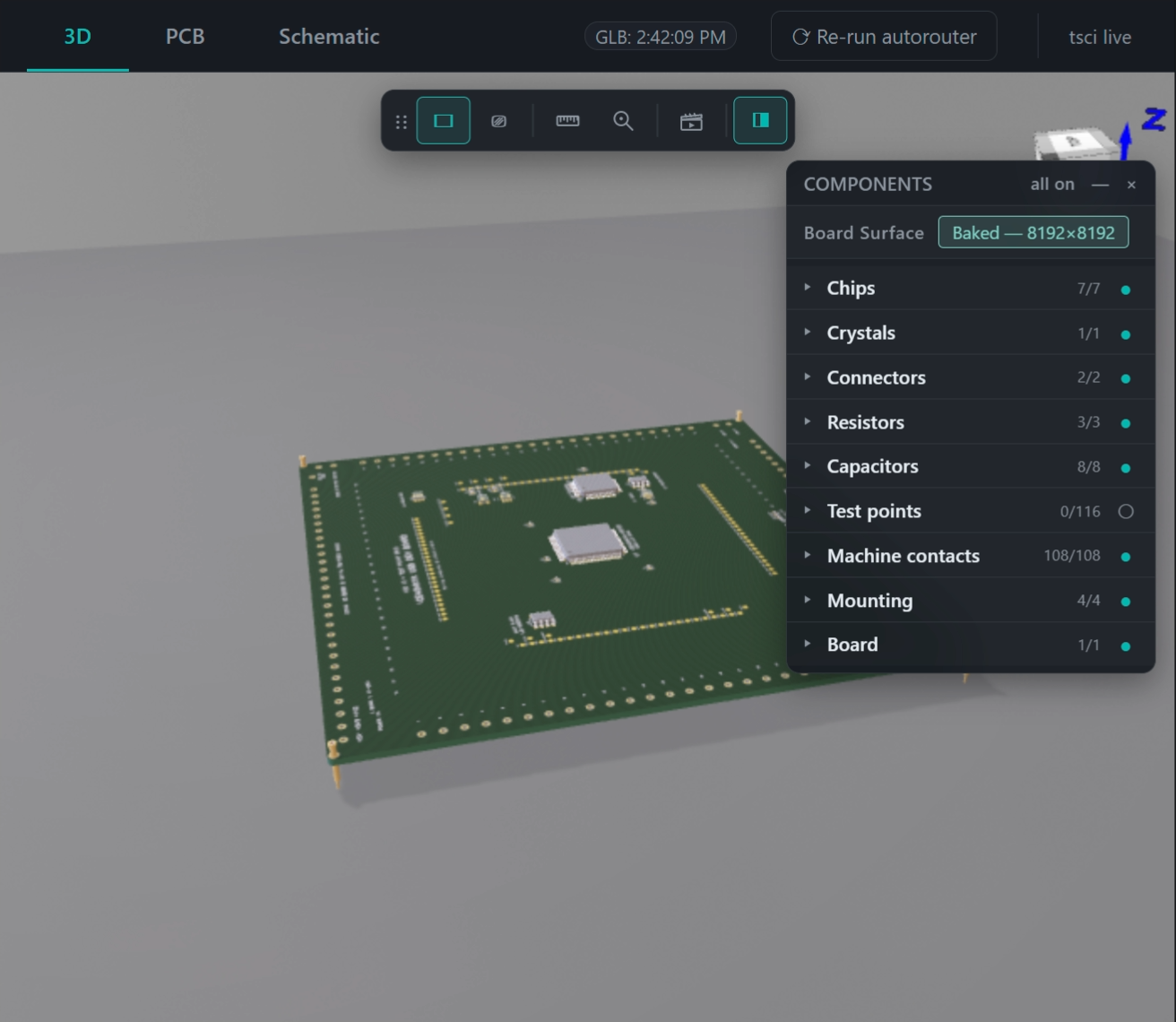

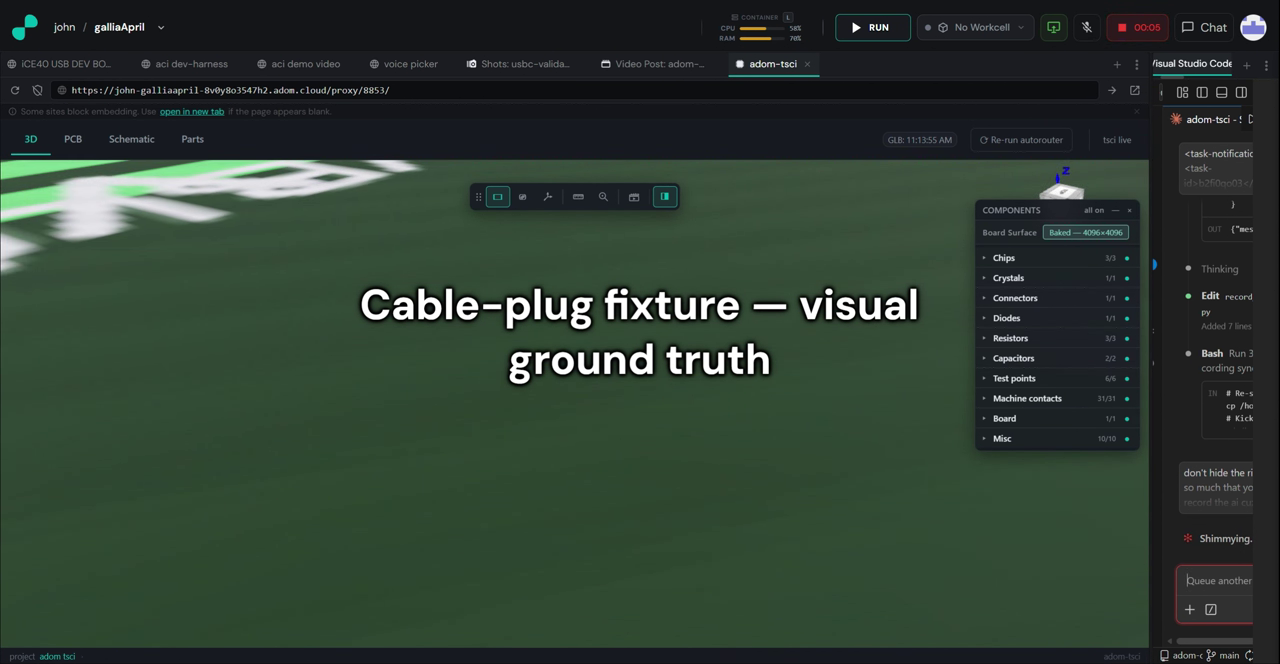

• Components HUD group toggles. Master eye per group (●/○/◐). Test points are hidden by default — tscircuit's default cuboid placeholders add noise without detail; toggle them on when needed.
• Custom monochrome SVG toolbar icons per the Adom brand rule — no emoji anywhere. Ruler with ticks for Measure, magnifier with a data-point for Inspect, clapperboard with play arrow for Walkthrough.
• Robust shutdown + PID lock (v0.4.1). adom-tsci start scans /proc for stale bun tsci dev processes from prior runs and SIGTERM+SIGKILL them before spawning. Atomic PID lock at /tmp/adom-tsci-<port>.pid refuses to double-start on the same port. Fixes the "15 orphan tsci devs from 15 crashed restarts" situation that used to compound.

Keyboard shortcuts

Shortcuts only fire when the 3D tab is active and no input field is focused.

Credit to Ray

This app is an onboarding layer over Ray's authoritative tscircuit workflow guide at ~/.claude/skills/adom/guides/adom-tscircuit-skill.md (author: ray, 22 kB). Everything this tool does with tscircuit — the <Molecule> component, MachineContactMedium placement rules, the sizing grid, the DRC notes, the bunx tsci build --glbs --svgs flags, the project skeleton, the SN65HVD230 reference — traces back to Ray's guide. If you're building more than a single-chip molecule (connector families, molecule generators, review servers, DRC tooling), go read Ray's guide. This app doesn't replace any of it; it just makes the "show me what I'm building" step trivial.

Quick start

# One-time install
curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/adom-tsci/adom-tsci \
    -o /usr/local/bin/adom-tsci && \
  chmod +x /usr/local/bin/adom-tsci && \
  adom-tsci install

# From any tscircuit project directory:
adom-tsci start .
# …open the adom-tsci tab in your editor, edit lib/index.tsx,
#    click Re-run autorouter when you want fresh outputs,
#    stop with:
adom-tsci stop

The UI

┌──────────────────────────────────────────────────────────────────────────┐
│ [3D*]  [PCB]  [Schematic]   GLB: 8:56:56 AM   ⟳ Re-run autorouter  │
│                                                ─────   tsci live    │
├────┬─────────────────────────────────────────────────┬───────────────────┤
│ ⌂  │                                                 │  COMPONENTS       │
│ T  │                                                 │   U1    CHIP      │
│ F  │               (three.js canvas —                │   U2    CHIP      │
│ R  │            self-contained, no AV)               │   C1    CAPACITOR │
│ I  │                                                 │   Y1    CRYSTAL   │
│ ⎚  │                                                 │   TP1   TESTPOINT │
│ ▭  │                                                 │   ...             │
└────┴─────────────────────────────────────────────────┴───────────────────┘

Primary tabs (first-class, big, prominent):

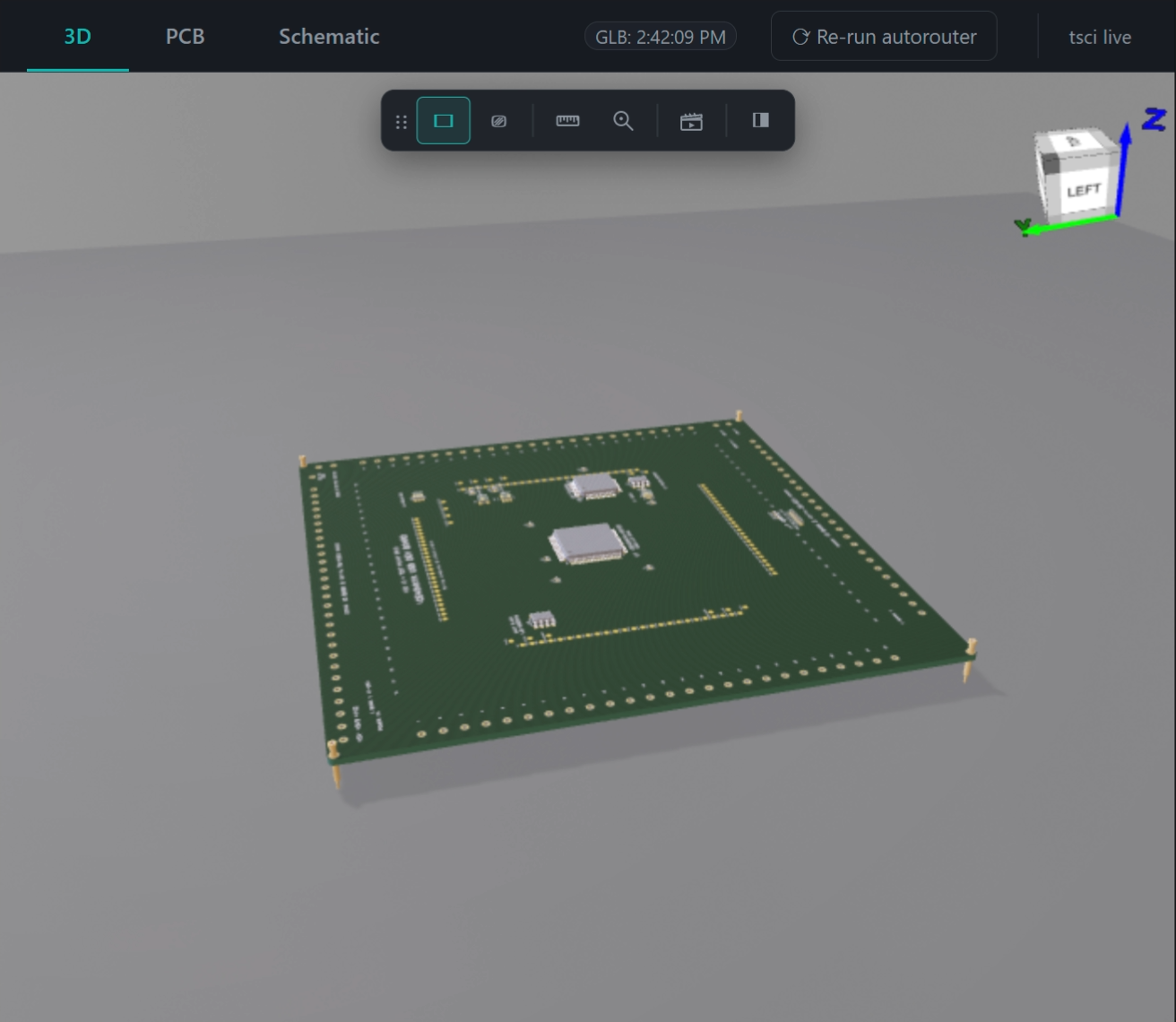

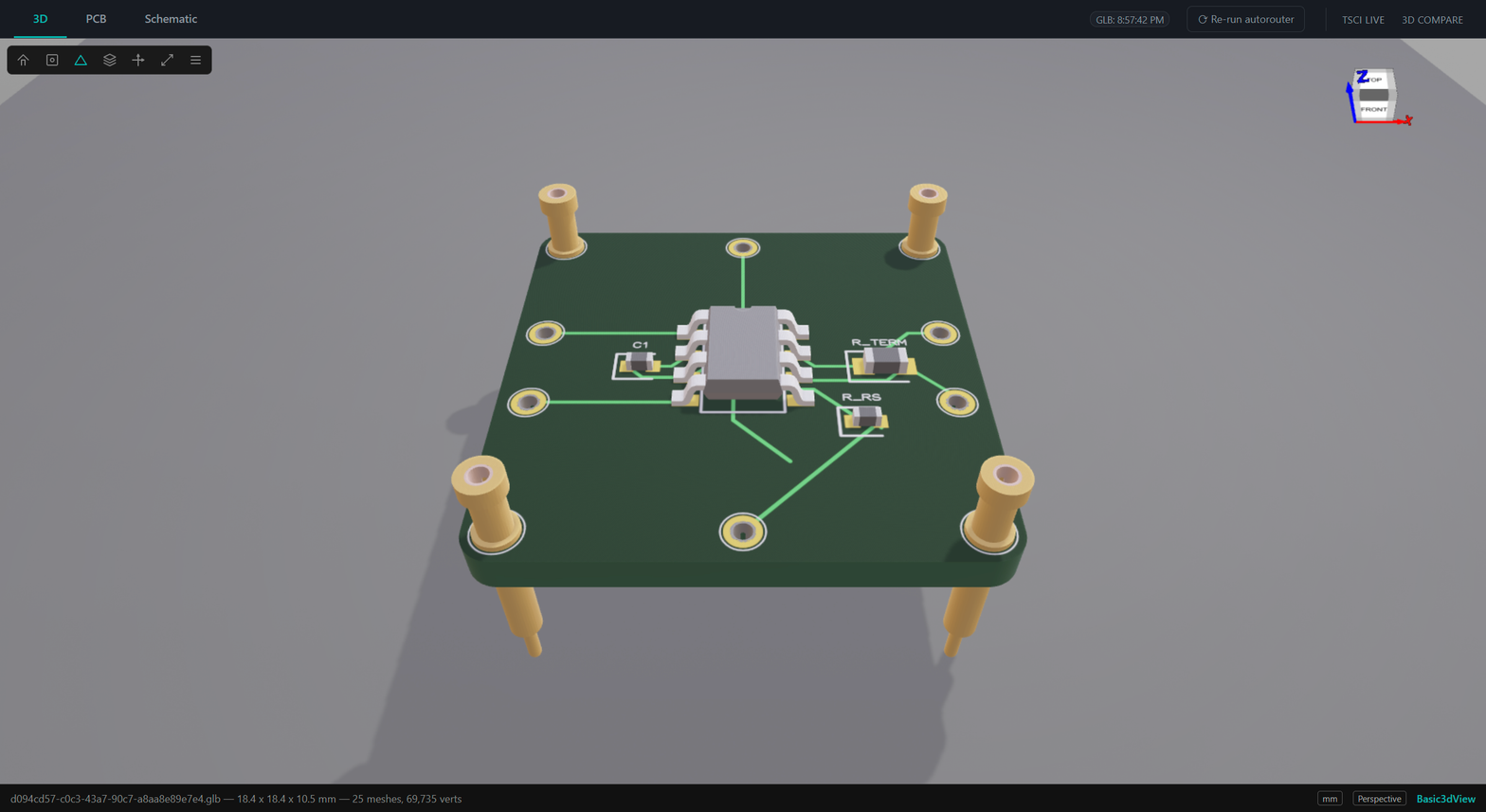

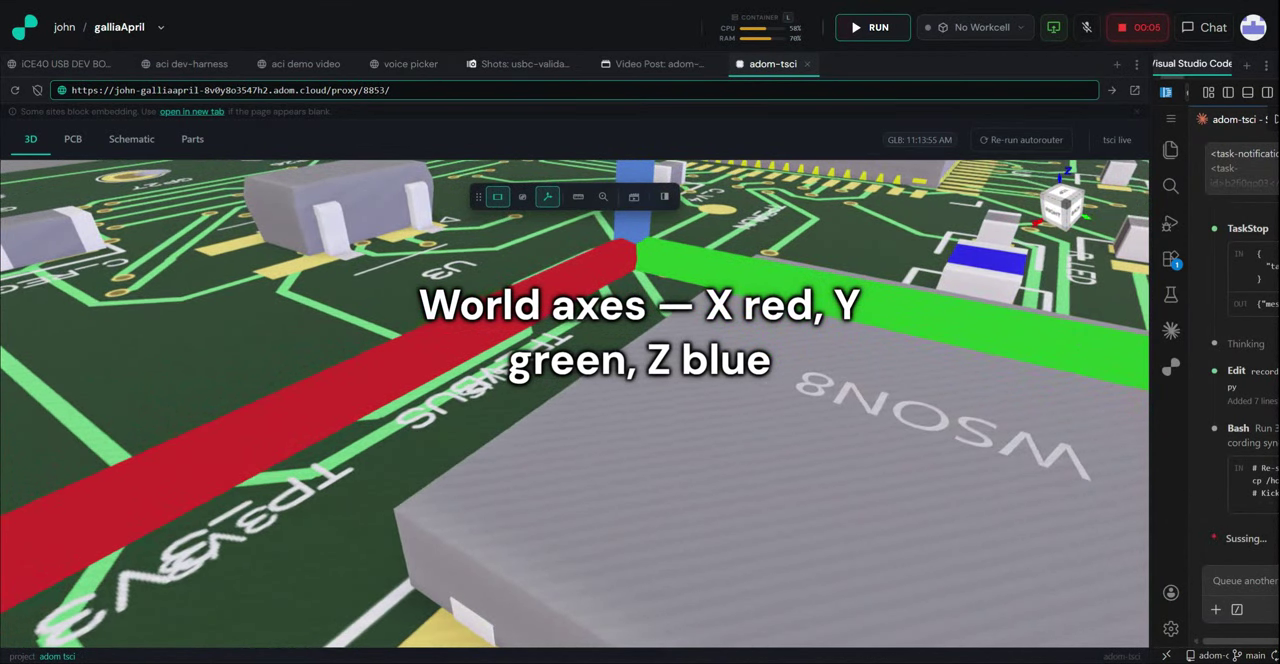

• 3D (default). A full-bleed canvas rendered by the real Adom 3D Viewer (adom-3d-viewer.min.js, the same Babylon-based engine the rest of Adom uses for 3D), bundled into the adom-tsci binary so there is no AV service dependency — no port 8770 probe, no "AV not reachable" states. Shadows, IBL environment, transparent ground plane all work out of the box.

  Everything else floats over the canvas so it doesn't steal real estate:

  • Floating toolbar (top-centre, draggable via the ⋮⋮ grip): ⌂ home (iso), ◱ frame, T top, F front, R right, I iso, ▭ ground, ⎚ wireframe, ⊡ ortho/perspective, 📏 measure.
  • Measure tool: click 📏 then click two points on the model to get the distance between them in millimetres, with an on-screen label at the midpoint. Click a third time to clear.
  • Floating component panel (top-right, draggable via header, collapsible with —, dismissible with ×, restorable via the ☰ button): every chip / passive / testpoint / machine contact from circuit.json, listed with kind. Click a row to hide that component — the "hide U1 to see the traces routed under the FPGA" use case. Click "all on" to restore.

  Mesh → component-name mapping: tscircuit's GLB writer names meshes Box0_primitive0 / OBJBox12_primitive1 (no component names in the scene graph). The UI fetches /circuit.json, auto-detects the GLB unit scale (meters vs mm), probes orientation via mounting-post corner positions, and groups meshes by nearest-neighbour assignment within a per-kind tolerance (chip=10mm, testpoint=1.2mm, contact=2mm, …). Meshes outside tolerance land in a catch-all Board group so the board outline and any unmatched geometry is still toggleable.

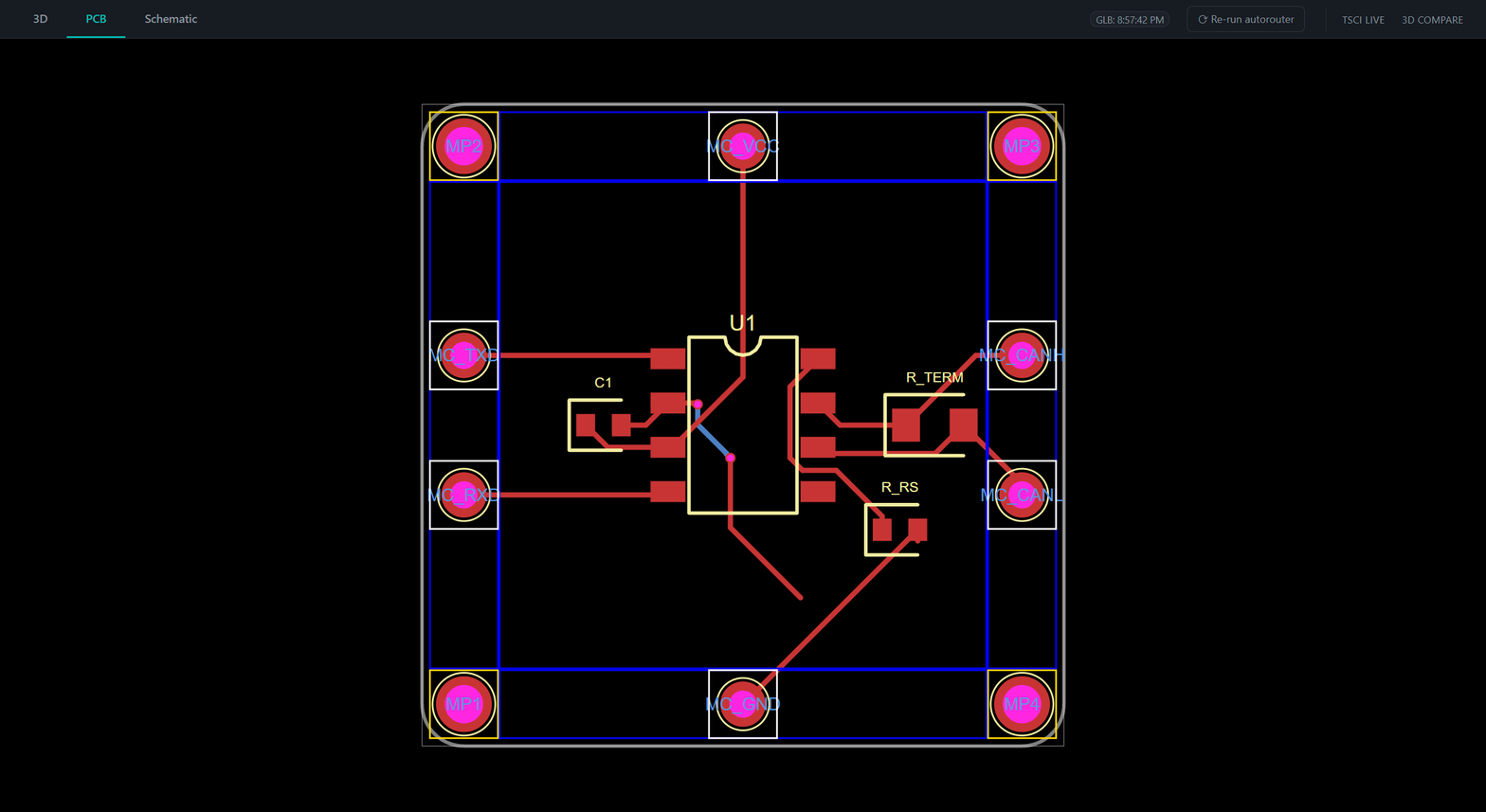

• PCB. Inline dist/lib/index/pcb.svg in a panzoom container. Scroll wheel zooms toward cursor, drag to pan. Lazy-loaded on first click.

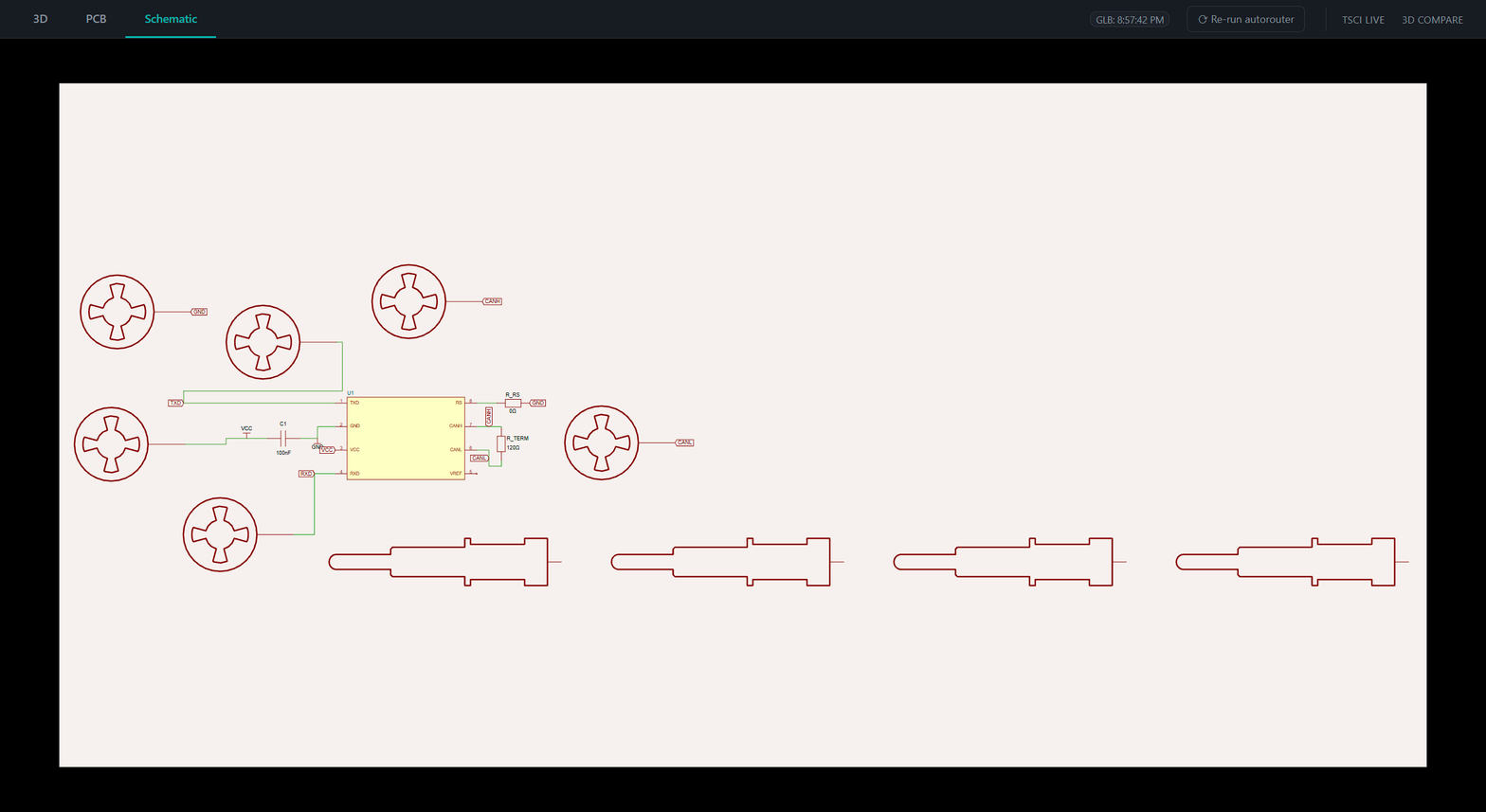

• Schematic. Inline dist/lib/index/schematic.svg, same panzoom. Lazy-loaded on first click.

Secondary tab:

• tsci live. The raw tscircuit RunFrame served through the slingshot proxy. Escape hatch for features tscircuit ships in the future that we haven't wrapped yet. Dimmed via CSS filter: brightness(0.78) because RunFrame's light theme is hardcoded and would be blinding inside a dark editor.

The Re-run autorouter button

Top-right of the header. Click it to:

1. Touch lib/index.tsx via the slingshot → tsci dev file server. A no-op POST /api/files/upsert fires a FILE_UPDATED event, tsci dev re-evaluates the circuit (which re-runs the autorouter), and RunFrame (the tsci live tab) refreshes its in-memory view.
2. Spawn bunx tsci build lib/index.tsx --glbs --svgs in the background. This regenerates dist/lib/index/{3d.glb,pcb.svg, schematic.svg} on disk, which the first-class 3D / PCB / Schematic tabs poll for (/glb/meta every 3 s). Within ~30 s the tabs re-render with the new output.
3. Shift-click for a clean re-run. Holding Shift while clicking deletes manual-edits.json first, so any interactive trace edits made in RunFrame's PCB editor are discarded and the autorouter runs from scratch.

Same feature from the CLI:

adom-tsci rerun                # re-run autorouter, preserve manual edits
adom-tsci rerun --clean        # also delete manual-edits.json first

Stale-deps check

On adom-tsci start, a background thread queries https://registry.npmjs.org/@tscircuit/cli/latest and compares against the version field in <project>/node_modules/@tscircuit/cli/package.json. If the installed version is behind the latest, you see a HINT: line:

HINT: @tscircuit/cli is out of date (installed 0.1.1226, latest 0.1.1234).
Run `adom-tsci upgrade` to refresh.

The check is non-fatal (3-second timeout, no network → no warning) and never blocks startup. tscircuit does daily releases — this just nudges you when you're behind.

adom-tsci upgrade [project-dir] shells out to bun update --latest in the target directory, upgrading every dep to its latest version (not just tscircuit). Restart adom-tsci start for changes to take effect.

Credit to the slingshot: the 127.0.0.1 problem

tsci dev emits a hardcoded absolute URL in its HTML shell:

<script>
  window.TSCIRCUIT_FILESERVER_API_BASE_URL = "http://127.0.0.1:3040/api";
</script>
<script type="module" src="/standalone.min.js"></script>

Inside a Hydrogen webview iframe, 127.0.0.1 resolves to the user's machine, not the container, so every fetch fails and RunFrame hangs at loading... forever.

adom-tsci's slingshot:

1. Fetches the shell HTML from 127.0.0.1:3040/.
2. Rewrites the two hardcoded references to relative paths: TSCIRCUIT_FILESERVER_API_BASE_URL = "api" and <script src="standalone.min.js">.
3. Proxies /runframe/api/* and /runframe/standalone.min.js to 127.0.0.1:3040, preserving HTTP method, body, and query string. A v0.1 bug dropped query strings on forward, which broke files/get?file_path=...; fixed in v0.2 with a full method-aware proxy.

Tsci dev uses HTTP polling (/api/events/list?since=<id>) for hot reload — no WebSockets — so the slingshot is a plain HTTP forwarder.

CLI commands

Every command follows the Adom CLI conventions (OK: / ERROR: / Hint: prefixes, both human and --json output).

Remote-control the 3D viewer from the CLI (no clicking):

HTTP API

Every CLI verb is a thin wrapper over an HTTP endpoint. Curl them directly if you want to script without the CLI. All on 127.0.0.1:8850 by default.

curl examples:

# Health check
curl -sS http://127.0.0.1:8850/health

# Re-run autorouter, clean mode
curl -sS -X POST "http://127.0.0.1:8850/rerun?clean=1"

# Fetch the PCB SVG
curl -sS http://127.0.0.1:8850/pcb.svg > pcb.svg

# Stop the server
curl -sS -X POST http://127.0.0.1:8850/shutdown

Architecture

+---------------------------+        +---------------------------+
|  Hydrogen webview tab     |        |  adom-tsci (Rust)         |
|  /proxy/8850/             |<------>|  tiny_http on 127.0.0.1:8850
|                           |        |                           |
|  +----------+             |        |  /              shell.html
|  |   3D     |<------------+------->|  /glb           file stream
|  +----------+             |        |  /pcb.svg       file stream
|  |  PCB     |             |        |  /schematic.svg file stream
|  +----------+             |        |                           |
|  | Schematic|             |        |  /runframe/     slingshot
|  +----------+             |        |  /runframe/api/*  (proxy)
|                           |        |  /runframe/standalone.min.js
|  +----------+             |        |                           |
|  | tsci live|<------------+------->|  /compare       compare.html
|  +----------+             |        |  /av/basic3d    AV bridge
|  | 3d cmp   |             |        |  /av/upload-glb AV bridge
|  +----------+             |        |                           |
|                           |        |  /rerun         [-> upsert + spawn build]
|  ⟳ Re-run autorouter -----+------->|  /reload  /shutdown  /health
+---------------------------+        +---------------------------+
                                              |           |
                                              v           v
                          +--------------------+   +----------------+
                          | bun tsci dev       |   | AV (8770/8771) |
                          |   -p 3040          |   | Basic3dView +  |
                          | (process group)    |   | serve_glb      |
                          +--------------------+   +----------------+

Example session

User: preview my SN65HVD230 molecule

Claude: (runs adom-tsci start ~/project/tscircuit-projects/SN65HVD230-Molecule)

Output:

OK: spawning tsci dev -p 3040
HINT: @tscircuit/cli is out of date (installed 0.1.1226, latest 0.1.1234).
      Run `adom-tsci upgrade` to refresh.
OK: tsci dev is ready
OK: webview tab created
OK: adom-tsci running — project=... port=8850 tsci_port=3040

The adom-tsci webview tab opens in the editor (with a brand-compliant #e6edf3 monochrome chip icon in the tab bar). The 3D tab is active by default, showing the molecule in a clean dark-themed three.js viewer. User rotates with the mouse, clicks through to PCB, then Schematic, sees the tscircuit SVGs in panzoom containers.

User: move R_TERM to pcbX=8

Claude: (edits lib/index.tsx) Done. Click ⟳ Re-run autorouter in the header to regenerate the build outputs, then the 3D / PCB / Schematic tabs will auto-refresh.

User: (clicks the button)

Shell flashes ⟳ Running… → ⟳ Re-ran. ~30 s later the 3D tab shows R_TERM at its new position; PCB and Schematic re-fetch on next click.

User: ship it

Claude: (runs bunx tsci push)

Troubleshooting

HINT: @tscircuit/cli is out of date Not an error. tscircuit does daily releases; adom-tsci upgrade in your project directory pulls the latest. Or ignore it — the hint is fire-and-forget.

Re-run autorouter button does nothing visible The rebuild is async and takes ~30 s. Watch the GLB: <time> pill in the header; when it updates, the 3D tab has re-rendered. PCB and Schematic lazy-reload on next click.

tsci dev crashed with MethodNotAllowedError: only POST accepted That's tsci dev's own internal fileserver spitting non-fatal noise during its node_modules upload on startup. Doesn't break anything — the server recovers. Check /health to confirm tsci_reachable: true.

Webview stuck at Loading files... Known tscircuit v0.1.1226+ issue. RunFrame's isLoadingFiles flag only clears when files/list + files/get?file_path=... both succeed. In v0.1 of this app, the slingshot dropped query strings on forward, which broke files/get; v0.2 forwards the query string. If you're hitting this on v0.2, curl http://127.0.0.1:8850/runframe/api/files/get?file_path=lib/index.tsx and see if the response has the real file content.

3D tab — flat-lit, no shadows, no transparent ground The same-origin bridge didn't run. Symptoms:

• ground plane is opaque (not 50% transparent)
• no board shadow on the ground
• iframe.contentWindow.viewer is undefined

Causes to check:

1. Different origin. If the shell is on /proxy/8850/ but Basic3dView is on a different host (not /proxy/8770/ on the same subdomain), the contentWindow.viewer access will throw SecurityError: Blocked a frame with origin. Check that VSCODE_PROXY_URI is set to the same subdomain as AV's 8770.
2. Viewer not yet constructed. The bridge polls for up to 10 s waiting for scene.meshes to have at least one non-ground mesh. On a cold cache where Basic3dView has to download its Babylon bundle + the GLB, this may not be enough.
3. basic-3d.html changed module structure. The bridge relies on var viewer being top-level scope in a non-module <script>. If upstream Adom wraps basic-3d.html in type="module", the bridge breaks. Confirm with curl .../proxy/8770/basic-3d.html | grep 'var viewer'.

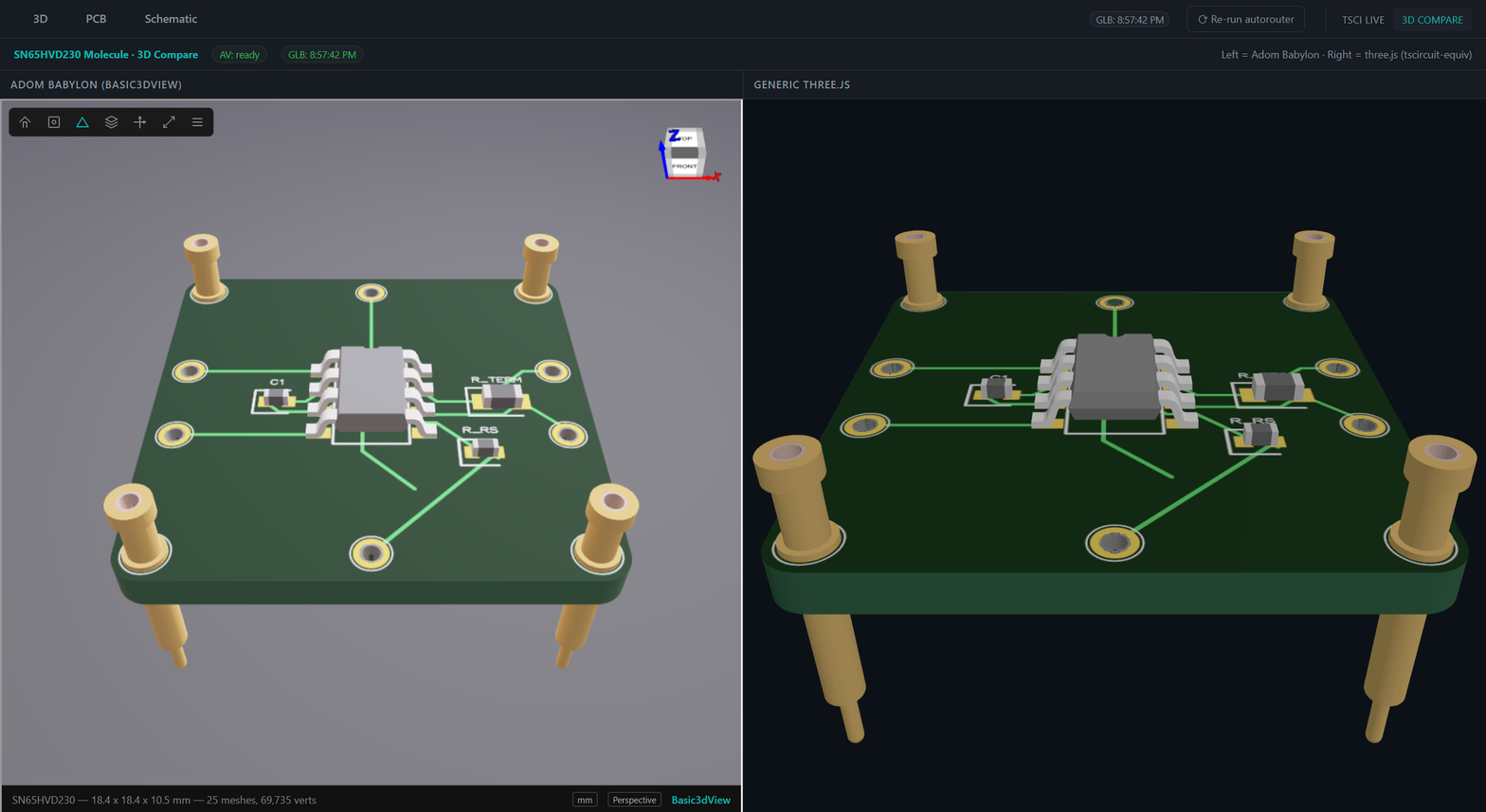

3D compare pane is still flat-lit Known v0.2 limitation. The 3d compare secondary tab lives in a separate compare.html where both Basic3dView and three.js use default lighting. The compare view is for material-fixup regression, not for aesthetic rendering. Tracked for v0.3.

"Some sites block embedding" banner at the top of the webview That banner is a persistent affordance shown on every webview tab regardless of whether the page loaded. It is not an error signal. If the panel below it is actually blank, check /health and the tsci-preview.log file for subprocess errors.

tsci dev subprocess doesn't die after stop Shouldn't happen in v0.1.0+. tsci dev is spawned in a new process group (setsid) and the whole group is killed on shutdown. If you see an orphan bun ... tsci dev after adom-tsci stop, file an issue with ps auxf | grep tsci output.

Publishing your molecule

adom-tsci is a preview tool — it doesn't publish anything. Use tscircuit's own flow:

cd ~/project/tscircuit-projects/MyChip-Molecule
bunx tsci push

This publishes to @tsci/<your-user>.MyChip-Molecule on the tscircuit registry. Requires bunx tsci login once (browser OAuth, must be an adom-inc org member).

For the full production workflow (connector families, molecule generators, DRC, review servers, snapshot approval), go to Ray's guide at ~/.claude/skills/adom/guides/adom-tscircuit-skill.md.

See also

• Ray's guide: ~/.claude/skills/adom/guides/adom-tscircuit-skill.md — the authoritative tscircuit workflow. Go there for production molecule families.
• adom-tscircuit skill: ~/.claude/skills/adom-tscircuit/SKILL.md — onboarding layer that points new users to this app for display.
• hydrogen-tab-icons skill: documents how the #e6edf3 monochrome chip favicon in src/assets/icon.svg ends up on the tab bar (spoiler: the page's <link rel="icon"> overrides any --display-icon placeholder).
• Basic3dView: ~/.claude/skills/adom/guides/basic-3d-viewer.md — the Adom Babylon viewer used in the 3D compare tab's left pane.
• Web View panel API: ~/.claude/skills/adom/webview/SKILL.md.
• Adom brand guide: ~/.claude/skills/adom/guides/brand/SKILL.md — all icons must be monochrome #e6edf3, the chip favicon follows this rule.
• tscircuit docs · iconify MDI catalog
