step2glb

Thin CLI for converting STEP CAD files to GLB with colors preserved from the source file.

The CLI is ~3 MB and ships no CAD runtime. Conversion happens on the shared service-step2glb container via OCCT's XCAF pipeline (STEPCAFControl_Reader → BRepMesh_IncrementalMesh → RWGltf_CafWriter), which preserves per-face colors that cadquery.save('GLTF'), assimp, and kicad-cli pcb export glb all lose.

Quick use

# Local file
step2glb convert foo.step -o foo.glb

# KiCad library part (service-kicad fetches the STEP for you)
step2glb from-library Package_TO_SOT_SMD/SOT-89-3
step2glb from-library Package_QFP/LQFP-100_14x14mm_P0.5mm

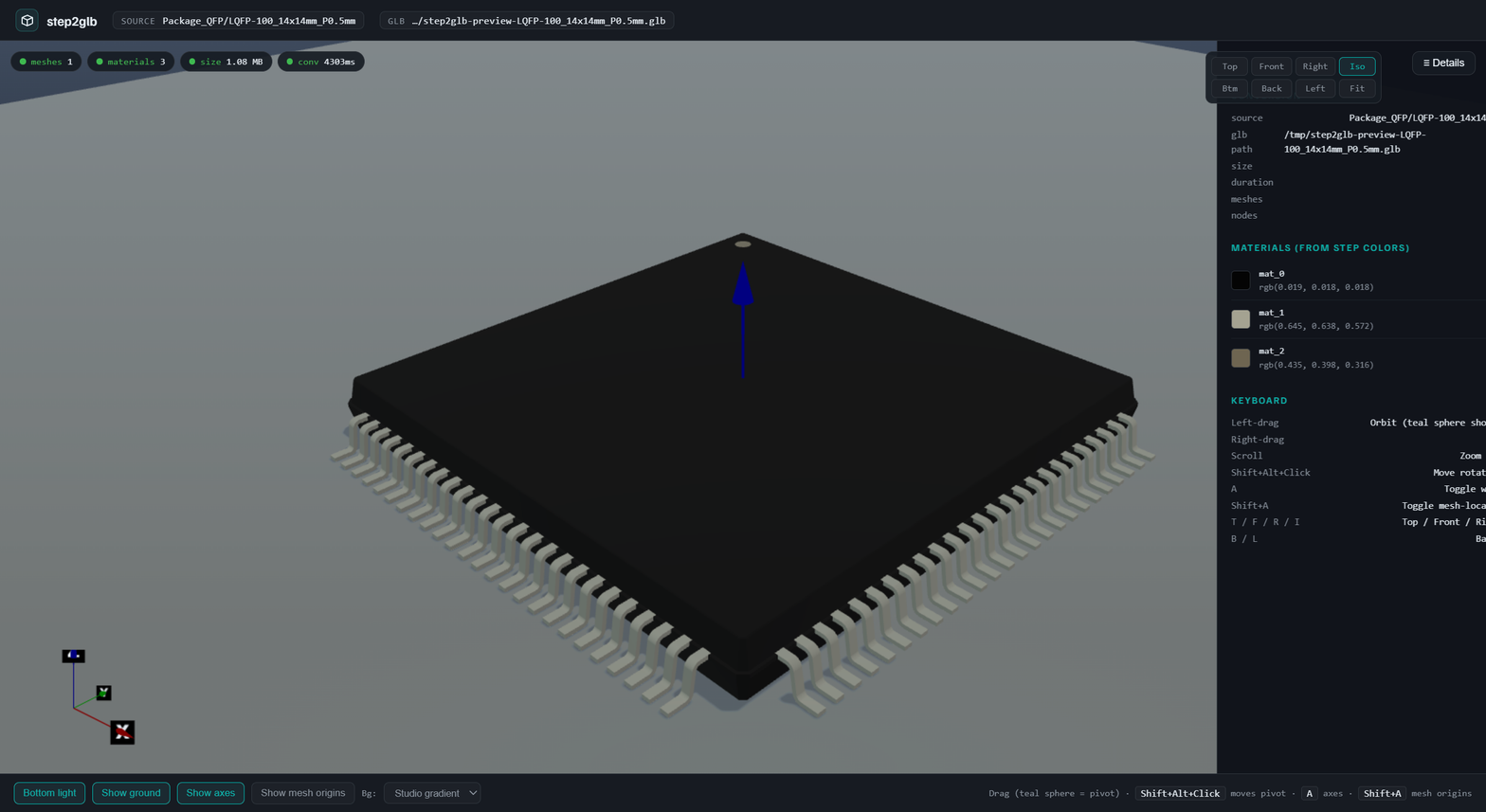

# Convert + open a Hydrogen webview with a materials HUD

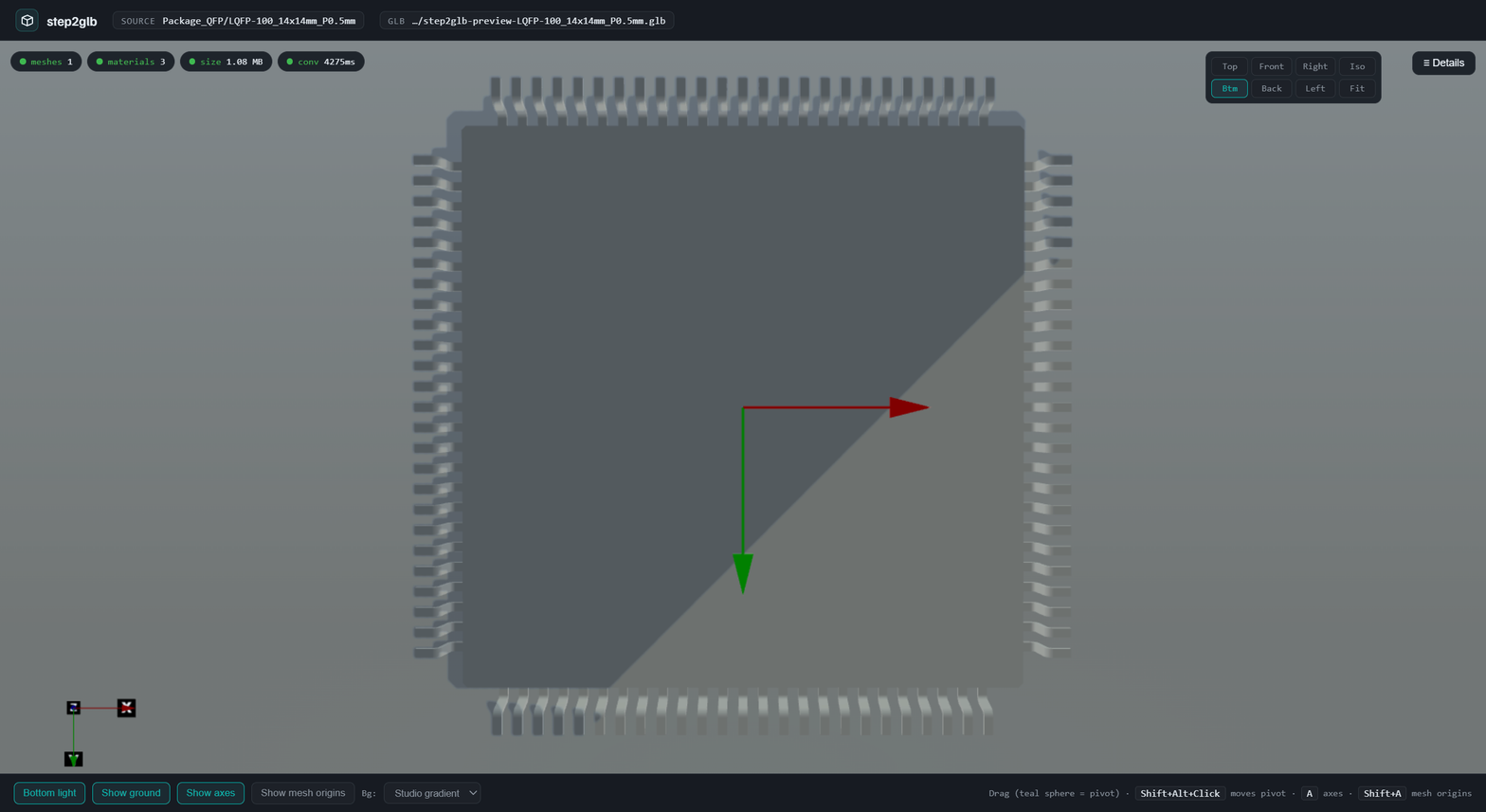

step2glb preview Package_QFP/LQFP-100_14x14mm_P0.5mm

Every command prints an OK: / ERROR: summary line (with a Hint: on errors), followed by a JSON companion line so AI callers can parse the result programmatically.

Identity headers (v0.9.0+)

Every POST to service-step2glb requires two headers:

The CLI sends both automatically. If you're calling the service directly, include them or you'll get a 400 with instructions.

Building a good X-Job-Name: <endpoint>-<what>-<part-or-file>-<context>. Use lowercase, hyphens, no spaces. Include the MPN or filename so the job is identifiable in /health stats. Examples:

• convert-usbc-connector-type-c-31-m-12-to-glb
• thumbnail-iso-vl53l8cx-for-chip-fetcher-library
• features-extract-bme688-pin-detection
• batch-thumbnails-6orient-3size-rp2040

Abuse protection

• Content dedup: Submitting the same STEP file that's already queued/processing returns the existing job ID with "deduplicated": true instead of spawning a new job.
• Per-client cap: Max 8 active jobs per client. Returns 429 if exceeded.
• Per-file cap: Max 2 active jobs for the same content hash.

Async job queue (files >30MB)

Large files are converted asynchronously:

1. POST /convert → returns {"job_id": "...", "poll": "/jobs/<id>"}
2. Poll GET /jobs/<id> until status is complete or failed
3. Fetch GET /jobs/<id>/result for the GLB bytes

Workers run at nice 15 so the health check and SSH always stay responsive. Max 4 concurrent workers; excess jobs queue.

Worker health stats

GET /health returns live worker pool stats:

{
  "workers": {
    "max_workers": 4,
    "active_workers": 2,
    "jobs_queued": 1,
    "jobs_processing": 2,
    "jobs_complete": 15,
    "jobs_failed": 3,
    "active_by_client": {
      "adom-tsci/john-dev": 2,
      "chip-fetcher/ray-main": 1
    }
  }
}

When active_workers == max_workers and jobs_queued is climbing, that's the signal to scale to additional containers.

Install

Paste this into Claude Code:

Install the latest step2glb CLI from the Adom Wiki (app/step2glb). It sends the required X-Client and X-Job-Name headers automatically.

Or manually:

curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/step2glb/step2glb -o /tmp/step2glb \
  && chmod +x /tmp/step2glb \
  && sudo install -m 0755 /tmp/step2glb /usr/local/bin/step2glb \
  && step2glb install \
  && step2glb health

step2glb install fetches the latest SKILL.md from the wiki and installs bash completions. No venv, no pip, no OCCT locally.

Environment variables

HTTP API (service side)

All POST endpoints require X-Client and X-Job-Name headers. Response headers include X-Meshes, X-Nodes, X-Materials, X-Size-Bytes, X-Duration-Ms, and X-Materials-Json.

Architecture

• Client (this app) — adom-inc/step2glb, public repo, 3 MB Rust binary, Tier B auto-discovery.
• Service — adom-inc/service-step2glb, private repo, default-light container (step2glb-gmdoncpxdwx0.adom.cloud:8782) with OCCT + Python + cadquery-ocp (~1.1 GB on-disk). Watchdog: cron every 2 min + external service-watcher with SSH auto-remediation.
• Upstream data — service-kicad (4.7 GB of STEP/WRL/symbols/footprints) supplies library parts for from-library.
