LED Nameplate Generator

Generate a KiCad PCB that spells any name in addressable WS2812B-2020 RGB LEDs — dot-font letters are auto-placed on a 5×9 grid and auto-routed with a clearance-aware, no-right-angle Dijkstra router.

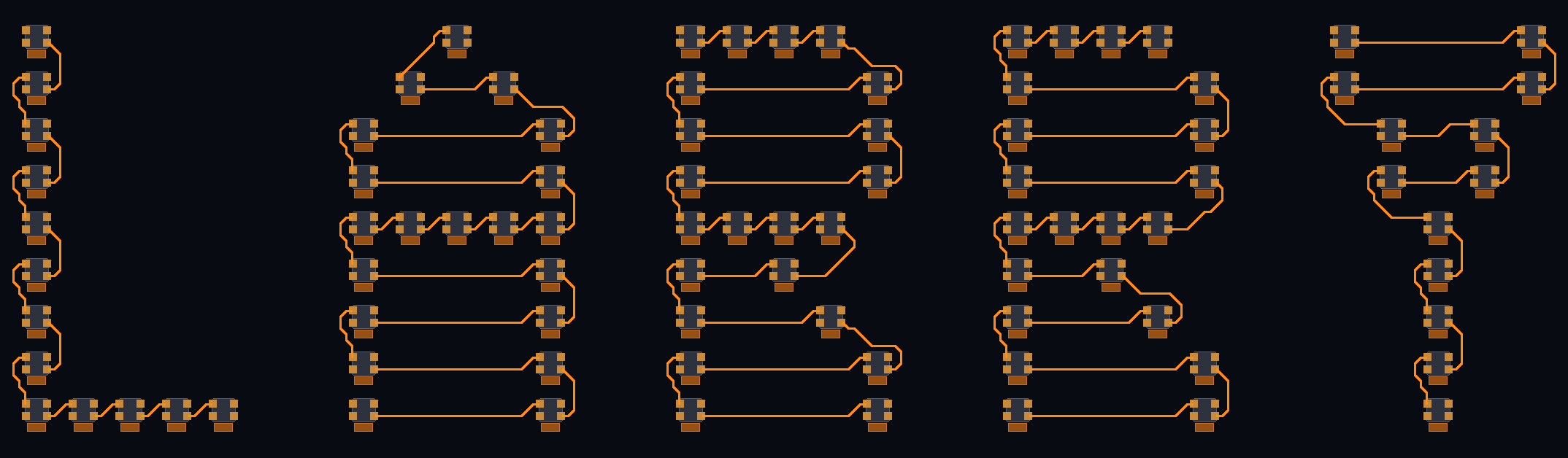

Provenance — hero image. Rendered by this repo's route_visualizer geometry via a small PIL script from the actual dijkstra_alg.route_chain output for the word "ADOM". It is NOT a KiCad screenshot — it's the same routing the generator emits to the .kicad_pcb, drawn to PNG. Inputs: dot-font/font-data.json + blank-letter-template.zip.

What it does

Give it a word like ADONIS. For each letter it:

1. Looks the character up in a 5×9 dot-font (dot-font/font-data.json).
2. Clones a fully-routed blank-letter template tile (45 WS2812B-2020 LEDs + decoupling caps + GND/+5V fills) and removes the LEDs that the glyph doesn't use.
3. Re-routes the surviving DIN→DOUT chain with an 8-direction Dijkstra router (orthogonal cost 1, diagonal √2) that:
   • keeps ≥0.2 mm clearance from every pad (rectangle-based keepout),
   • never makes a right angle (perpendicular direction changes are forbidden — only 45° turns),
   • treats the template's GND vias/traces as keepout so chain traces never short,
   • leaves each pin with a clean 45° chamfer instead of a horizontal nub.
4. Tiles the letters, alternating upright and inverted-chain numbering so even-position letters take their data input from the opposite corner while still reading right-side-up.
5. Emits a flat schematic whose netlist matches the PCB exactly.

Each letter is an independent LED string (its own data-in net), so the STM32 driving the board can address letters individually.

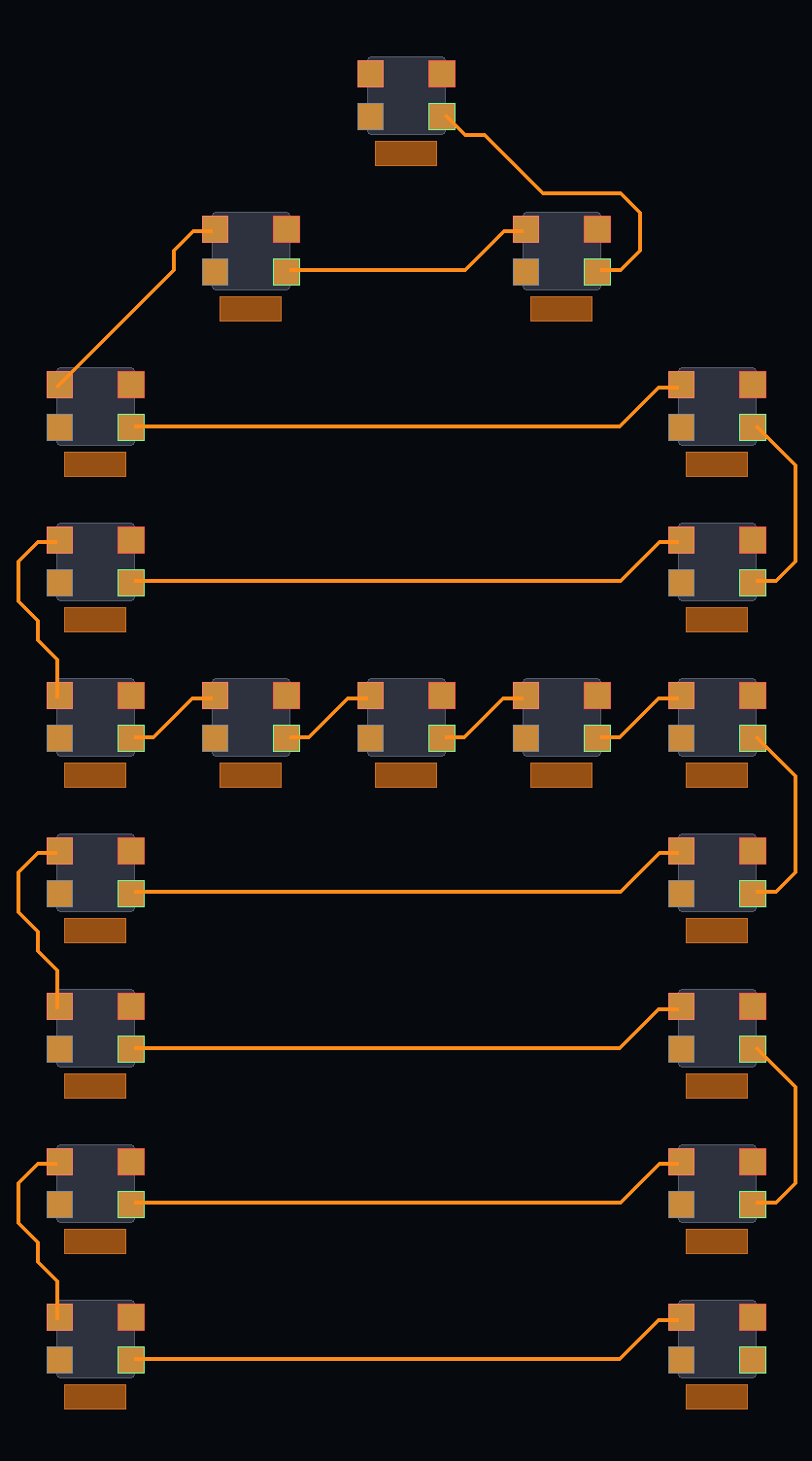

Provenance — letter close-up. Same render path as the hero, for a single glyph "A". Green/red pad outlines mark DIN/DOUT; copper-orange polylines are the routed chain. Source: dijkstra_alg.route_chain.

Interactive routing visualizer

route_visualizer.py builds a self-contained HTML page showing the router's output for every glyph (A–Z, 0–9) in both chain orientations. route_server.py serves it plus a live /api/route endpoint that powers a Custom Shape editor — draw any 5×9 pattern and watch it route on demand using the same dijkstra_alg module the PCB generator uses (no algorithm duplication).

Usage

# Generate a nameplate (writes <name>-nameplate/ with .kicad_pcb / .kicad_sch / .kicad_pro)
python3 generate_nameplate.py ADONIS

# Build + serve the interactive routing visualizer (custom-shape mode needs the server)
python3 route_server.py 7702        # then open route_visualizer.html through the proxy

# Or just regenerate the static visualizer HTML
python3 route_visualizer.py

The generator can also ship the project straight to a desktop KiCad workspace via adom-desktop (auto-versioned <name>-nameplate-N folders).

Files

Dependencies

adompkg (auto-installed): none.

System (manual):

Board summary (per generated nameplate)

• WS2812B-2020 LEDs, ~19 per letter (5×9 dot-font), 4 mm pitch
• One 100 nF 0402 decoupling cap per LED
• GND fill (F.Cu + B.Cu) + a custom +5V fork fill (B.Cu), GND via stitching
• Each letter is its own addressable string (independent data GPIO)
