JLCPCB Parts Library Search

Search JLCPCB's 437K-component parts library (basic/preferred/extended). Rust CLI + Hydrogen webview app + Node.js + SQLite FTS5 backend — no API credentials needed (all local).

⚡ Install this app

Paste this into Claude Code (VS Code panel, Adom editor, or terminal) to install:

I want to install the "JLCPCB Parts Library Search" app from the Adom Wiki (https://wiki-ufypy5dpx93o.adom.cloud/wiki/apps/adom-jlcpcb). For the Docker CLI: curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/adom-jlcpcb/adom-jlcpcb -o /tmp/adom-jlcpcb && chmod +x /tmp/adom-jlcpcb && sudo install -m 0755 /tmp/adom-jlcpcb /usr/local/bin/adom-jlcpcb && adom-jlcpcb install Then verify the install works.

Download v0.1.0

⊞ Windows coming soon

macOS coming soon

🐧 Linux coming soon

🐳 Adom Docker CLI adom-jlcpcb ·

See all releases on GitHub

adom-jlcpcb

Search JLCPCB Electronics for components, pricing, stock, and datasheets. One Rust binary with three faces:

CLI verbs — adom-jlcpcb search|part|health return normalized JSON on stdout, ready for | jq.
Hydrogen webview app — adom-jlcpcb app opens a first-class "JLCPCB Search" tab with per-card images, price breaks, RoHS / lifecycle / packaging flags, copy-to-clipboard for MPN and JLCPCB PN, and a backend-health indicator.
Backend HTTP service — adom-jlcpcb serve runs an HTTP proxy (port 8774) with a 10-minute LRU cache. Keeps the JLCPCB API key server-side; consumer containers point JLCPCB_API at it.

Install

curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/adom-jlcpcb/adom-jlcpcb \
  -o /tmp/adom-jlcpcb \
  && chmod +x /tmp/adom-jlcpcb \
  && sudo install -m 0755 /tmp/adom-jlcpcb /usr/local/bin/adom-jlcpcb \
  && adom-jlcpcb install

Installs the binary to /usr/local/bin/adom-jlcpcb, deploys ~/.claude/skills/adom-jlcpcb/SKILL.md and ~/.claude/skills/adom-jlcpcb-build/SKILL.md, and registers bash completions.

For gallia containers, this is done automatically by gallia/install.mjs — adom-jlcpcb is a Tier A app (every Adom user needs component search day-one).

Use

# CLI
adom-jlcpcb search "STM32F103RBT6" --limit 5
adom-jlcpcb part C8734 | jq '.components[0] | {mouser_pn, unit_price, price_tiers, stock}'
adom-jlcpcb health

# UI
adom-jlcpcb app        # opens a Hydrogen webview tab

# Backend
JLCPCB_API_KEY_UNUSED_placeholder=<key> adom-jlcpcb serve    # runs on service-jlcpcb container

Architecture

  any user container             service-jlcpcb (default-light)
  ──────────────────             ──────────────────────────────
  adom-jlcpcb search       ─┐
  adom-jlcpcb app          ─┼──▶ adom-jlcpcb serve (port 8774)
  adom-jlcpcb health       ─┘    + JLCPCB_API_KEY_UNUSED_placeholder
                                 + 10-min LRU cache
                                 + self-heal cron watchdog
                                          │
                                          ▼
                                api.jlcpcb.com / v2

The service container clones only adom-inc/adom-jlcpcb; its service/watchdog.sh runs every 2 min to (1) keep the service healthy and (2) git fetch origin main + rebuild + swap binary when a new release lands. No redeploy step after publishing — publish.sh pushes to main, the service container picks it up within ~5 minutes.

Source

Source at adom-inc/adom-jlcpcb (private). The public artifact is this wiki page's docker-binary asset — source access is not required to install or use the app.

Built following the canonical adom-app-model: single private repo for both client + service code, binary published to the wiki, service on its own default-light container, Tier A distribution via gallia/install.mjs.

ADOM

adom-jlcpcb 1 month ago

no description — ask the uploader to set one

3.1 MB

⤓

Install notes

Adom Docker CLI install steps

curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/adom-jlcpcb/adom-jlcpcb -o /tmp/adom-jlcpcb && chmod +x /tmp/adom-jlcpcb && sudo install -m 0755 /tmp/adom-jlcpcb /usr/local/bin/adom-jlcpcb && adom-jlcpcb install

Screenshots

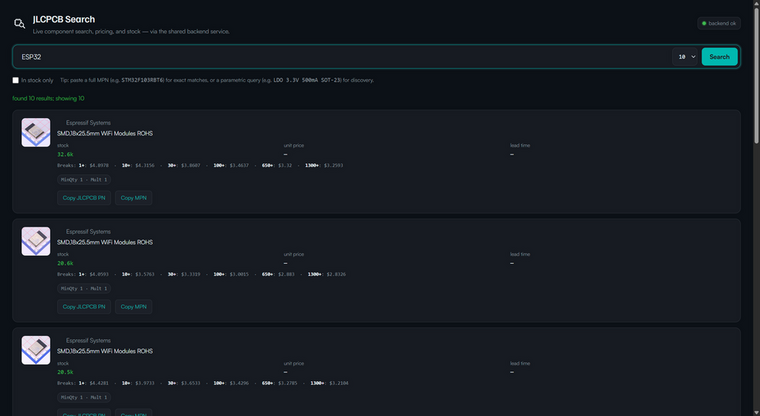

JLCPCB search webview

JLCPCB webview showing ESP32 module search results with price breaks
