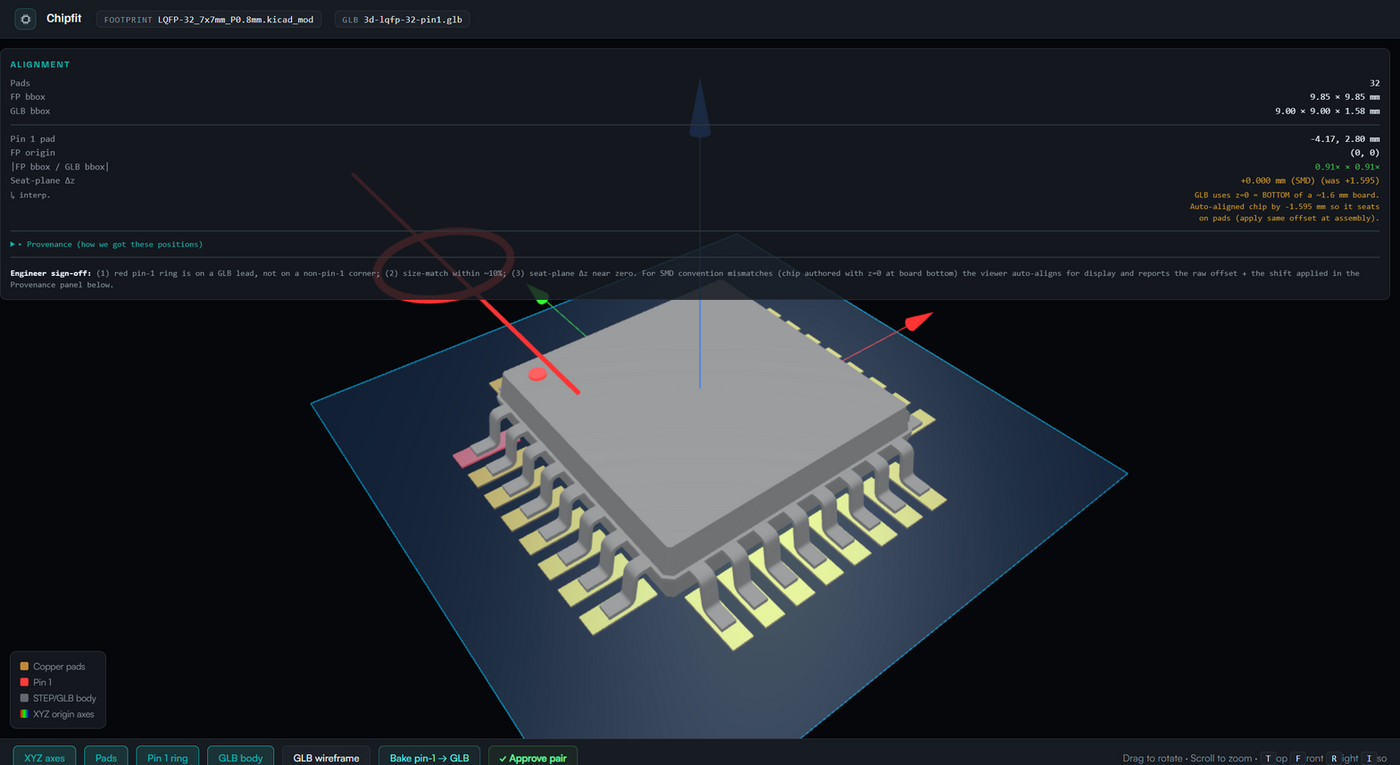

3D chip ↔ KiCad footprint validator. Pair a .glb model with a
.kicad_mod footprint in a Hydrogen webview and run the full
validation stack before committing either to a library.
What it checks
| Check | What it catches |
|---|---|
| Package-family + pin-count guard | Refuses a QFN-24 chip on an LQFP-48 footprint before the viewer even binds a port. Alias groups: LQFP/TQFP/QFP, QFN/DFN, TSSOP/SSOP/SOIC/SOP/SO, DIP/PDIP, SOT/SOD, BGA/CSP. |
| Seat-plane Δz | Chip floating above the pads or sinking into the board. Thru-hole parts get a separate acceptance band (leads clear a standard 1.6 mm FR4). |
| Size-match ratio | FP bbox vs GLB bbox — flags wrong-size pairs and overrun leads. |
| Pin-1 alignment | Overlays a red ring at the footprint's pin-1 pad so the engineer can confirm the chip's own pin-1 mark lands there. |
| Origin-convention classifier | A GLB authored with z=0 at the board bottom (Fusion/SolidWorks default) is auto-aligned for display with the convention offset surfaced, not flagged red. |
Persistent pin-1 registration
Once the checks pass, click Bake pin-1 → GLB to write a flat red
disc onto the chip's top-surface corner nearest pin 1 and save a
<source>-pin1.glb next to the source. Every downstream viewer
(adom-tsci, basic-3d-viewer, InstaPCB preview, molecule review)
renders the dot automatically. The chip becomes self-identifying
across every future project the user builds with it.
AI-drivable
Every UI action has an HTTP endpoint (app-creator §7):
GET /meta → { footprint_name, glb_name, port }
GET /check → latest HUD snapshot (JSON)
POST /check → UI pushes HUD state here
GET /camera-pending → server→UI camera command channel
POST /camera → { view: top|front|right|iso } or
{ alpha, beta, radius }
POST /bake-pin1 → application/gltf-binary body; writes next
to source with -pin1 suffix
POST /shutdown → clean exit
curl $PORT/check | jq -r .provenance prints the full pipeline for
audit.
Install
curl -fsSL https://wiki-ufypy5dpx93o.adom.cloud/static/apps/adom-chipfit/adom-chipfit \
-o /tmp/adom-chipfit \
&& chmod +x /tmp/adom-chipfit \
&& sudo install -m 0755 /tmp/adom-chipfit /usr/local/bin/adom-chipfit \
&& adom-chipfit install
