What this is

adom-sfconvert converts foreign EDA libraries — EAGLE / Fusion 360 .lbr and Altium .SchLib / .PcbLib / .IntLib — into standard KiCad symbol + footprint, and renders each format's own geometry as a native SVG. The name echoes adom-ds2sf: sf = symbol + footprint.

It is fully native — pure Rust, runs in your container, no KiCad install and no service round-trip. Each format is read by the right native reader:

Input	Read by	Native?
EAGLE / Fusion `.lbr` (XML)	built-in `eagle.rs`	✅
Altium `.PcbLib` (footprints)	`altium-pcblib`	✅
Altium `.SchLib` (symbols)	`altium-schlib`	✅

Why native matters

The point of pulling a part's CAD from many sources is to compare what's right and what's wrong. If every format is normalised through KiCad's importer first, the sources converge — they all become "KiCad's interpretation," and the disagreements you wanted to catch are erased. adom-sfconvert renders each library from its own bytes, so EAGLE looks like EAGLE and Altium looks like Altium. Conversion to .kicad_sym / .kicad_mod happens only on export.

Usage

adom-sfconvert convert part.lbr     --out-dir ./out --name part   # EAGLE/Fusion
adom-sfconvert convert part.SchLib  --out-dir ./out --name part   # Altium symbol
adom-sfconvert convert part.PcbLib  --out-dir ./out --name part   # Altium footprint
adom-sfconvert version

Each convert emits, into --out-dir:

<name>.kicad_sym / <name>.kicad_mod — the export files.
<name>-symbol.svg / <name>-footprint.svg — the native thumbnails, drawn straight from the source geometry.

Where it's used

chip-fetcher calls adom-sfconvert to turn every downloaded EAGLE/Fusion and Altium library into a per-source thumbnail, shown side-by-side with the KiCad and datasheet renders so you can pick what to export to your preferred EDA app. After this tool went native, nothing foreign touches the KiCad service — only KiCad's own format is rendered remotely.

Companions

adom-ds2sf — extract symbol + footprint from a datasheet PDF.
altium-pcblib / altium-schlib — the native Altium readers this builds on.
chip-fetcher — the consumer that shows every source for comparison.

Skill Source

Edit AI Skill

---
name: adom-sfconvert
description: >
  Native Rust CLI that converts foreign EDA libraries — EAGLE/Fusion 360 .lbr and
  Altium .SchLib/.PcbLib/.IntLib — into KiCad symbol + footprint, and renders each
  format's OWN geometry as a native SVG thumbnail. Pure Rust, no KiCad install, no
  service round-trip: EAGLE/Fusion via built-in eagle.rs, Altium footprints via
  altium-pcblib, Altium symbols via altium-schlib. "sf" = symbol + footprint (like
  ds2sf). Conversion to .kicad_sym/.kicad_mod is export-only; rendering stays native
  so cross-source comparison shows each format's truth instead of one normalised
  KiCad interpretation. Used by chip-fetcher for per-source thumbnails.
---

# adom-sfconvert

Convert + natively render EAGLE/Fusion `.lbr` and Altium `.SchLib`/`.PcbLib`.

## When to reach for this

- You have a non-KiCad library (EAGLE/Fusion or Altium) and want a **KiCad
  symbol/footprint** out of it — without installing KiCad.
- You want a **native thumbnail** of a foreign library that shows its own
  geometry (for side-by-side source comparison), not a KiCad-normalised version.

## Command

```bash
adom-sfconvert convert <file> [--out-dir <dir>] [--name <stem>]
```

Recognised inputs: `.lbr` (EAGLE/Fusion XML), `.SchLib` / `.PcbLib` / `.IntLib`
(Altium OLE2 binary, auto-detected by the `D0CF11E0` magic).

Outputs per run: `<stem>.kicad_sym` / `<stem>.kicad_mod` (export) and
`<stem>-symbol.svg` / `<stem>-footprint.svg` (native thumbnails).

## Architecture (all native, all local)

```
.lbr     →  eagle.rs       →  KiCad sym/mod  +  native SVG
.PcbLib  →  altium-pcblib  →  KiCad mod      +  native SVG
.SchLib  →  altium-schlib  →  KiCad sym      +  native SVG
```

No `kicad-cli`, no service POST. The only thing in the wider pipeline that still
calls the shared KiCad service is rendering KiCad's *own* format — correct, since
that isn't a foreign conversion.

## Design rule

**Render native, convert on export.** Converting a foreign format to KiCad just
to draw it throws away exactly the differences a comparison tool exists to find.
Keep originals; emit `.kicad_*` only when the user picks KiCad as the target.

## Companions

- `adom-ds2sf` — datasheet PDF → symbol + footprint.
- `altium-pcblib` / `altium-schlib` — the native Altium readers.
- `chip-fetcher` — shows every source's render for compare-and-contrast.

Sub-Skills
?
What are Sub-Skills?
Sub-skills are community-contributed AI skill extensions for this component. They teach AI assistants about specific tools, configurators, or workflows.

Examples:

A manufacturer’s configuration tool for a motor controller

A community-written design guide for an amplifier circuit

An automated test/validation script for a sensor module

How to add one: Click Add Sub-Skill, provide the URL to your skill and a brief description. Submissions are reviewed by the Adom team before going live.

No sub-skills yet. Be the first to contribute one!

Recent activity

3 commits

⬆

Asset uploaded John Lauer 27 days ago

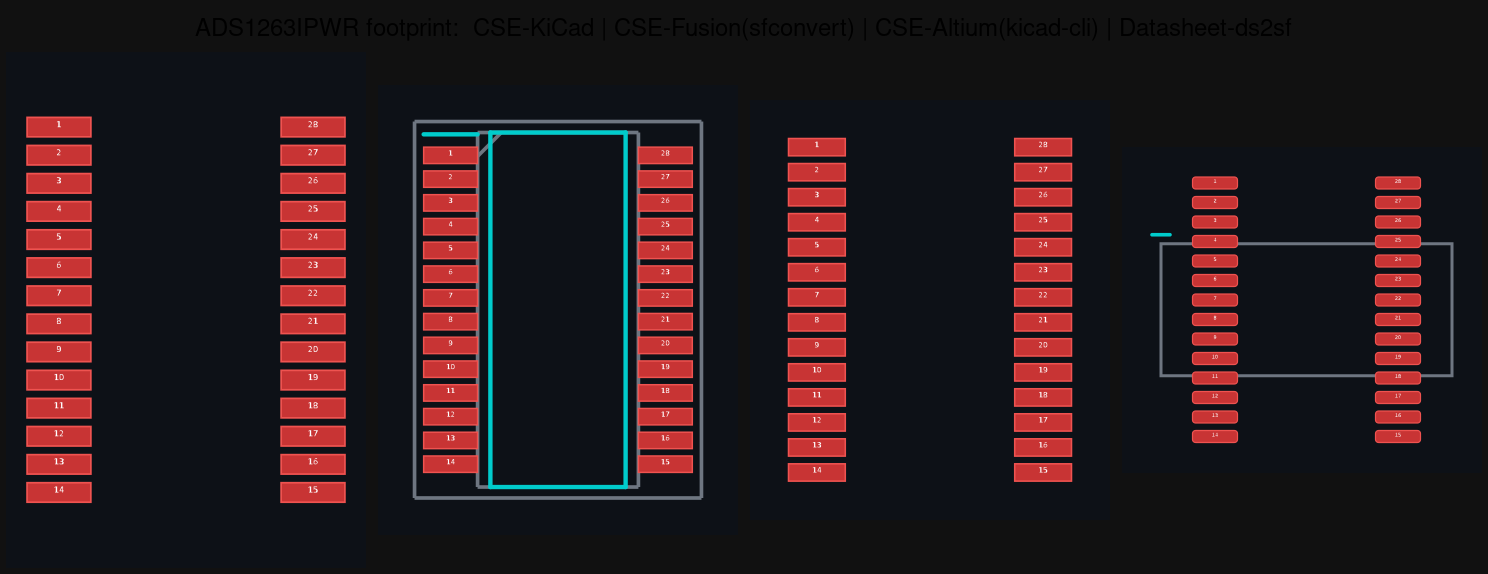

Same footprint from 4 sources, each rendering its own geometry: KiCad, Fusion, Altium (native), datasheet
⬆

Asset uploaded John Lauer 27 days ago

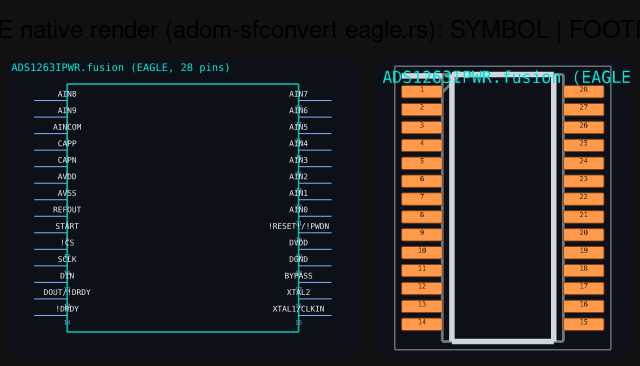

EAGLE/Fusion .lbr rendered natively by eagle.rs — symbol + footprint, no KiCad round-trip
🏷
