This molecule is a 64 pixel Time-of-Flight (ToF) 4 meter ranging sensor built around the VL53L5CX from ST. This chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performance in various ambient lighting conditions with a range of cover glass materials. Multizone distance measurements up to 4000mm are possible across all 64 zones with a wide 63° diagonal field-of-view which can be read up to 15Hz. The VL53L5CX is unique in that it requires its firmware to be loaded at power-on over the I2C bus. Because this firmware is ~90k bytes, we recommend a microcontroller with enough flash to store VL53L5CX's firmware as well as your program code.

NSF Relevance

This molecule enables rapid prototyping of high-resolution, multizone distance sensing for applications such as robotic navigation, object detection, and spatial mapping. By providing precise, distortion-free ranging across 64 zones, it accelerates the development of advanced perception systems in environments with varying lighting and surface conditions.

Science Drivers

component_testing

Created by: adom Version: v1 Category: other

Description

Edit AI Skill

This molecule is a 64 pixel Time-of-Flight (ToF) 4 meter ranging sensor built around the VL53L5CX from ST. This chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performance in various ambient lighting conditions with a range of cover glass materials. Multizone distance measurements up to 4000mm are possible across all 64 zones with a wide 63° diagonal field-of-view which can be read up to 15Hz. The VL53L5CX is unique in that it requires its firmware to be loaded at power-on over the I2C bus. Because this firmware is ~90k bytes, we recommend a microcontroller with enough flash to store VL53L5CX's firmware as well as your program code.

NSF Relevance

NSF

This molecule enables rapid prototyping of high-resolution, multizone distance sensing for applications such as robotic navigation, object detection, and spatial mapping. By providing precise, distortion-free ranging across 64 zones, it accelerates the development of advanced perception systems in environments with varying lighting and surface conditions.

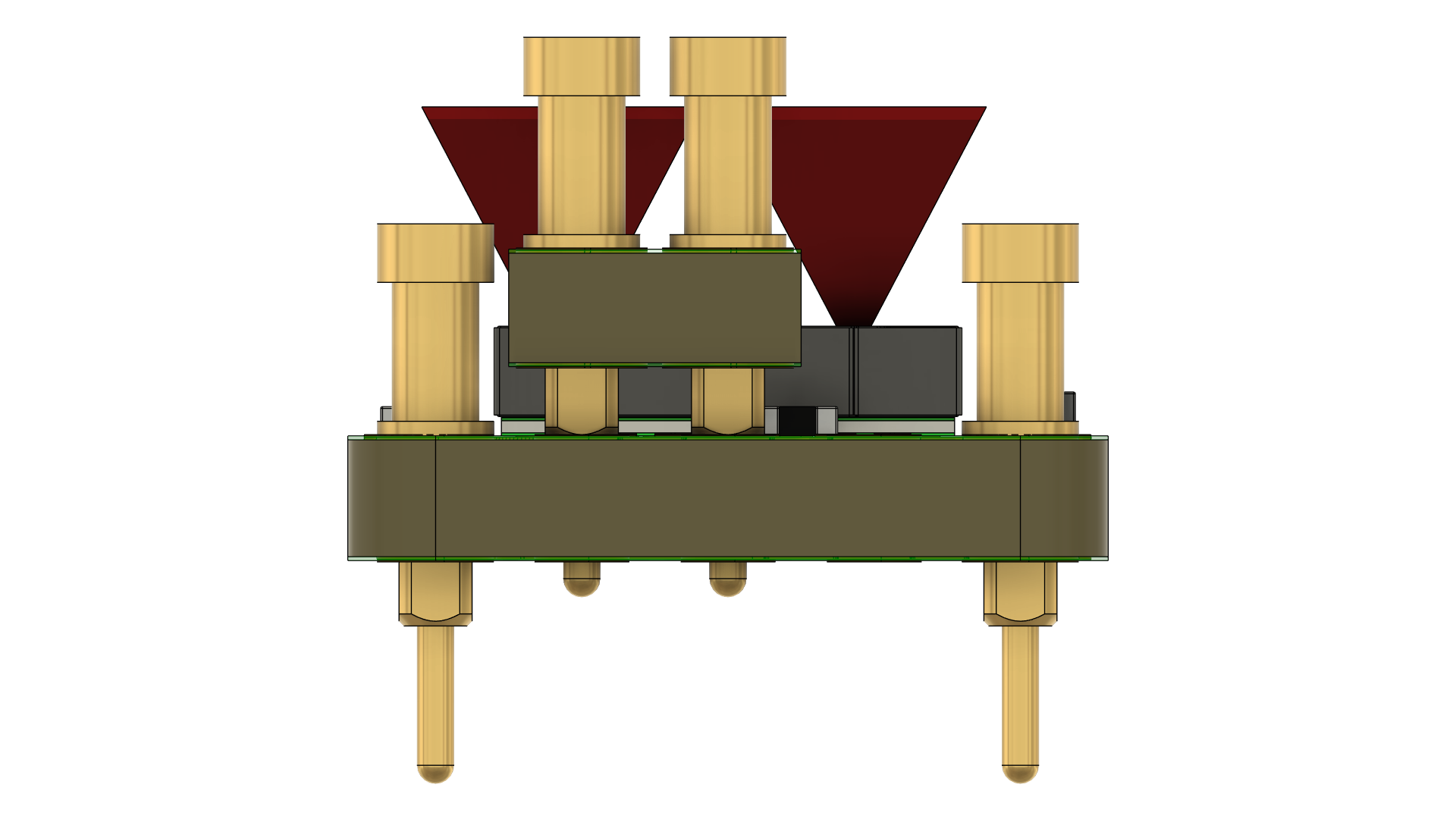

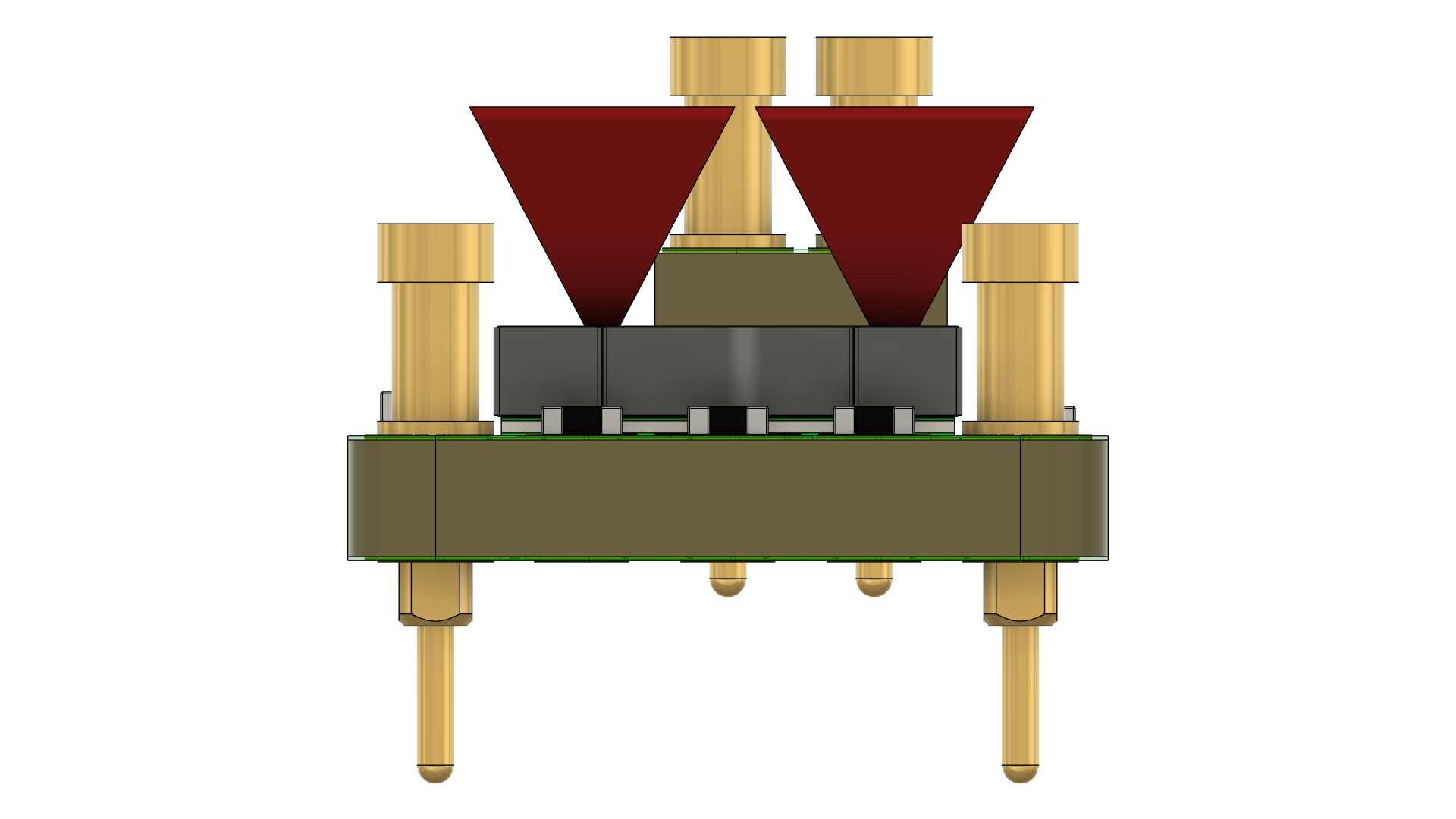

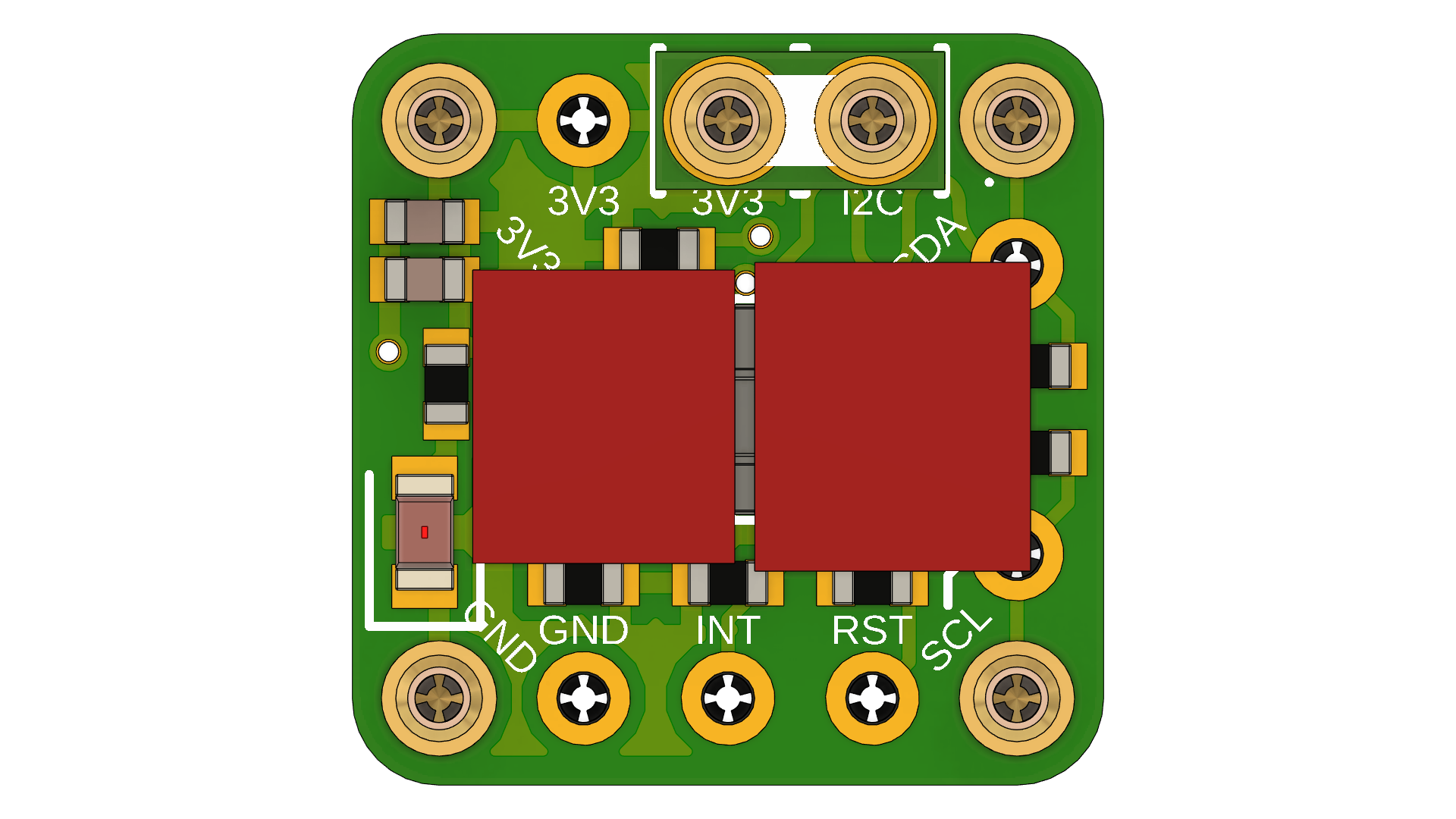

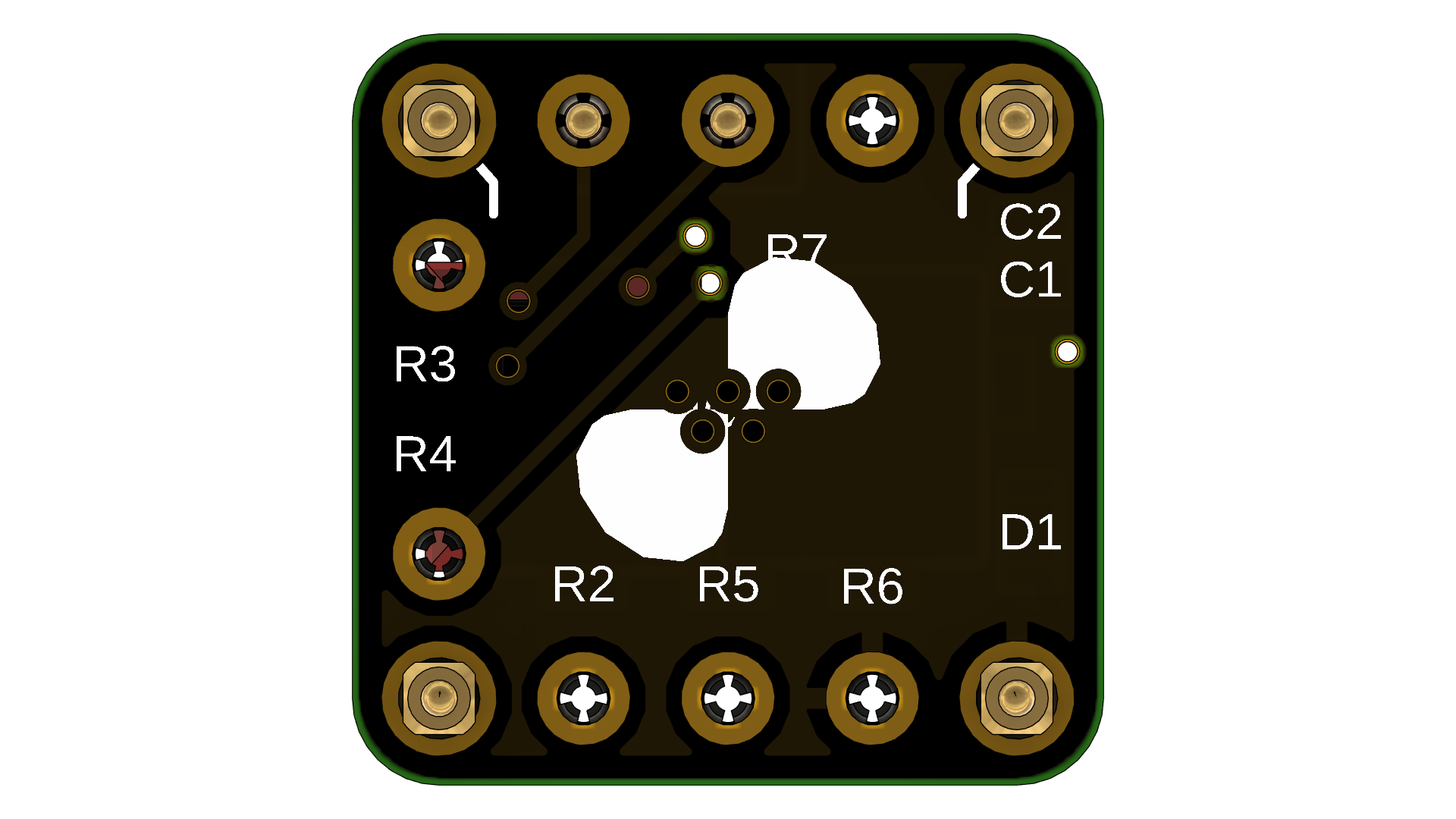

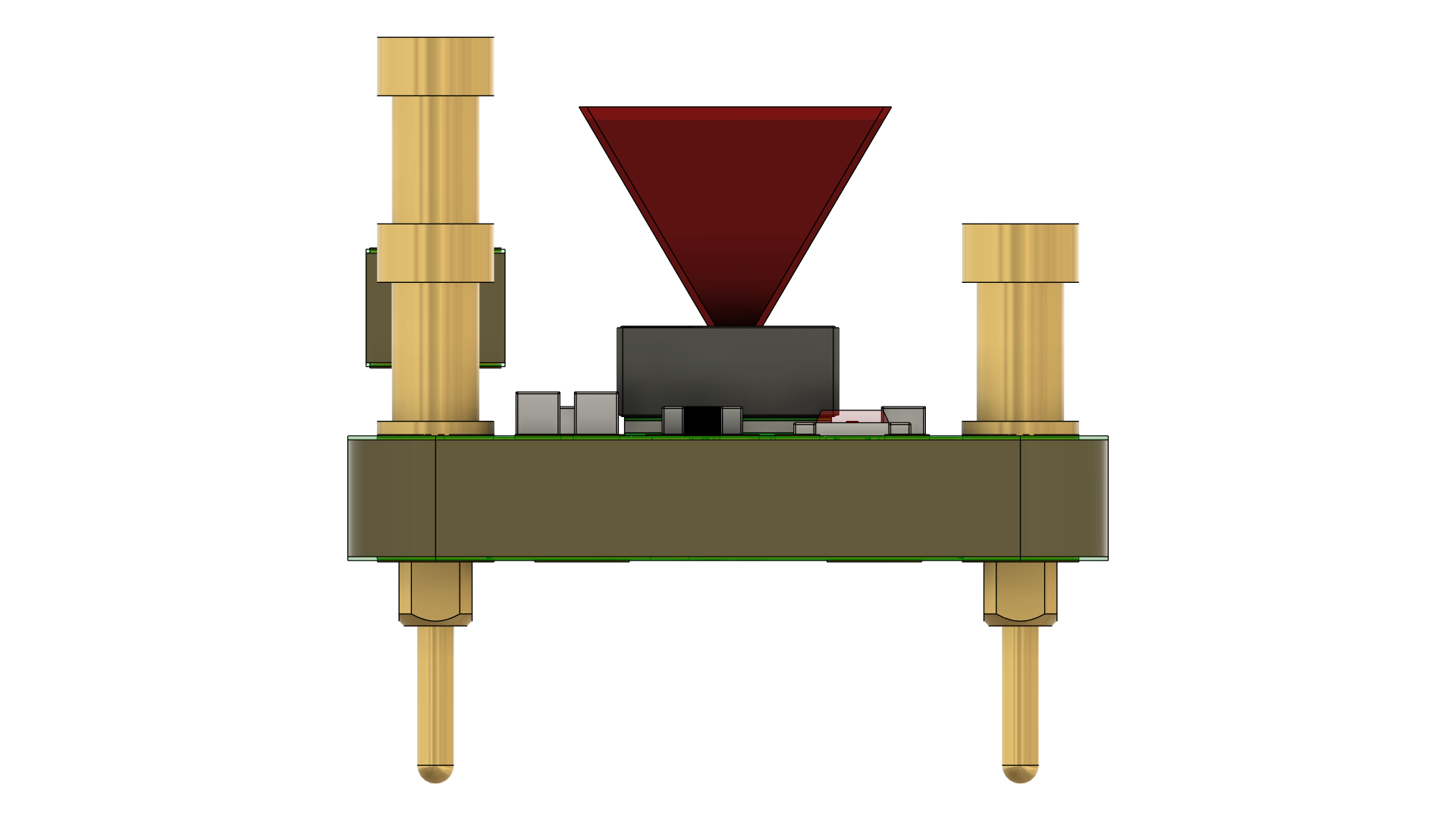

3D Model

Symbol & Footprint

Schematic Symbol

Symbol

PCB Footprint

Footprint

Interactive Symbol Viewer

Interactive Footprint Viewer

Files

Download ZIP
3D model.glb 3D Model
3D model_with_silkscreen.glb 3D + Silkscreen
PCB VL53L5CX Molecule.fbrd PCB Board
F3D VL53L5CX Molecule.f3d Fusion 360
SCH VL53L5CX Molecule.fsch Schematic
AR VL53L5CX Molecule.usdz AR Model
SYM VL53L5CX Molecule v11_symbol.json Symbol Definition
FP VL53L5CX Molecule v11_footprint.json Footprint Definition

Source files

ZIP VL53L5CX_Molecule_v11_gerbers.zip
Gerber Manufacturing Files
 gerbers 38.3 KB
CSV bom.csv bom 554 B
CSV cpl.csv cpl 473 B
STL VL53L5CX Molecule.stl stl 4.4 MB
USDZ VL53L5CX Molecule.usdz usdz 1.2 MB
STEP VL53L5CX Molecule.step step 4.2 MB
SAT VL53L5CX Molecule.sat sat 6.7 MB
IGS VL53L5CX Molecule.igs igs 7.8 MB
F3D VL53L5CX Molecule.f3d f3d 1.9 MB
FBRD VL53L5CX Molecule.fbrd fbrd 27.5 KB
FSCH VL53L5CX Molecule.fsch fsch 33.9 KB
PNG board-screenshot.png

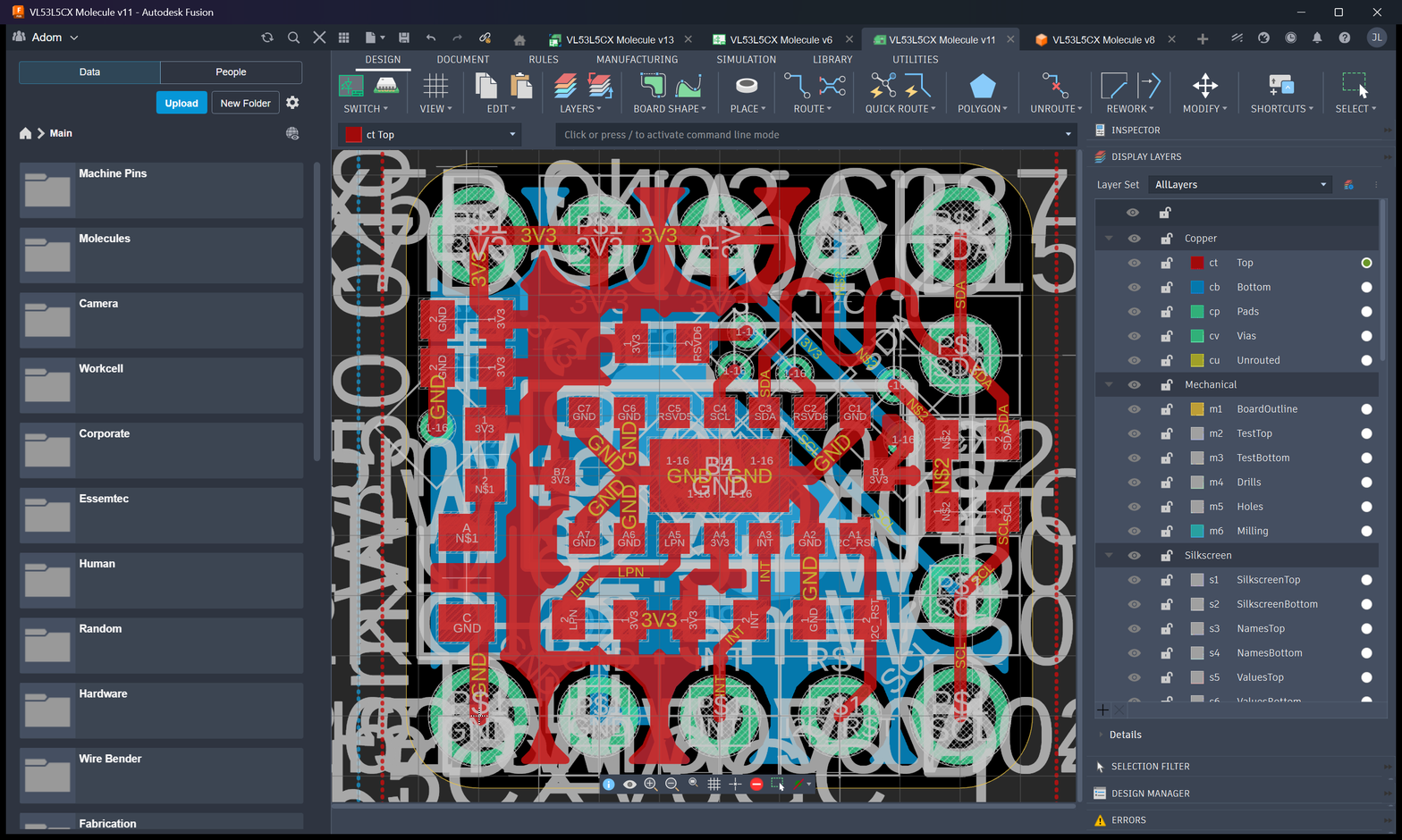

Board Screenshot
 screenshot 765.6 KB
3MF VL53L5CX Molecule.3mf 3mf 1.3 MB

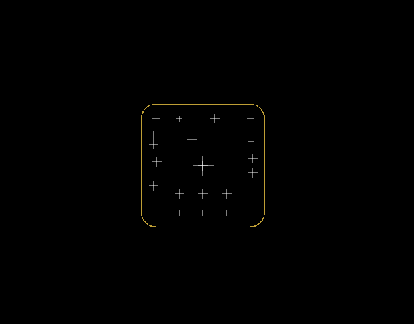

PNG board_outline.png
Board Outline
 screenshot 394.0 KB

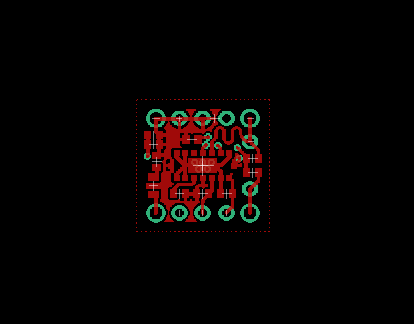

PNG top_copper.png
Top Copper Layer
 screenshot 394.0 KB

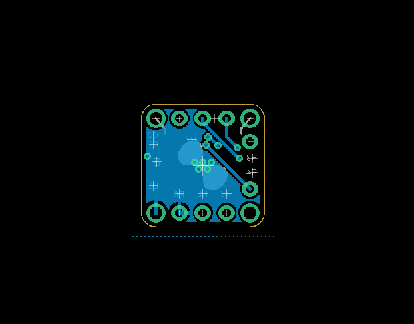

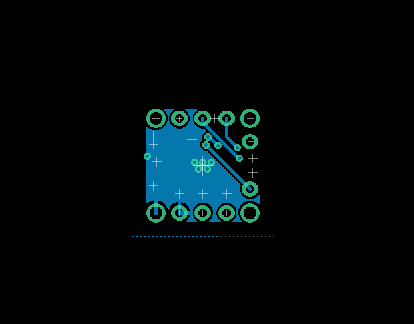

PNG bottom_copper.png
Bottom Copper Layer
 screenshot 394.0 KB
PNG fabrication.png

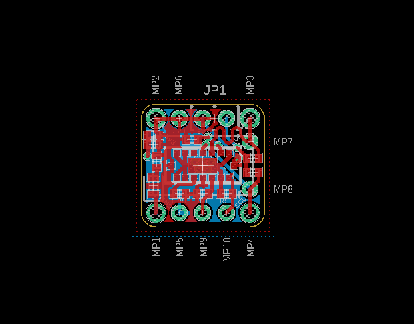

Fabrication Drawing
 screenshot 394.0 KB
PNG 3d-right.png

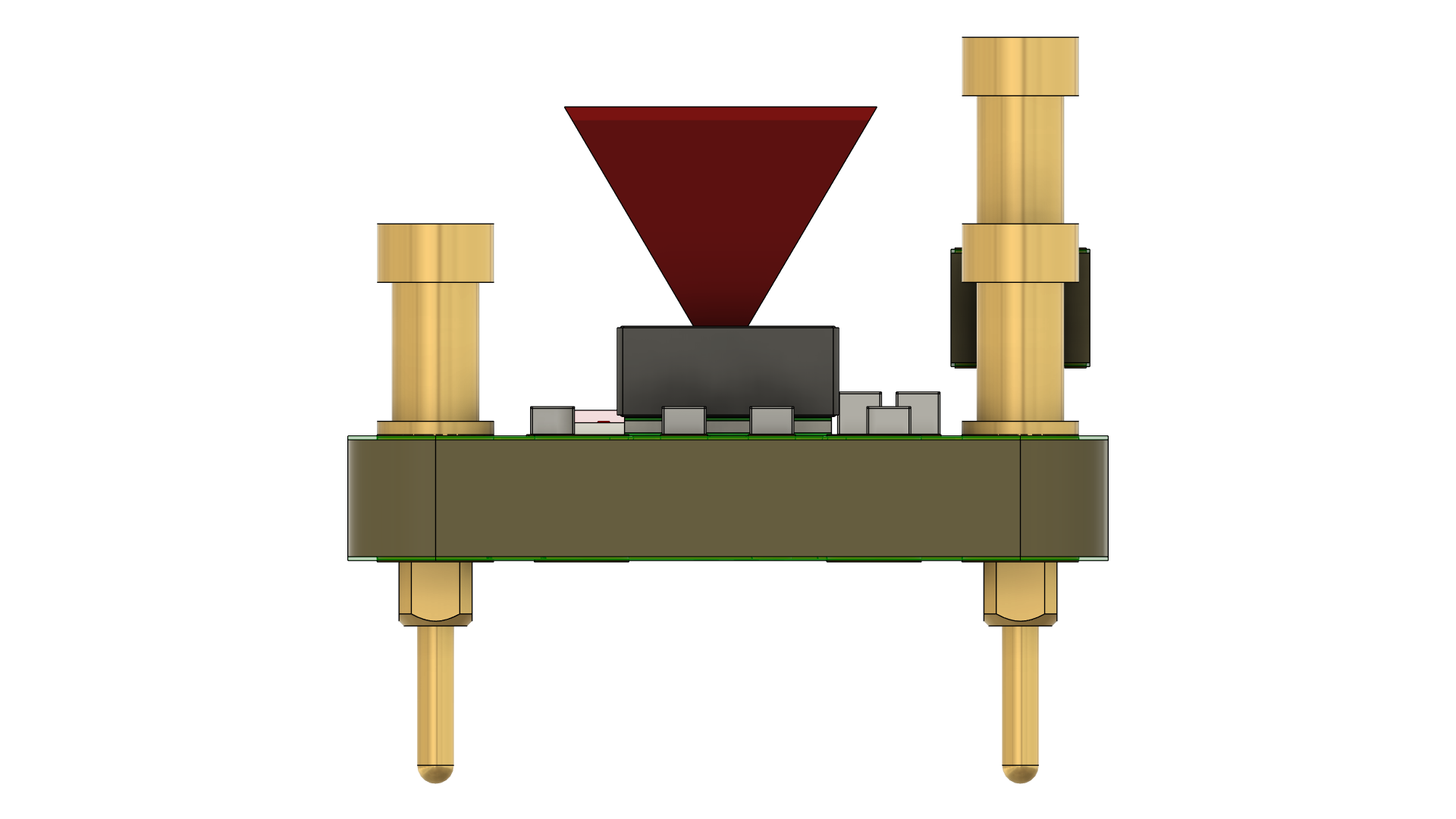

3D Right View
 screenshot 98.1 KB
PNG 3d-board.png

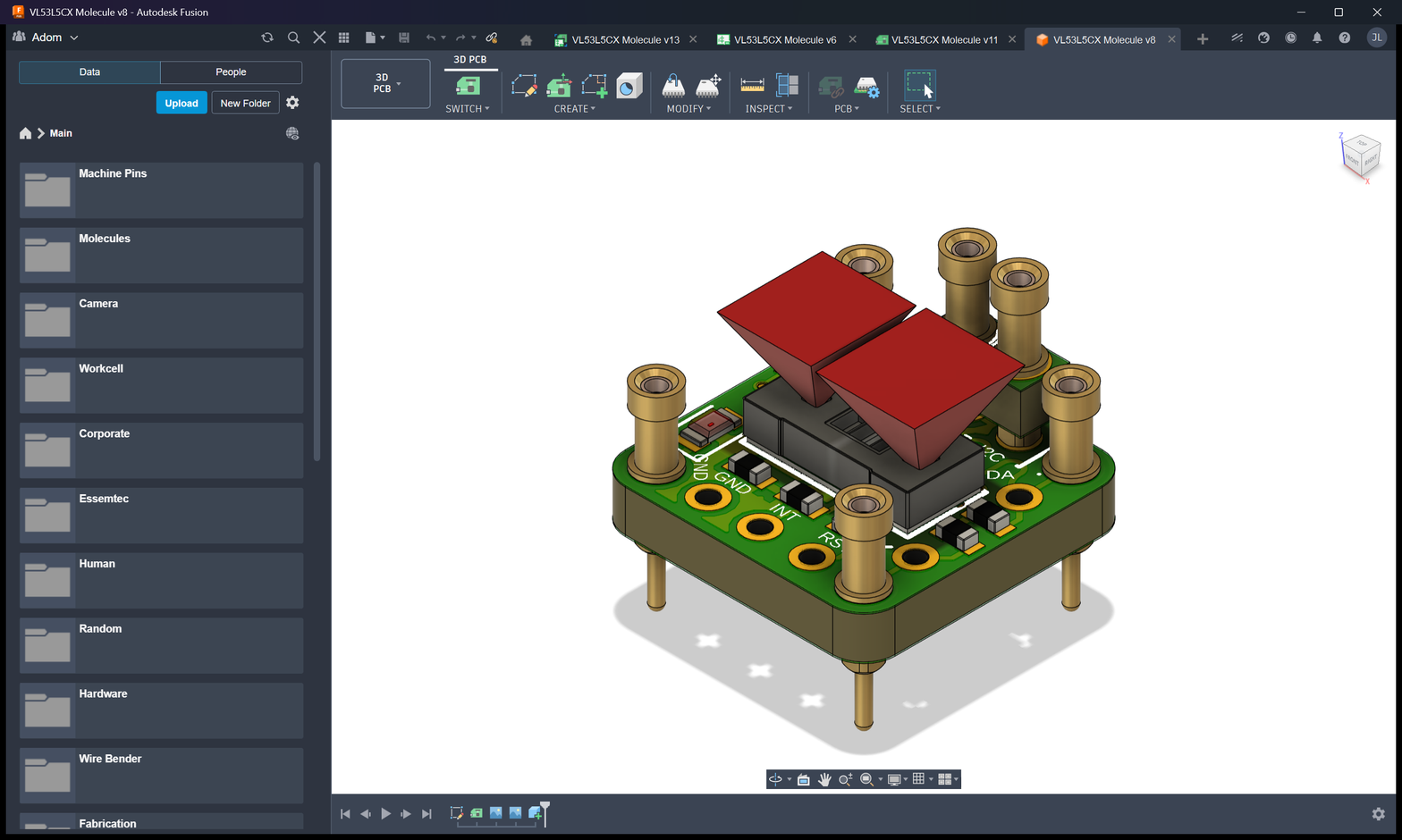

3D Board View
 screenshot 252.0 KB

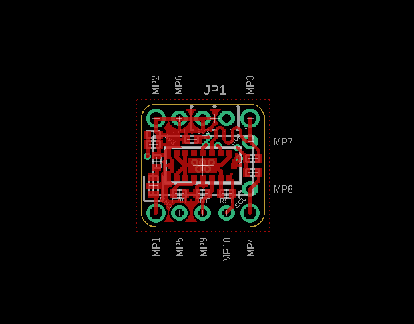

PNG assembly_top.png
