Molecule: ServoMolecule (imported from Curium S3)
Created by: adom Version: v1 Category: other
Molecule
ServoMolecule
ServoMolecule
Latest StablePhoto3D Model
Creator
Ray
Version
1.0.1
Created
2025-11-13
Assets
11 files
Install this molecule
Paste this into Claude Code (VS Code panel, Adom editor, or terminal) to install:
Search the Adom Wiki for the molecule "ServoMolecule" (slug: servomolecule-907000) at https://wiki-ufypy5dpx93o.adom.cloud/wiki/molecules/servomolecule-907000. Download its symbol (.kicad_sym), footprint (.kicad_mod), and 3D model (.glb/.step) assets into my current KiCad project under symbols/, footprints/, and 3dmodels/ directories. Register them in the project library tables. Show me the files once installed.
Description
Edit AI SkillMolecule: ServoMolecule (imported from Curium S3)
3D Model
Interactive Symbol Viewer
Interactive Footprint Viewer
Files
Download ZIP| model.glb | 3D Model | |
| model_with_silkscreen.glb | 3D + Silkscreen | |
| ServoMol.fbrd | PCB Board | |
| ServoMol.f3d | Fusion 360 | |
| ServoMol.fsch | Schematic | |
| ServoMol.usdz | AR Model | |
| ServoMolecule_symbol.json | Symbol Definition | |
| ServoMolecule_footprint.json | Footprint Definition | |
| board_netlist.json | Board Netlist | |
| board_outline.json | Board Outline | |
| board_parts.json | Board Parts |
Source files
| bom.csv | bom | 452 B | |
| cpl.csv | cpl | 342 B | |
| ServoMol.stl | stl | 2.1 MB | |
| ServoMol.usdz | usdz | 776.4 KB | |
| ServoMol_v13_gerbers.zip Gerber Manufacturing Files |
gerbers | 82.5 KB | |
| ServoMol.step | step | 2.5 MB | |
| ServoMol.sat | sat | 3.4 MB | |
| ServoMol.igs | igs | 4.7 MB | |
| ServoMol.f3d | f3d | 1.5 MB | |
| ServoMol.fbrd | fbrd | 26.3 KB | |
| ServoMol.fsch | fsch | 29.8 KB | |

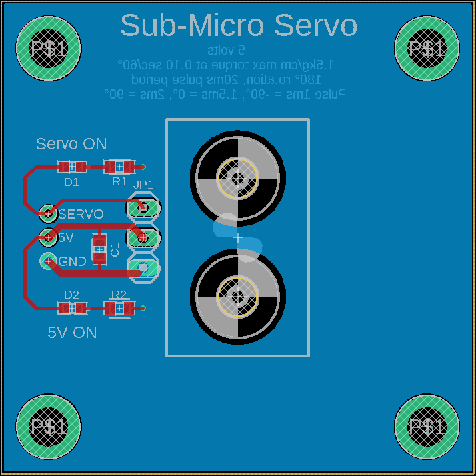

| fabrication.png Fabrication Drawing |
screenshot | 665.4 KB | |

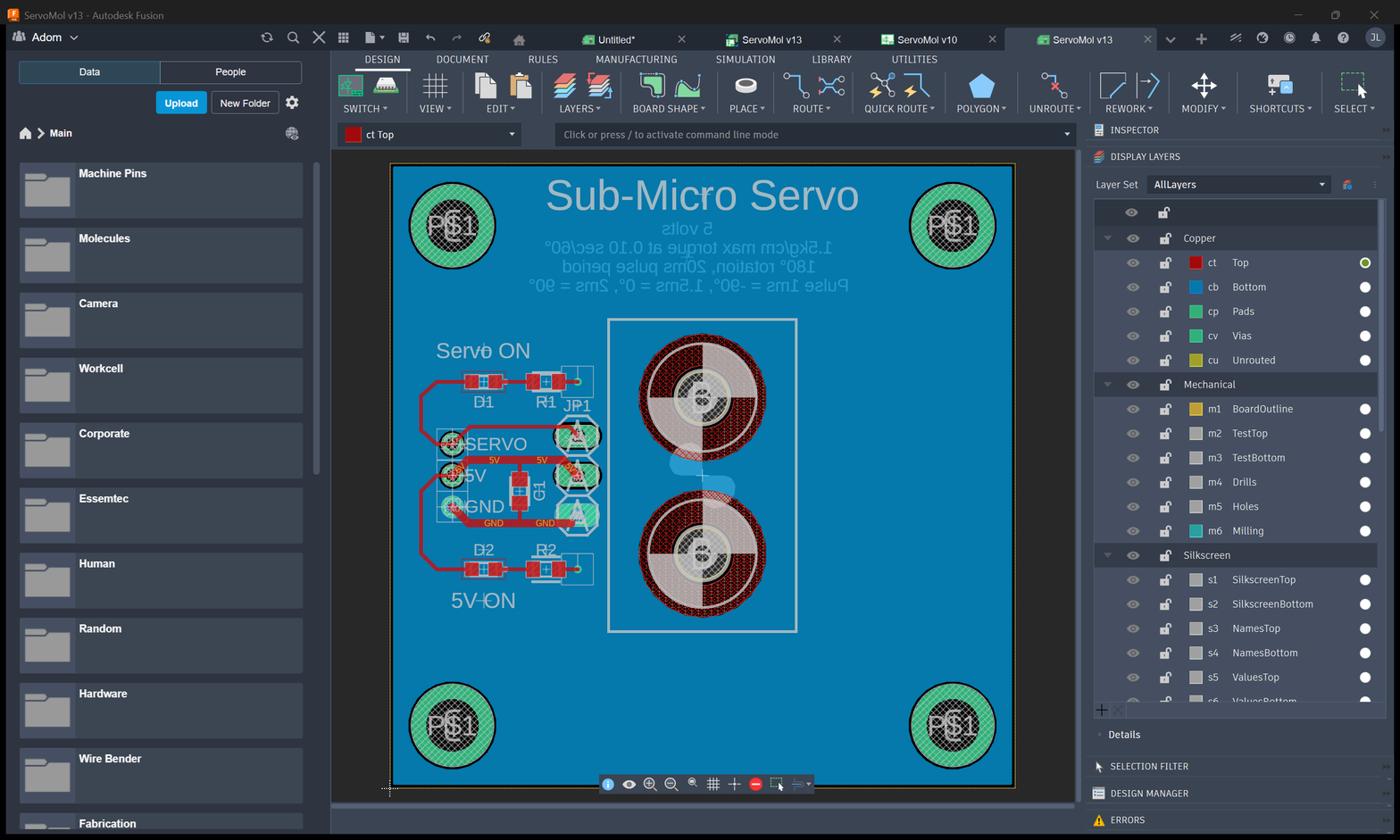

| board-screenshot.png Board Screenshot |
screenshot | 369.0 KB | |
| ServoMol.3mf | 3mf | 641.8 KB | |

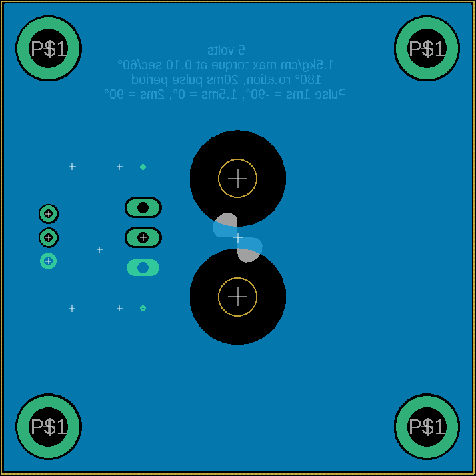

| assembly_bottom.png Assembly Bottom |
screenshot | 665.4 KB | |

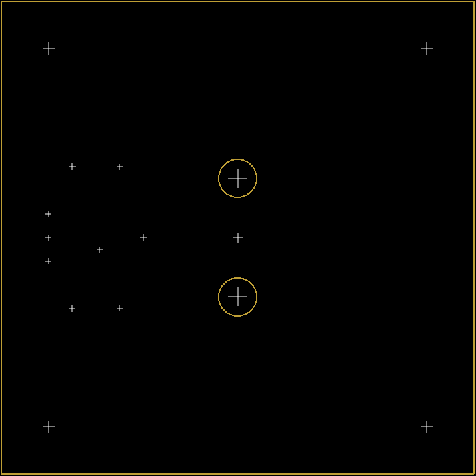

| board_outline.png Board Outline |
screenshot | 665.4 KB | |

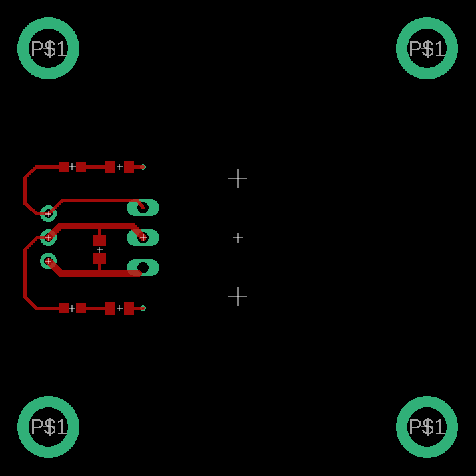

| top_copper.png Top Copper Layer |
screenshot | 665.4 KB | |

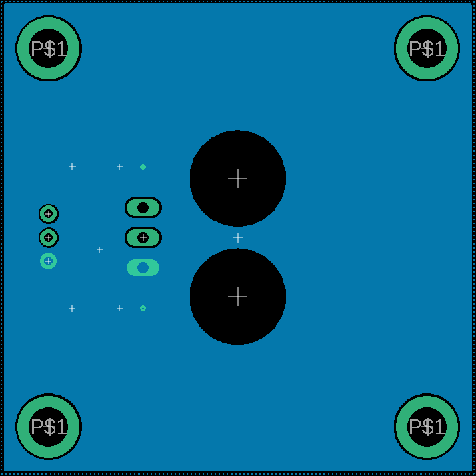

| bottom_copper.png Bottom Copper Layer |
screenshot | 665.4 KB | |

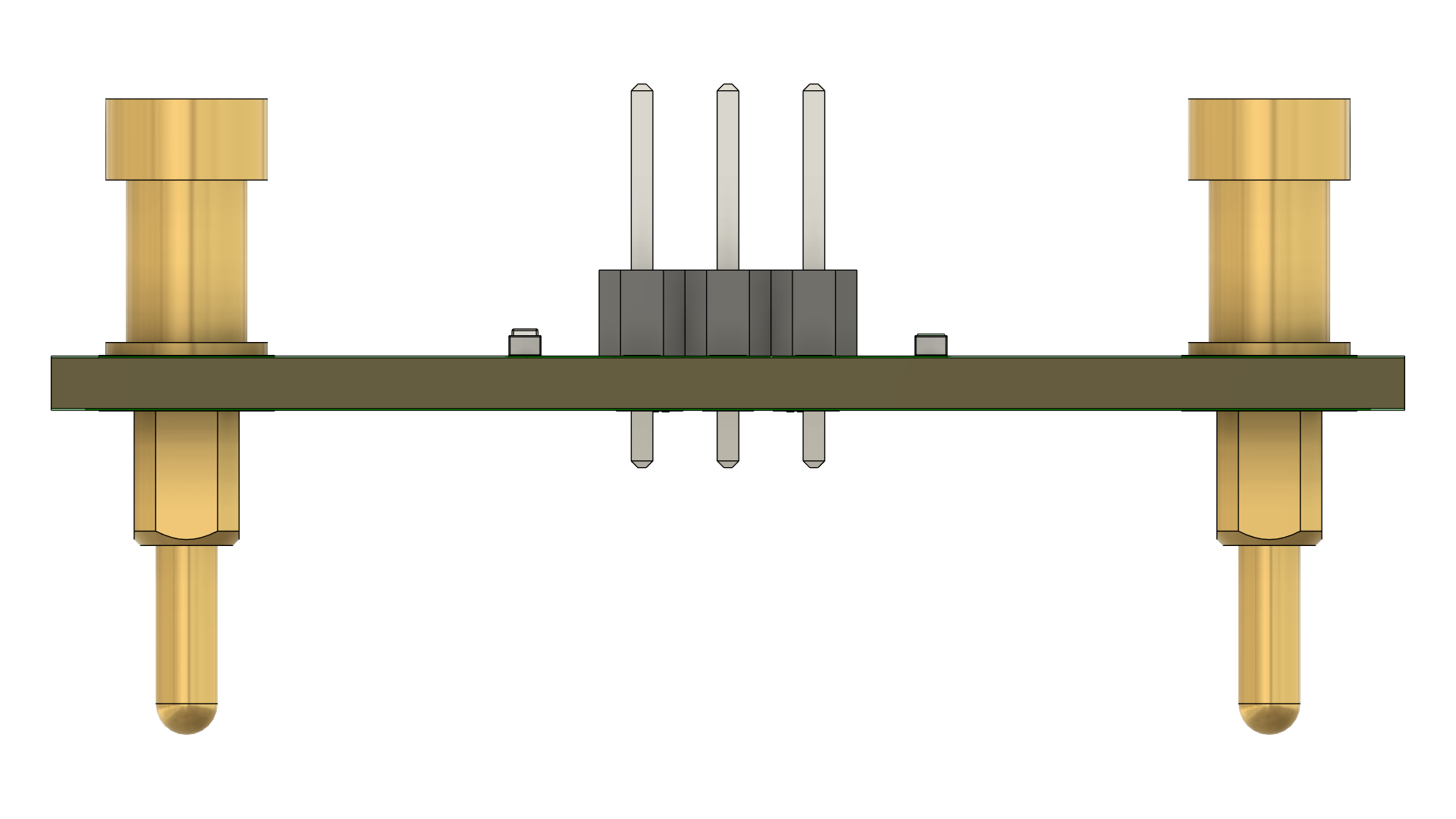

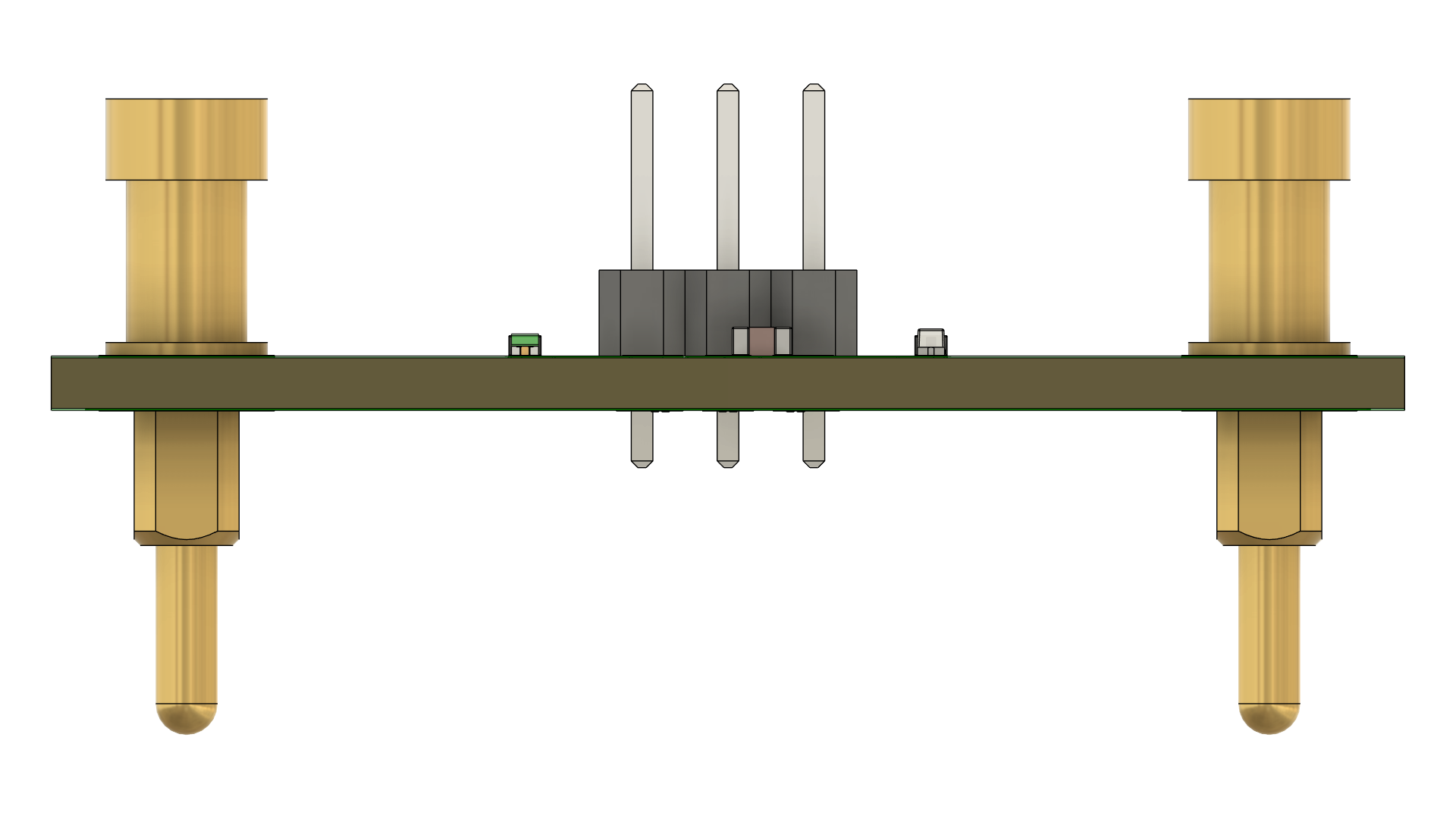

| 3d-left.png 3D Left View |
screenshot | 110.0 KB | |
| 3d-right.png 3D Right View |
screenshot | 104.4 KB | |

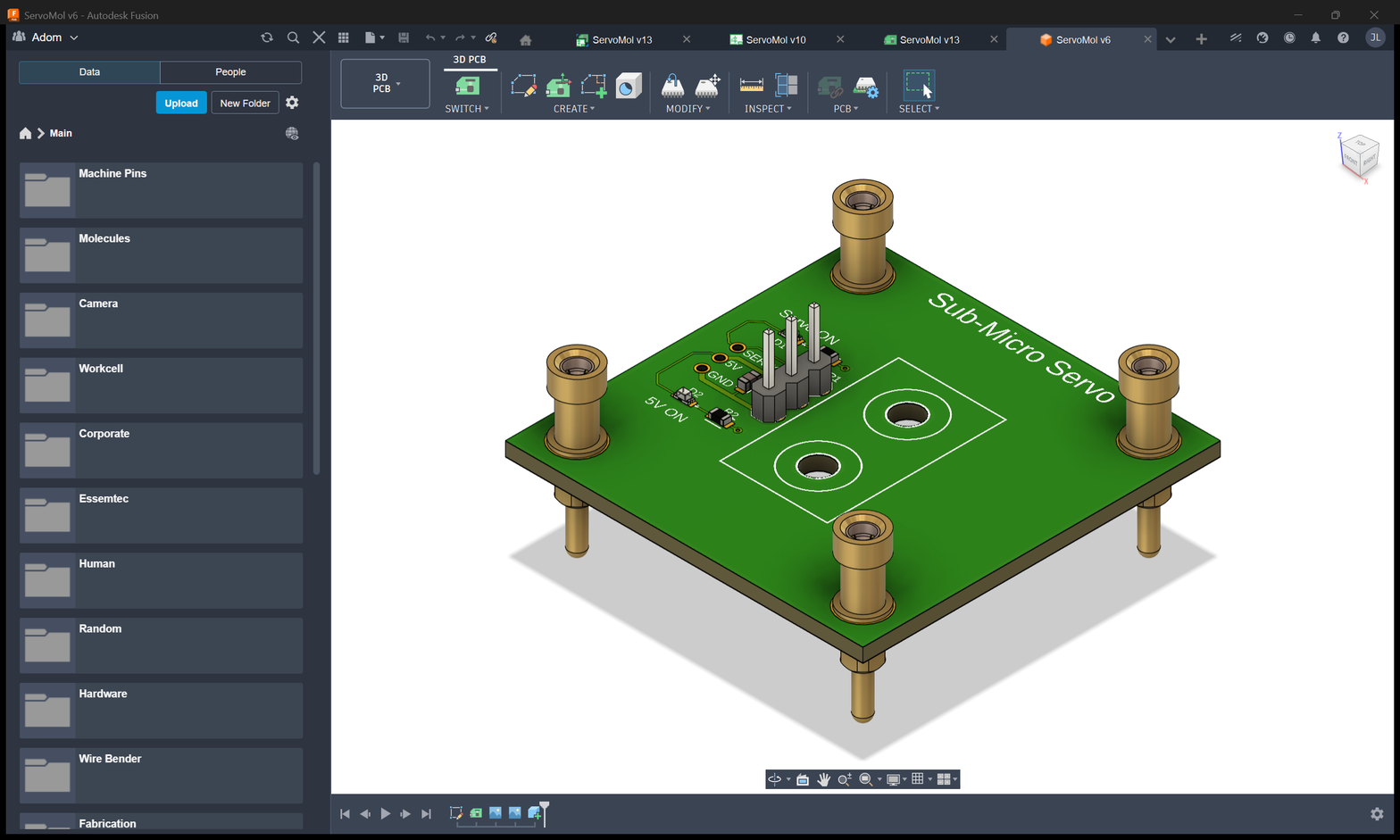

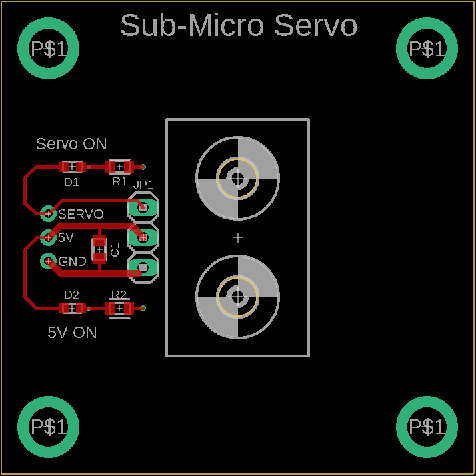

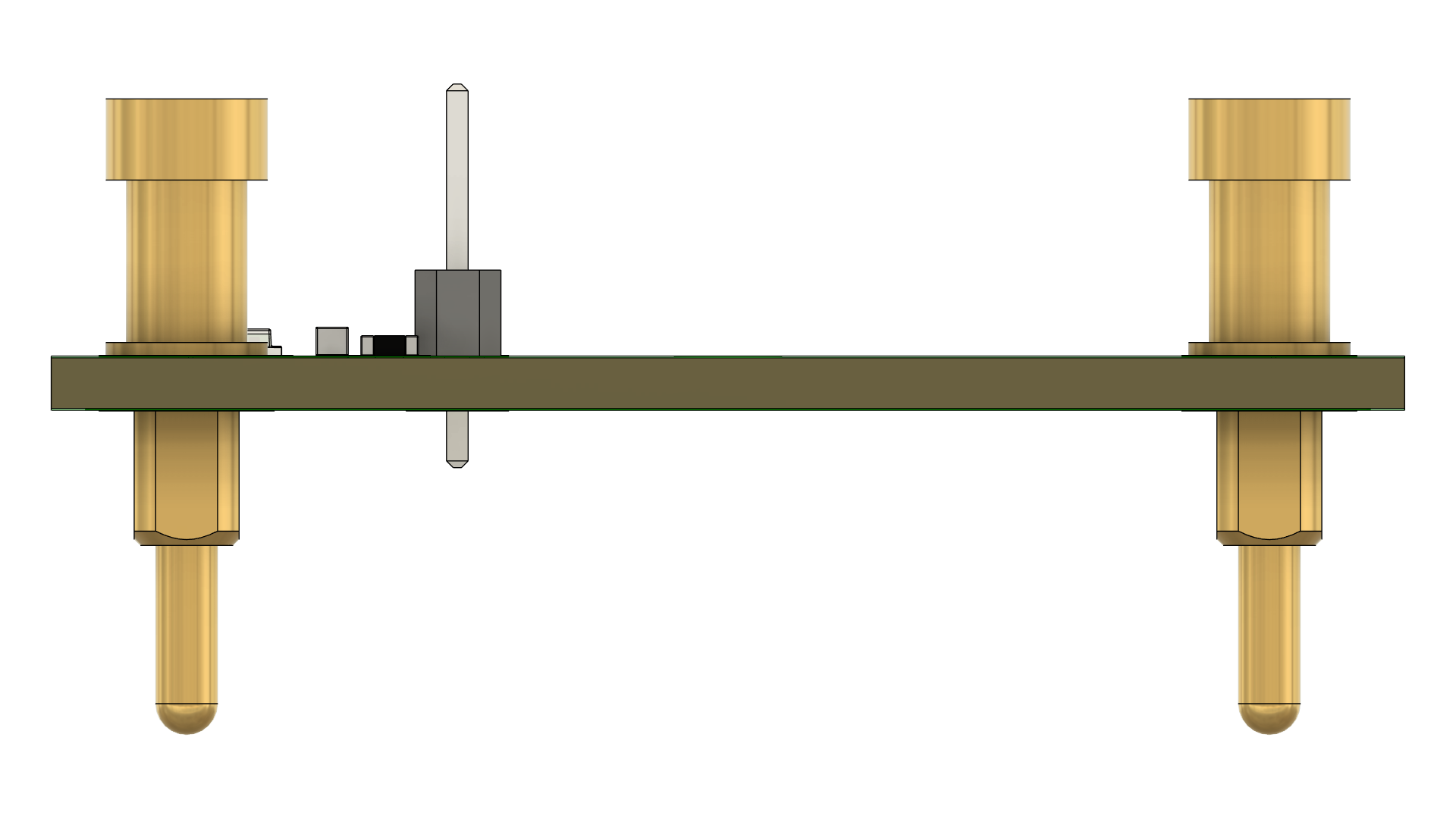

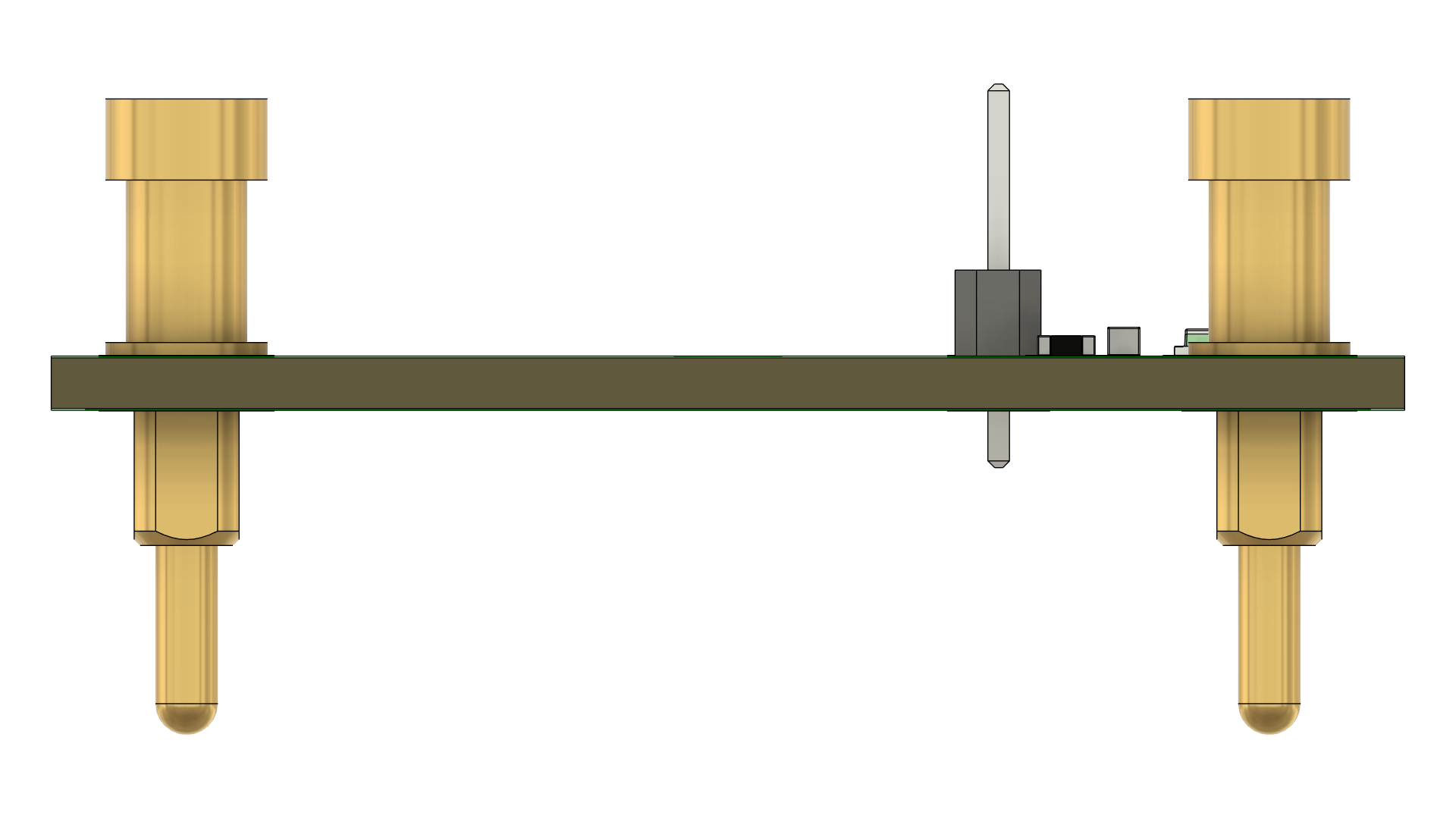

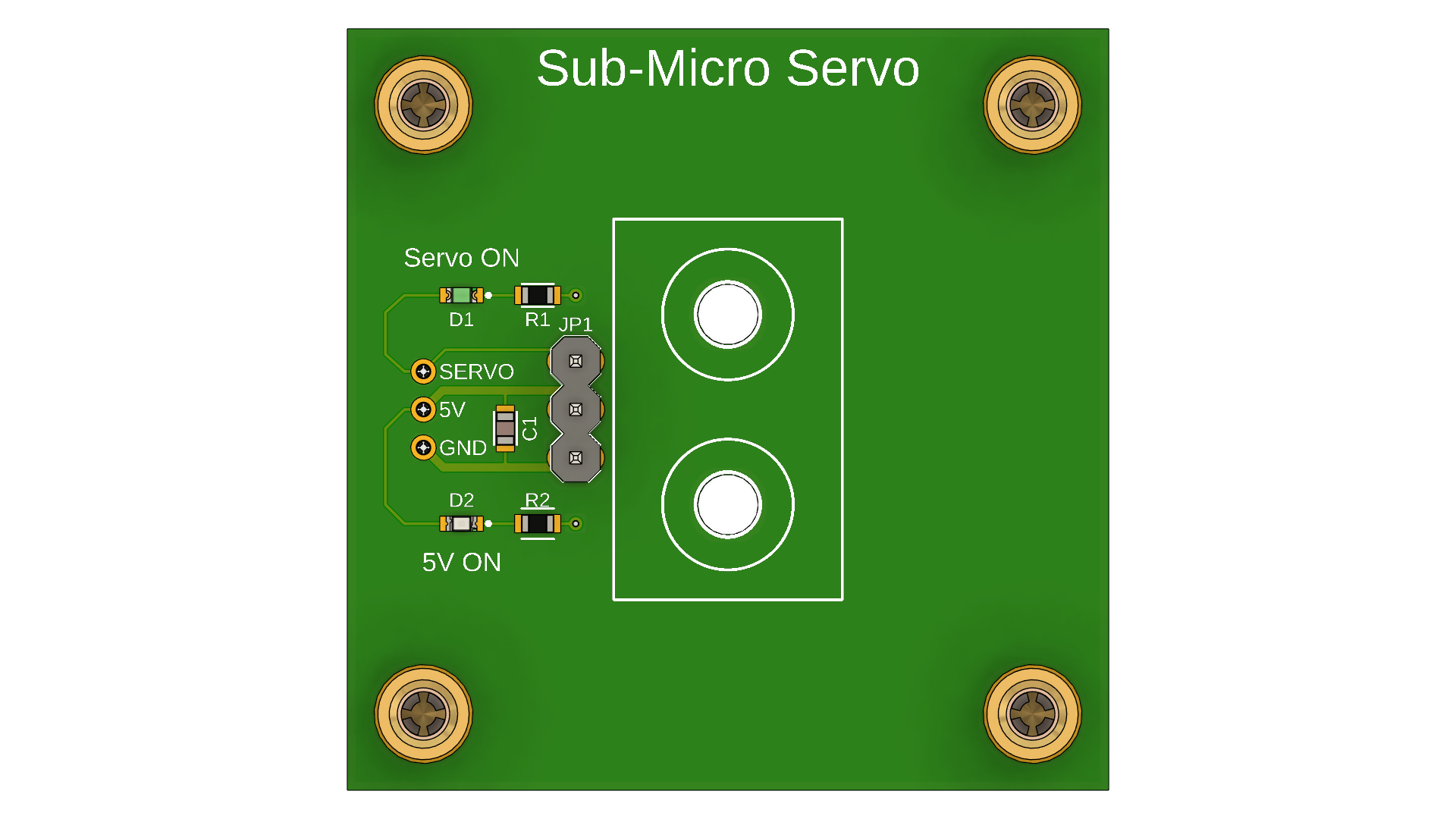

| 3d-board.png 3D Board View |
screenshot | 225.4 KB | |
| assembly_top.png Assembly Top |
screenshot | 665.4 KB | |
| 3d-front.png 3D Front View |
screenshot | 97.1 KB | |
| 3d-back.png 3D Back View |
screenshot | 93.2 KB | |
| 3d-top.png 3D Top View |
screenshot | 247.5 KB | |

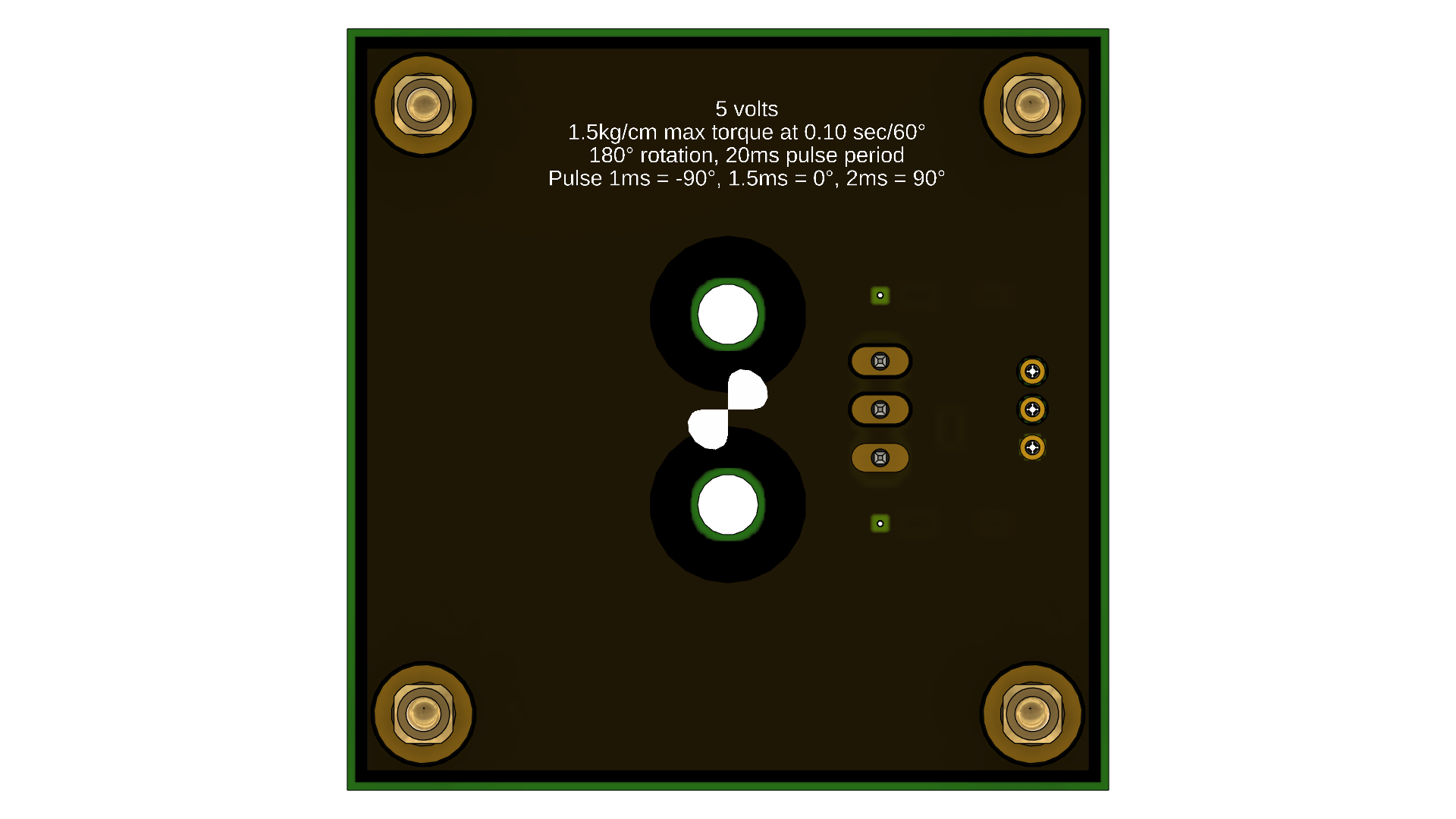

| 3d-bottom.png 3D Bottom View |
screenshot | 178.7 KB |
AI Skill Technical Reference
Edit AI SkillServoMolecule
Type: Adom Molecule Creator: adom Version: v1 Category: other
Overview
Molecule: ServoMolecule (imported from Curium S3)
Pin Configuration
Left Edge
- U$2 (medium, machine_pin, MACH_PIN_LRG_STD, drill: 3.45mm)
- SERVO (medium, contact, CONTACT_MED, drill: 0.84mm)
- 5V (medium, contact, CONTACT_MED, drill: 0.84mm)
- GND (medium, contact, CONTACT_MED, drill: 0.84mm)
- U$1 (medium, machine_pin, MACH_PIN_LRG_STD, drill: 3.45mm)
Right Edge
- U$3 (medium, machine_pin, MACH_PIN_LRG_STD, drill: 3.45mm)
- U$4 (medium, machine_pin, MACH_PIN_LRG_STD, drill: 3.45mm)
Board Components
- 5V: CONTACT_MED, PIN_MEDIUMPIN_MED_CONTACT
- C1: CAP-0603, 22uF
- D1: LED-0603-GREEN, Emerald
- D2: LED_KT-0603-WHITE, White
- GND: CONTACT_MED, PIN_MEDIUMPIN_MED_CONTACT
- H1: 3,2, MOUNT-HOLE3.2
- H2: 3,2, MOUNT-HOLE3.2
- JP1: 1X03, PINHD-1X3
- R1: RES-0603, 1kO
- R2: RESC1608X60, 3.3KO 100mW 75V 0603 C22978
- SERVO: CONTACT_MED, PIN_MEDIUMPIN_MED_CONTACT
- U$1: MACH_PIN_LRG_STD, PIN_LARGEPIN_LRG_STD
- U$2: MACH_PIN_LRG_STD, PIN_LARGEPIN_LRG_STD
- U$3: MACH_PIN_LRG_STD, PIN_LARGEPIN_LRG_STD
- U$4: MACH_PIN_LRG_STD, PIN_LARGEPIN_LRG_STD
- U$5: ADOM_ICON-4MM, ADOM_ICON
Integration Guide
To use ServoMolecule in your design:
- Download the schematic symbol and PCB footprint from the Files section
- Import into your EDA tool (KiCad or Fusion 360 / EAGLE)
- Place the molecule in your schematic and connect the interface pins
- Use the 3D model (.glb) for mechanical fit verification
Design Notes
Board design files (.brd, .sch, .f3d) are available for modification and reference.
