Molecule

Scott LED Nameplate

USB-C powered desk decoration that spells SCOTT in green LEDs. 80x38mm Adom molecule.

Creator John Lauer
Tools tscircuitadom-tsci
Version 1.0.0
Assets 1 files
💬 Sample prompts Paste any of these into Claude Code to use this molecule
Open the live 3D viewer open the Scott LED Nameplate viewer
Show me the schematic show the schematic for Scott LED Nameplate
How do I power it how do I plug in Scott LED Nameplate
âš¡ Install this molecule

Paste this into Claude Code (VS Code panel, Adom editor, or terminal) to install:

Search the Adom Wiki for the molecule "Scott LED Nameplate" (slug: scott-led-nameplate) at https://wiki-ufypy5dpx93o.adom.cloud/wiki/molecules/scott-led-nameplate. Download its symbol (.kicad_sym), footprint (.kicad_mod), and 3D model (.glb/.step) assets into my current KiCad project under symbols/, footprints/, and 3dmodels/ directories. Register them in the project library tables. Show me the files once installed.

A USB-C-powered desk decoration that spells SCOTT in green LEDs.

What's on the board

  • ~46 green 0603 LEDs forming a 3×5 bitmap of each letter
  • One 300 Ω 0402 current-limit resistor per LED (≈10 mA each → ~460 mA / 2.3 W total)
  • USB-C TYPE-C-31-M-12 receptacle on the south edge (J1, JLCPCB C165948)
  • 5.1 kΩ CC pulldowns (R_CC1, R_CC2)
  • 10 µF X5R bulk decoupling cap (C_BULK)
  • 4 corner machine-contact pins (MC1–MC4) so the board fixtures into the standard Adom workcell

Powering it

Plug any USB-C cable into the south edge — phone charger, laptop charger, anything 5 V. The letters light up.

How it was built

Authored in tscircuit (TSX, see source bundle). Published to the wiki with adom-tsci export-wiki so the live 3D viewer (orbit, x-ray, walkthrough) is embedded right on this page.

Designed by Adom in Fort Worth, Texas.

Source files

SVG schematic.svg
Circuit schematic
 file 446.4 KB
GZ scott-led-nameplate-source.tar.gz
Source for Scott-LED-Nameplate — full tscircuit project (lib/, package.json, walkthrough.json, plan.md if present). Untar and `bun install && bunx tsci build` to recreate.
 file 10.0 KB
MD plan.md
Original design brief / plan for Scott-LED-Nameplate — the prompt the project was authored from.
 file 4.6 KB
GLB 3d.glb
Full 3D model — opens in any glTF viewer
 glb 2.1 MB

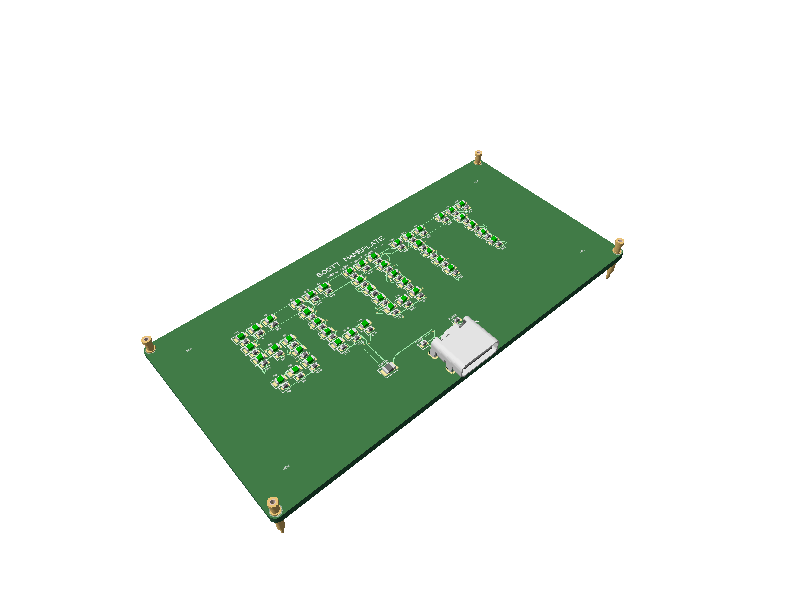

PNG 3d.png
Top-down 3D render
 screenshot 46.2 KB

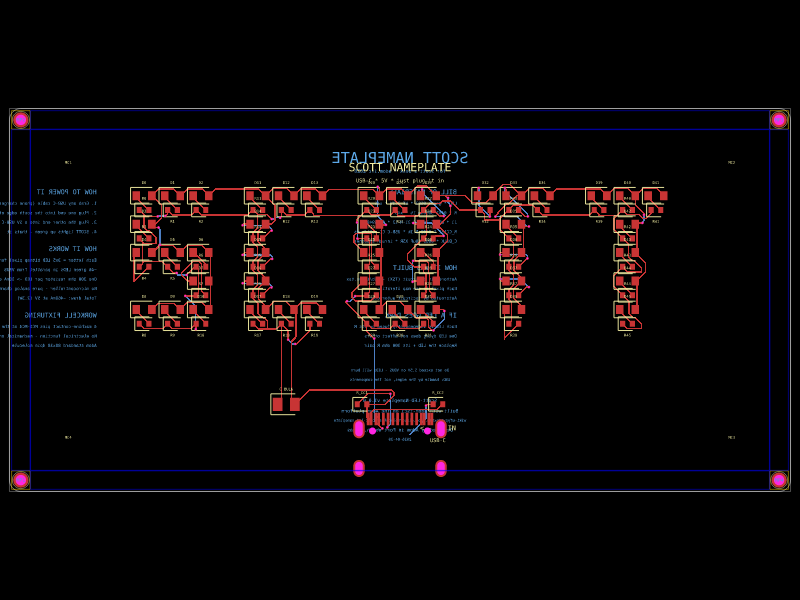

PNG pcb.png
PCB layout — copper, silkscreen, drill
 screenshot 72.0 KB
SVG pcb.svg
PCB layout (vector SVG)
 file 416.2 KB
