The TSB013A4318A02 molecule is a breakout of the BZCN SMD tactile switch rated at 12 V DC and 50 mA, featuring a rectangular actuator approximately 6 mm × 3.5 mm, an operating force of ~180 gf, and a vertical standing‑paste surface‑mount package (~4.3 mm high).

Reset Switch v2

Type: Adom Molecule Creator: abcdefgh Version: v1 Category: other Availability: 100%, 24/7

Overview

The TSB013A4318A02 molecule is a breakout of the BZCN SMD tactile switch rated at 12 V DC and 50 mA, featuring a rectangular actuator approximately 6 mm × 3.5 mm, an operating force of ~180 gf, and a vertical standing‑paste surface‑mount package (~4.3 mm high).

Science Drivers

• component testing
• xrp platform

NSF Relevance

This molecule provides a ready-to-use tactile switch for rapid prototyping, allowing users to quickly integrate momentary input functionality into circuits.

Integration Guide

To use Reset Switch v2 in your design:

1. Download the schematic symbol and PCB footprint from the Files section
2. Import into your EDA tool (KiCad or Fusion 360 / EAGLE)
3. Place the molecule in your schematic and connect the interface pins

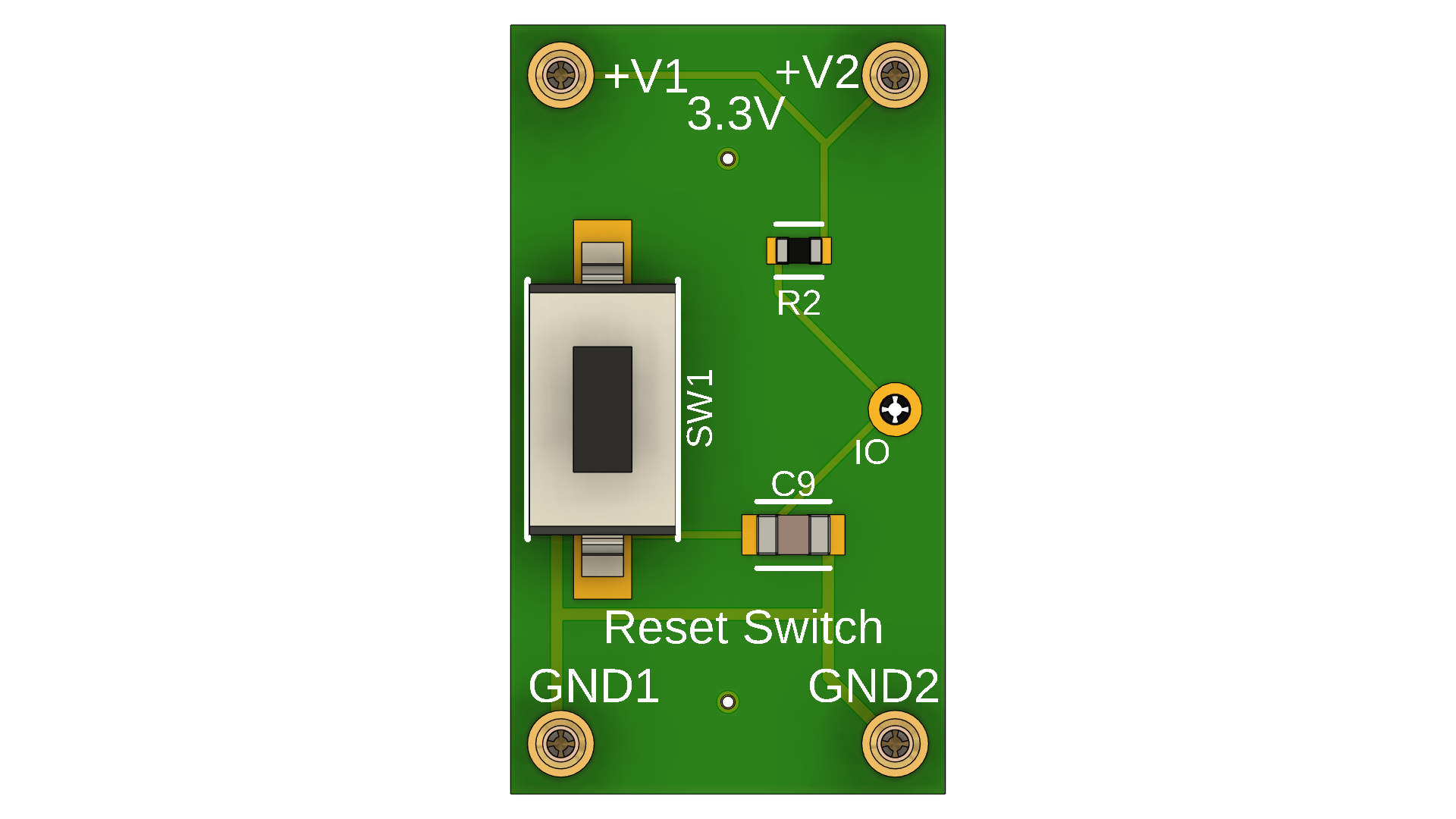

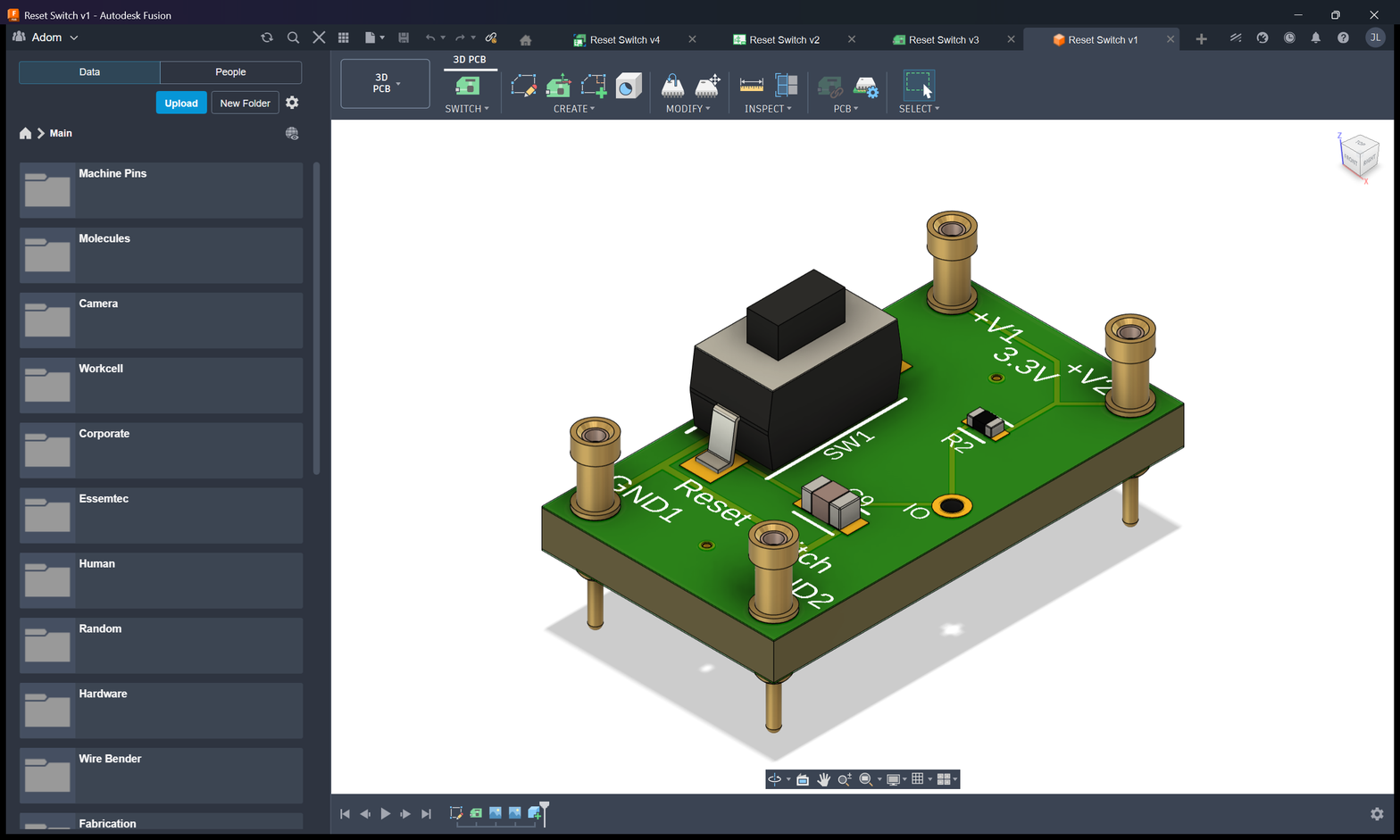

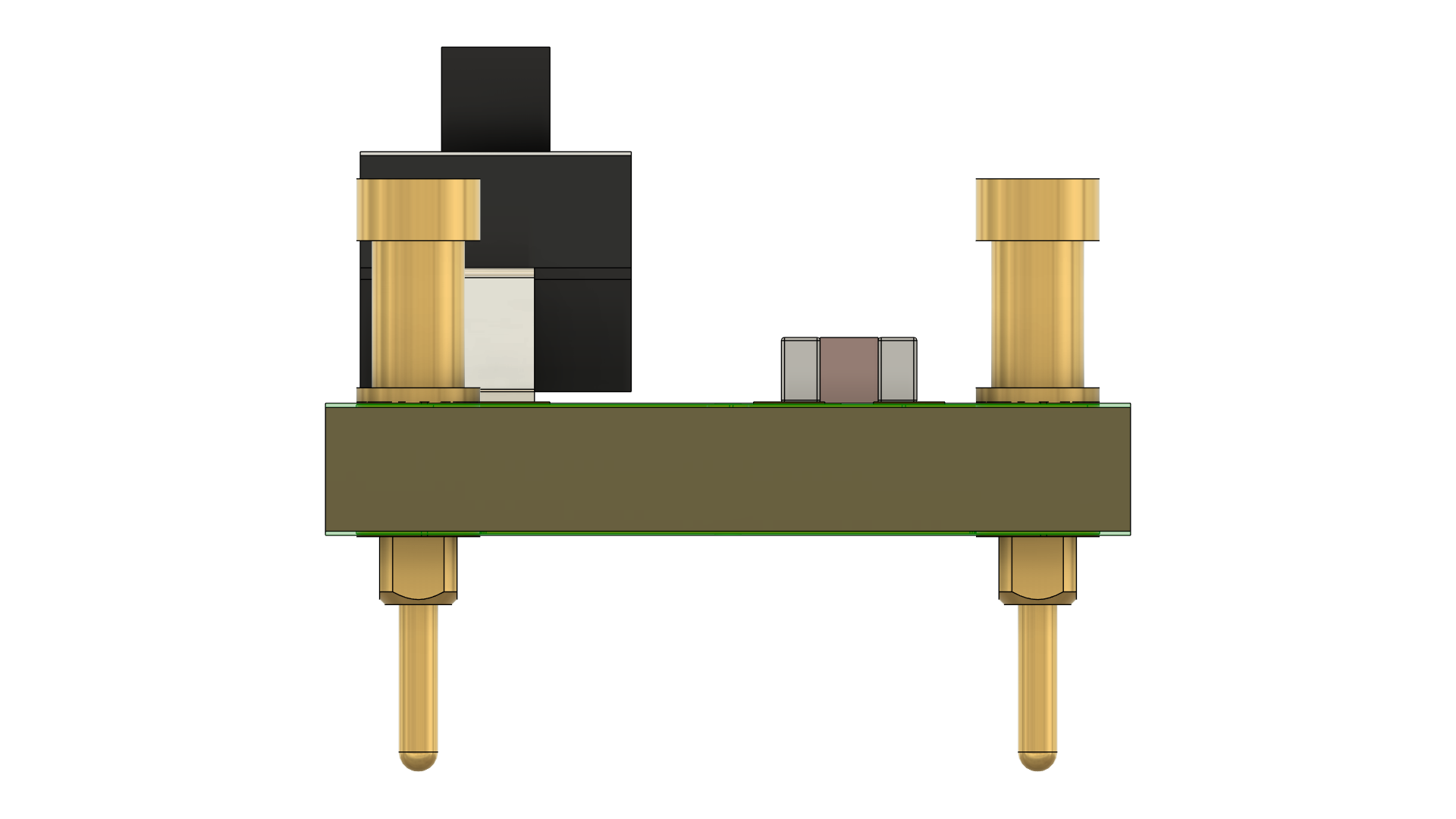

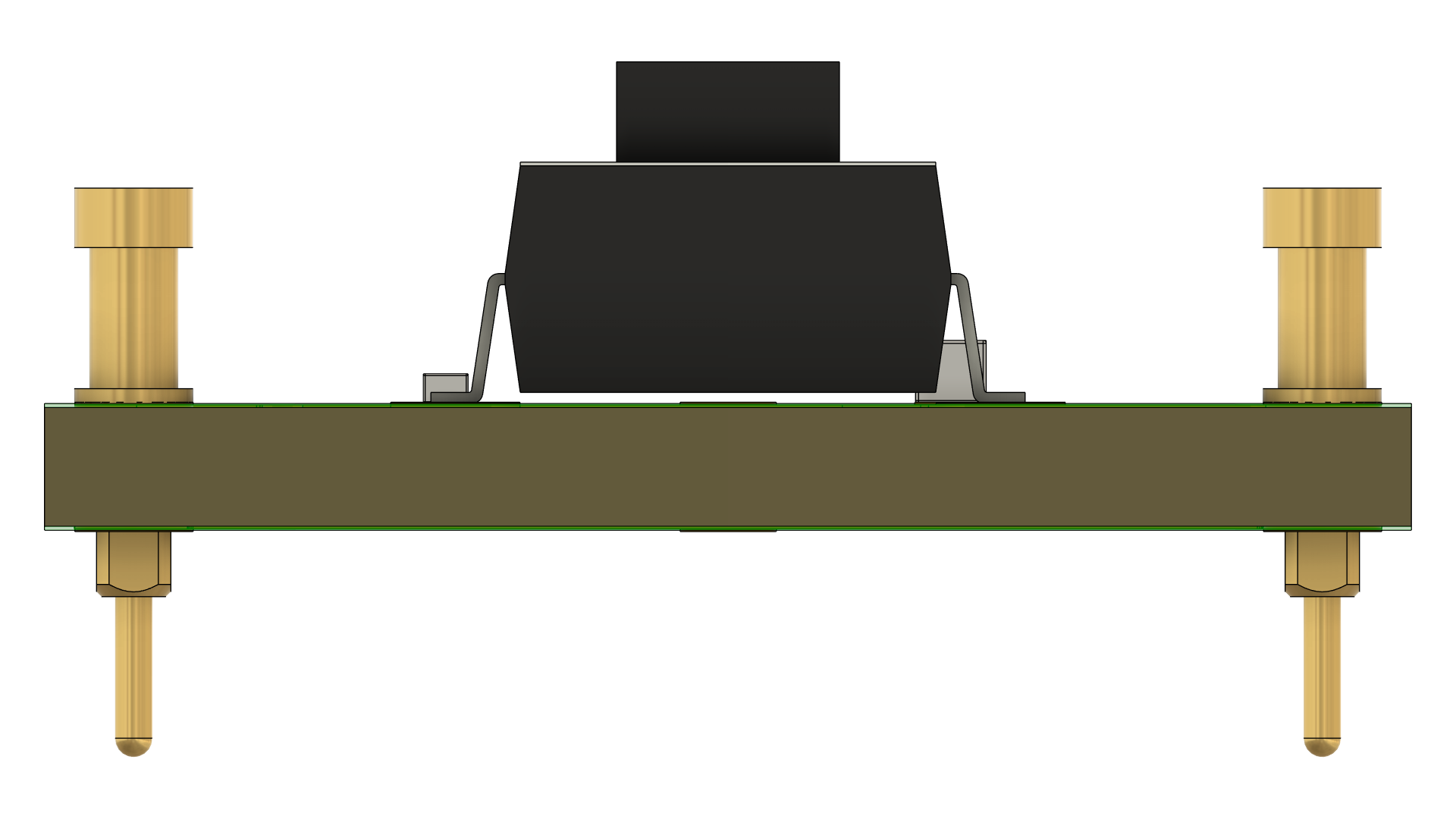

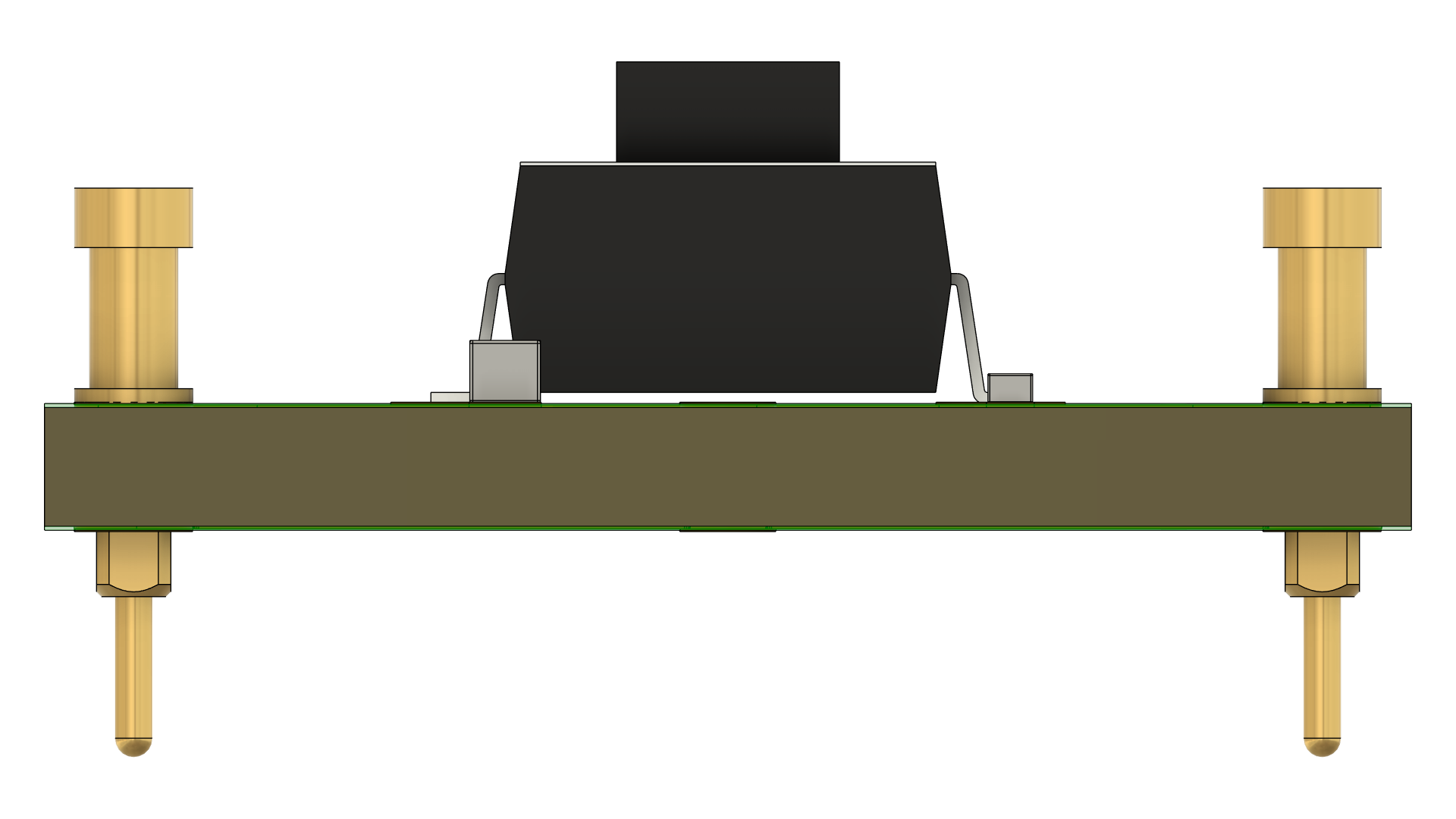

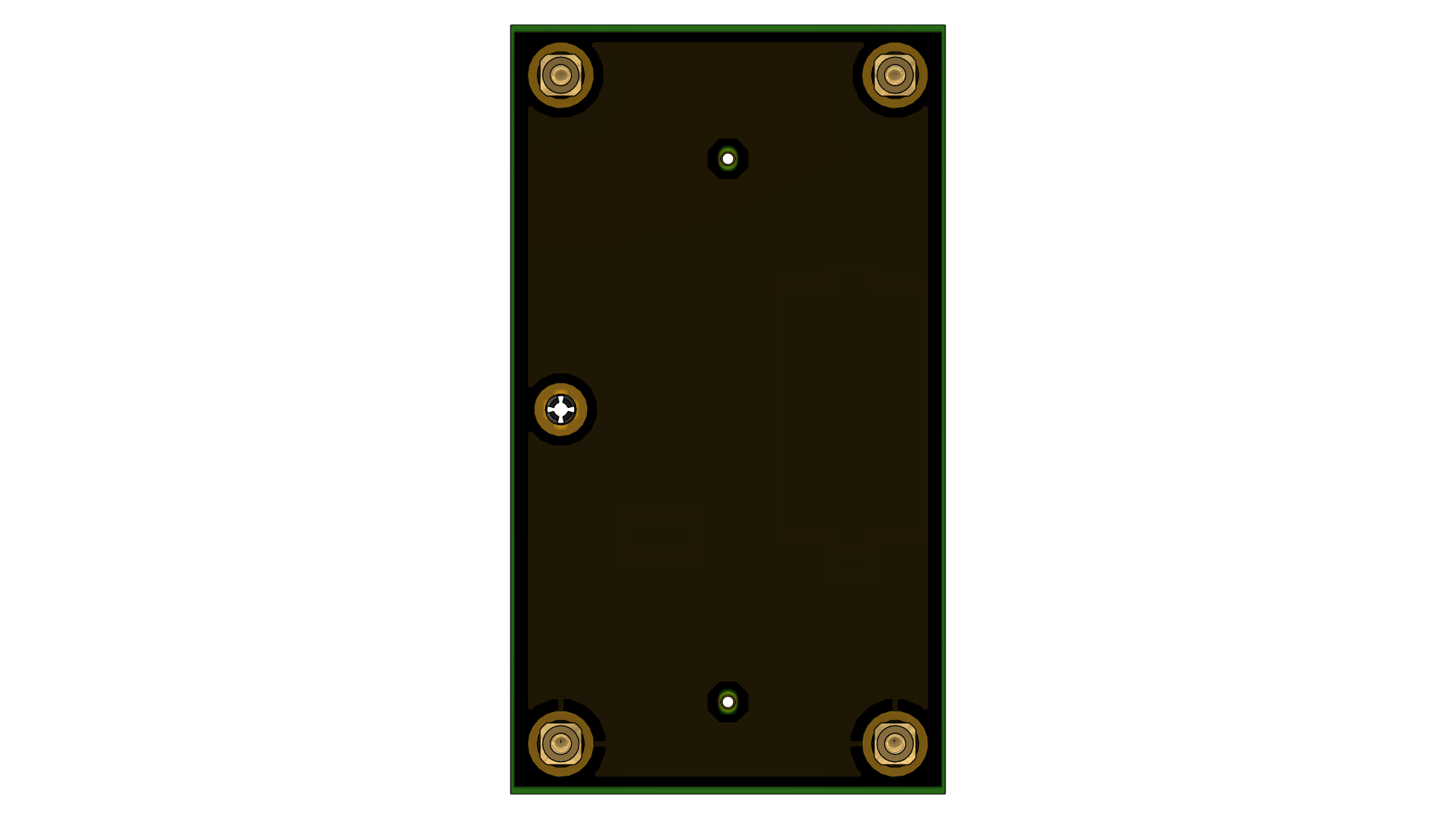

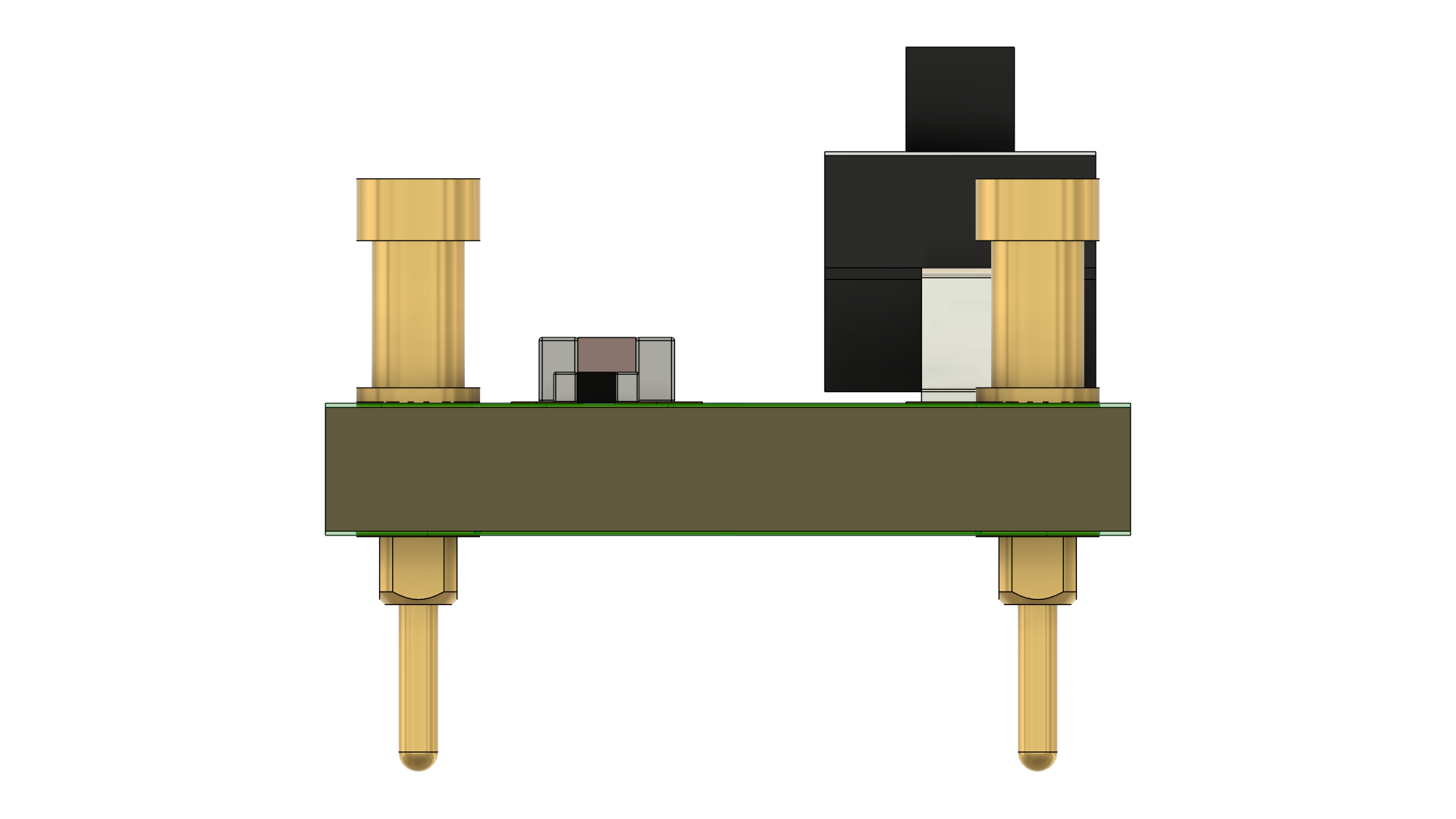

4. Use the 3D model (.glb) for mechanical fit verification

Design Notes

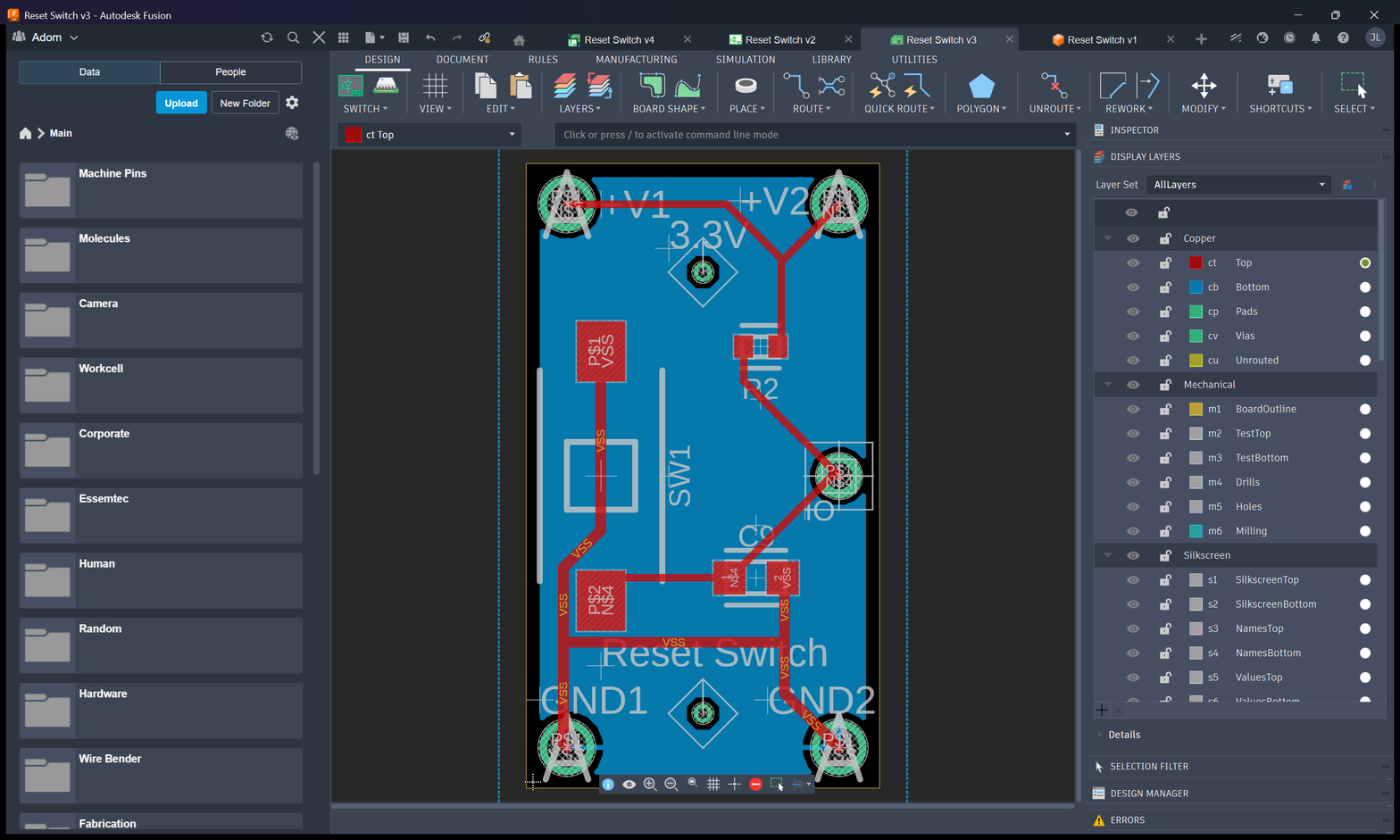

Board design files (.brd, .sch, .f3d) are available for modification and reference.
