PM COIL Molecule v12

Type: Adom Molecule Creator: adonis Version: v1 Category: other Availability: 100%, 24/7

Overview

This device sits inside the human body, in the subcutaneous layer of the abdomen, to charge implantable devices. It is an inductive charging receiver coil for the COSMIIC system power module. The coil is made up of 28 AWG circular magnet wire with 256 turns total (the coil is a stepped configuration). The nominal values measured at 3.5KHz are: Ls=5.8mH; Rs=11; ohms Q=11.

Science Drivers

• implantable healthcare
• component testing

NSF Relevance

This is an essential tool for advancing the prototyping of implantable healthcare electronic devices. Implantable devices require a power source. For example, in spinal cord injuries, there are devices that can transmit electrical signals to trigger muscles, bypassing the injury area. Without a power source innovations must stay external, leaving holes in the body that are prone to infection or devices batteries must be surgically replaced. This charging tool is a fundamental element of any advancement in the field of implantable devices.

Integration Guide

To use PM COIL Molecule v12 in your design:

1. Download the schematic symbol and PCB footprint from the Files section

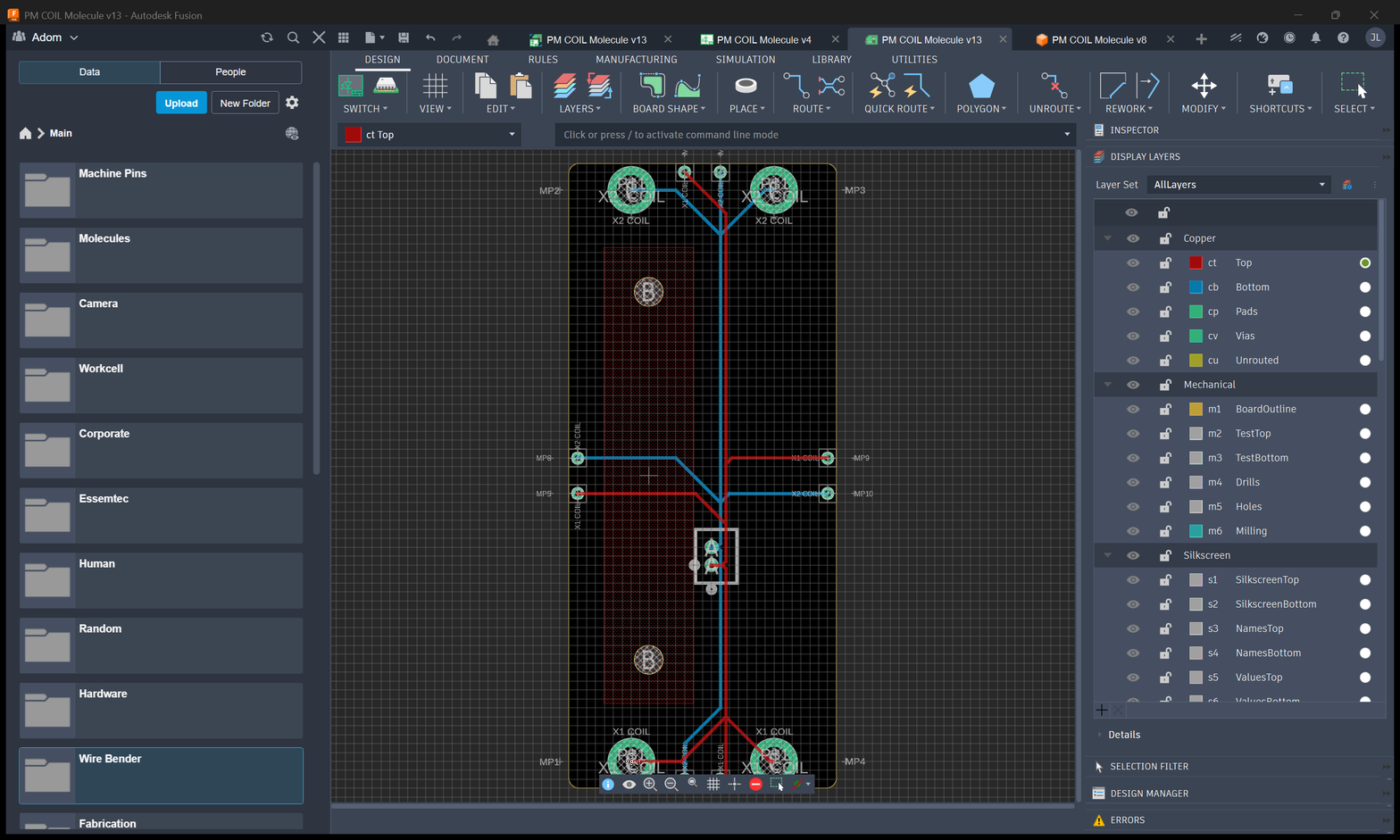

2. Import into your EDA tool (KiCad or Fusion 360 / EAGLE)
3. Place the molecule in your schematic and connect the interface pins

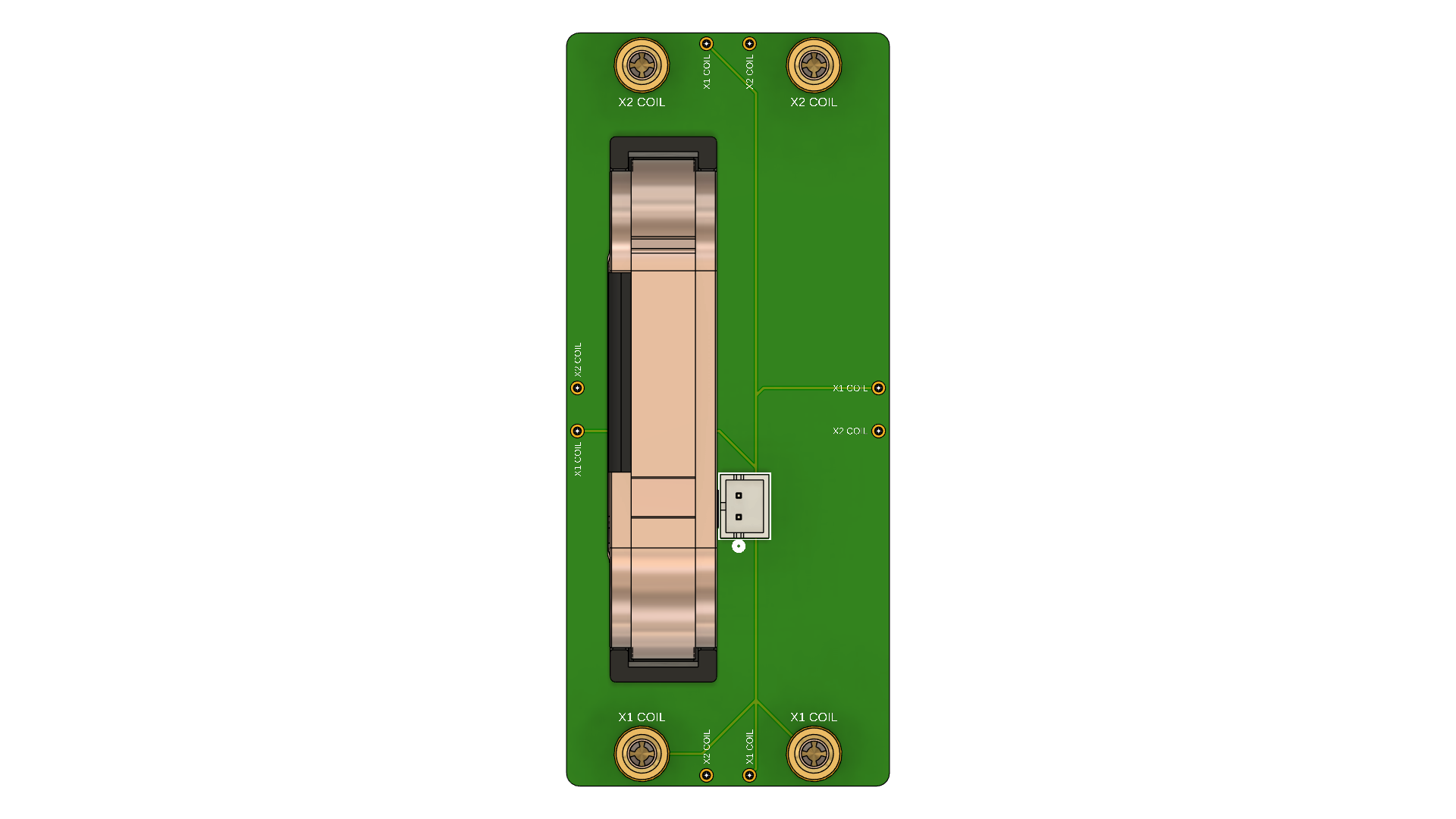

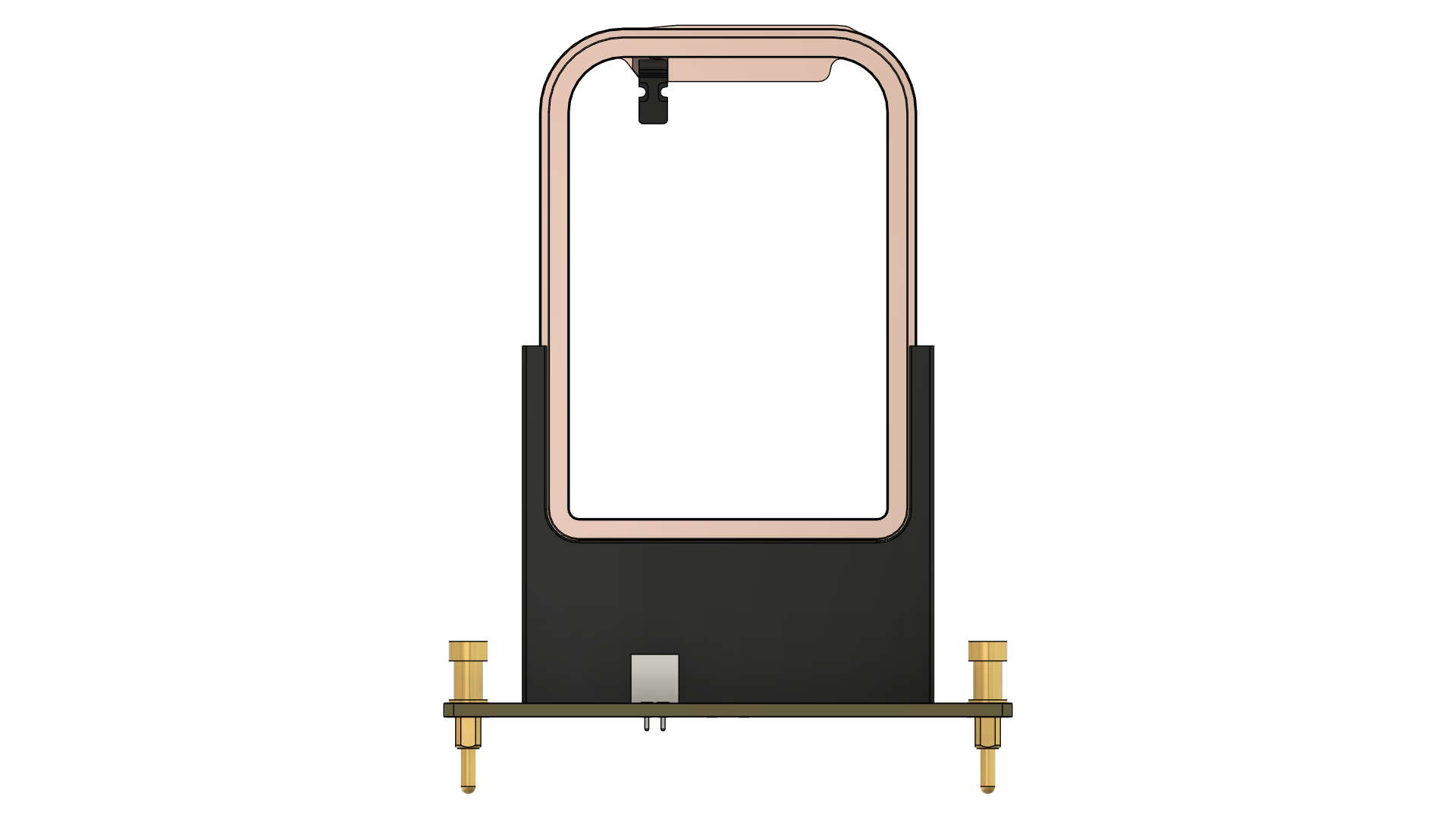

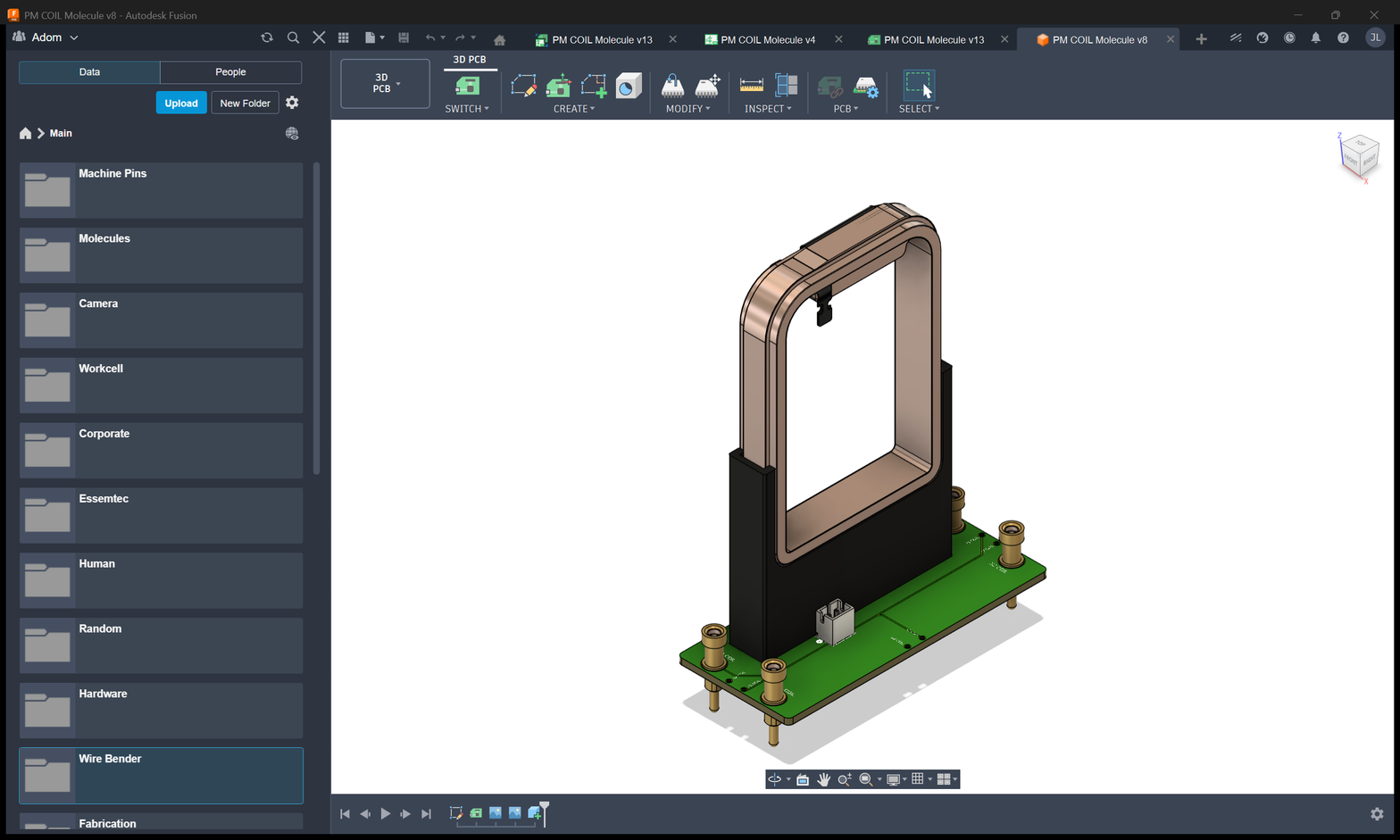

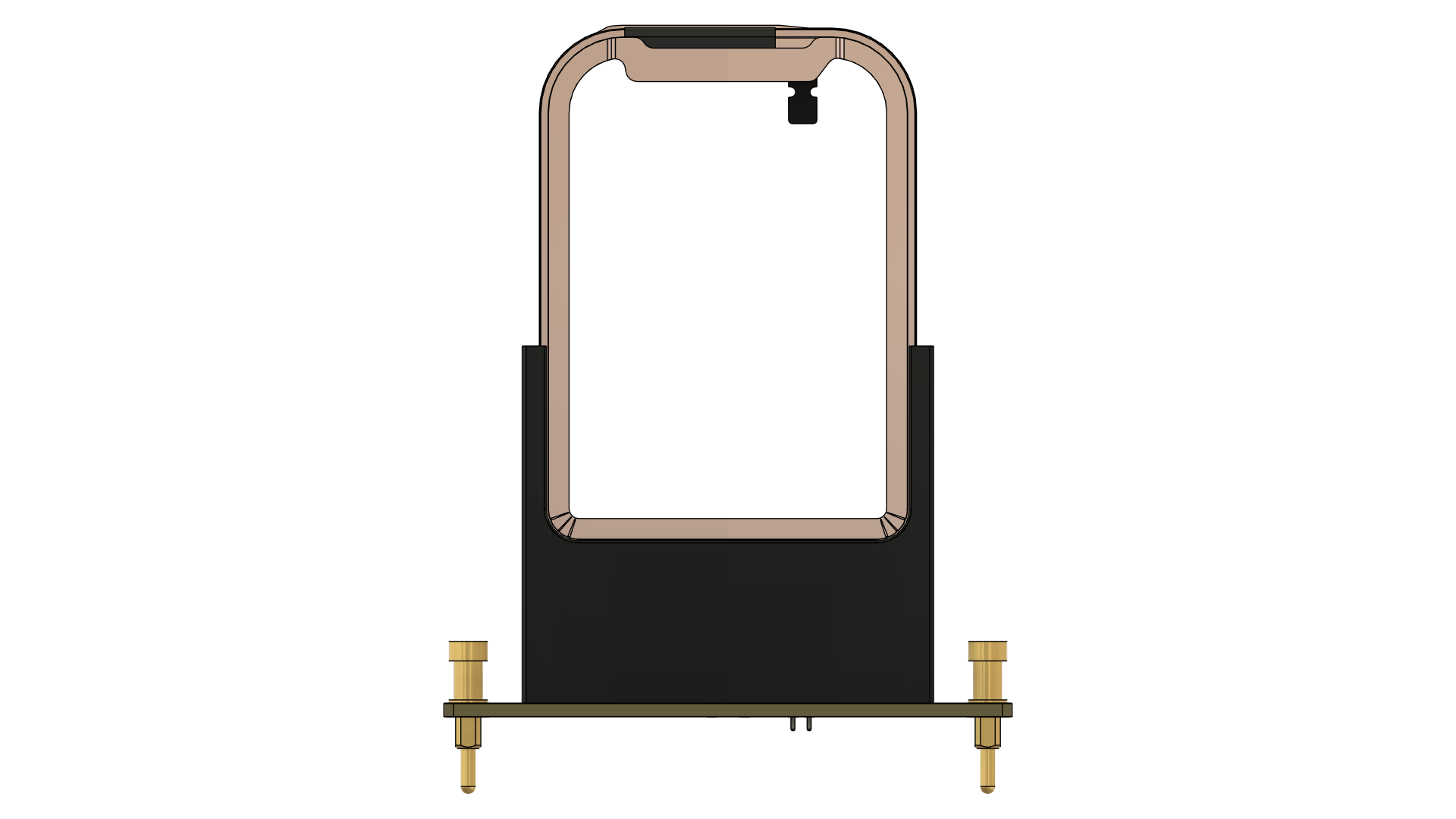

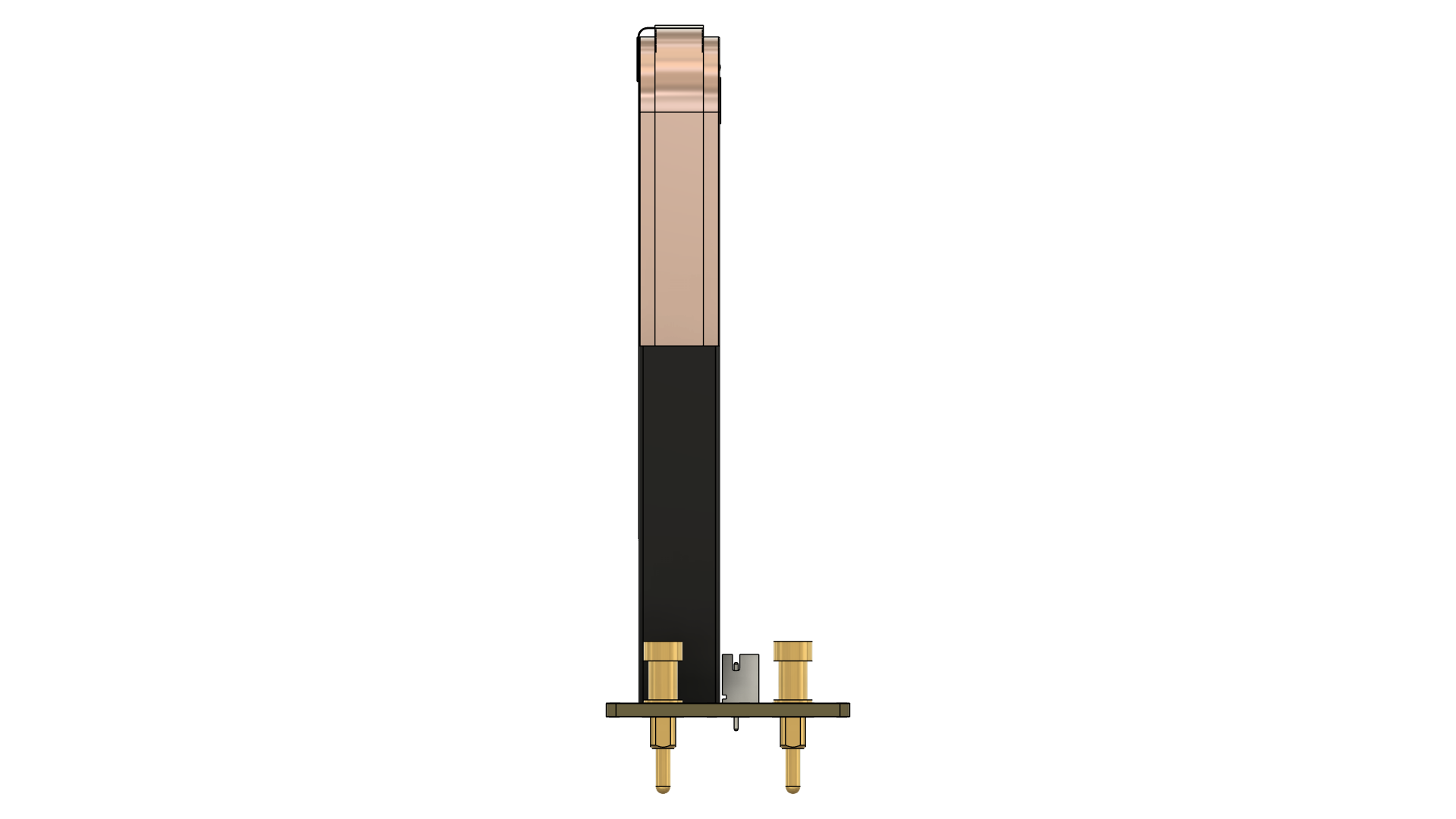

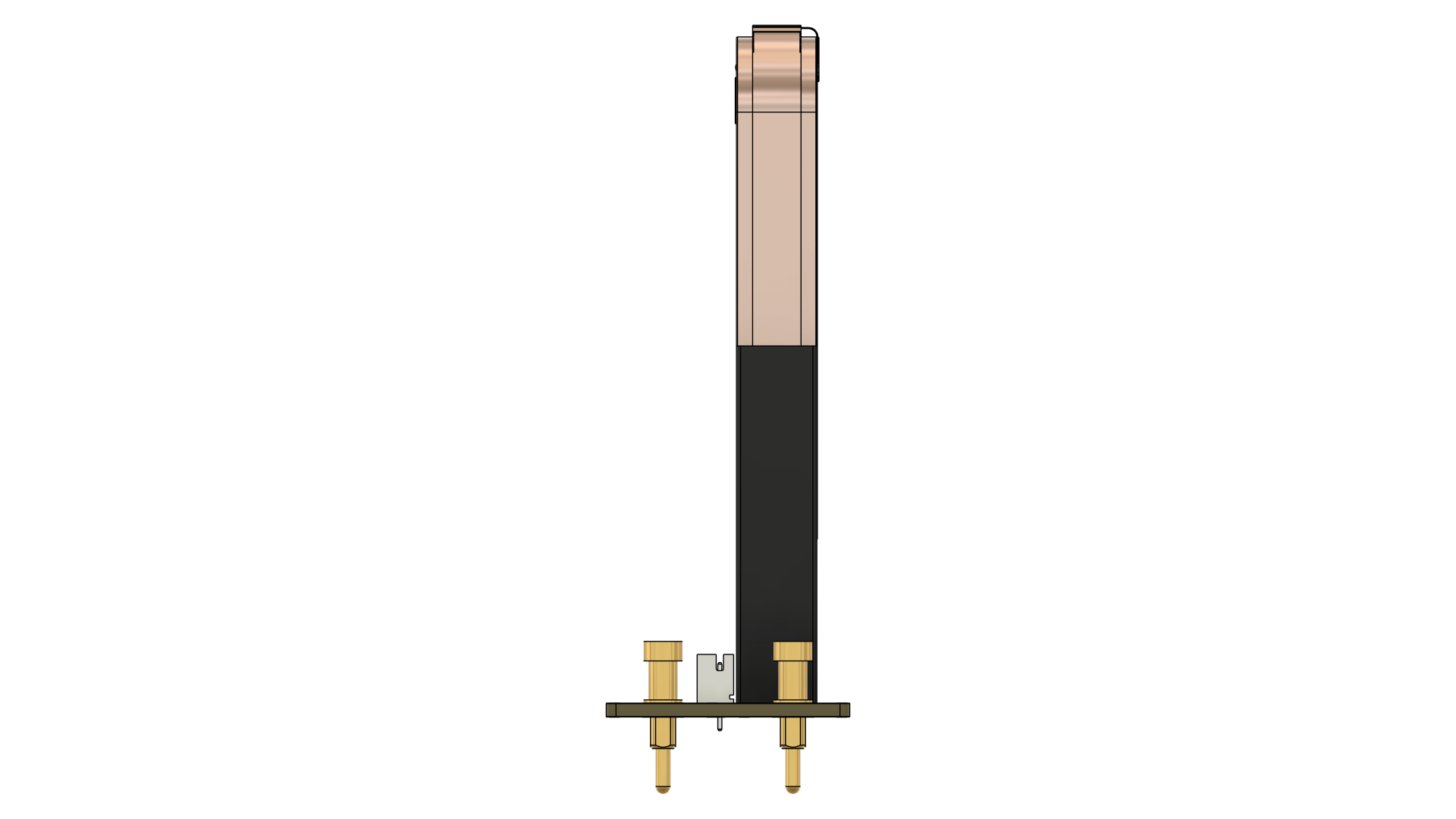

4. Use the 3D model (.glb) for mechanical fit verification

Design Notes

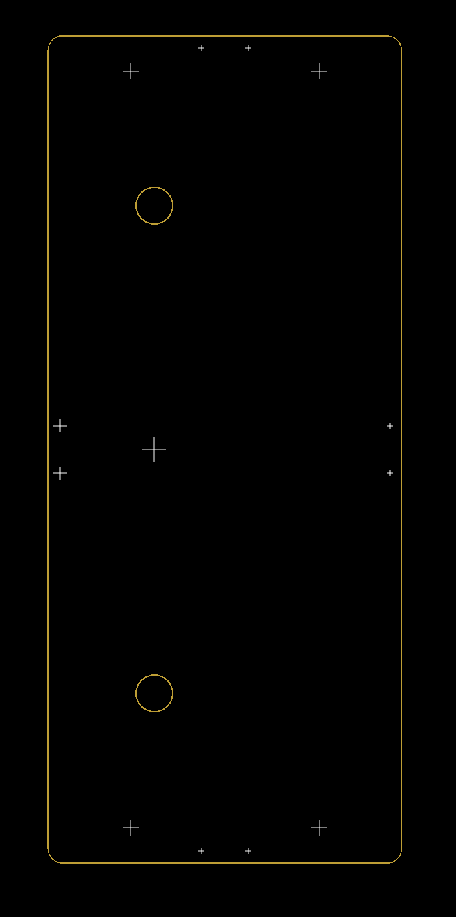

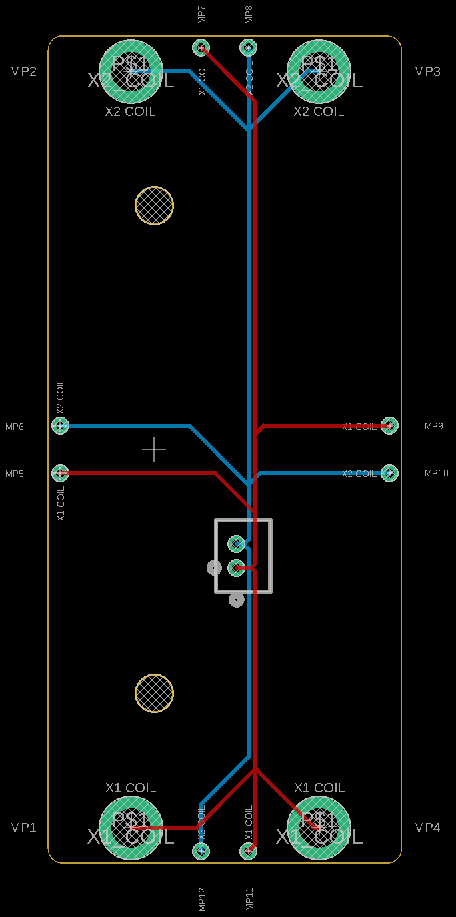

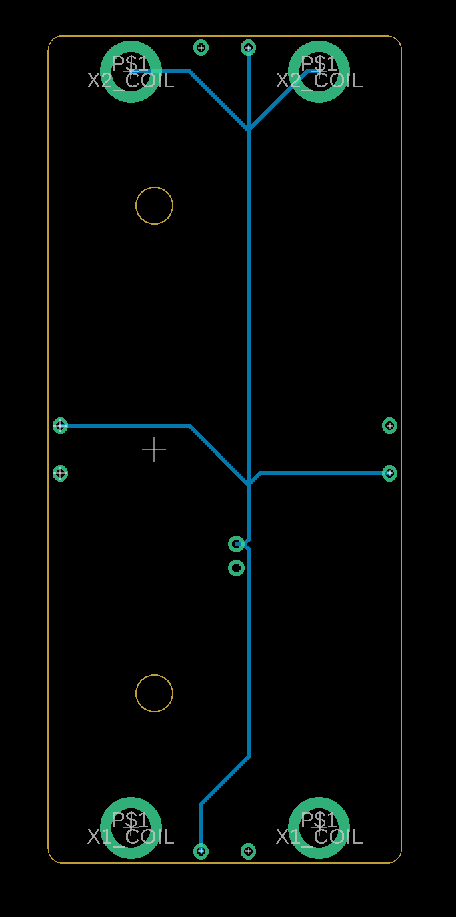

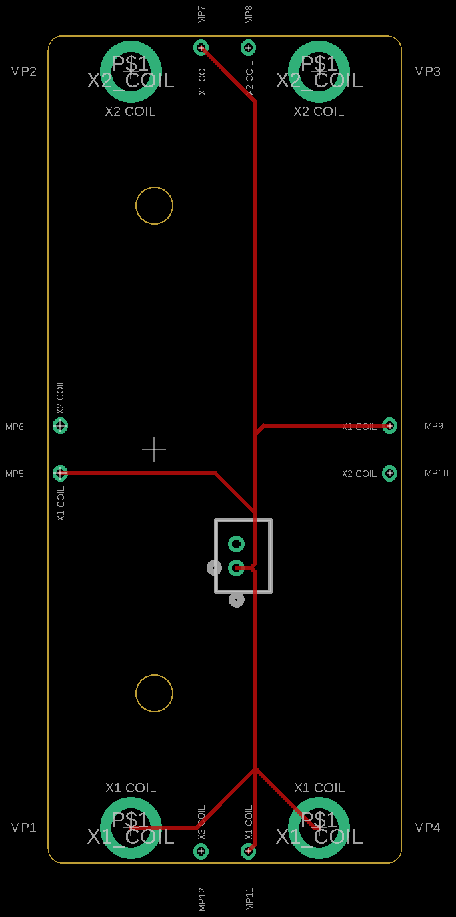

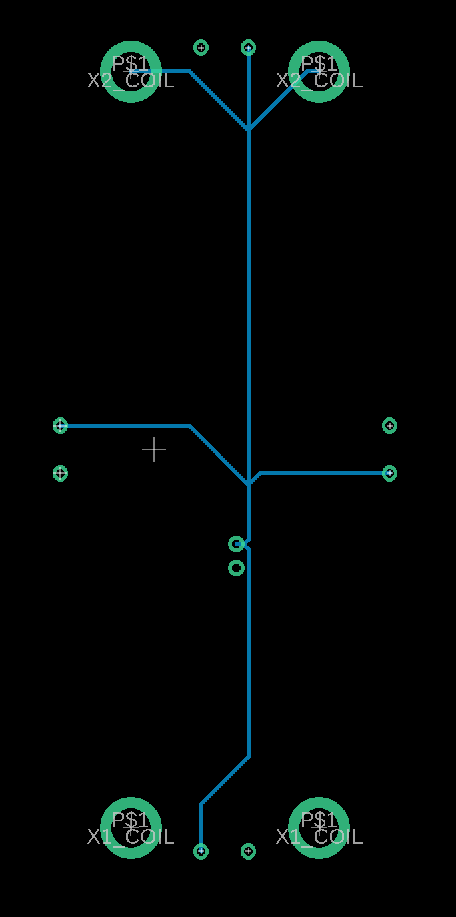

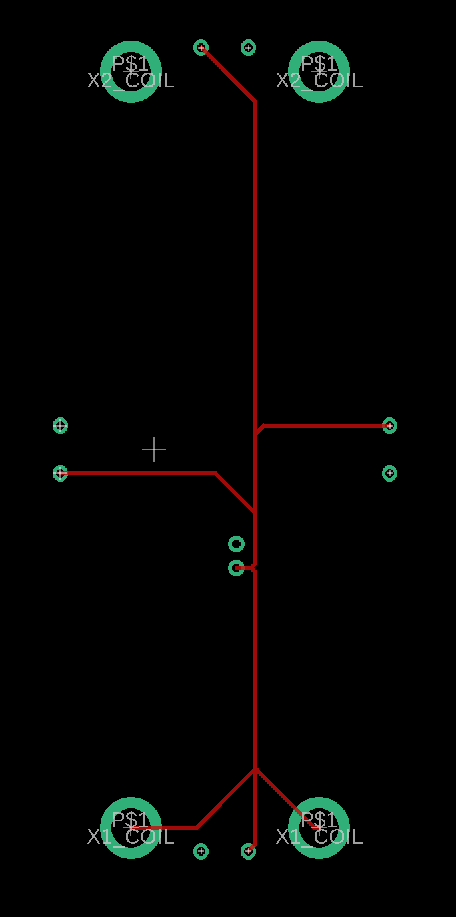

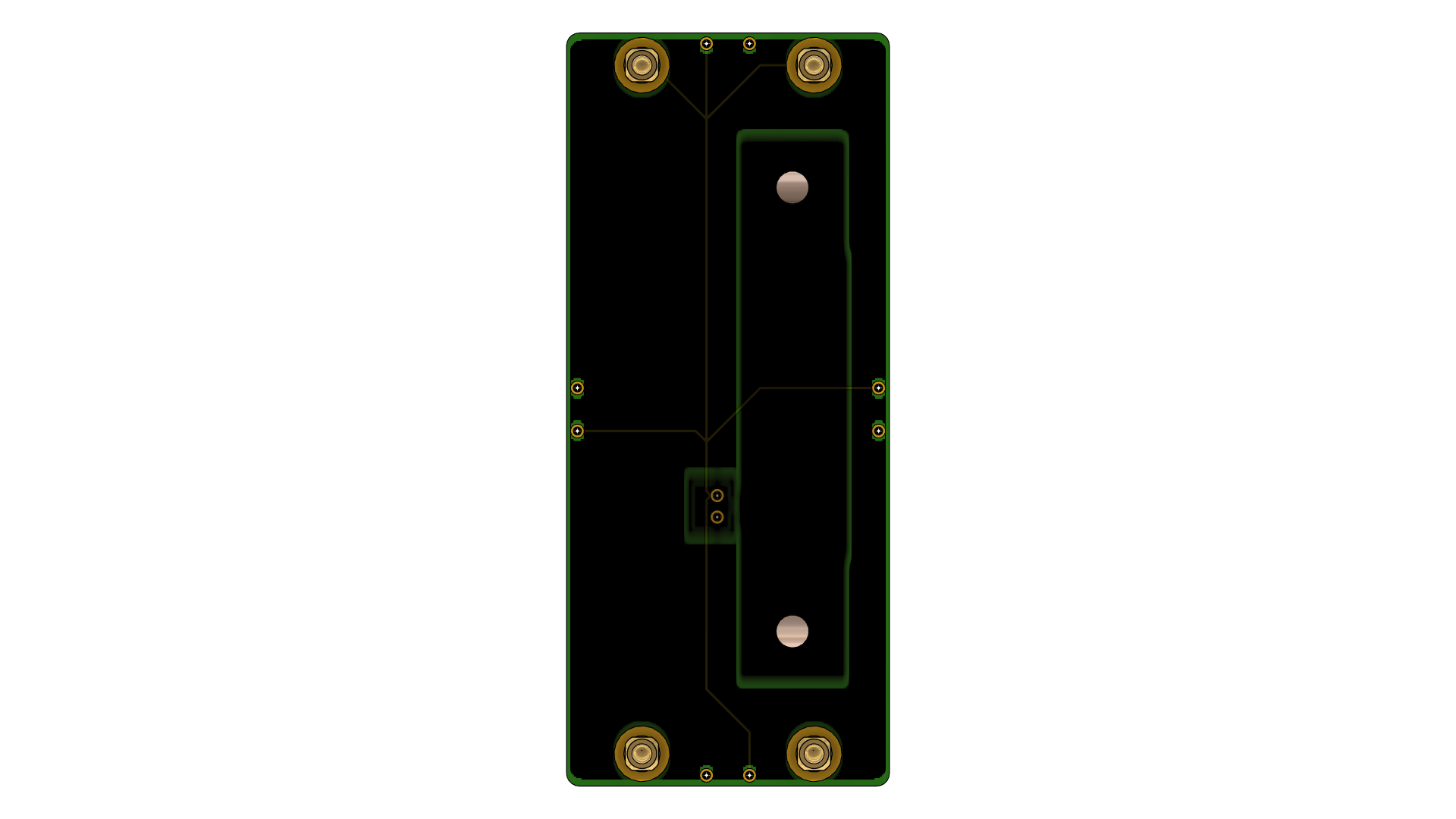

Board design files (.brd, .sch, .f3d) are available for modification and reference.
