The LDK130M18R molecule is a breakout module for the STMicroelectronics LDK130M18R low‑dropout (LDO) linear regulator, fixed at 1.8 V output with a 300 mA maximum load, capable of accepting input voltages from 1.9 V up to 5.5 V. It features ultra‑low quiescent current (~30–60 µA), very low dropout (~100–200 mV at 100 mA load), ±2 % output accuracy, an enable/shutdown pin, and built‑in over‑current and thermal protection. The molecule includes all necessary support circuitry—input and output bypass capacitors, the enable pull‑up/down network—and breaks out VIN, VOUT, EN, and GND.

LDK130M18R v16

Type: Adom Molecule Creator: adom Version: v1 Category: other Availability: 100%, 24/7

Overview

The LDK130M18R molecule is a breakout module for the STMicroelectronics LDK130M18R low‑dropout (LDO) linear regulator, fixed at 1.8 V output with a 300 mA maximum load, capable of accepting input voltages from 1.9 V up to 5.5 V. It features ultra‑low quiescent current (~30–60 µA), very low dropout (~100–200 mV at 100 mA load), ±2 % output accuracy, an enable/shutdown pin, and built‑in over‑current and thermal protection. The molecule includes all necessary support circuitry—input and output bypass capacitors, the enable pull‑up/down network—and breaks out VIN, VOUT, EN, and GND.

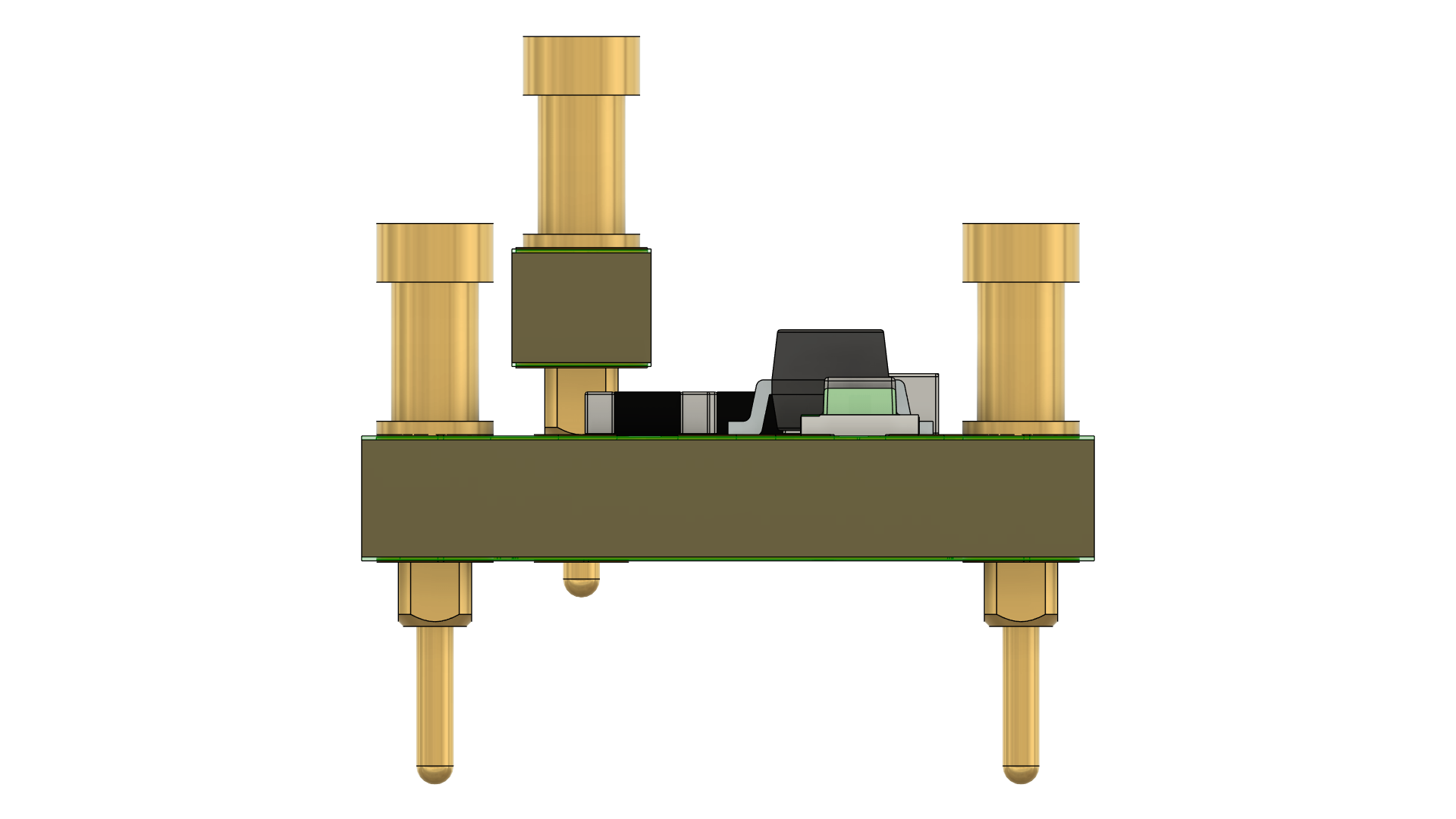

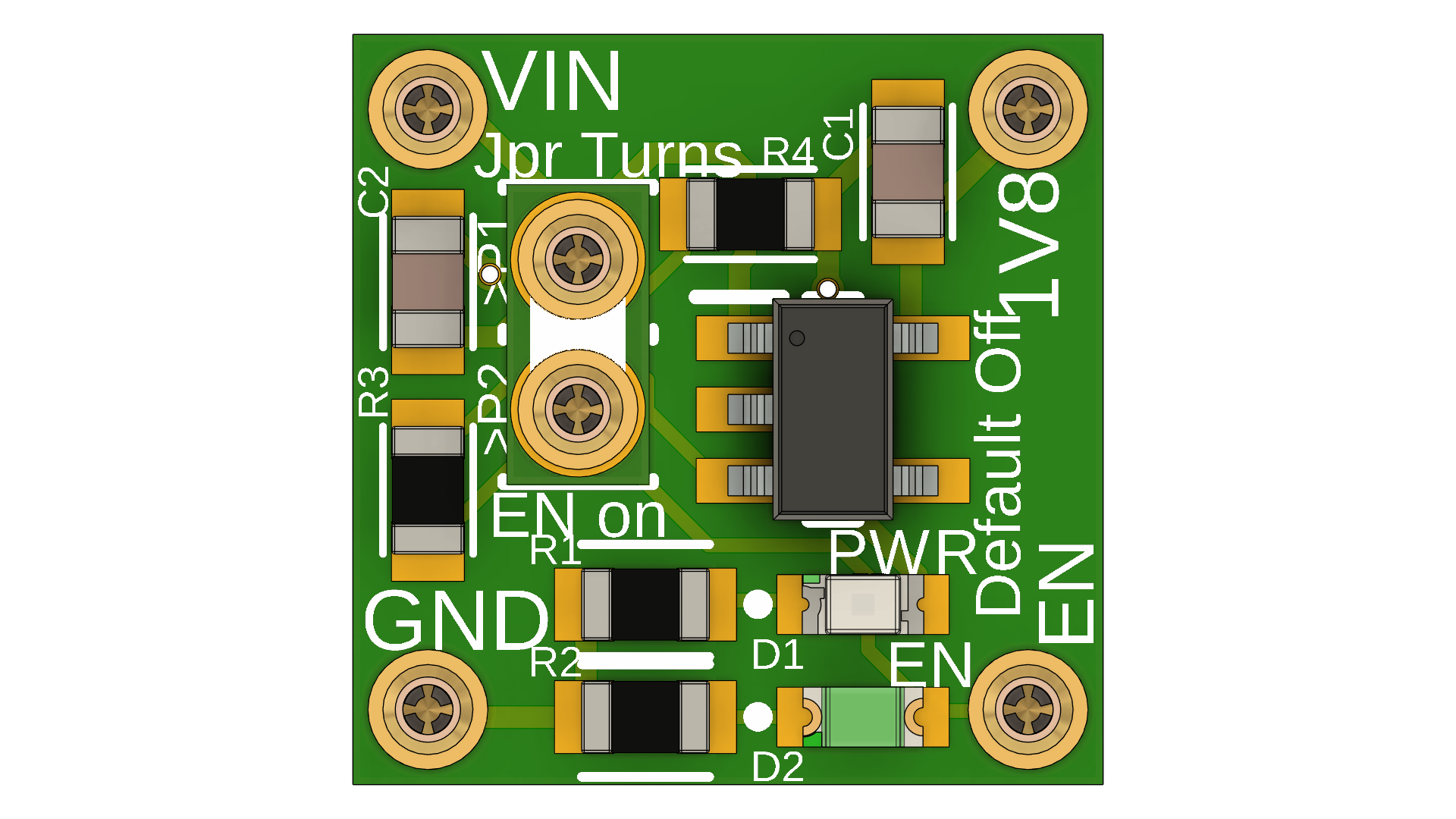

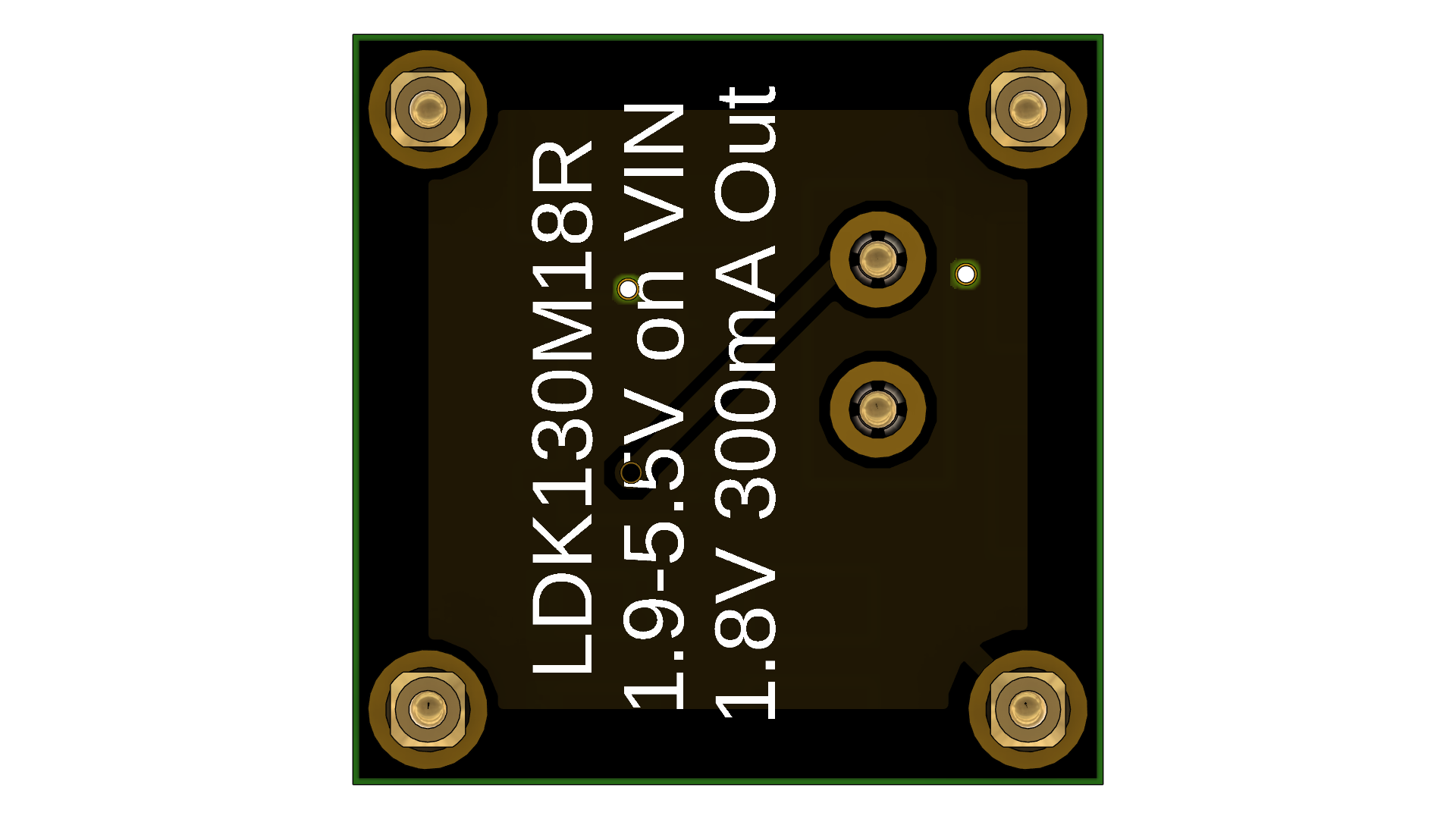

Pin Configuration

Left Edge

• VIN (medium, machine_pin, MACH_PIN_MED_SHORT, drill: 1.2mm)
• P1 (medium, contact, 2X1_JUMP, drill: 0.84mm)
• P2 (medium, contact, 2X1_JUMP, drill: 0.84mm)
• GND (medium, machine_pin, MACH_PIN_MED_SHORT, drill: 1.2mm)

Right Edge

• 1V8 (medium, machine_pin, MACH_PIN_MED_SHORT, drill: 1.2mm)

Bottom Edge

• PWR_EN (medium, machine_pin, MACH_PIN_MED_SHORT, drill: 1.2mm)

Science Drivers

• component testing

NSF Relevance

This module simplifies power‑rail deployment by offering a plug‑and‑play 1.8 V regulated supply that can be dropped into any prototype design, enabling faster iteration of embedded systems and reducing risk during component validation.

Integration Guide

To use LDK130M18R v16 in your design:

1. Download the schematic symbol and PCB footprint from the Files section
2. Import into your EDA tool (KiCad or Fusion 360 / EAGLE)
3. Place the molecule in your schematic and connect the interface pins

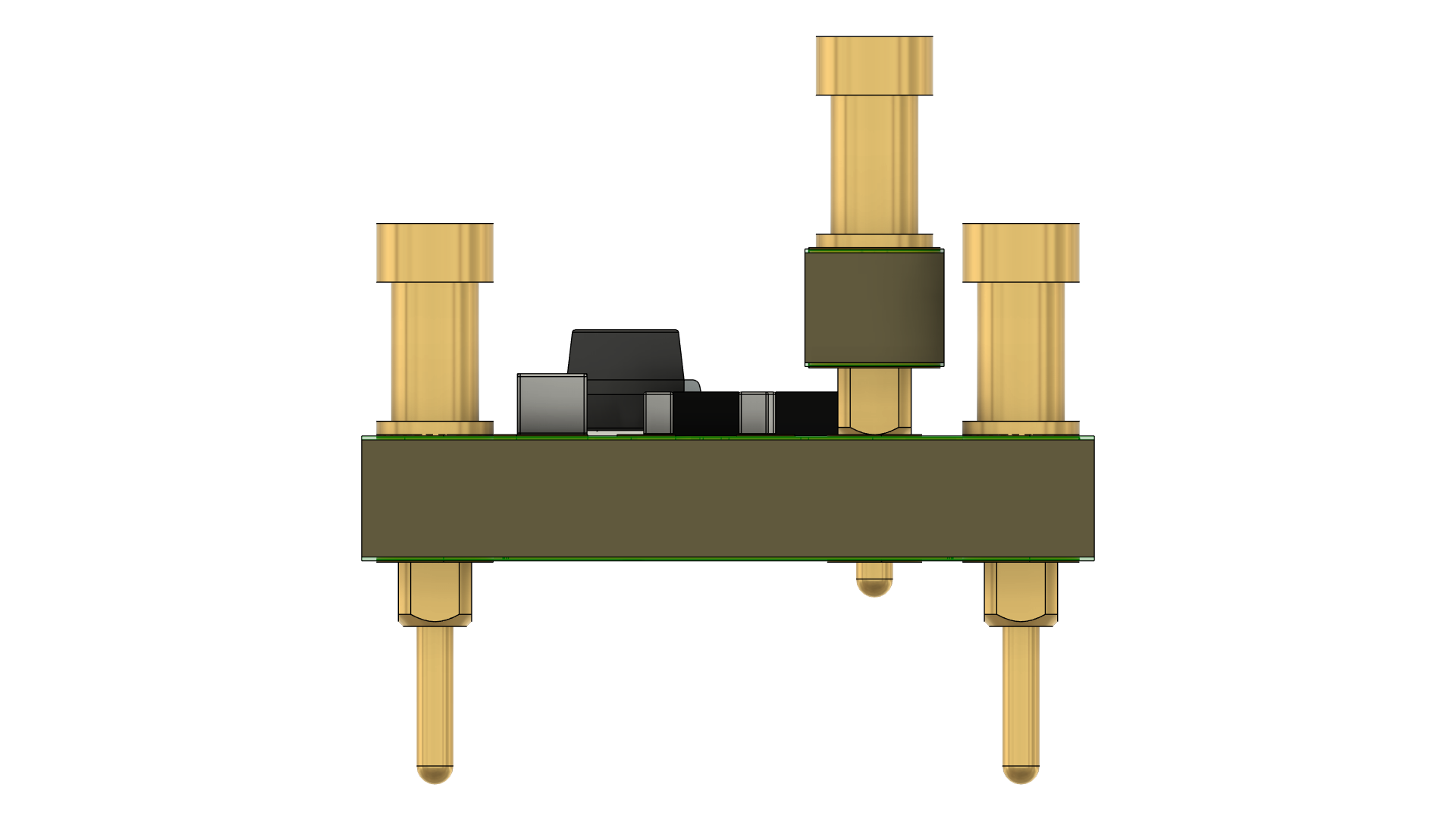

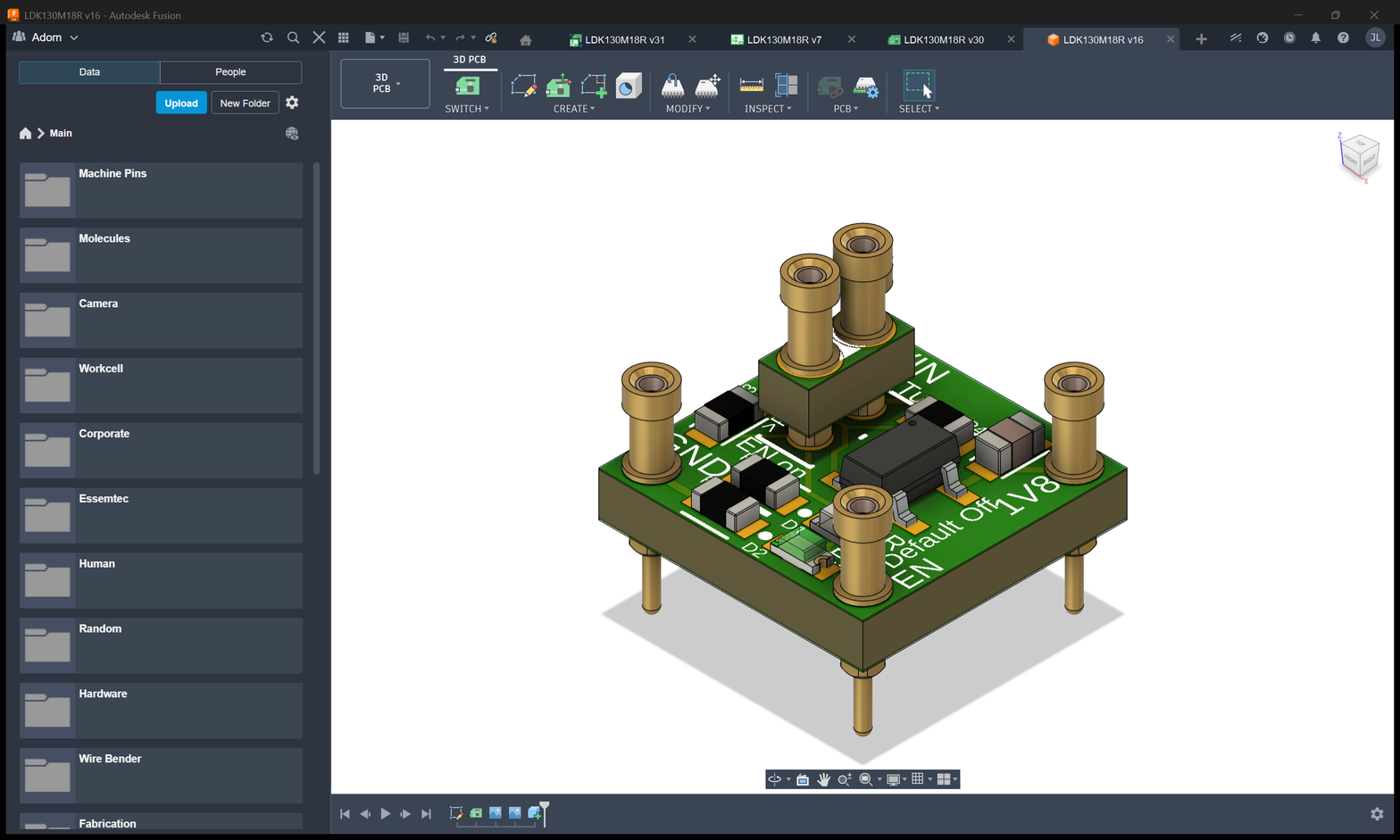

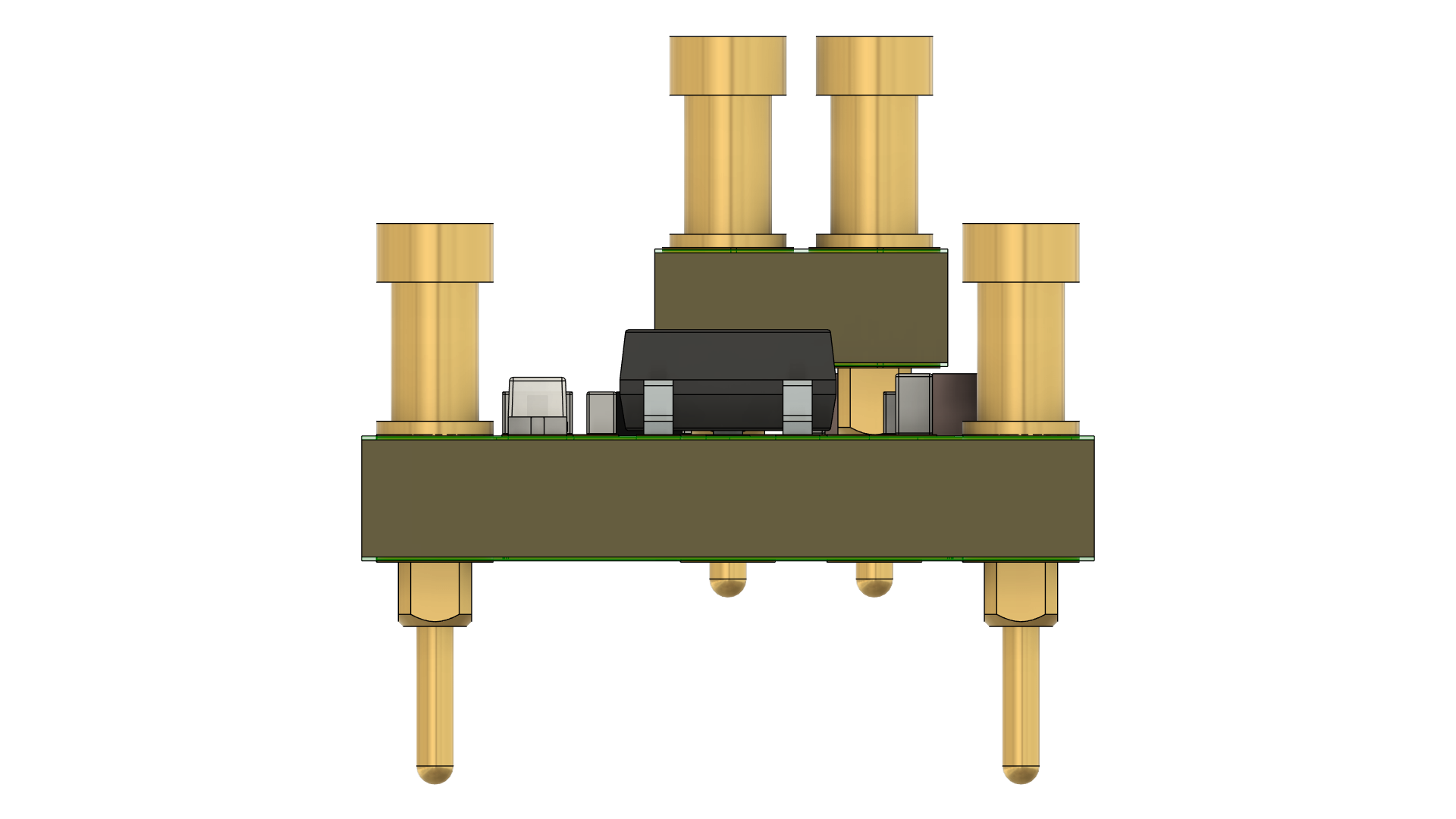

4. Use the 3D model (.glb) for mechanical fit verification

Design Notes

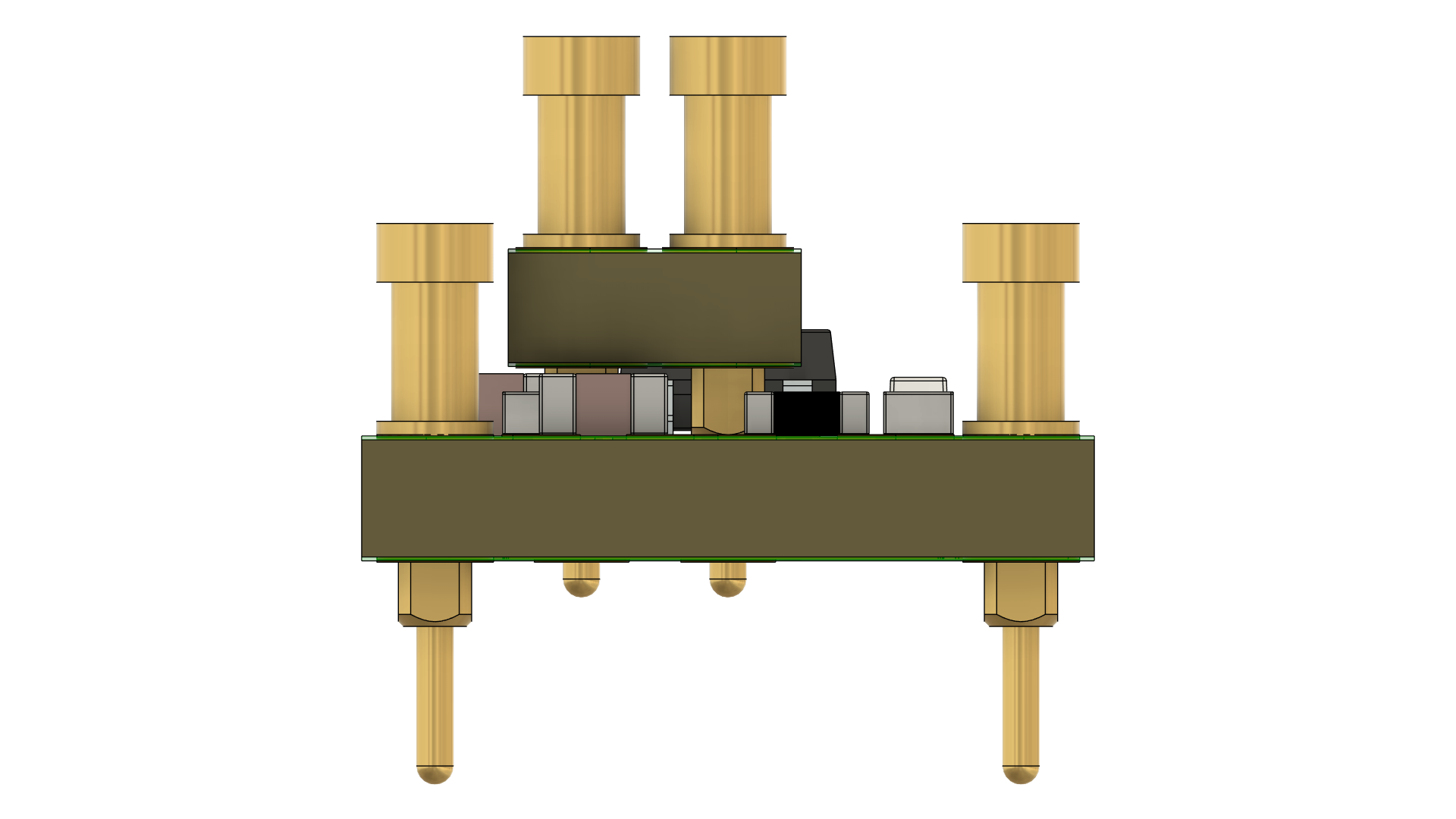

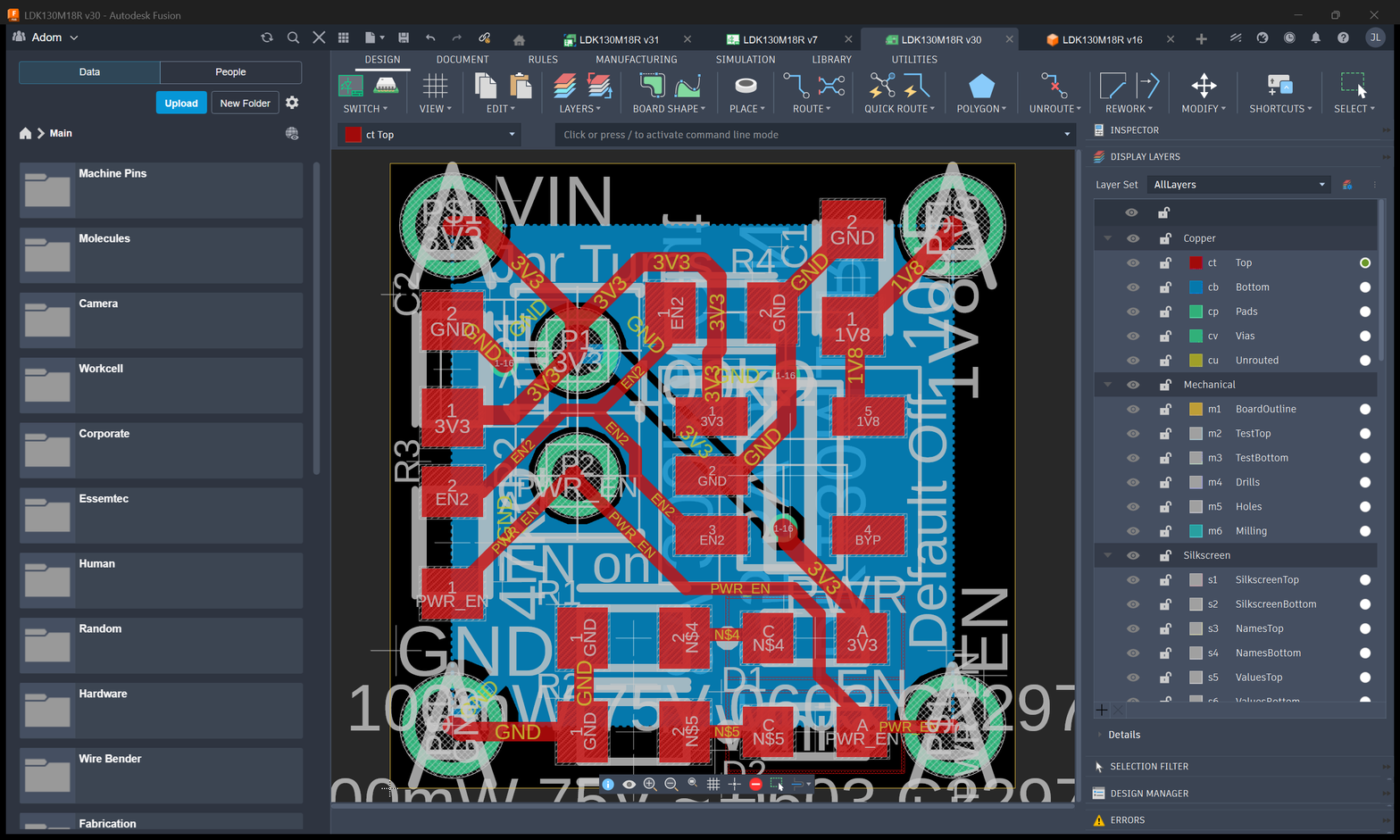

Board design files (.brd, .sch, .f3d) are available for modification and reference.
