COSMOCOIL Wireless Charger [COSMIIC]

COSMOCOIL Wireless Charger [COSMIIC]

NSFLatest StablePhoto
implantable healthcarefusion desktop export

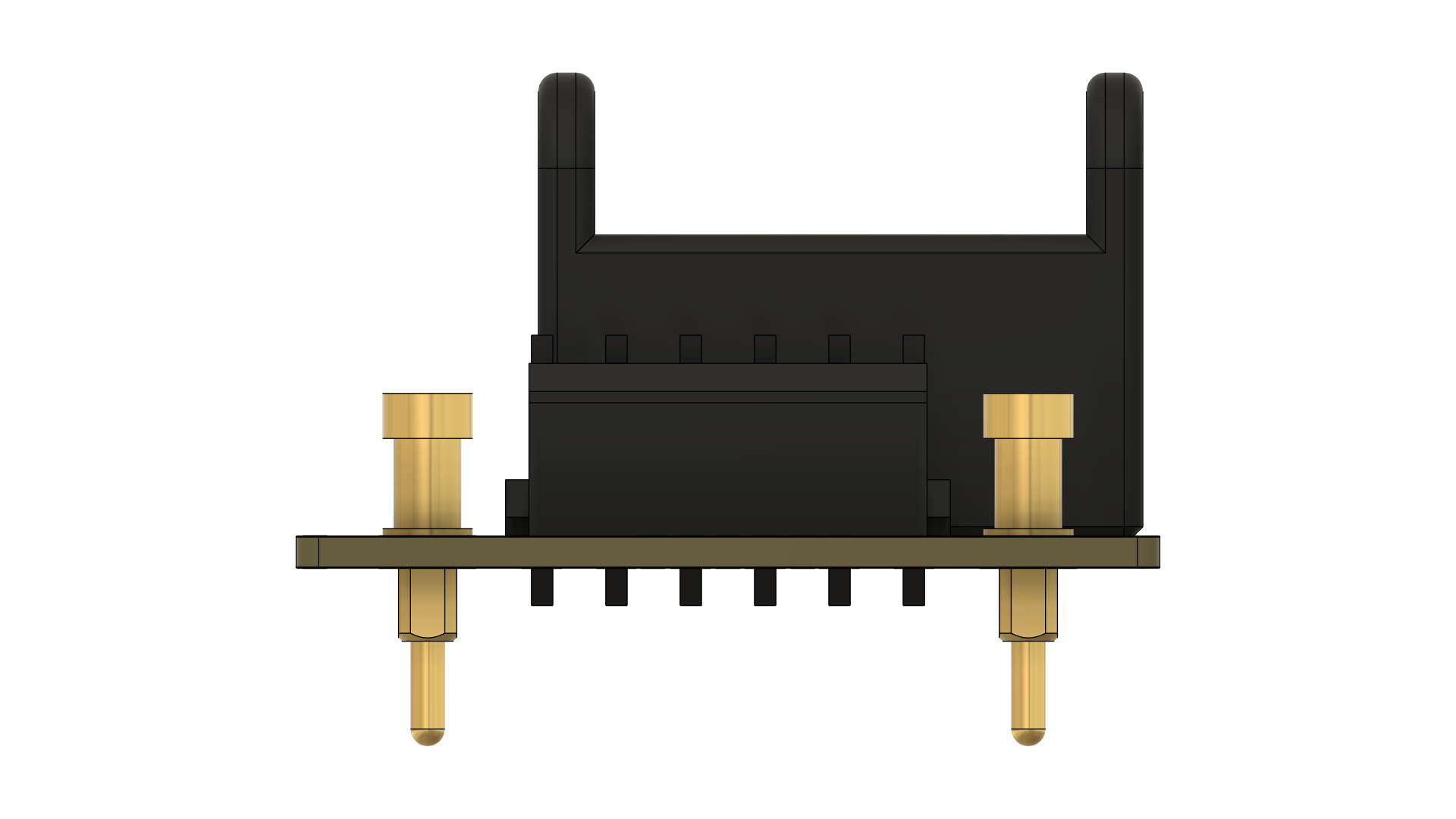

PhotographDigital TwinTop ViewFront LeftFront RightBack LeftBack Right
Creator Ray
Version 1.0.1
Created 2025-10-15
Availability 100%, 24/7
In Stock 5 units
Quality
6/10
Assets 10 files
⚡ Install this molecule

Paste this into Claude Code (VS Code panel, Adom editor, or terminal) to install:

Search the Adom Wiki for the molecule "COSMOCOIL Wireless Charger [COSMIIC]" (slug: cosmocoil-wireless-charger-cosmiic-761900) at https://wiki-ufypy5dpx93o.adom.cloud/wiki/molecules/cosmocoil-wireless-charger-cosmiic-761900. Download its symbol (.kicad_sym), footprint (.kicad_mod), and 3D model (.glb/.step) assets into my current KiCad project under symbols/, footprints/, and 3dmodels/ directories. Register them in the project library tables. Show me the files once installed.

The COSMOCOIL is a modular water cooled wireless charging coil for the COSMIIC power module, capable of delivering up to 95 mA while monitoring both PM and coil temperature. It features programmable coil drive with simple two-point calibration, allowing users to adjust for coil placement, PM depth, and battery state.

NSF Relevance

Being part of the COSMIIC system, this molecule accelerates development of wireless charging strategies for implantable and embedded devices, providing a safe, repeatable platform for optimizing power delivery across multiple modules.

Science Drivers

implantable_healthcare

Created by: adonis Version: v1 Category: other

Description

Edit AI Skill

The COSMOCOIL is a modular water cooled wireless charging coil for the COSMIIC power module, capable of delivering up to 95 mA while monitoring both PM and coil temperature. It features programmable coil drive with simple two-point calibration, allowing users to adjust for coil placement, PM depth, and battery state.

NSF Relevance

NSF

Being part of the COSMIIC system, this molecule accelerates development of wireless charging strategies for implantable and embedded devices, providing a safe, repeatable platform for optimizing power delivery across multiple modules.

Files

Download ZIP
PCB COSMOCOIL_MOL.fbrd PCB Board
F3D COSMOCOIL_MOL.f3d Fusion 360
SCH COSMOCOIL_MOL.fsch Schematic
AR COSMOCOIL_MOL.usdz AR Model

Source files

USDZ COSMOCOIL_MOL.usdz usdz 1.2 MB
ZIP COSMOCOIL_MOL_v11_gerbers.zip
Gerber Manufacturing Files
 gerbers 199.4 KB
CSV bom.csv bom 386 B
CSV cpl.csv cpl 555 B
STEP COSMOCOIL_MOL.step step 2.0 MB
STL COSMOCOIL_MOL.stl stl 3.3 MB
SAT COSMOCOIL_MOL.sat sat 4.5 MB
IGS COSMOCOIL_MOL.igs igs 4.4 MB
F3D COSMOCOIL_MOL.f3d f3d 975.8 KB
FBRD COSMOCOIL_MOL.fbrd fbrd 337.6 KB
FSCH COSMOCOIL_MOL.fsch fsch 14.4 KB
PNG fabrication.png

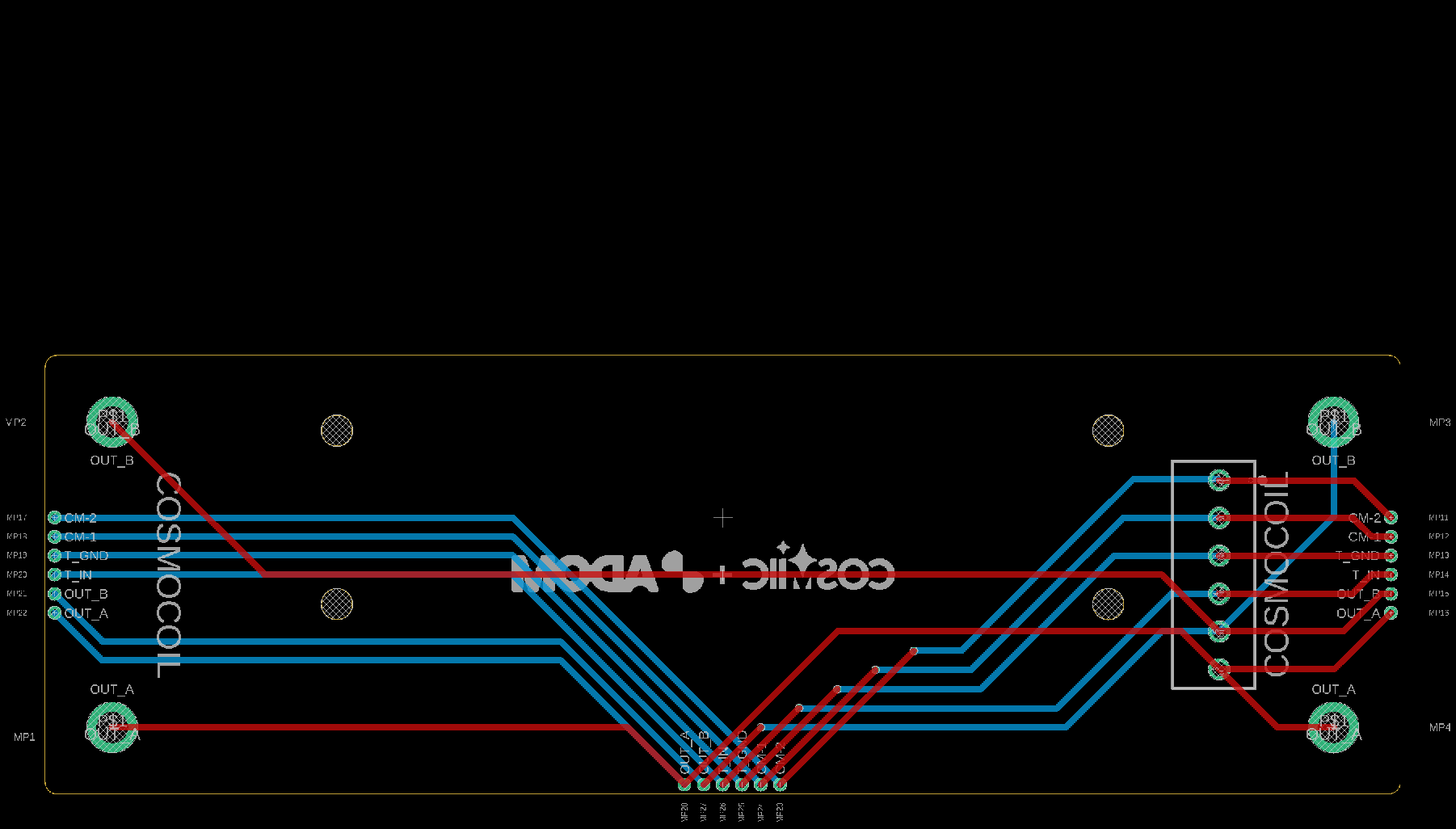

Fabrication Drawing
 screenshot 5.3 MB

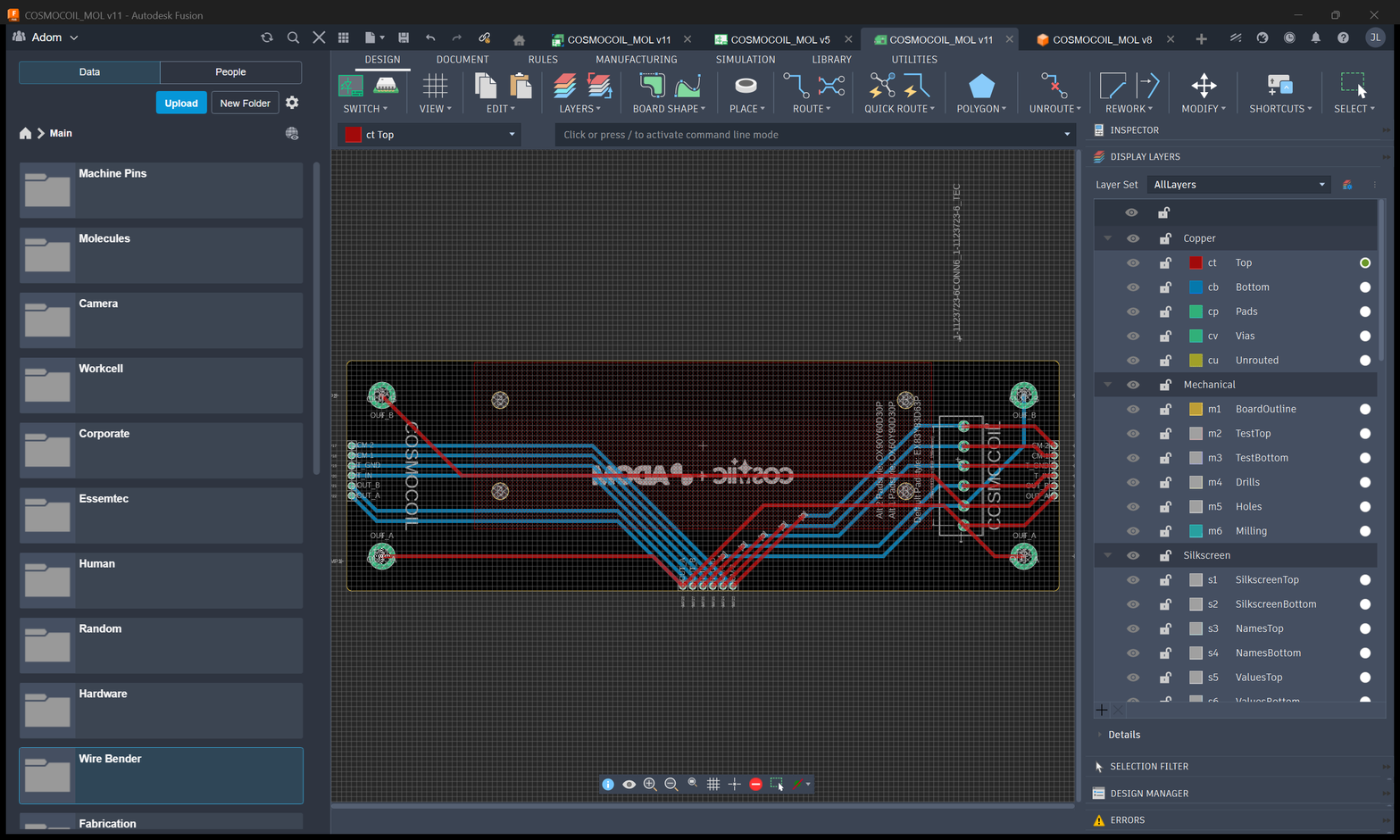

PNG board-screenshot.png
Board Screenshot
 screenshot 464.7 KB
3MF COSMOCOIL_MOL.3mf 3mf 971.3 KB

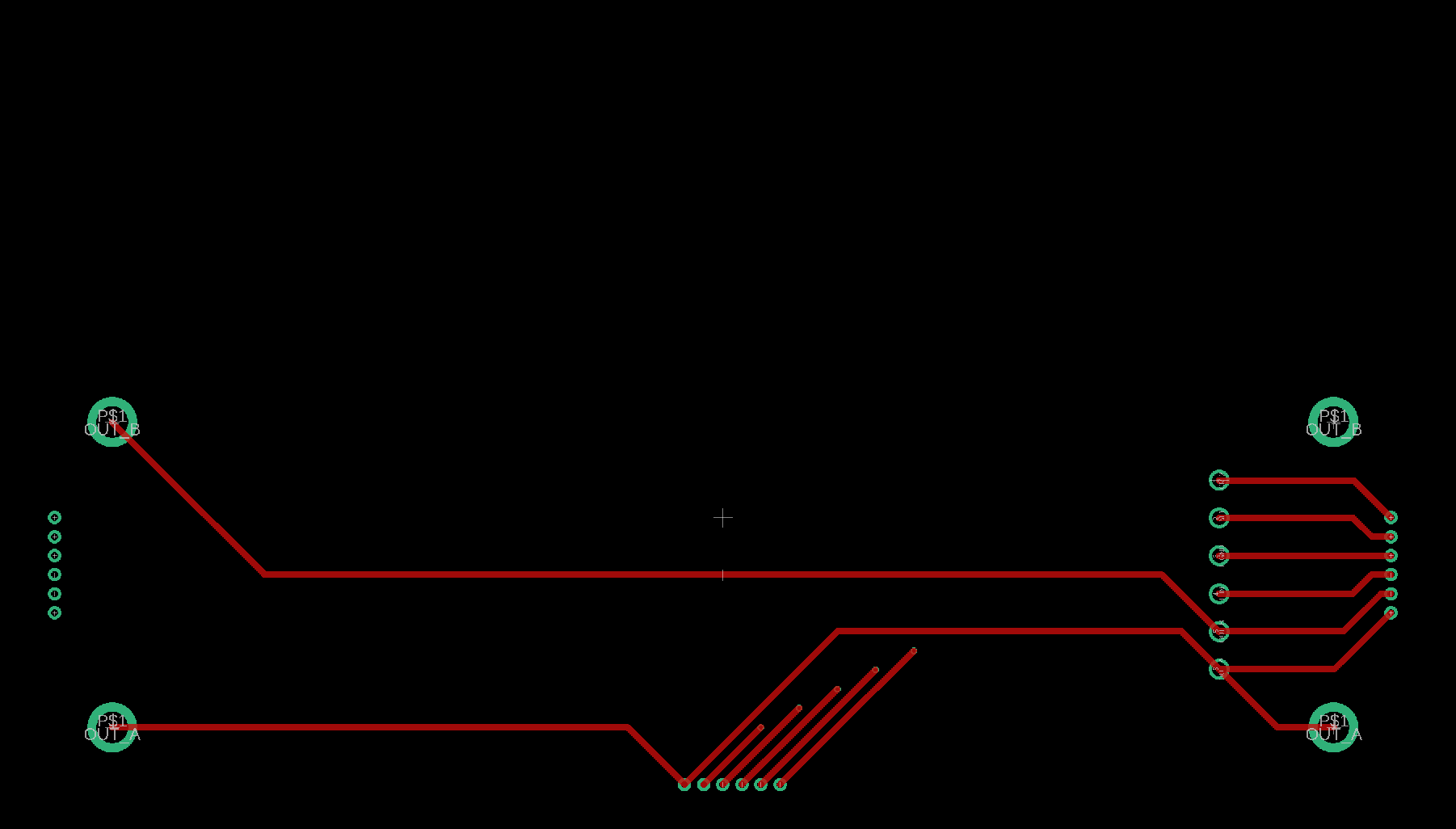

PNG bottom_copper.png

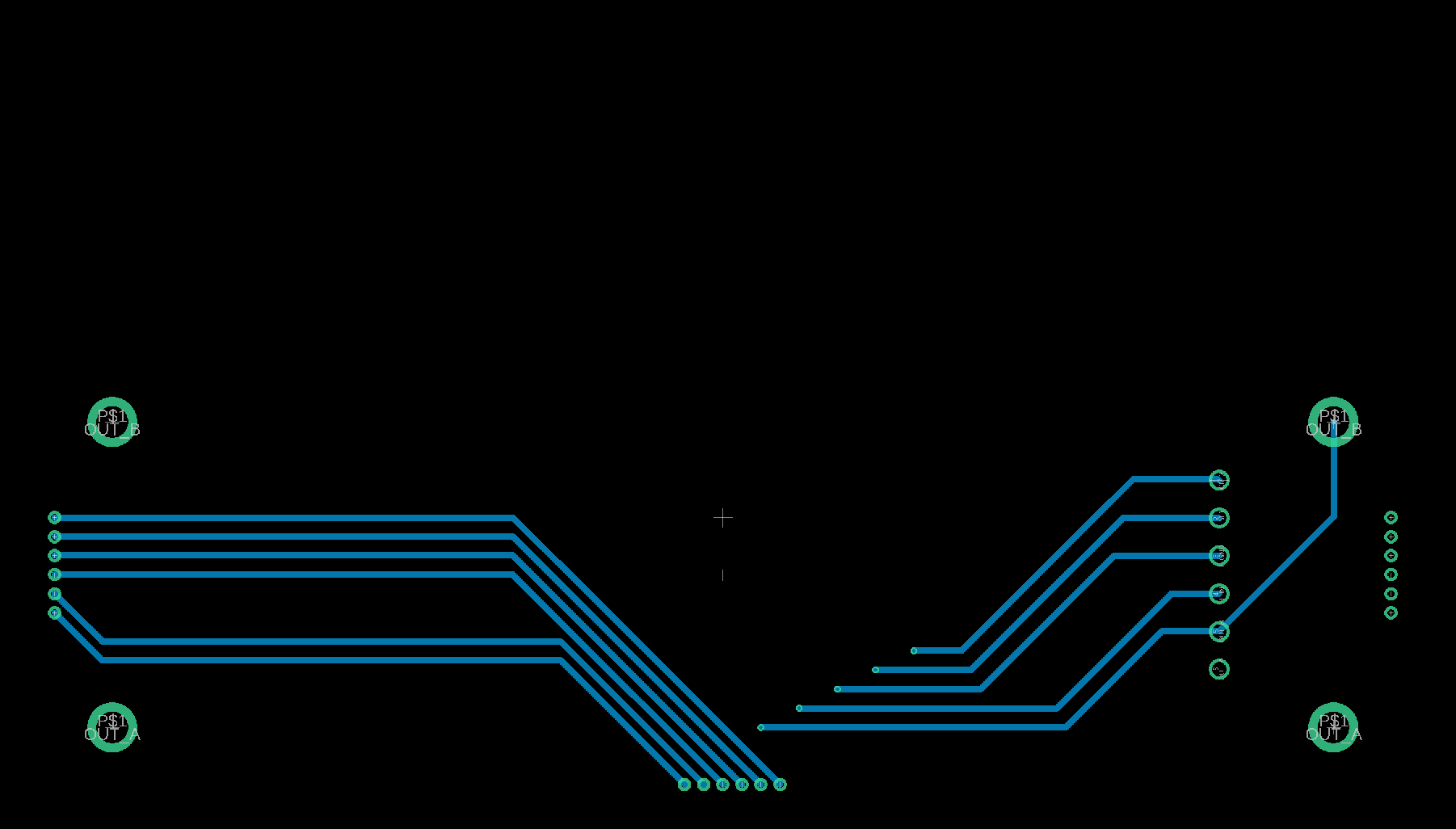

Bottom Copper Layer
 screenshot 5.3 MB

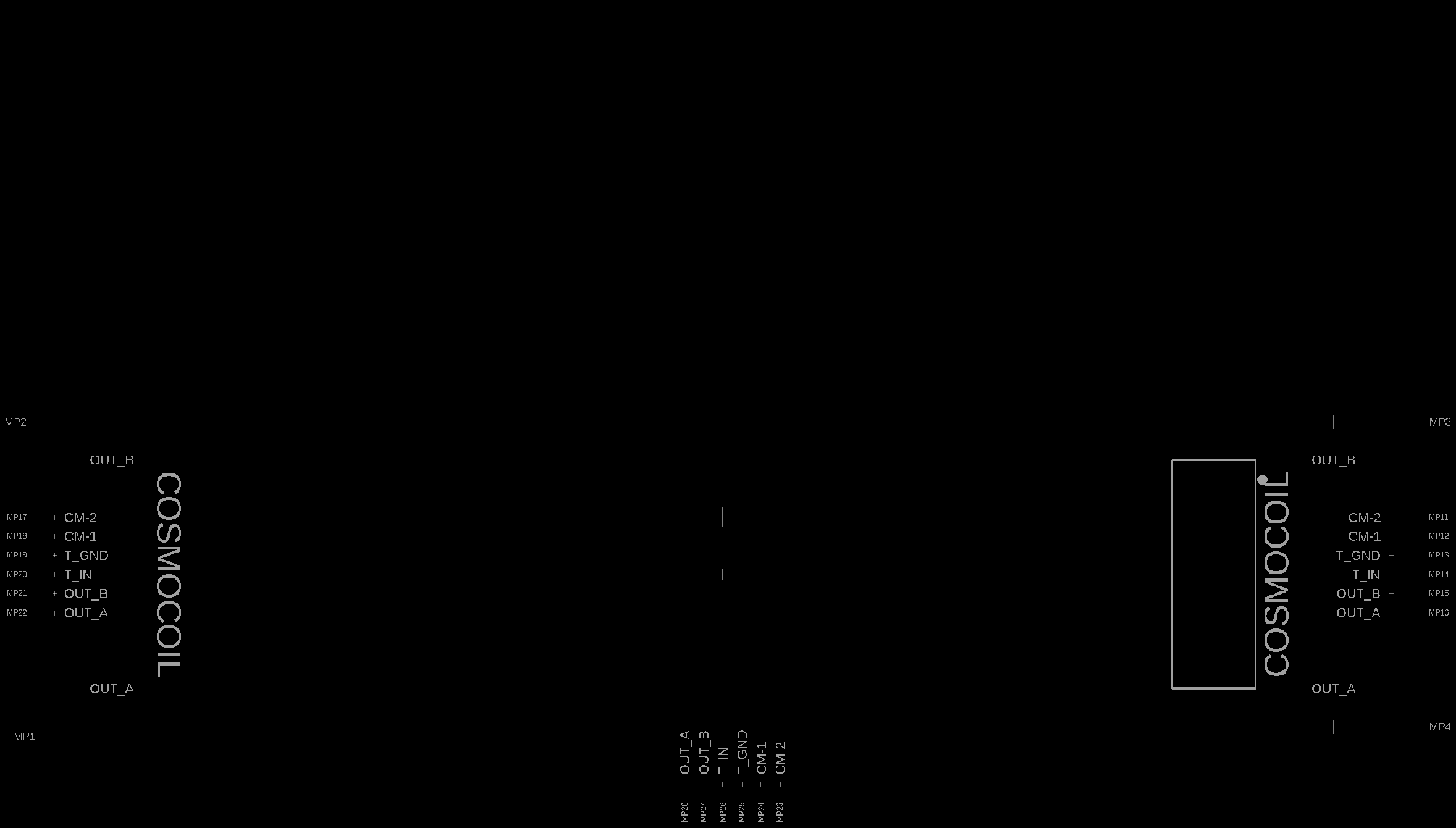

PNG top_copper.png
Top Copper Layer
 screenshot 5.3 MB

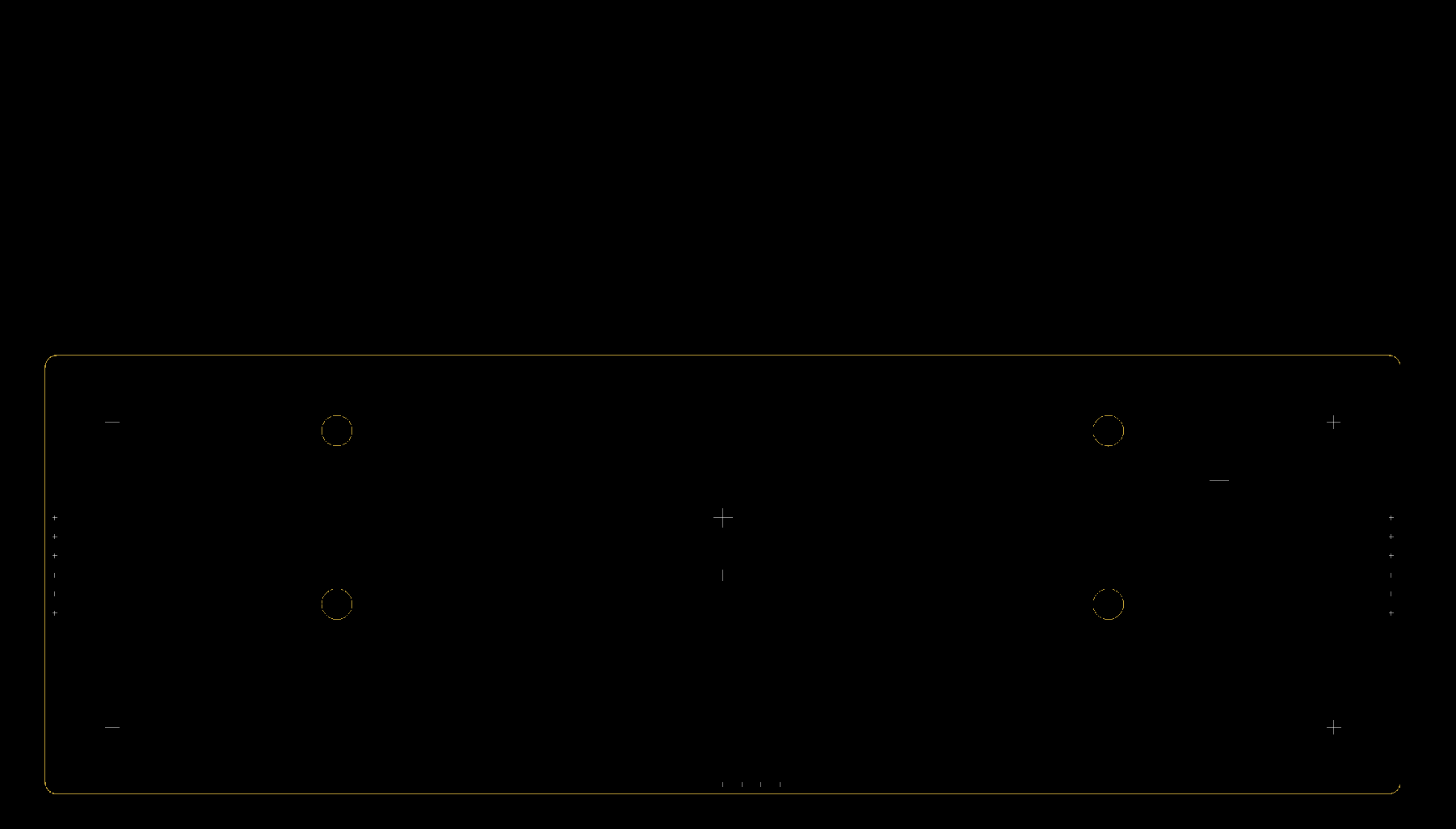

PNG board_outline.png
Board Outline
 screenshot 5.3 MB
PNG assembly_bottom.png

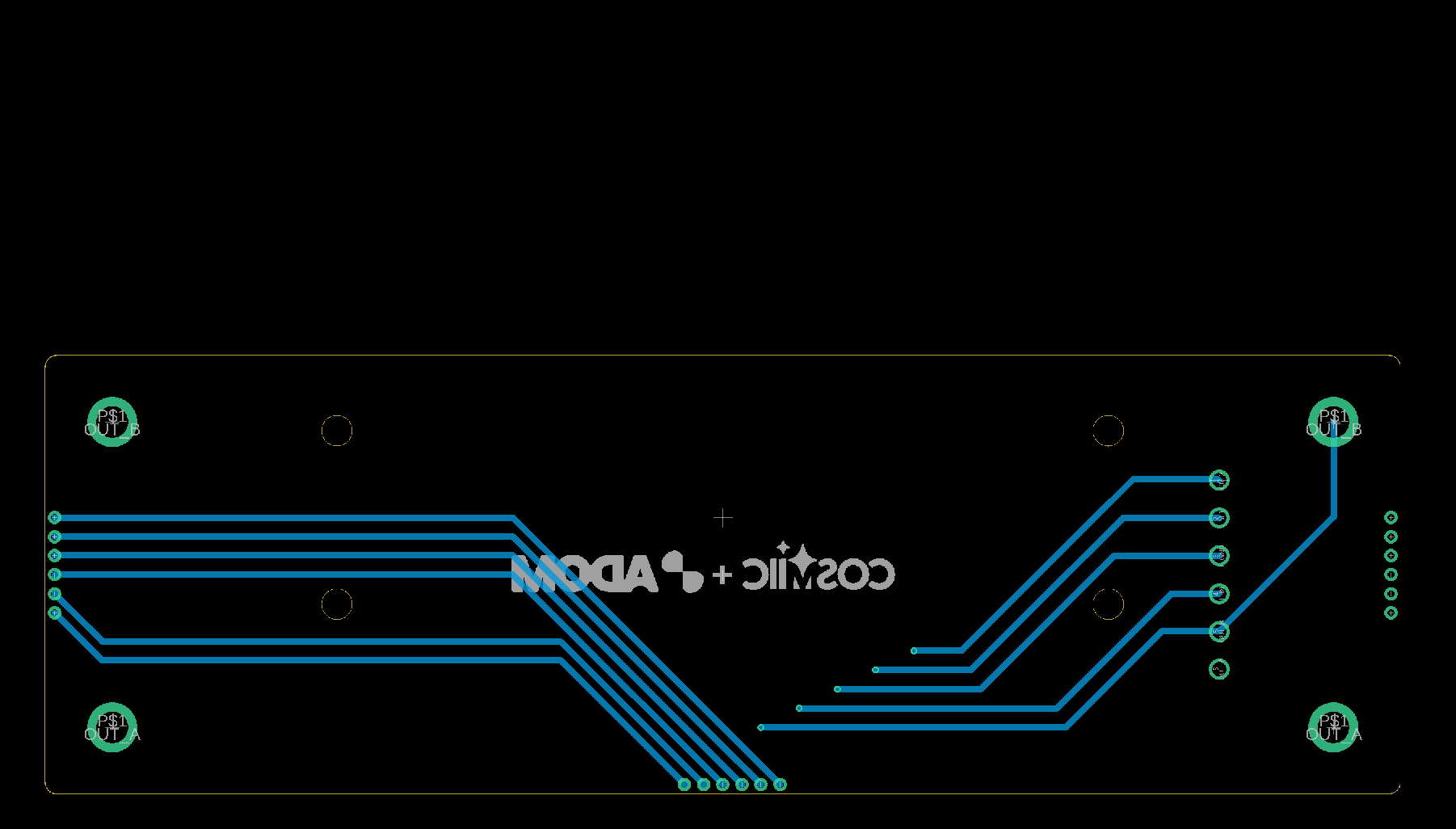

Assembly Bottom
 screenshot 5.3 MB
PNG assembly_top.png

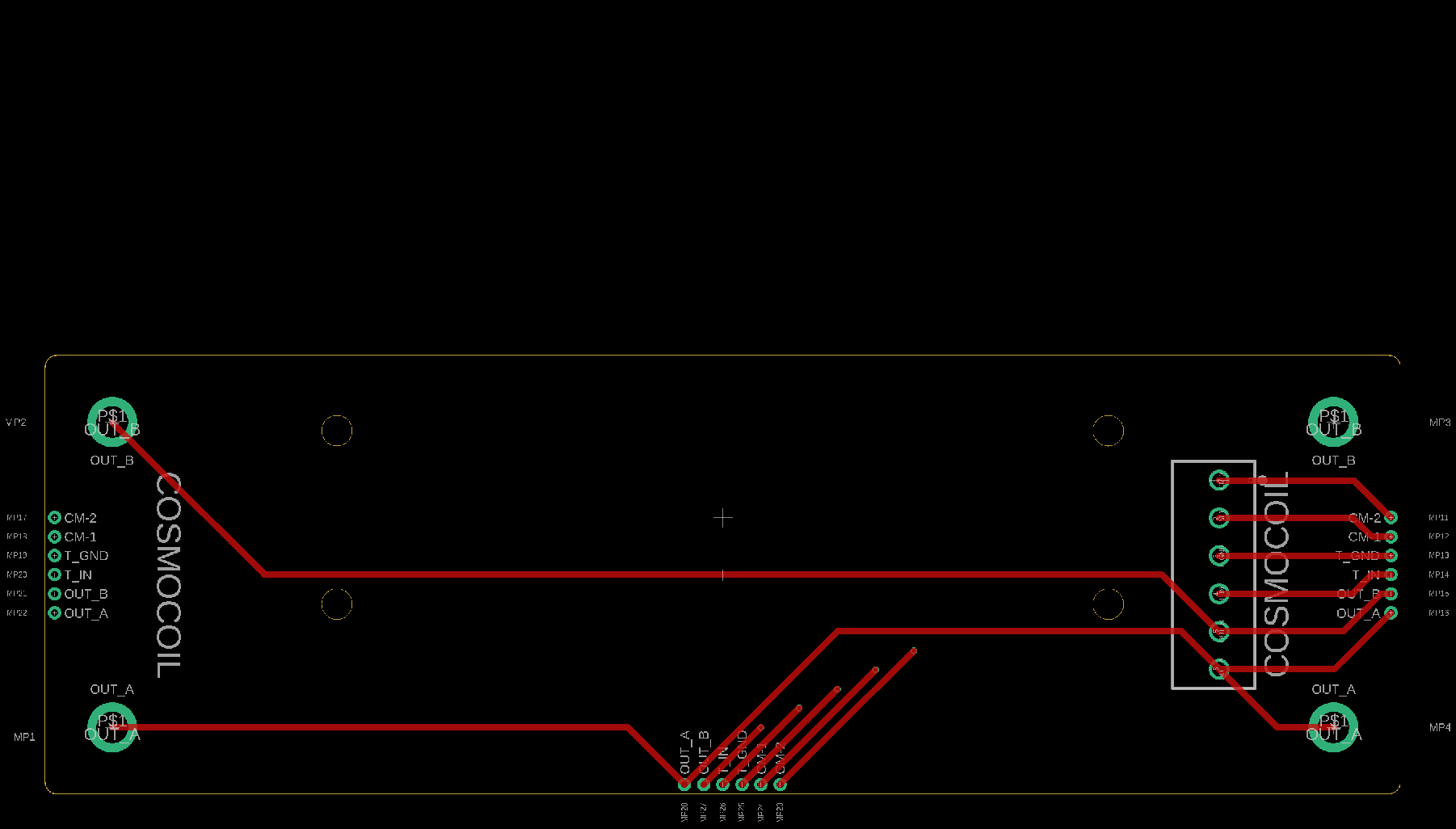

Assembly Top
 screenshot 5.3 MB
PNG 3d-right.png
3D Right View
 screenshot 80.8 KB
PNG 3d-board.png

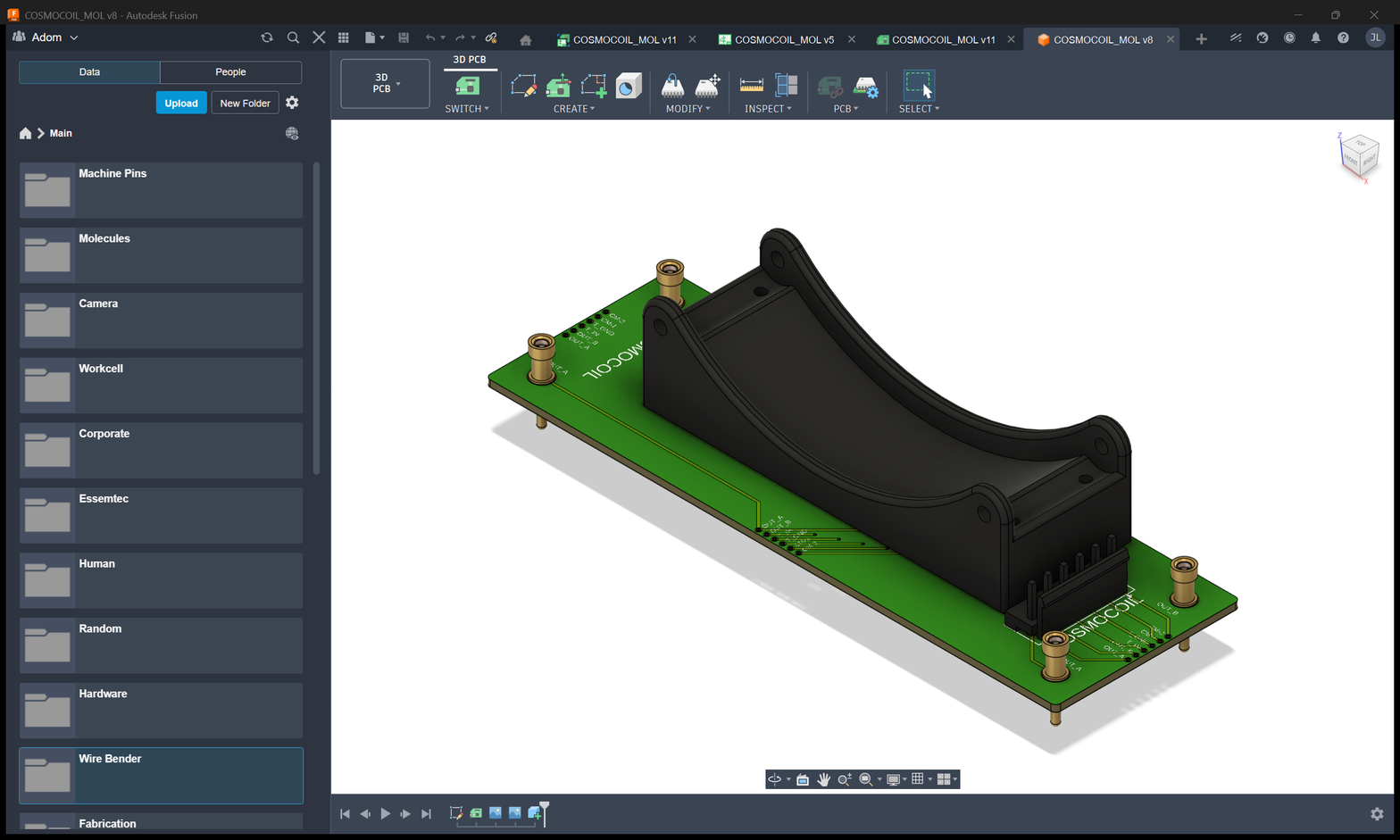

3D Board View
 screenshot 227.6 KB
PNG 3d-front.png
3D Front View

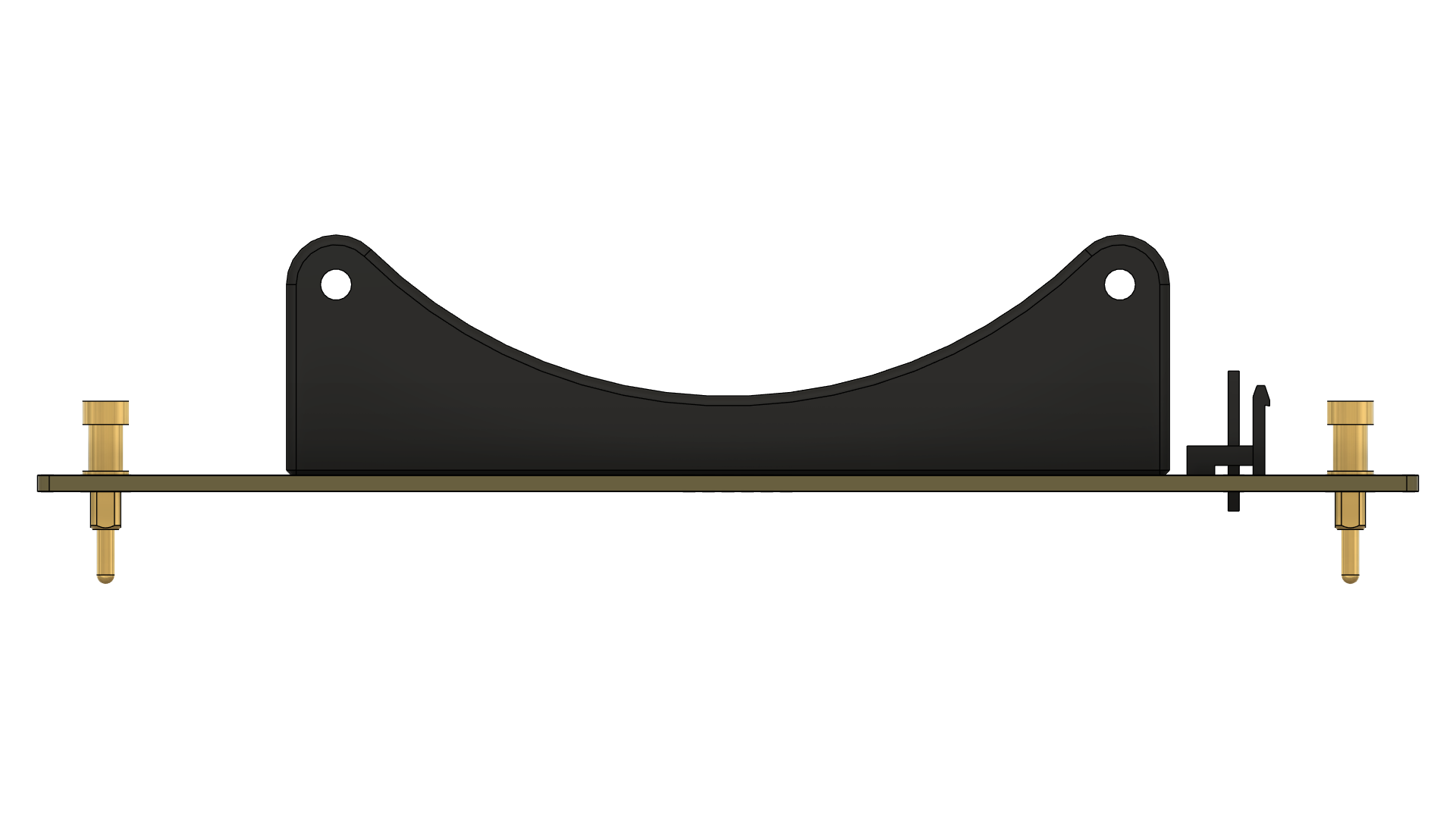

 screenshot 69.1 KB
PNG 3d-back.png
3D Back View

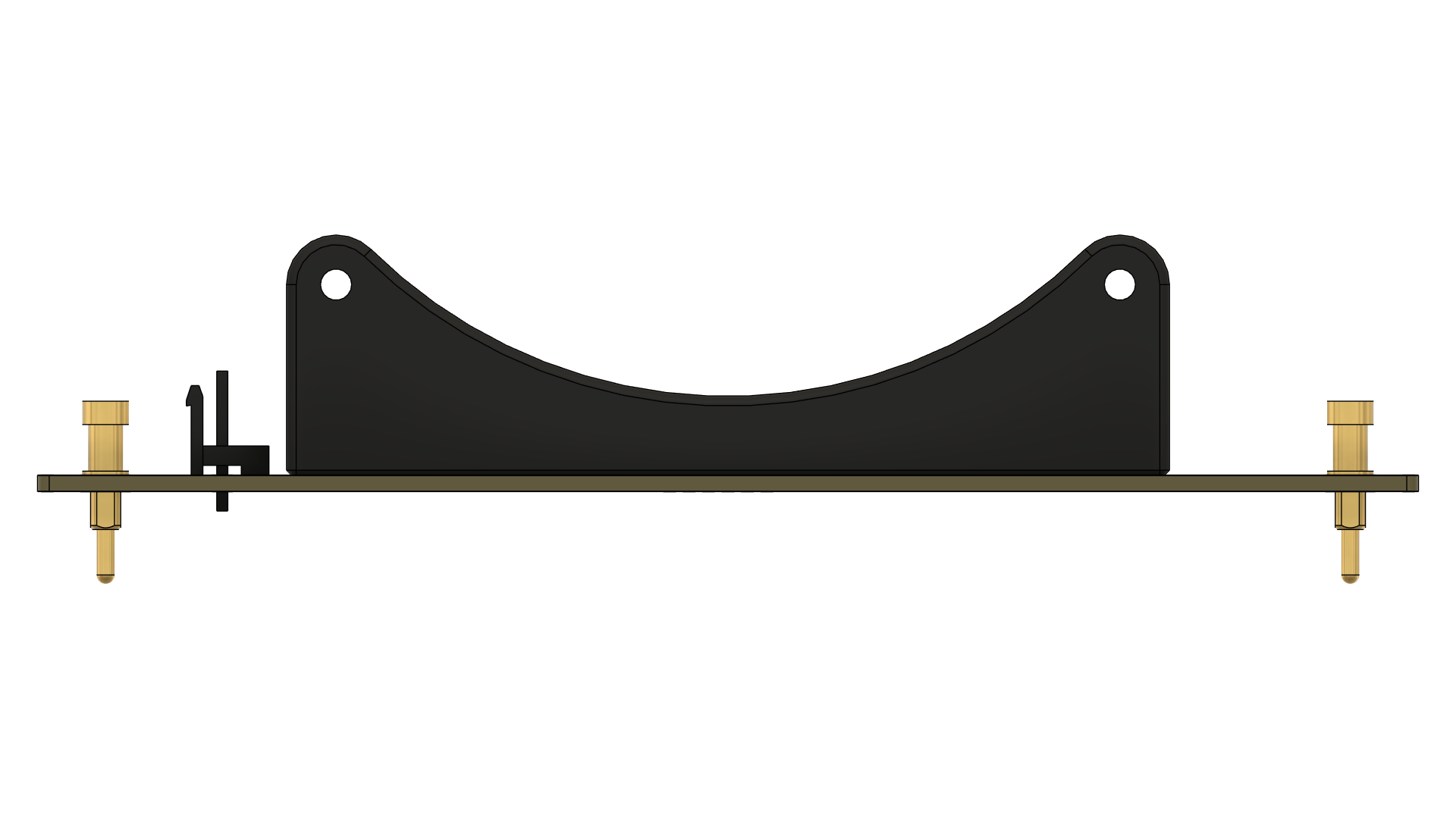

 screenshot 64.1 KB
PNG 3d-top.png

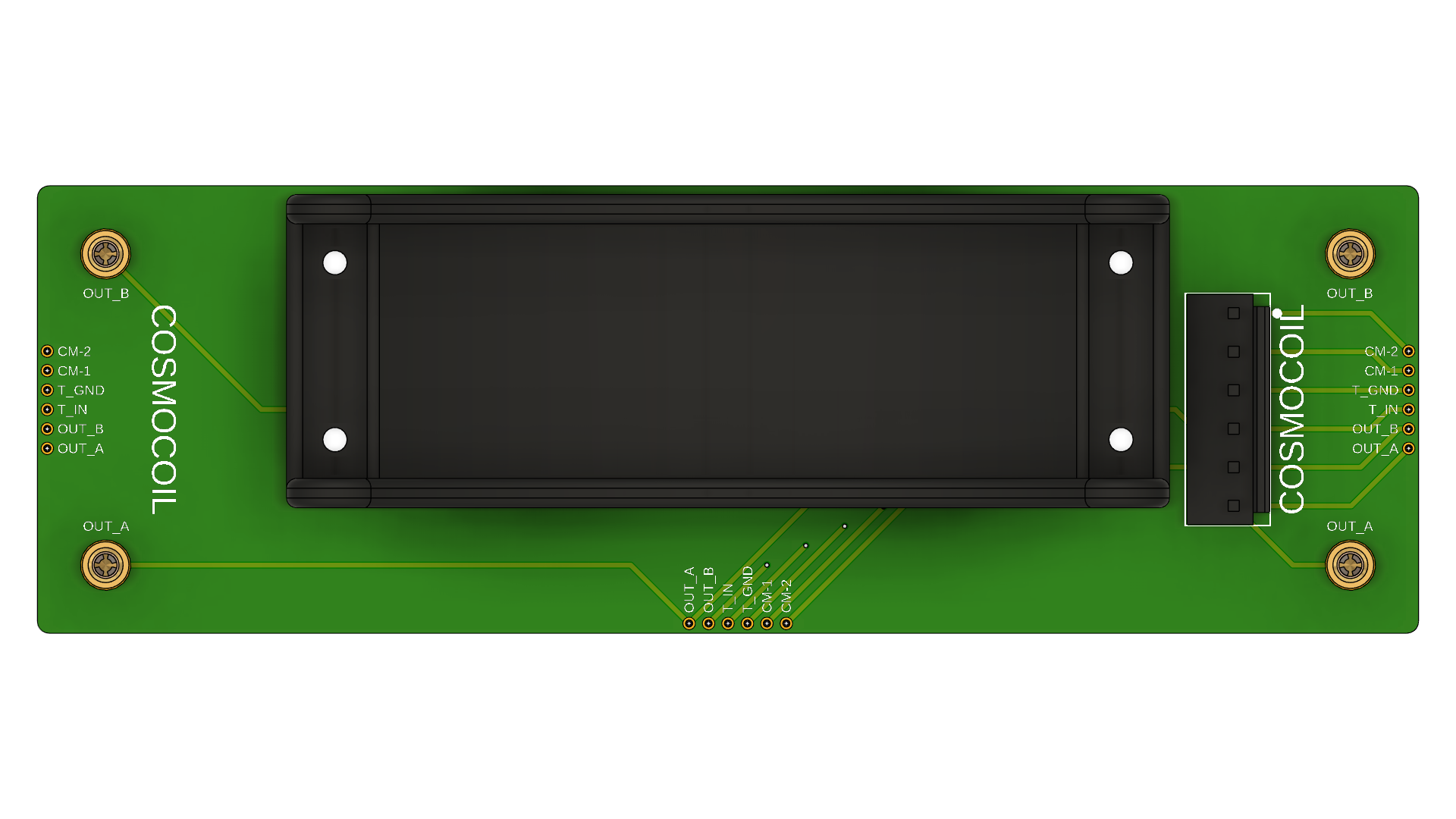

3D Top View
 screenshot 280.9 KB

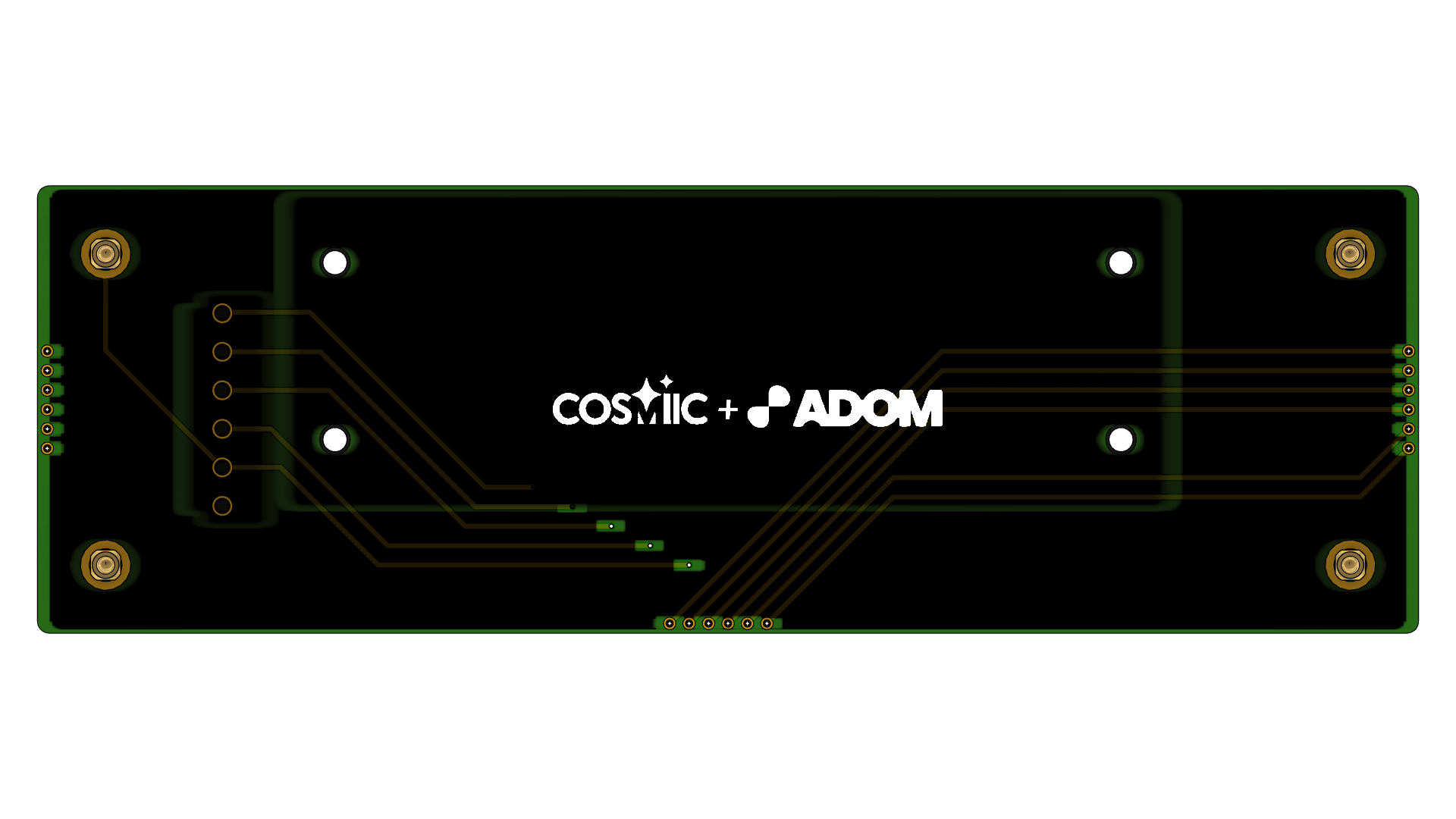

PNG 3d-bottom.png
3D Bottom View
 screenshot 125.8 KB

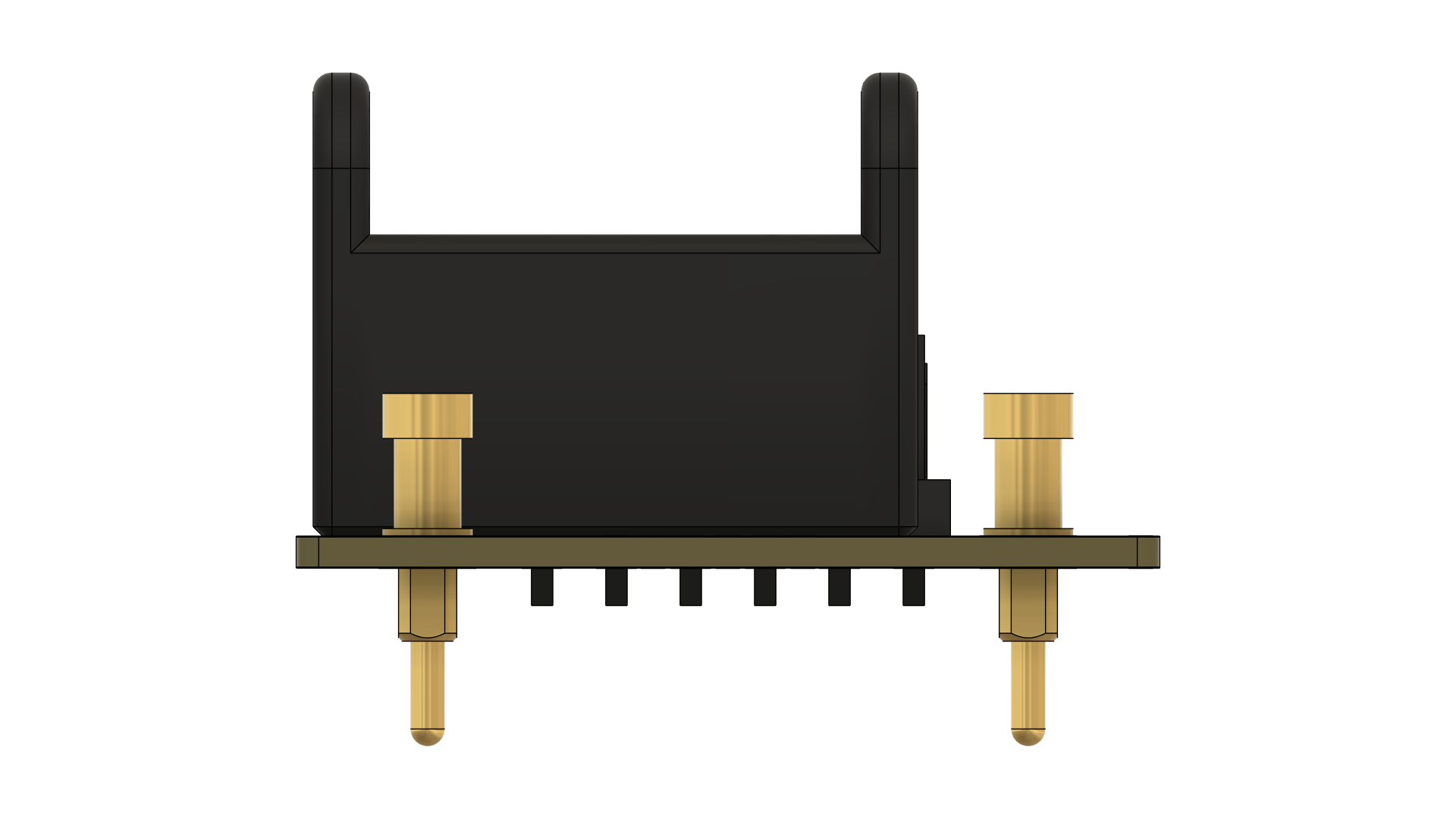

PNG 3d-left.png
