ADIPOSE Molecule v2

Type: Adom Molecule Creator: adonis Version: v1 Category: other Availability: 100%, 24/7

Overview

This molecule contains a 100mm x 100mm x 30mm human adipose tissue analog. The electrical characteristics are as follows: εᵣ ≈ 5 (real part of relative permittivity; σ ≈ 0.2 S/m (order of magnitude, for low-water content fat); µᵣ ≈ 1. This can be used in evaluating the response of electromagnetic devices when in the presence of human fat tissue.

Science Drivers

• implantable healthcare

NSF Relevance

The adipose tissue analog molecule creates a standardized testbed for analyzing the way implantable and other biomedical devices interact with the human body. This creates an auditable and repeatable test platform that can be applied to developing or already existing devices. In the case of the COSMIIC system, it enables experimentation with different physical configurations and electrical charging parameters to optimize wireless power transfer efficiency through human adipose tissue.

Integration Guide

To use ADIPOSE Molecule v2 in your design:

1. Download the schematic symbol and PCB footprint from the Files section
2. Import into your EDA tool (KiCad or Fusion 360 / EAGLE)
3. Place the molecule in your schematic and connect the interface pins

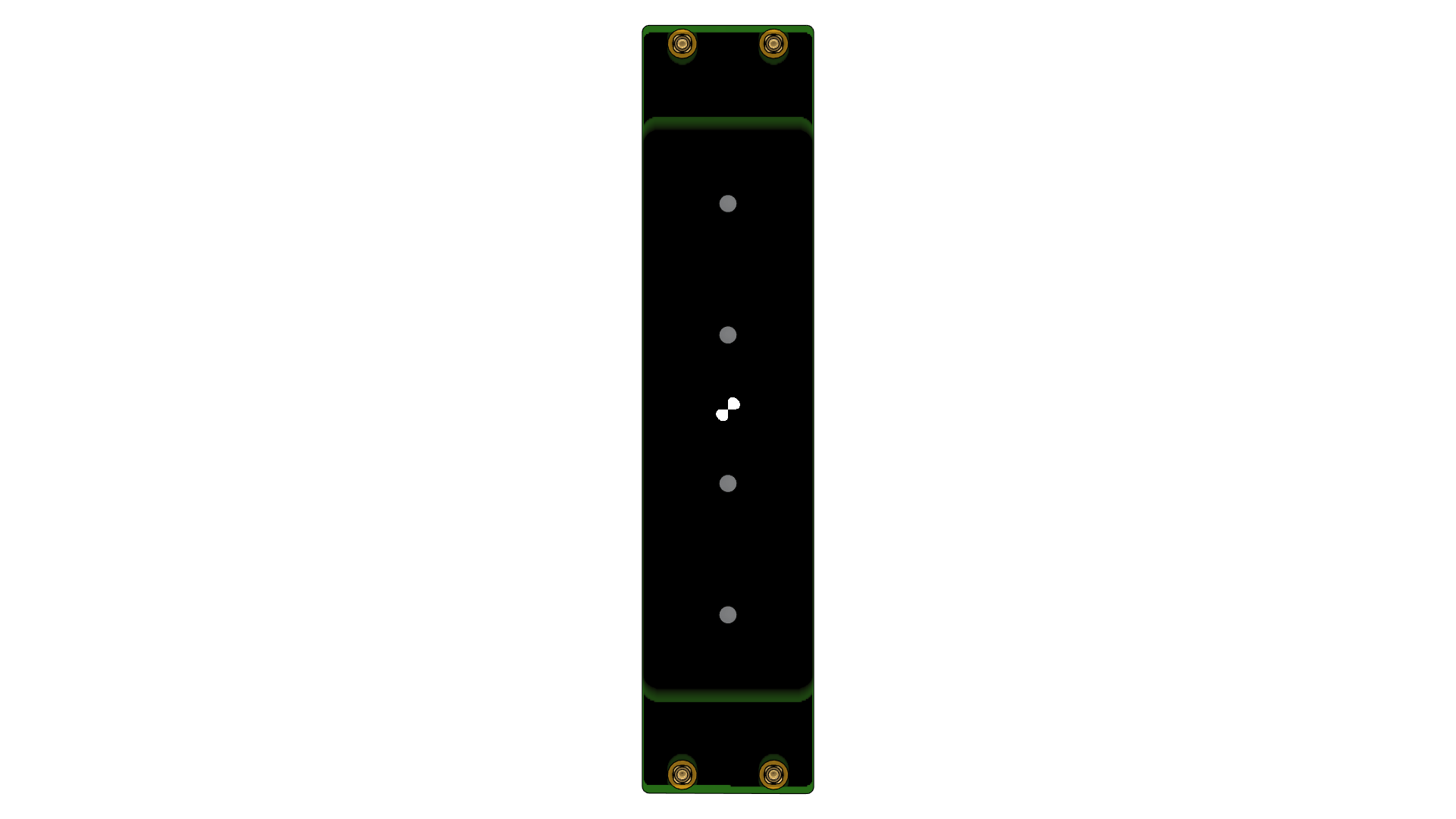

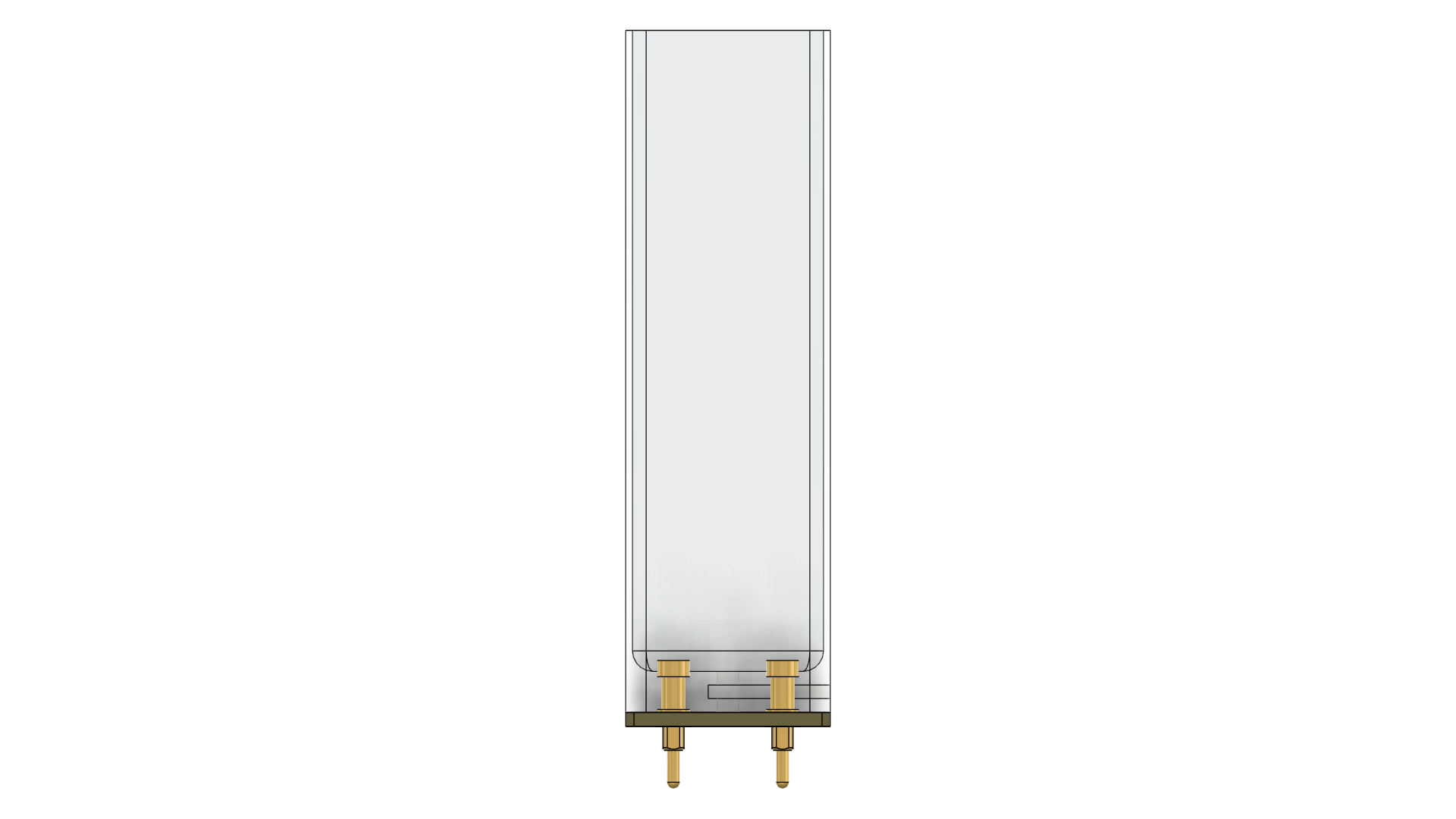

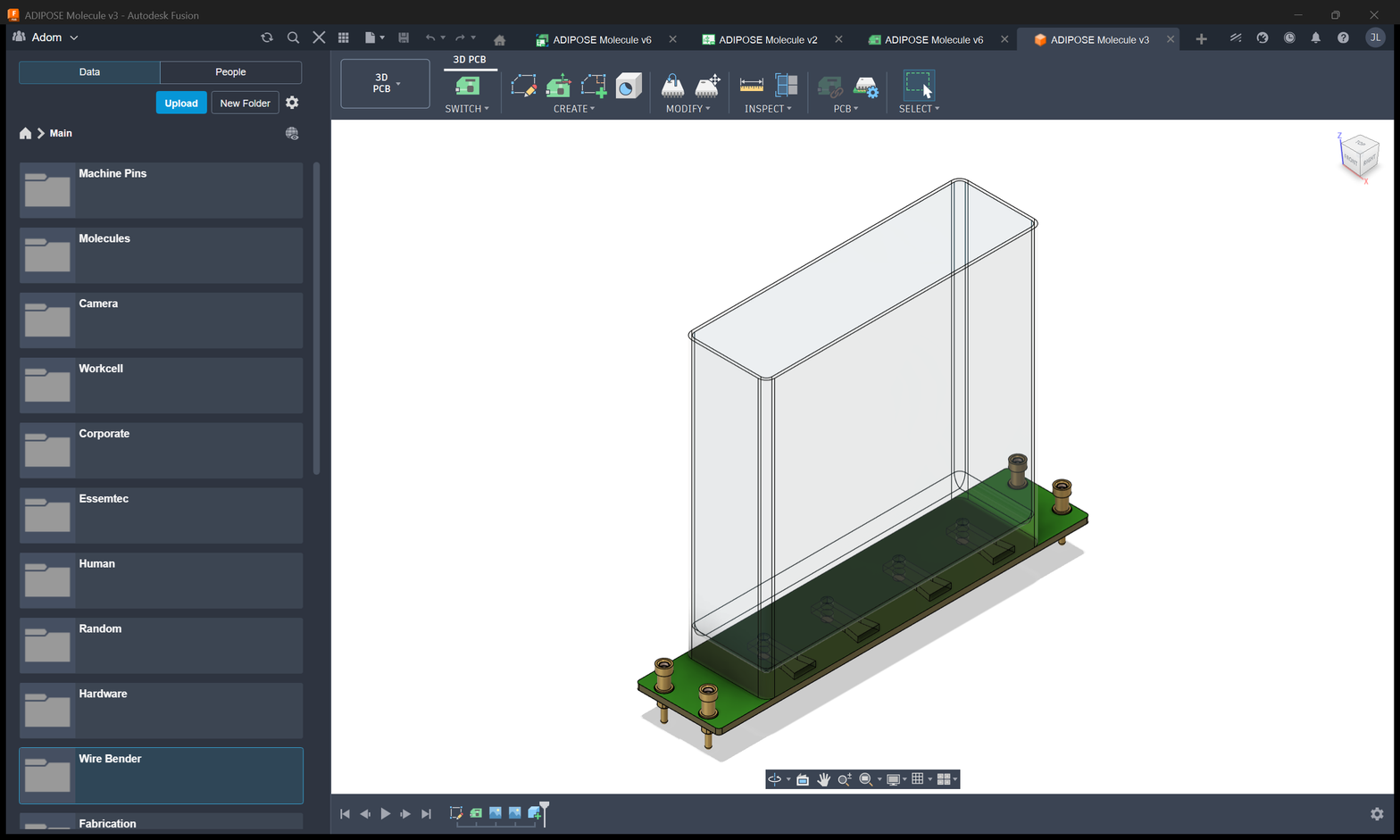

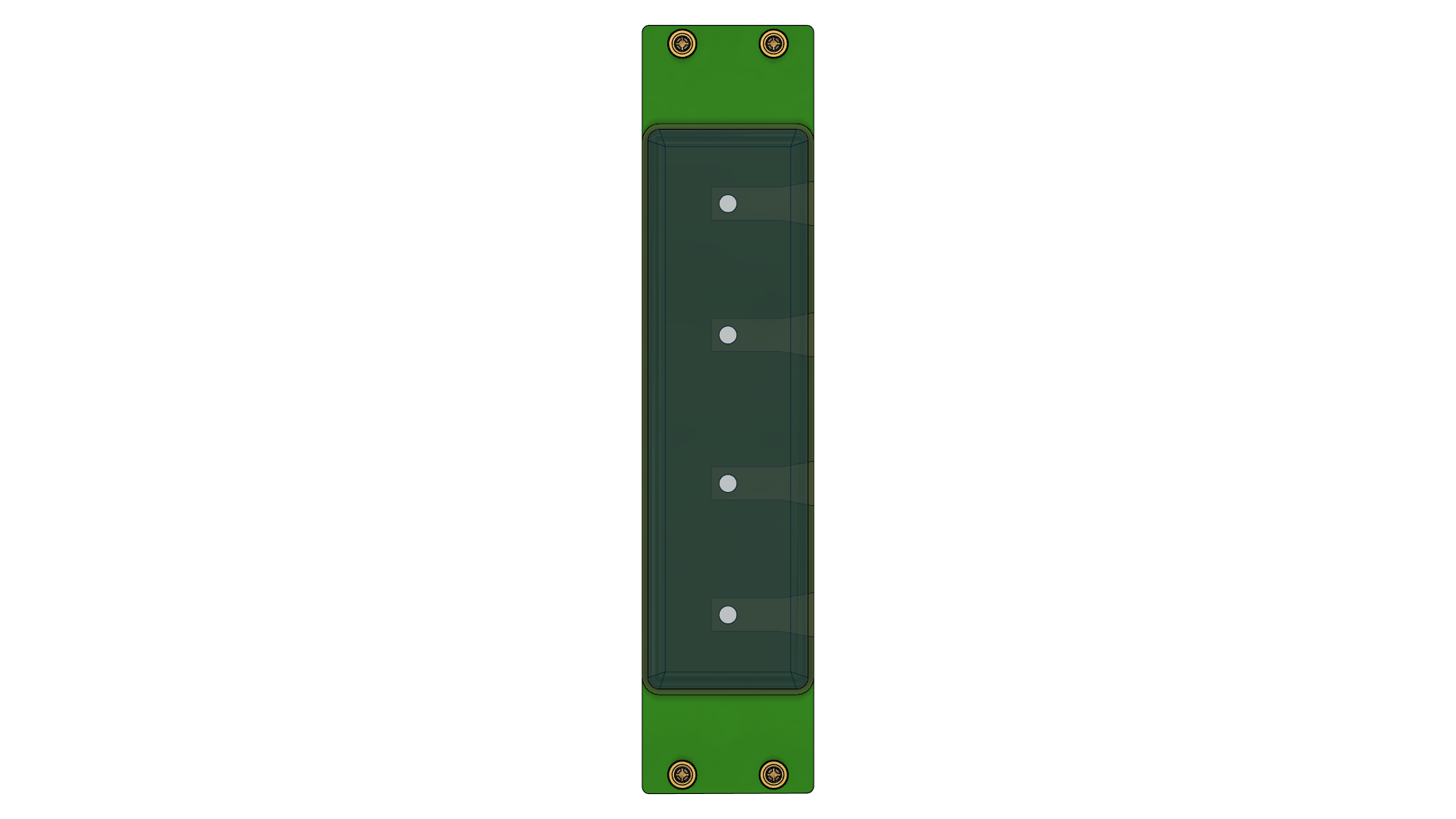

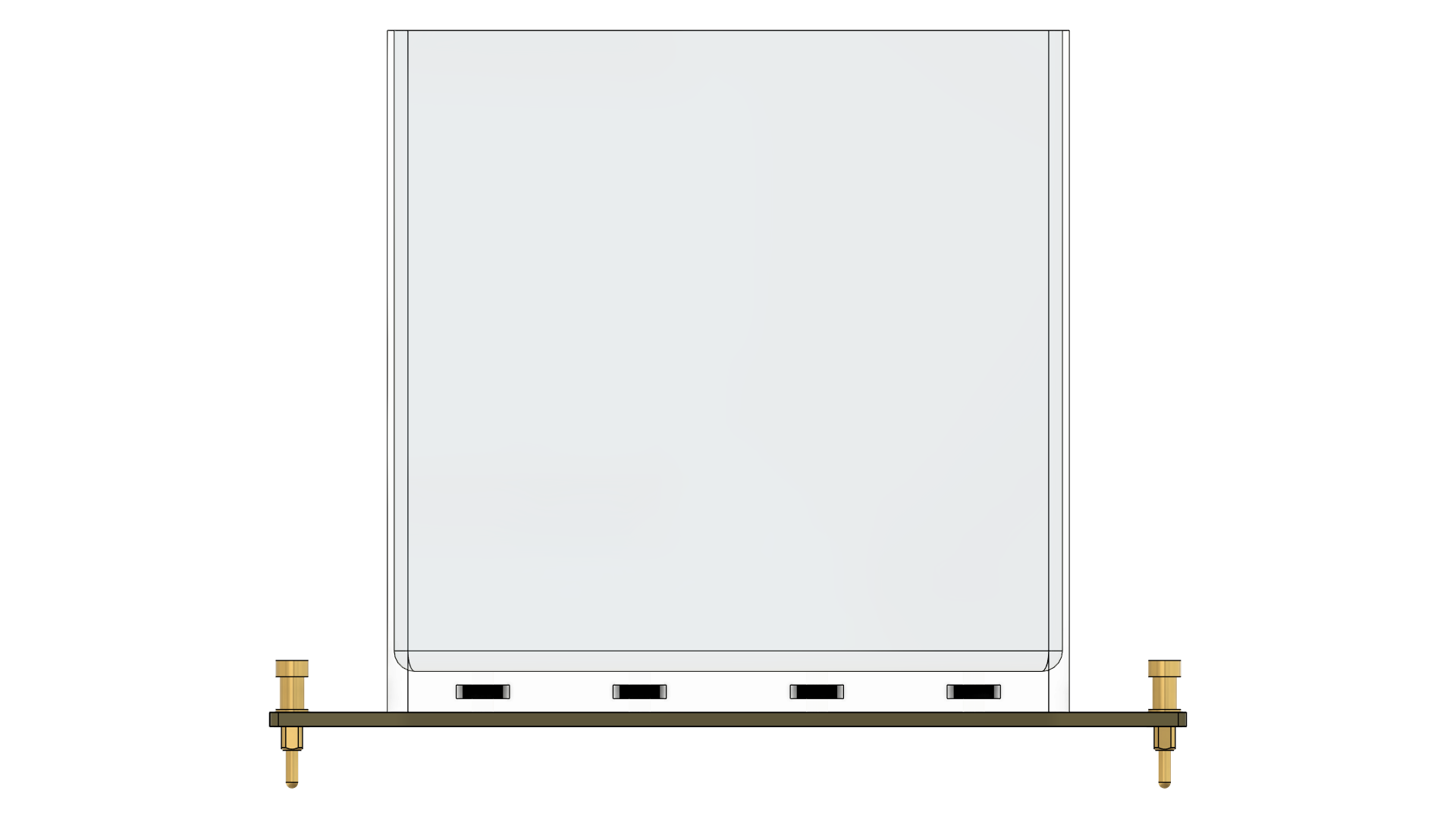

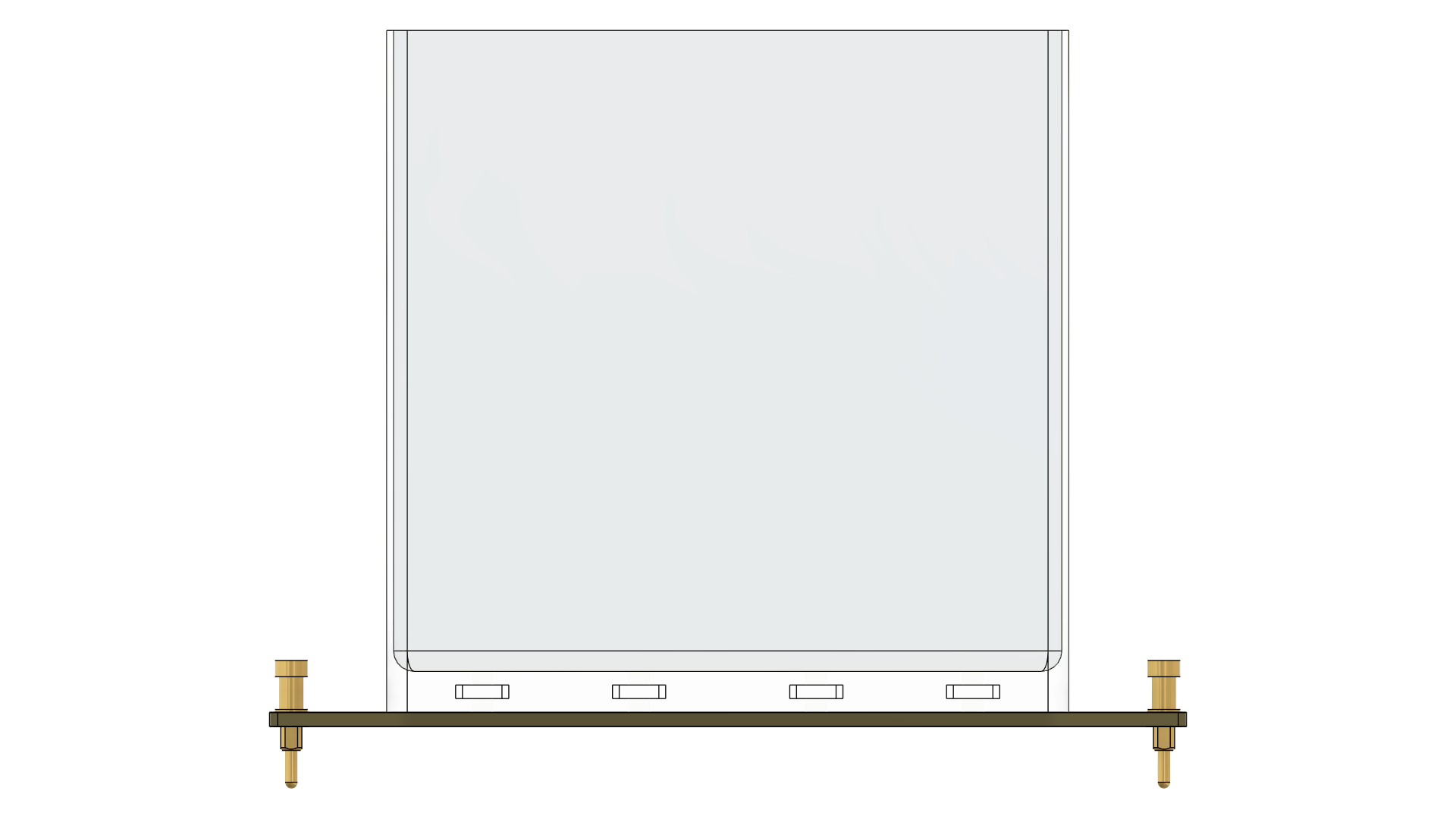

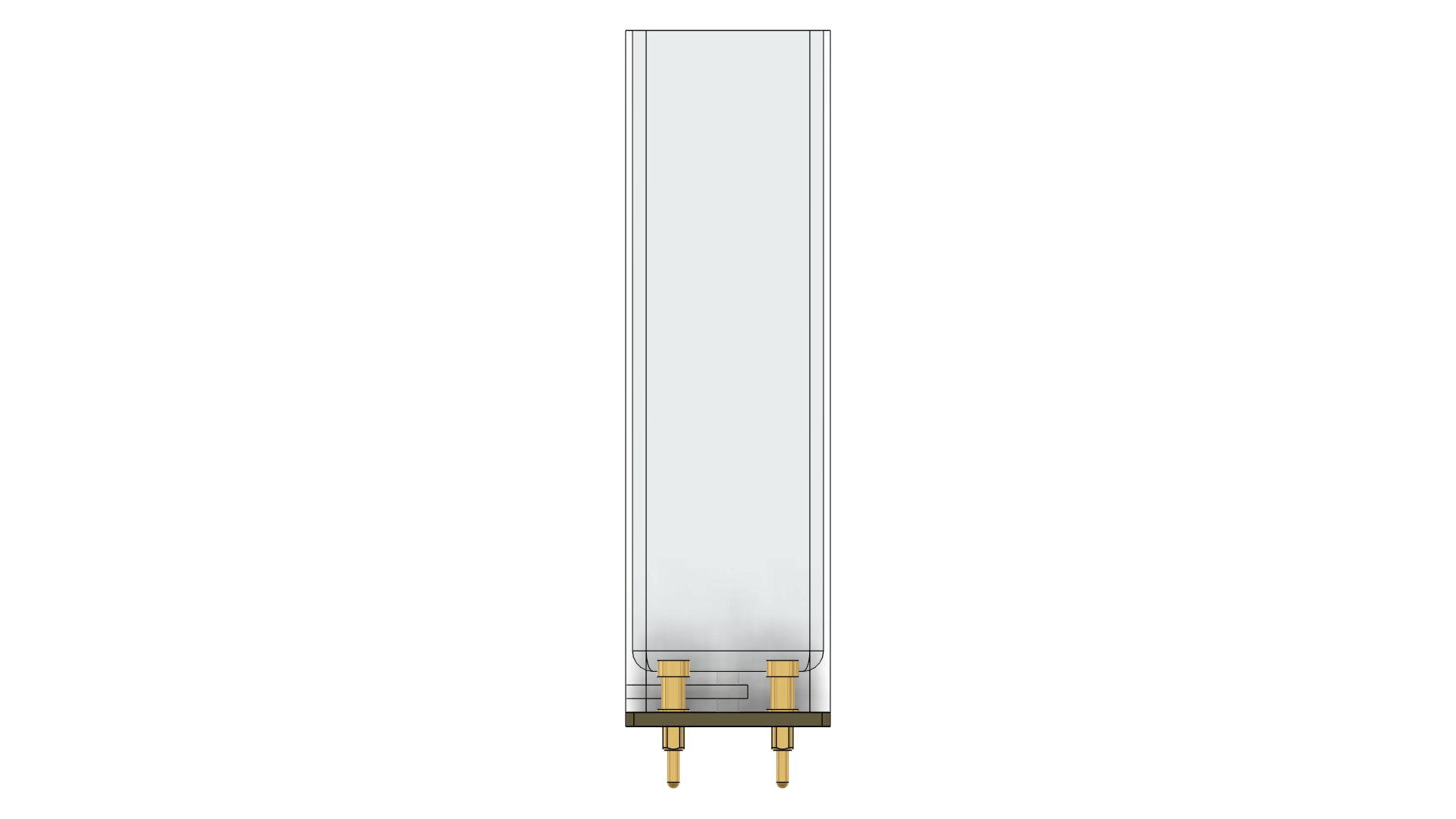

4. Use the 3D model (.glb) for mechanical fit verification

Design Notes

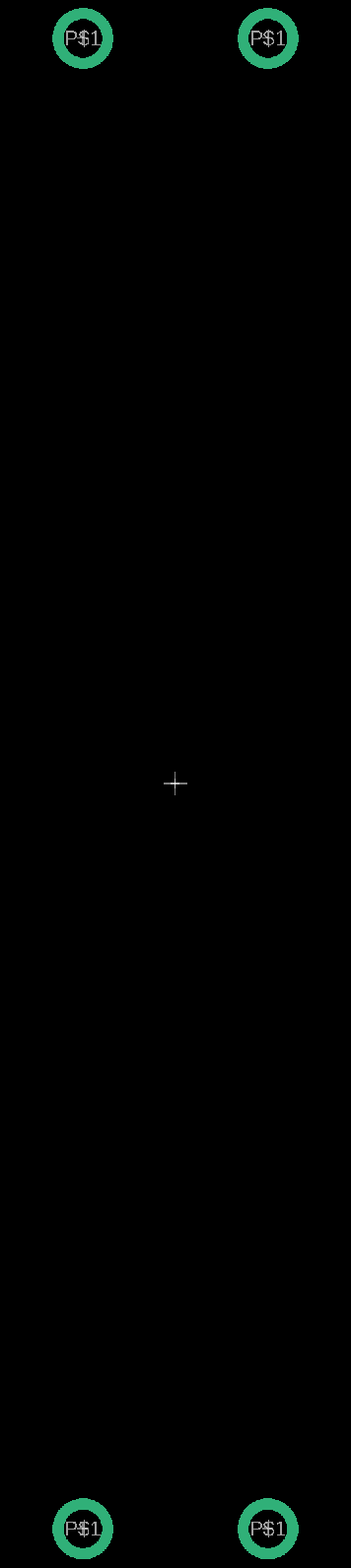

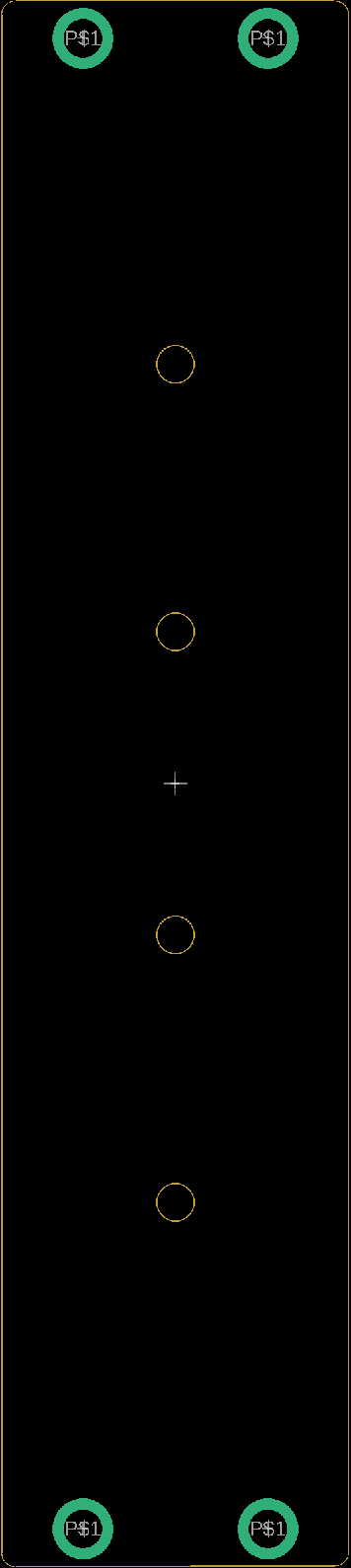

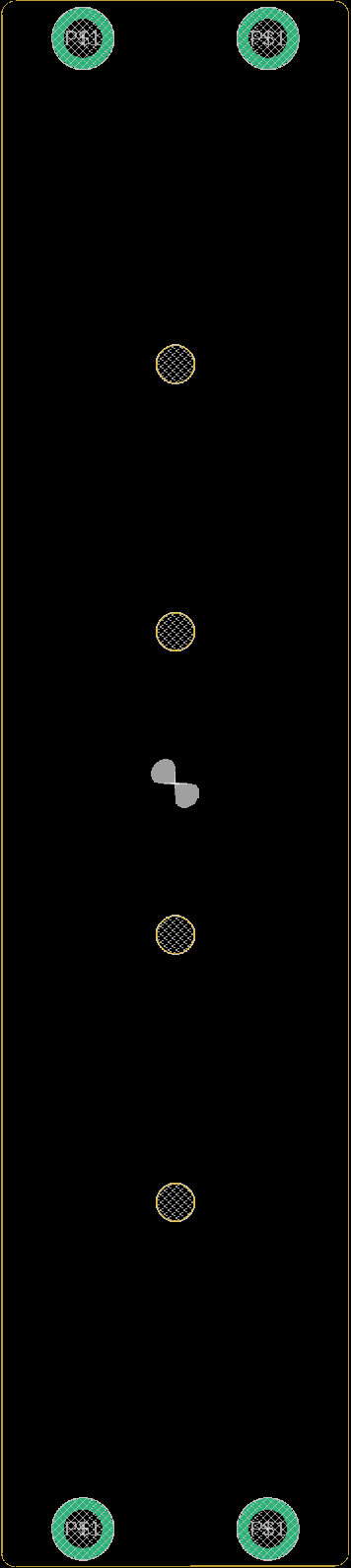

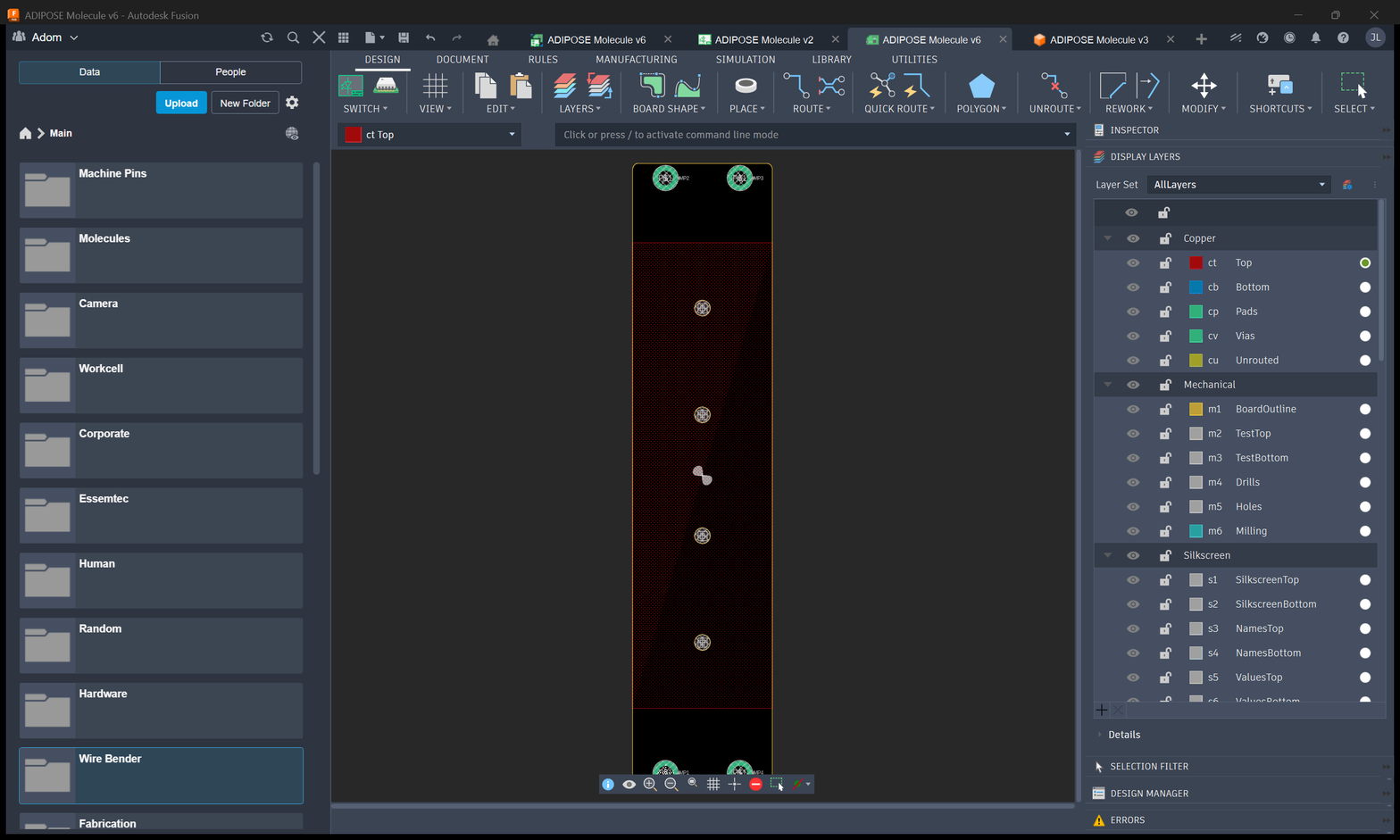

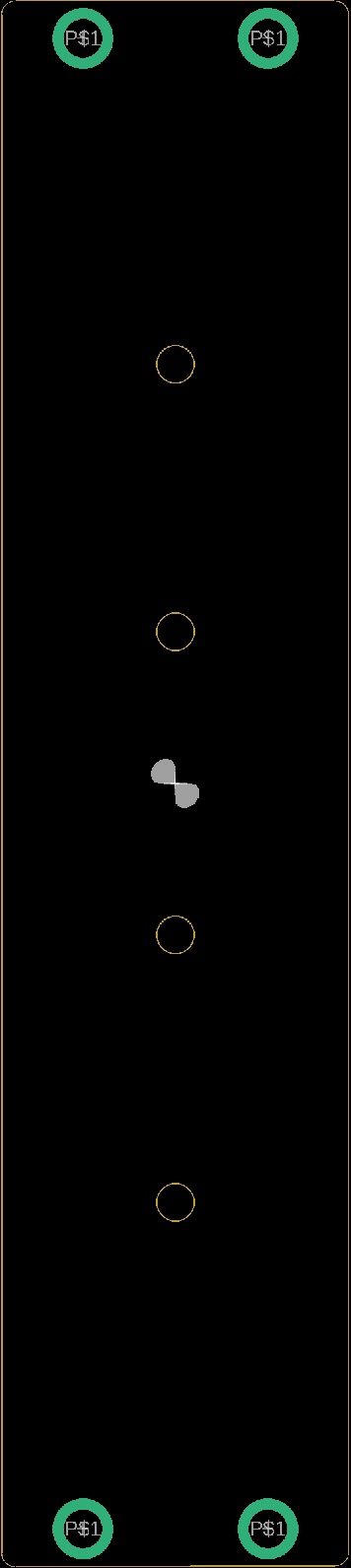

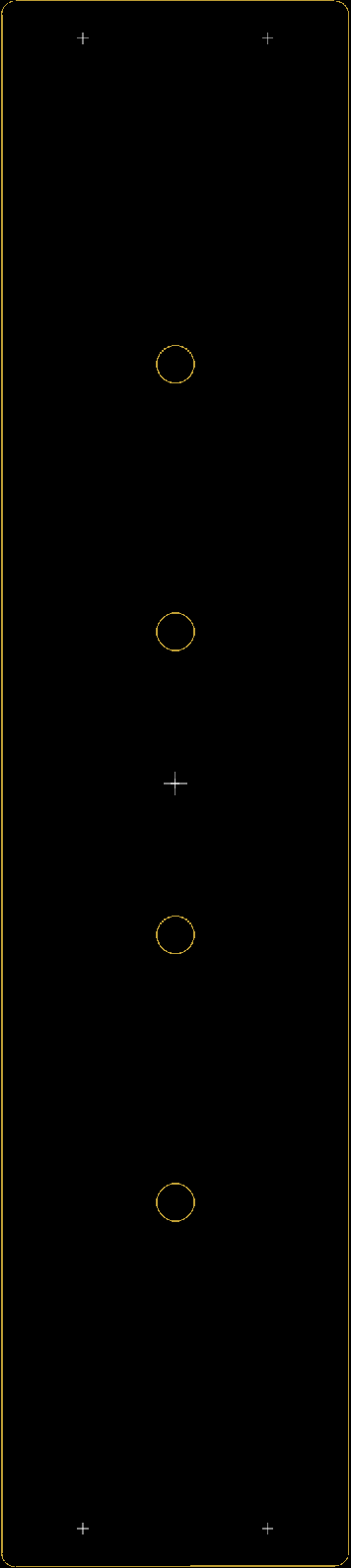

Board design files (.brd, .sch, .f3d) are available for modification and reference.
