P34-RGB05P02N3P1IMA03-CC

## Description

The P34-RGB05P02N3P1IMA03-CC is an addressable RGB LED from Shenzhen H-Great Optoelectronic in a 3.4 x 3.3 x 1.9 mm PLCC-6 SMD package. It integrates a constant-current driver IC with 8-bit PWM control (256 grayscale levels per channel) and a single-wire serial data interface running at 800 Kbps. The device supports daisy-chain cascading via DIN/DOUT for LED strip and matrix applications.

## Features

- Integrated constant-current driver with 8-bit PWM per R/G/B channel (256 grayscales)
- Single-wire NRZ serial data interface at 800 Kbps
- Viewing angle: 120 degrees
- Supply voltage: 3.5 - 5.5 V (VDD)
- Maximum output current: 12 mA per channel
- ESD protection up to 2 kV
- MSL: Level 3
- RoHS compliant
- Daisy-chain cascading via DIN/DOUT

## Pin Configuration

| Pin | Symbol | Function |
|-----|--------|----------|
| a | DOUT | Serial data output |
| b | VDD | Supply voltage |
| c | VDD | Supply voltage |
| d | DIN | Serial data input |
| e | NC | No connection |
| f | GND | Ground terminal |

## Absolute Maximum Ratings

Ta = 25 C

| Parameter | Symbol | Value | Unit |
|-----------|--------|-------|------|
| DC forward current (VDD) | VDD | +3.5 to +5.5 | V |
| Maximum output current | Iledout | 12 | mA |
| Electrostatic discharge | ESD | 2000 | V |
| Operating temperature | Topr | -40 to +85 | C |
| Storage temperature | Tstg | -40 to +85 | C |
| Maximum junction temperature | Tj | 125 | C |

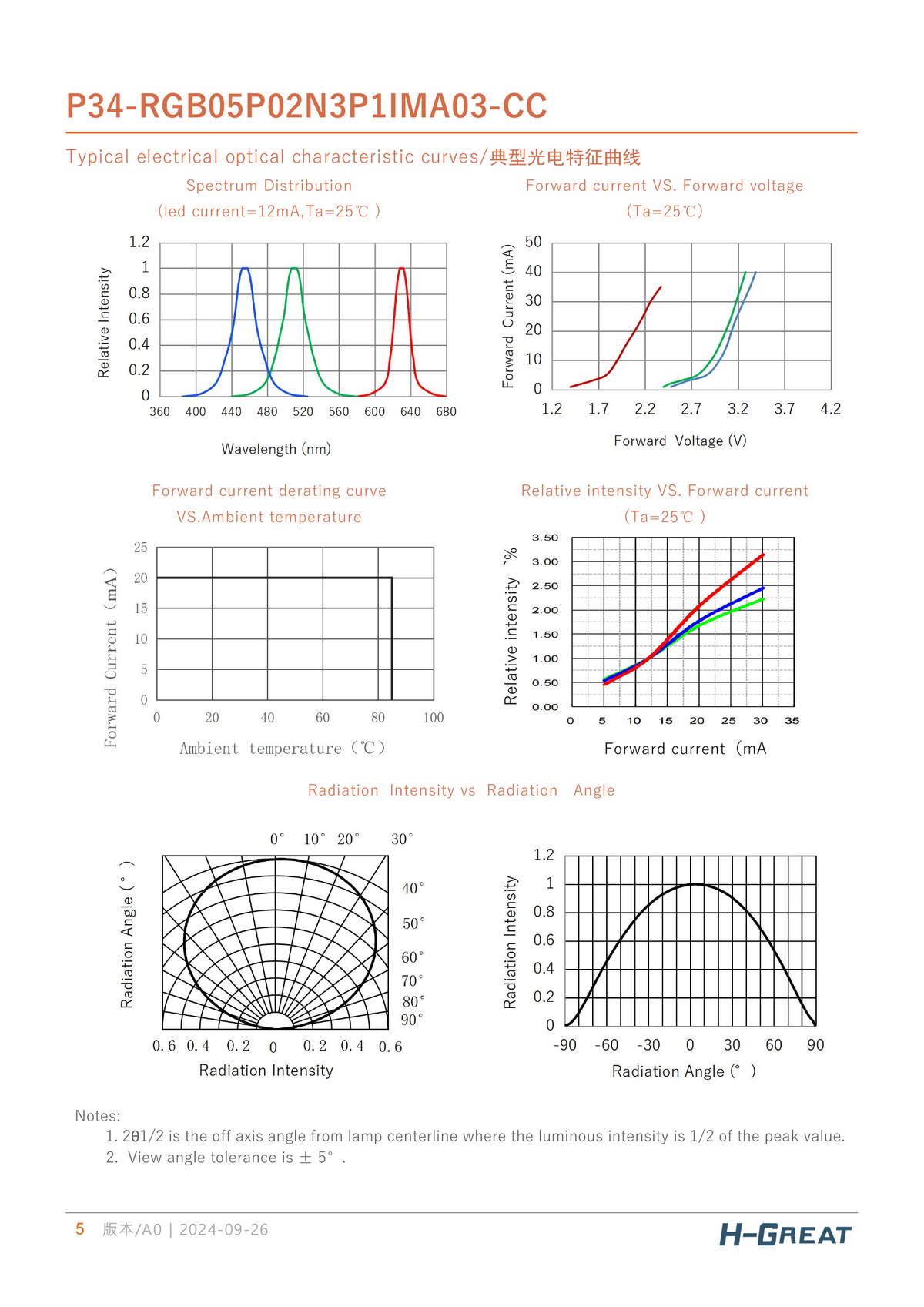

## Electrical Characteristics

### Electro-Optical Characteristics (IF = 12 mA, Ta = 25 C)

| Parameter | Symbol | Color | Min | Max | Unit |
|-----------|--------|-------|-----|-----|------|
| Luminous intensity | Iv | R | 285 | 560 | mcd |
| Luminous intensity | Iv | G | 1150 | 1800 | mcd |
| Luminous intensity | Iv | B | 235 | 350 | mcd |
| Dominant wavelength | ld | R | 615 | 625 | nm |
| Dominant wavelength | ld | G | 520 | 530 | nm |
| Dominant wavelength | ld | B | 460 | 470 | nm |

### Data Transfer Characteristics

| Parameter | Symbol | Min | Typ | Max | Unit |
|-----------|--------|-----|-----|-----|------|
| Input high voltage | VIH | 0.7*VDD | -- | -- | V |
| Input low voltage | VIL | -- | -- | 0.3*VDD | V |
| DOUT output current | IOH | -- | -40 | -- | mA |
| Power supply current to DOUT | IOL | -- | 40 | -- | mA |
| Quiescent current | IDD | -- | 0.5 | -- | mA |
| Standby current | Isleep | -- | 1 | -- | uA |

### Switching Characteristics

| Parameter | Symbol | Min | Typ | Max | Unit | Conditions |
|-----------|--------|-----|-----|-----|------|------------|
| DOUT transmission delay | tPLH/tPHL | -- | 160 | -- | ns | DOUT load 30 pF |
| IOUT rise time | tr | -- | -- | 50 | ns | IOUT R/G/B = 12 mA |
| IOUT fall time | tf | -- | -- | 100 | ns | IOUT R/G/B = 12 mA |
| Data transmission rate | fDIN | -- | 800 | -- | Kbps | |

## Software API

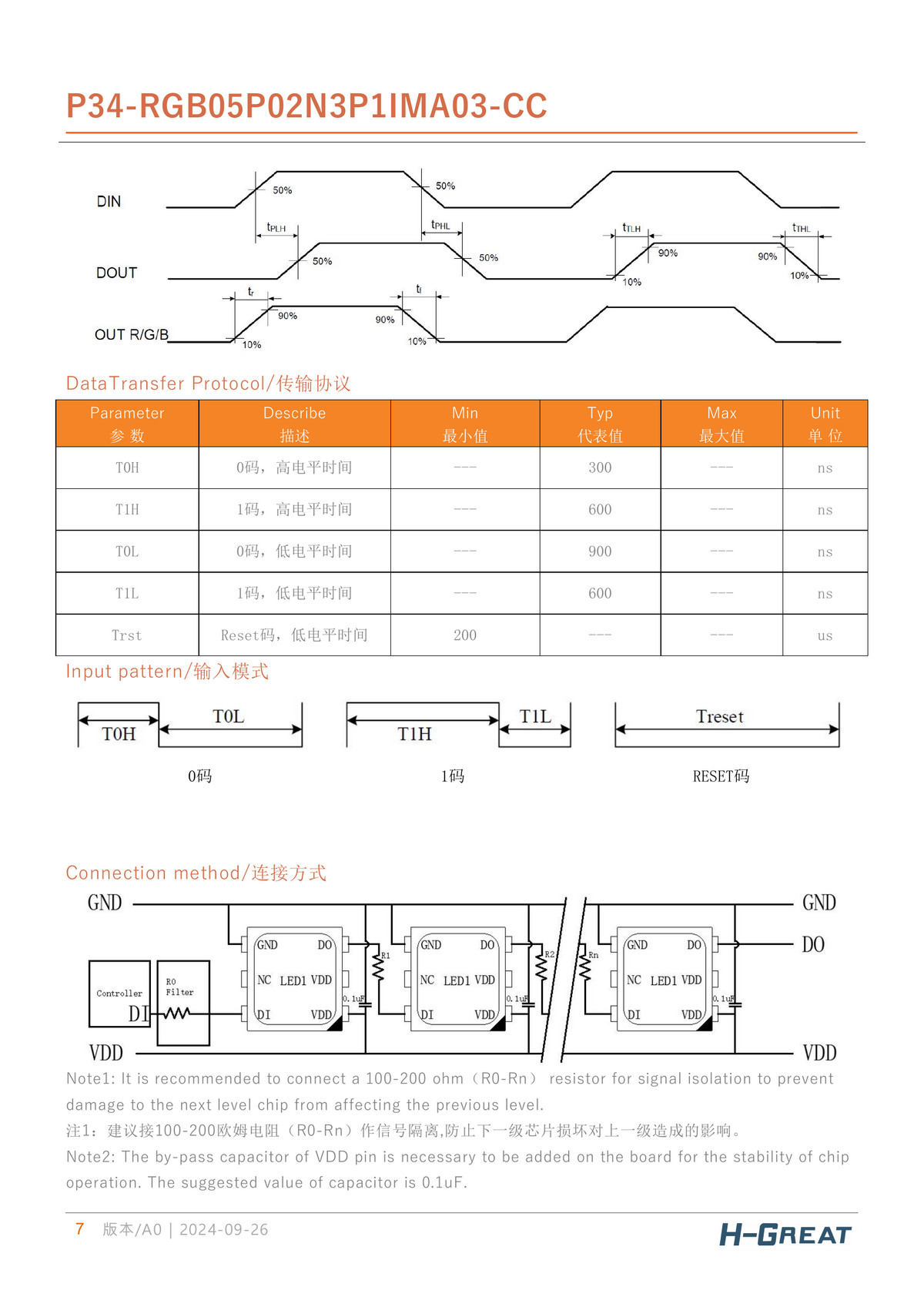

### Data Protocol (NRZ encoding)

| Code | High Time (T0H/T1H) | Low Time (T0L/T1L) |
|------|---------------------|---------------------|
| 0 | 300 ns | 900 ns |
| 1 | 600 ns | 600 ns |
| Reset | -- | >= 200 us |

### 24-bit Data Structure (GRB order)

Data is transmitted MSB first in Green-Red-Blue order: G7-G0, R7-R0, B7-B0 (24 bits per LED).

### Connection Notes

- Add 100-200 ohm series resistor between DOUT and next DIN for signal isolation
- 0.1 uF bypass capacitor on VDD pin required for stable operation

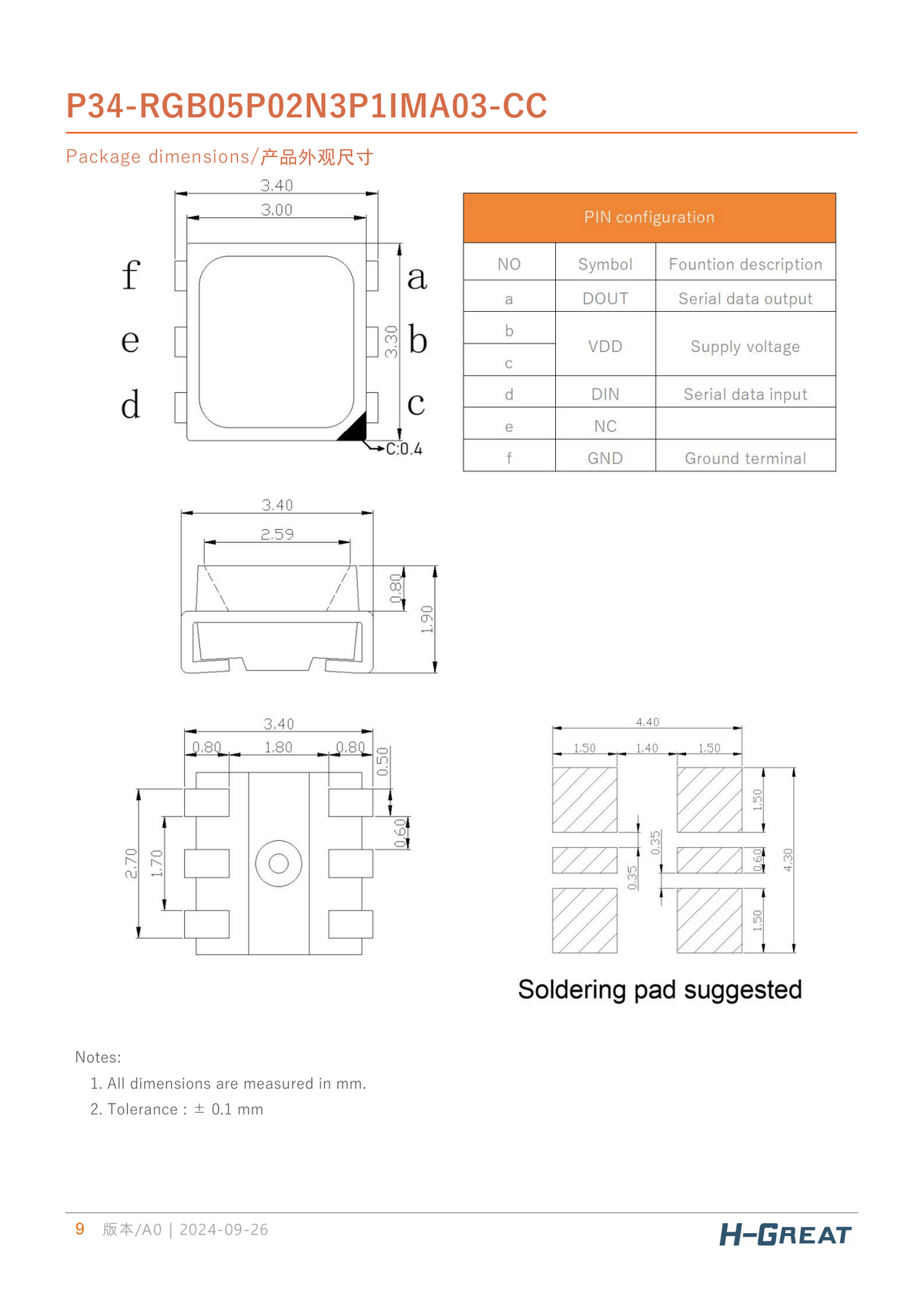

## Packages

3.4 x 3.3 x 1.9 mm PLCC-6 SMD package. Pad dimensions: 0.80 x 0.50 mm (side pads), 1.80 x 0.60 mm (thermal pad). Recommended land pattern: 4.40 x 4.30 mm overall. Tolerance: +/- 0.1 mm. Available on tape and reel (reel diameter 178 +/- 1 mm).

## Applications

- Automotive interior ambient lighting
- Full color LED light strips
- Indoor ambient lighting
- LED matrix displays
