BHI360

Bosch Sensortec BHI360 programmable, ultra-low-power smart sensor hub with integrated 6-axis IMU (accelerometer + gyroscope), 32-bit Fuser2 MCU, and BSX sensor fusion library. 2.5x3.0mm LGA-20 package, 7.8uA deep sleep, SPI/I2C host interface.

Bosch Sensortec BHI360 BST-BHI360-DS000-03 --- Rev 1.2, January 13, 2025 Original PDF ↗
BHI360
View this datasheet

Paste this into Claude Code (VS Code panel, Adom editor, or terminal) to install:

Search the Adom Wiki for the datasheet "BHI360" (slug: bhi360) at https://wiki-ufypy5dpx93o.adom.cloud/wiki/datasheets/bhi360. Download the standardized markdown and extracted diagram images into my project's datasheets/bhi360/ directory. Show me the key specifications and pin configuration.
Overview
Pinout
Specifications
Software
Applications
Diagrams
Markdown

Source: Bosch Sensortec Datasheet (BST-BHI360-DS000-03) Manufacturer: Bosch Sensortec Part Number: BHI360 Document: BST-BHI360-DS000-03 --- Rev 1.2, January 13, 2025

Description

The BHI360 is a highly integrated, ultra-low-power, programmable smart sensor system designed for always-on sensor data processing. It combines a best-in-class 6-axis IMU (16-bit 3-axis accelerometer and 16-bit 3-axis gyroscope) with a programmable 32-bit microcontroller (Fuser2) and an additional ultra-low-power custom core optimized for accelerometer-based always-on algorithms. The device includes a powerful software framework, SDK, and preinstalled sensor data processing algorithms including the BSX sensor fusion library.

Integrated in a compact 2.5 mm x 3.0 mm LGA package with 20 pads, the BHI360 is pin-to-pin backward compatible with many Bosch Sensortec IMUs, enabling easy replacement and platform design. It features a host interface configurable as SPI or I2C, two secondary master interfaces for connecting external sensors, up to 8 GPIOs, and fast I/O operations (SPI/GPIO up to 50 MHz, I2C up to 3.4 MHz).

The Fuser2 MCU core is based on ARC EM4 architecture delivering up to 3.67 CoreMark/MHz, with 256 kByte on-chip SRAM, 144 kByte on-chip ROM preloaded with software, and a 4-channel micro DMA controller. The integrated event-driven software framework with OPENRTOS multithreading kernel and virtual sensor stack provides a flexible platform for custom embedded algorithm development. The device supports high performance mode as well as several low-power modes including deep sleep at 7.8 uA.

Key Specifications

6-axis (3-axis accelerometer + 3-axis gyroscope)
IMU Type
16-bit
Accelerometer Resolution
16-bit
Gyroscope Resolution
+/-2g, +/-4g, +/-8g, +/-16g (selectable)
Accelerometer Range
+/-125, +/-250, +/-500, +/-1000, +/-2000 deg/s (selectable)
Gyroscope Range
12.5 Hz to 800 Hz
Accelerometer ODR (Host)
12.5 Hz to 800 Hz
Gyroscope ODR (Host)
ARC EM4, 3.67 CoreMark/MHz
MCU Core
20 MHz (Long Run) / 50 MHz (Turbo)
MCU Frequency
256 kByte
On-chip SRAM
144 kByte
On-chip ROM
1.71 V to 3.6 V
Supply Voltage VDD
1.71 V to 1.89 V (typ. 1.8 V)
Supply Voltage VDDIO
7.8 uA (typ.)
Deep Sleep Current
950 uA @ 20 MHz
Long Run CoreMark Current
2.8 mA @ 50 MHz
Turbo CoreMark Current
-40 to +85 deg C
Operating Temperature
2.5 mm x 3.0 mm x 0.95 mm LGA, 20 pads
Package
SPI (up to 50 MHz) or I2C (up to 3.4 MHz)
Host Interface

Features

  • Best-in-class 6-axis IMU with 16-bit accelerometer and 16-bit gyroscope
  • Programmable 32-bit Fuser2 MCU (ARC EM4) with FPU, running at 20 MHz or 50 MHz
  • Ultra-low-power custom core (Bosch Sensortec Core) optimized for always-on algorithms
  • 256 kByte on-chip SRAM and 144 kByte on-chip ROM with preloaded software
  • 4-channel micro DMA controller and Memory Protection Unit (MPU)
  • Integrated BSX sensor fusion library with 6DoF/9DoF orientation, gravity vector, and dynamic offset autocalibration
  • Event-driven software framework with OPENRTOS multithreading real-time kernel
  • Virtual sensor stack supporting step counter, tap detection, gesture detection, activity recognition, and wrist wear wake-up
  • Host interface configurable as SPI (up to 50 MHz) or I2C (up to 3.4 MHz)
  • Two secondary master interfaces (I2C and/or SPI) for external sensor expansion
  • Up to 8 software-configurable GPIOs
  • Secure boot mode with digital signature verification
  • Pin-to-pin backward compatible with many Bosch Sensortec IMUs
  • Deep sleep current as low as 7.8 uA with RAM retention
  • Open sensor platform with SDK for custom embedded algorithm development
  • Standard C library (libc) and math library (libm) available

Pin Configuration

1HSDOInput, Pull-down
Host Interface: SPI MISO / I2C address select
2ASDXInput, Pull-up
Sensor Aux Interface: OIS SDA / I2C SDA / Master 2 SPI MOSI or I2C SDA
3ASCXInput, Pull-up
Sensor Aux Interface: OIS Clock / I2C SCL / Master 2 SPI SCK or I2C SCL
4HIRQOutput
Host Interrupt Signal
5VDDIOSupply
Digital IO and Fuser2 Supply
6GNDIOGround
Digital IO and Fuser2 Ground
7GNDGround
Analog Sensor Ground
8VDDSupply
Analog Sensor Supply
9VREGSupply
Voltage regulator output
10OCSBInput, Pull-up
Sensor Aux Interface: OIS Chip Select / Master 2 SPI CS1
11OSDOInput, Pull-up
Sensor Aux Interface: OIS MISO / Master 2 SPI MISO
12HCSBInput, Pull-up
Host Interface: SPI Chip Select / I2C mode select (keep high for I2C)
13HSCXInput, Pull-up
Host Interface: SPI SCK / I2C SCL
14HSDXInput, Pull-up
Host Interface: SPI MOSI / I2C SDA
15M3SCLInput, Pull-up
Master 3 I2C SCL / Fuser2 Debug Clock (JTAG_CLK)
16JTAG_DIOInput, Pull-up
Fuser2 Debug Data (JTAG_DIO)
17RESETNInput, Pull-up
Reset input, active low
18M3SDAInput, Pull-up
Master 3: I2C SDA
19RESV2Input, Pull-up
Reserved: do not connect (internal IMU interrupt)
20RESV1Input, Pull-up
Reserved: do not connect (internal IMU interrupt)

Source: Bosch Sensortec Datasheet (BST-BHI360-DS000-03) Manufacturer: Bosch Sensortec Part Number: BHI360 Document: BST-BHI360-DS000-03 --- Rev 1.2, January 13, 2025

Absolute Maximum Ratings

ParameterConditionMinMaxUnit
Voltage at Supply Pin (VDD)--0.34V
Voltage at Supply Pin (VDDIO)--0.32.75V
Voltage at any Logic PinNon-supply pin-0.3VDDIO+0.3V
Passive Storage Temp. Range<=65% rel. humidity-50150deg C
NVM Data RetentionT = 85 deg C, after 15 cycles10-years
NVM Write Cycles--10,000cycles
Mechanical Shock (200 us half sine)--2,900g
Mechanical Shock (0.3 ms half sine)--2g
Free Fall onto Hard Surfaces--2m
ESD (HBM)--500kV
ESD (CDM)--200V
ESD (MM)--200V

Electrical Characteristics

ParameterSymbolConditionMinTypMaxUnit
Brown-out Detection Level (rising)VBROUT-RTA = -40 to 85 deg C1.3-1.6V
Voltage Input Low LevelVIL---0.3*VDDIOV
Voltage Input High LevelVIH-0.7*VDDIO--V
Internal Pull-up (M3SCL)RUPCLK-3561107kOhm
Internal Pull-up (other pads)RUP-71121214kOhm
Internal Pull-down (HSDO)RDN-62109208kOhm
Pad Capacitance (Host IF pads)CPAD1--1.8-pF
Pad Capacitance (M3SCL)CPAD2--3.6-pF
Pad Capacitance (Aux IF pads)CPAD3--6.8-pF
System Oscillator (Long Run)fSYSLRTA = 25 deg C18.42021.6MHz
System Oscillator (Turbo)fSYSTTA = 25 deg C465054MHz
Timer Oscillator FrequencyfTMRTA = 25 deg C125128131kHz
Fuser2 CPU Benchmark-Metaware compiler-3.67-CoreMark/MHz

Power Consumption

ParameterConditionTypical CurrentUnit
Deep SleepGyro/Accel suspend, Fuser2 deep sleep, 32KB RAM retention7.8uA
Regular SleepGyro/Accel suspend, Fuser2 regular sleep, 32KB RAM retention8.1uA
Accel Low Power ModeAccel LP ODR 25Hz, Gyro suspend, Fuser2 deep sleep14uA
Accel Normal ModeAccel normal, Gyro suspend, Fuser2 deep sleep214uA
Accel + Gyro Low PowerAccel+Gyro LP ODR 25Hz, Fuser2 deep sleep424uA
Accel + Gyro NormalAccel+Gyro normal, ODR max, Fuser2 deep sleep689uA
Accel + Gyro PerformanceAccel+Gyro performance, ODR max, Fuser2 deep sleep974uA
Fuser2 Long Run (matrix mult.)Gyro/Accel suspend, 20 MHz840uA
Fuser2 Long Run (CoreMark)Gyro/Accel suspend, 20 MHz950uA
Fuser2 Turbo (CoreMark)Gyro/Accel suspend, 50 MHz2,800uA
Game Rotation VectorIMU Normal, ODR 100 Hz784uA
Game Rotation VectorIMU Low Power, ODR 25 Hz441uA
Rotation Vector (9DoF)IMU Normal, ODR 100 Hz840uA
Wearable Activity RecognitionAccel Low Power43uA
Step Counter (wearable)Accel Low Power45uA
No Motion / Any MotionAccel Low Power32uA

Communication Interface

The BHI360 host interface is configurable as either SPI or I2C. The mode is selected at boot time via the HCSB pin: pulling HCSB low selects SPI mode, keeping it high selects I2C mode.

I2C Mode:

  • Supports standard mode (100 kHz), fast mode (400 kHz), fast mode plus (1 MHz), and high-speed mode (3.4 MHz)
  • 7-bit addressing with address select via HSDO pin
  • External pull-up resistors required on SDA and SCL lines connected to VDDIO

SPI Mode:

  • 4-wire SPI with CPOL=0, CPHA=0 (SPI Mode 0)
  • Maximum clock: 22 MHz (Long Run mode), 55 MHz (Turbo mode)
  • Burst mode supported for efficient data transfer

Secondary Master Interfaces:

  • Master Interface 2: Configurable as I2C or SPI for connecting external sensors (e.g., magnetometer)
  • Master Interface 3: I2C-only interface for additional external sensors
  • Both interfaces support connection of external sensors for 9DoF sensor fusion

Host Data Interface:

  • 3 FIFO channels: Wake-Up FIFO, Non-Wake-Up FIFO, Status/Debug FIFO
  • Configurable host interrupt (HIRQ) with edge or level trigger
  • Command/response protocol for device configuration
  • Parameter interface for runtime configuration changes

Packages

The BHI360 is available in a single package variant:

ParameterValue
Package TypeLGA (Land Grid Array)

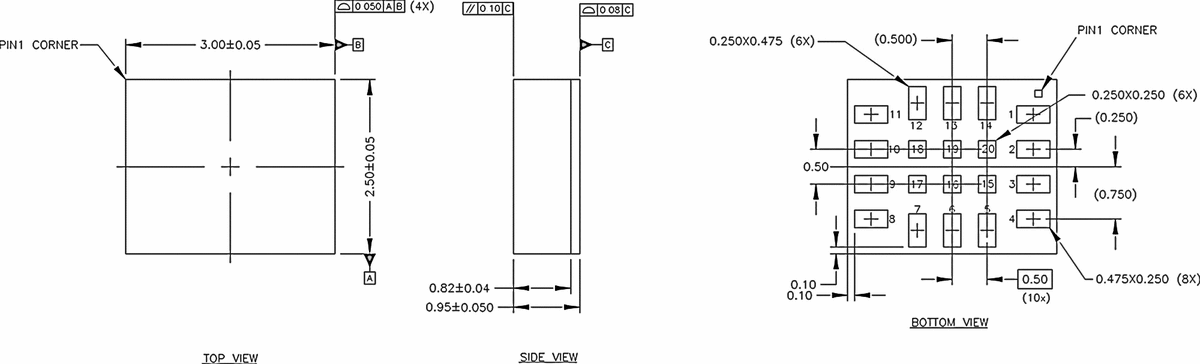

Dimensions2.5 mm x 3.0 mm x 0.95 mm
Pad Count20
Pin 1 IndicatorDot marking on top surface
Device MarkingVL CCC (V = product ID, L = internal code, CCC = tracing ID)
Sales Part NumberBHI360: 0 273 017 037

The package is designed for pin-to-pin backward compatibility with many Bosch Sensortec IMUs, enabling easy drop-in replacement on existing PCB designs. A recommended PCB footprint is provided in the datasheet.

Software API

The BHI360 includes a comprehensive integrated software stack accessible through its host interface register map and command protocol:

Event-Driven Software Framework:

  • OPENRTOS multithreading real-time kernel
  • Virtual sensor stack with configurable output data rates (1.56 Hz to 800 Hz)
  • Wake-up and non-wake-up FIFO event channels for efficient data delivery
  • Meta events for system status notifications (flush complete, sample rate changed, power mode changed, errors)

BSX Sensor Fusion Library:

  • 6DoF and 9DoF 3D device orientation (quaternion, Euler angles)
  • Gravity vector and linear acceleration
  • Dynamic offset autocalibration for accelerometer, gyroscope, and magnetometer
  • Geomagnetic rotation vector (with external magnetometer)
  • Configurable high-performance or low-power fusion modes

Custom Core Algorithms (Bosch Sensortec Core):

  • Step counter (wearable-optimized)
  • Multi-tap detector (configurable single, double, triple tap)
  • Wrist gesture detection and wrist wear wake-up
  • Activity recognition (stationary, walking, running, etc.)
  • Any motion / no motion / significant motion detection

SDK and Development:

  • Open sensor platform for custom embedded algorithm development on Fuser2
  • Standard C library (libc) and math library (libm)
  • Digital signature libraries for secure boot
  • Sensor data injection mode for algorithm testing
  • Soft pass-through for direct access to secondary sensors
  • Axis remapping via firmware configuration for flexible PCB placement
  • Post-mortem debug data download for diagnostics

Host Interface Commands:

  • Firmware upload to program RAM with boot command
  • Sensor configuration (sample rate, dynamic range, FIFO format)
  • Sensor self-test and fast offset compensation
  • Parameter read/write interface for runtime configuration

Applications

  • Wearable devices (smartwatches, fitness trackers, hearables, smart glasses)
  • Smartphones, tablets, and mobile communication devices
  • 24/7 always-on sensor data processing at ultra-low power
  • Indoor navigation and pedestrian dead reckoning
  • Gesture recognition and motion-controlled user interfaces
  • Activity tracking and fitness monitoring
  • Head tracking for AR/VR headsets
  • IoT sensor hubs with external sensor expansion
  • Robotics and drone stabilization
  • Gaming controllers and motion input devices

Diagrams & Graphs (3)

**Source:** [Bosch Sensortec Datasheet (BST-BHI360-DS000-03)](https://www.bosch-sensortec.com/media/boschsensortec/downloads/datasheets/bst-bhi360-ds000.pdf)
**Manufacturer:** Bosch Sensortec
**Part Number:** BHI360
**Document:** BST-BHI360-DS000-03 --- Rev 1.2, January 13, 2025

## Description

The BHI360 is a highly integrated, ultra-low-power, programmable smart sensor system designed for always-on sensor data processing. It combines a best-in-class 6-axis IMU (16-bit 3-axis accelerometer and 16-bit 3-axis gyroscope) with a programmable 32-bit microcontroller (Fuser2) and an additional ultra-low-power custom core optimized for accelerometer-based always-on algorithms. The device includes a powerful software framework, SDK, and preinstalled sensor data processing algorithms including the BSX sensor fusion library.

Integrated in a compact 2.5 mm x 3.0 mm LGA package with 20 pads, the BHI360 is pin-to-pin backward compatible with many Bosch Sensortec IMUs, enabling easy replacement and platform design. It features a host interface configurable as SPI or I2C, two secondary master interfaces for connecting external sensors, up to 8 GPIOs, and fast I/O operations (SPI/GPIO up to 50 MHz, I2C up to 3.4 MHz).

The Fuser2 MCU core is based on ARC EM4 architecture delivering up to 3.67 CoreMark/MHz, with 256 kByte on-chip SRAM, 144 kByte on-chip ROM preloaded with software, and a 4-channel micro DMA controller. The integrated event-driven software framework with OPENRTOS multithreading kernel and virtual sensor stack provides a flexible platform for custom embedded algorithm development. The device supports high performance mode as well as several low-power modes including deep sleep at 7.8 uA.

## Key Specifications

| Parameter | Value |
|---|---|
| IMU Type | 6-axis (3-axis accelerometer + 3-axis gyroscope) |
| Accelerometer Resolution | 16-bit |
| Gyroscope Resolution | 16-bit |
| Accelerometer Range | +/-2g, +/-4g, +/-8g, +/-16g (selectable) |
| Gyroscope Range | +/-125, +/-250, +/-500, +/-1000, +/-2000 deg/s (selectable) |
| Accelerometer ODR (Host) | 12.5 Hz to 800 Hz |
| Gyroscope ODR (Host) | 12.5 Hz to 800 Hz |
| MCU Core | ARC EM4, 3.67 CoreMark/MHz |
| MCU Frequency | 20 MHz (Long Run) / 50 MHz (Turbo) |
| On-chip SRAM | 256 kByte |
| On-chip ROM | 144 kByte |
| Supply Voltage VDD | 1.71 V to 3.6 V |
| Supply Voltage VDDIO | 1.71 V to 1.89 V (typ. 1.8 V) |
| Deep Sleep Current | 7.8 uA (typ.) |
| Long Run CoreMark Current | 950 uA @ 20 MHz |
| Turbo CoreMark Current | 2.8 mA @ 50 MHz |
| Operating Temperature | -40 to +85 deg C |
| Package | 2.5 mm x 3.0 mm x 0.95 mm LGA, 20 pads |
| Host Interface | SPI (up to 50 MHz) or I2C (up to 3.4 MHz) |

## Features

- Best-in-class 6-axis IMU with 16-bit accelerometer and 16-bit gyroscope
- Programmable 32-bit Fuser2 MCU (ARC EM4) with FPU, running at 20 MHz or 50 MHz
- Ultra-low-power custom core (Bosch Sensortec Core) optimized for always-on algorithms
- 256 kByte on-chip SRAM and 144 kByte on-chip ROM with preloaded software
- 4-channel micro DMA controller and Memory Protection Unit (MPU)
- Integrated BSX sensor fusion library with 6DoF/9DoF orientation, gravity vector, and dynamic offset autocalibration
- Event-driven software framework with OPENRTOS multithreading real-time kernel
- Virtual sensor stack supporting step counter, tap detection, gesture detection, activity recognition, and wrist wear wake-up
- Host interface configurable as SPI (up to 50 MHz) or I2C (up to 3.4 MHz)
- Two secondary master interfaces (I2C and/or SPI) for external sensor expansion
- Up to 8 software-configurable GPIOs
- Secure boot mode with digital signature verification
- Pin-to-pin backward compatible with many Bosch Sensortec IMUs
- Deep sleep current as low as 7.8 uA with RAM retention
- Open sensor platform with SDK for custom embedded algorithm development
- Standard C library (libc) and math library (libm) available

## Pin Configuration

| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | HSDO | Input, Pull-down | Host Interface: SPI MISO / I2C address select |
| 2 | ASDX | Input, Pull-up | Sensor Aux Interface: OIS SDA / I2C SDA / Master 2 SPI MOSI or I2C SDA |
| 3 | ASCX | Input, Pull-up | Sensor Aux Interface: OIS Clock / I2C SCL / Master 2 SPI SCK or I2C SCL |
| 4 | HIRQ | Output | Host Interrupt Signal |
| 5 | VDDIO | Supply | Digital IO and Fuser2 Supply |
| 6 | GNDIO | Ground | Digital IO and Fuser2 Ground |
| 7 | GND | Ground | Analog Sensor Ground |
| 8 | VDD | Supply | Analog Sensor Supply |
| 9 | VREG | Supply | Voltage regulator output |
| 10 | OCSB | Input, Pull-up | Sensor Aux Interface: OIS Chip Select / Master 2 SPI CS1 |
| 11 | OSDO | Input, Pull-up | Sensor Aux Interface: OIS MISO / Master 2 SPI MISO |
| 12 | HCSB | Input, Pull-up | Host Interface: SPI Chip Select / I2C mode select (keep high for I2C) |
| 13 | HSCX | Input, Pull-up | Host Interface: SPI SCK / I2C SCL |
| 14 | HSDX | Input, Pull-up | Host Interface: SPI MOSI / I2C SDA |
| 15 | M3SCL | Input, Pull-up | Master 3 I2C SCL / Fuser2 Debug Clock (JTAG_CLK) |
| 16 | JTAG_DIO | Input, Pull-up | Fuser2 Debug Data (JTAG_DIO) |
| 17 | RESETN | Input, Pull-up | Reset input, active low |
| 18 | M3SDA | Input, Pull-up | Master 3: I2C SDA |
| 19 | RESV2 | Input, Pull-up | Reserved: do not connect (internal IMU interrupt) |
| 20 | RESV1 | Input, Pull-up | Reserved: do not connect (internal IMU interrupt) |

## Absolute Maximum Ratings

| Parameter | Condition | Min | Max | Unit |
|---|---|---|---|---|
| Voltage at Supply Pin (VDD) | - | -0.3 | 4 | V |
| Voltage at Supply Pin (VDDIO) | - | -0.3 | 2.75 | V |
| Voltage at any Logic Pin | Non-supply pin | -0.3 | VDDIO+0.3 | V |
| Passive Storage Temp. Range | <=65% rel. humidity | -50 | 150 | deg C |
| NVM Data Retention | T = 85 deg C, after 15 cycles | 10 | - | years |
| NVM Write Cycles | - | - | 10,000 | cycles |
| Mechanical Shock (200 us half sine) | - | - | 2,900 | g |
| Mechanical Shock (0.3 ms half sine) | - | - | 2 | g |
| Free Fall onto Hard Surfaces | - | - | 2 | m |
| ESD (HBM) | - | - | 500 | kV |
| ESD (CDM) | - | - | 200 | V |
| ESD (MM) | - | - | 200 | V |

## Electrical Characteristics

| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Brown-out Detection Level (rising) | VBROUT-R | TA = -40 to 85 deg C | 1.3 | - | 1.6 | V |
| Voltage Input Low Level | VIL | - | - | - | 0.3*VDDIO | V |
| Voltage Input High Level | VIH | - | 0.7*VDDIO | - | - | V |
| Internal Pull-up (M3SCL) | RUPCLK | - | 35 | 61 | 107 | kOhm |
| Internal Pull-up (other pads) | RUP | - | 71 | 121 | 214 | kOhm |
| Internal Pull-down (HSDO) | RDN | - | 62 | 109 | 208 | kOhm |
| Pad Capacitance (Host IF pads) | CPAD1 | - | - | 1.8 | - | pF |
| Pad Capacitance (M3SCL) | CPAD2 | - | - | 3.6 | - | pF |
| Pad Capacitance (Aux IF pads) | CPAD3 | - | - | 6.8 | - | pF |
| System Oscillator (Long Run) | fSYSLR | TA = 25 deg C | 18.4 | 20 | 21.6 | MHz |
| System Oscillator (Turbo) | fSYST | TA = 25 deg C | 46 | 50 | 54 | MHz |
| Timer Oscillator Frequency | fTMR | TA = 25 deg C | 125 | 128 | 131 | kHz |
| Fuser2 CPU Benchmark | - | Metaware compiler | - | 3.67 | - | CoreMark/MHz |

## Power Consumption

| Parameter | Condition | Typical Current | Unit |
|---|---|---|---|
| Deep Sleep | Gyro/Accel suspend, Fuser2 deep sleep, 32KB RAM retention | 7.8 | uA |
| Regular Sleep | Gyro/Accel suspend, Fuser2 regular sleep, 32KB RAM retention | 8.1 | uA |
| Accel Low Power Mode | Accel LP ODR 25Hz, Gyro suspend, Fuser2 deep sleep | 14 | uA |
| Accel Normal Mode | Accel normal, Gyro suspend, Fuser2 deep sleep | 214 | uA |
| Accel + Gyro Low Power | Accel+Gyro LP ODR 25Hz, Fuser2 deep sleep | 424 | uA |
| Accel + Gyro Normal | Accel+Gyro normal, ODR max, Fuser2 deep sleep | 689 | uA |
| Accel + Gyro Performance | Accel+Gyro performance, ODR max, Fuser2 deep sleep | 974 | uA |
| Fuser2 Long Run (matrix mult.) | Gyro/Accel suspend, 20 MHz | 840 | uA |
| Fuser2 Long Run (CoreMark) | Gyro/Accel suspend, 20 MHz | 950 | uA |
| Fuser2 Turbo (CoreMark) | Gyro/Accel suspend, 50 MHz | 2,800 | uA |
| Game Rotation Vector | IMU Normal, ODR 100 Hz | 784 | uA |
| Game Rotation Vector | IMU Low Power, ODR 25 Hz | 441 | uA |
| Rotation Vector (9DoF) | IMU Normal, ODR 100 Hz | 840 | uA |
| Wearable Activity Recognition | Accel Low Power | 43 | uA |
| Step Counter (wearable) | Accel Low Power | 45 | uA |
| No Motion / Any Motion | Accel Low Power | 32 | uA |

## Communication Interface

The BHI360 host interface is configurable as either SPI or I2C. The mode is selected at boot time via the HCSB pin: pulling HCSB low selects SPI mode, keeping it high selects I2C mode.

**I2C Mode:**
- Supports standard mode (100 kHz), fast mode (400 kHz), fast mode plus (1 MHz), and high-speed mode (3.4 MHz)
- 7-bit addressing with address select via HSDO pin
- External pull-up resistors required on SDA and SCL lines connected to VDDIO

**SPI Mode:**
- 4-wire SPI with CPOL=0, CPHA=0 (SPI Mode 0)
- Maximum clock: 22 MHz (Long Run mode), 55 MHz (Turbo mode)
- Burst mode supported for efficient data transfer

**Secondary Master Interfaces:**
- Master Interface 2: Configurable as I2C or SPI for connecting external sensors (e.g., magnetometer)
- Master Interface 3: I2C-only interface for additional external sensors
- Both interfaces support connection of external sensors for 9DoF sensor fusion

**Host Data Interface:**
- 3 FIFO channels: Wake-Up FIFO, Non-Wake-Up FIFO, Status/Debug FIFO
- Configurable host interrupt (HIRQ) with edge or level trigger
- Command/response protocol for device configuration
- Parameter interface for runtime configuration changes

## Packages

The BHI360 is available in a single package variant:

| Parameter | Value |
|---|---|
| Package Type | LGA (Land Grid Array) |
| Dimensions | 2.5 mm x 3.0 mm x 0.95 mm |
| Pad Count | 20 |
| Pin 1 Indicator | Dot marking on top surface |
| Device Marking | VL CCC (V = product ID, L = internal code, CCC = tracing ID) |
| Sales Part Number | BHI360: 0 273 017 037 |

The package is designed for pin-to-pin backward compatibility with many Bosch Sensortec IMUs, enabling easy drop-in replacement on existing PCB designs. A recommended PCB footprint is provided in the datasheet.

## Software API

The BHI360 includes a comprehensive integrated software stack accessible through its host interface register map and command protocol:

**Event-Driven Software Framework:**
- OPENRTOS multithreading real-time kernel
- Virtual sensor stack with configurable output data rates (1.56 Hz to 800 Hz)
- Wake-up and non-wake-up FIFO event channels for efficient data delivery
- Meta events for system status notifications (flush complete, sample rate changed, power mode changed, errors)

**BSX Sensor Fusion Library:**
- 6DoF and 9DoF 3D device orientation (quaternion, Euler angles)
- Gravity vector and linear acceleration
- Dynamic offset autocalibration for accelerometer, gyroscope, and magnetometer
- Geomagnetic rotation vector (with external magnetometer)
- Configurable high-performance or low-power fusion modes

**Custom Core Algorithms (Bosch Sensortec Core):**
- Step counter (wearable-optimized)
- Multi-tap detector (configurable single, double, triple tap)
- Wrist gesture detection and wrist wear wake-up
- Activity recognition (stationary, walking, running, etc.)
- Any motion / no motion / significant motion detection

**SDK and Development:**
- Open sensor platform for custom embedded algorithm development on Fuser2
- Standard C library (libc) and math library (libm)
- Digital signature libraries for secure boot
- Sensor data injection mode for algorithm testing
- Soft pass-through for direct access to secondary sensors
- Axis remapping via firmware configuration for flexible PCB placement
- Post-mortem debug data download for diagnostics

**Host Interface Commands:**
- Firmware upload to program RAM with boot command
- Sensor configuration (sample rate, dynamic range, FIFO format)
- Sensor self-test and fast offset compensation
- Parameter read/write interface for runtime configuration

## Applications

- Wearable devices (smartwatches, fitness trackers, hearables, smart glasses)
- Smartphones, tablets, and mobile communication devices
- 24/7 always-on sensor data processing at ultra-low power
- Indoor navigation and pedestrian dead reckoning
- Gesture recognition and motion-controlled user interfaces
- Activity tracking and fitness monitoring
- Head tracking for AR/VR headsets
- IoT sensor hubs with external sensor expansion
- Robotics and drone stabilization
- Gaming controllers and motion input devices

Sub-Skills
?
What are Sub-Skills?

Sub-skills are community-contributed AI skill extensions for this component. They teach AI assistants about specific tools, configurators, or workflows.

Examples:

  • A manufacturer’s configuration tool for a motor controller
  • A community-written design guide for an amplifier circuit
  • An automated test/validation script for a sensor module

How to add one: Click Add Sub-Skill, provide the URL to your skill and a brief description. Submissions are reviewed by the Adom team before going live.

No sub-skills yet. Be the first to contribute one!
